1.Machine speed can upto 0-60m per minute, it means it can produce 20 pieces f each 3m sheet
2. Machine can be single layer, double layer or three layer
3. We have exported roofing sheet machines to more than 100 countries
4.No matter the material, the brand, language even the machine design, all can be customized
5.Email:xinnuo05@xinnuomachine.com
6.whatsapp:+8618830702960

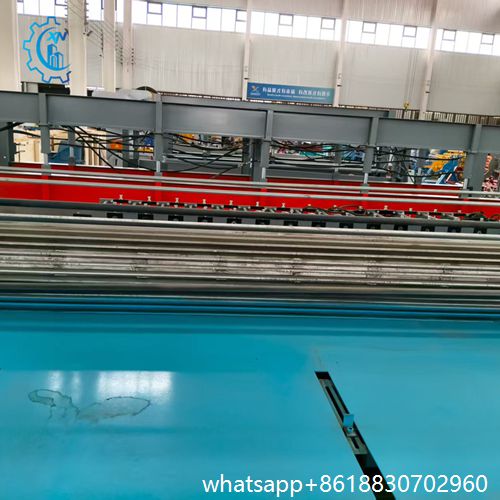

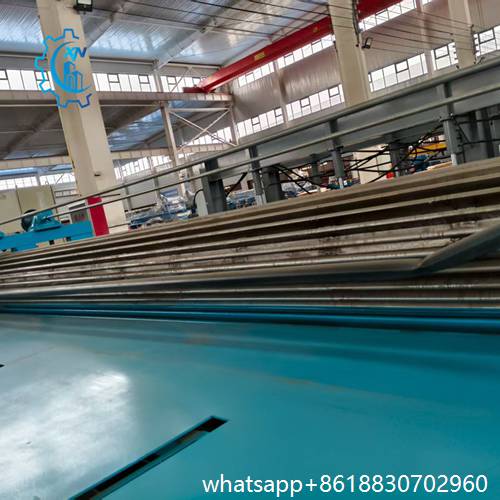

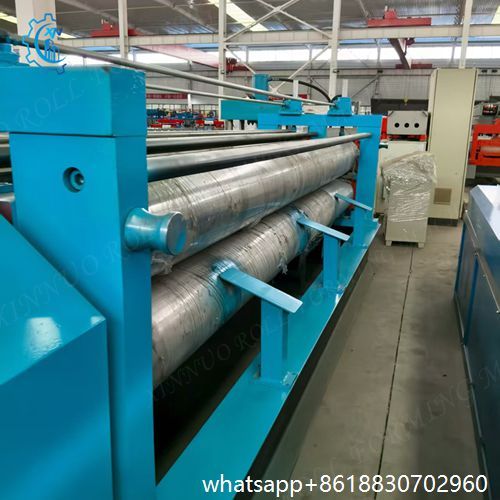

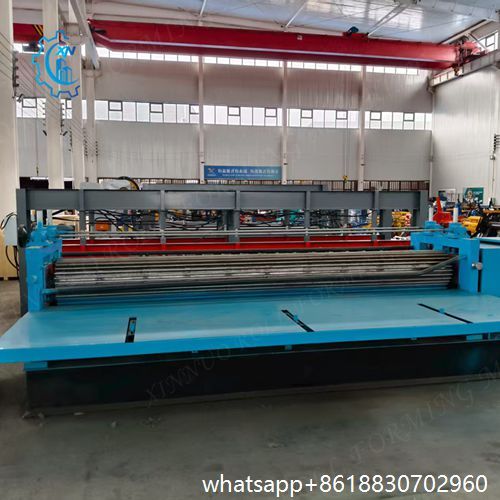

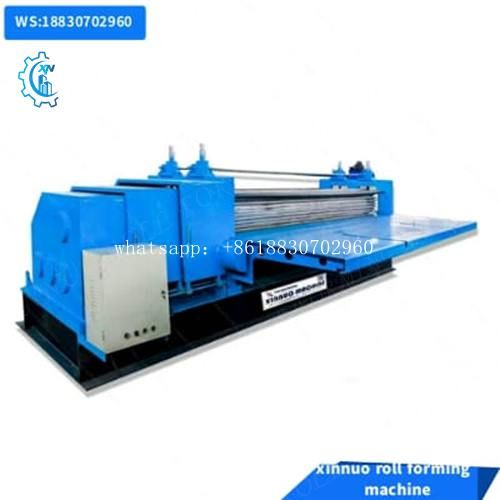

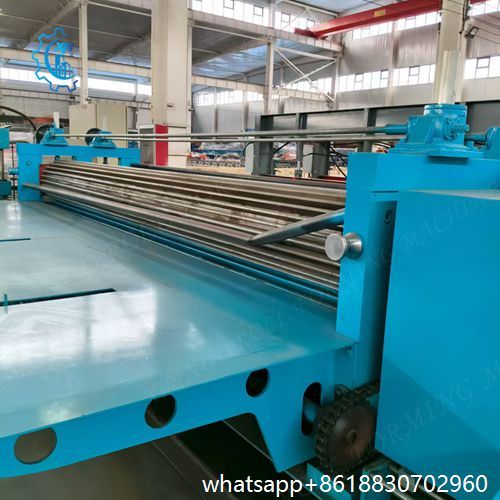

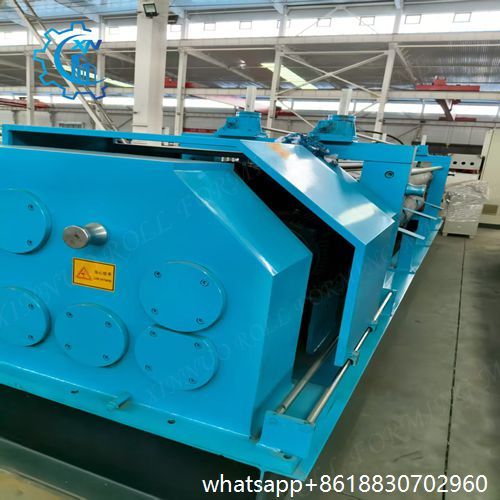

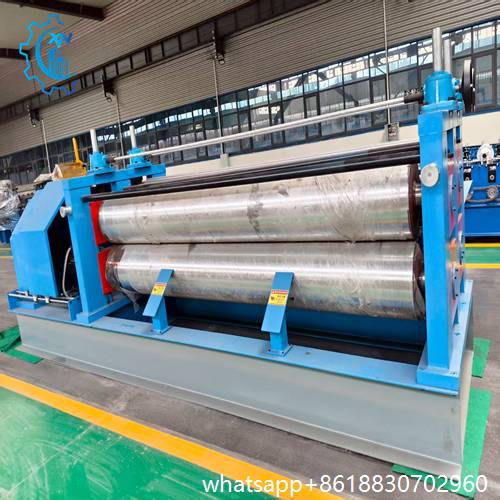

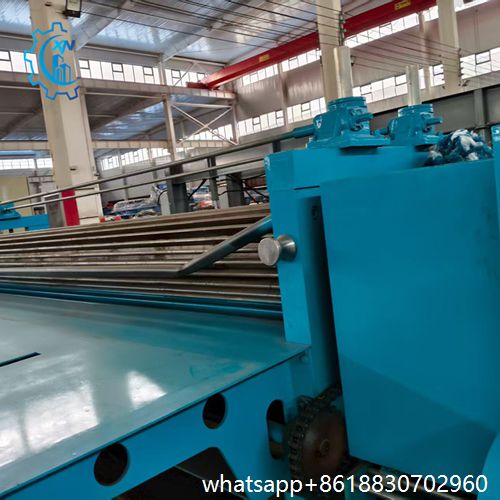

Barrel style round wave sheet roll forming machine is a kind of metal sheet roll forming machine. Diffierent from normal roll forming machine, it only have two big rollers.Before roll forming process, there will have a running table, after feeding the metal sheet into these two rollers,the thin metal sheet will become round wave type.Barrel style round wave sheet roll forming machineusually produce 0.15-0.6 mm thickness material.The normal machine configuration include roll forming device, pinch roller device, two set product collect table.This kind of material is very popular in Dominica, Ethiopai, South Africa, Vietnam and other areas.
| Sheet Maximum length | 3000mm, 4000mm, 6000mm | Drive | geared motor 7.5Kw with reducer | |
| Corrugation | large round wave | Roll revolution | max 12/minute. | |
| Raw material | PPGl; full hard, semi hard, soft. | Roller | 3 Rows | |
| Dimensions | 560*100*150mm | Thickness of the plate | 0.14-0.22mm | |
| Weight | About 3600kgs | Main structure of the machine | Square steel frame | |
| Processing precision | Within 1.0mm | Side panel of machine | 16mm | |
| Voltage | 380V 50Hz 3phases or as customer’s need | Frequency system | Delta | |
| Control system | PLC control (Delta) | Drive mode | Gear driver | |
| Rolling materials | 45# forging steel with chromium plate | origin | China |
our package
1. The main machine is covered by plastic film.
2. PLC control box, spare parts and other small parts are packed by wooden carton box.
3. If the machine is too long, we will divide it into two parts and pack them in one package with steel wire.
4. Rollers and shafts are covered with anti-rust oil.
5. Manual decoiler was nude packing.
6. The output-table put into a carton box.
7. Fit for ocean shipping.
8. Spare parts in a carton box.
9. Manual decoiler was nude packing.
barrel corrugated roll forming machine zinc roof after Sales Service
a.three year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
d.we will send you two sets wear parts in free.
FAQ
1. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.
2. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing How to make machines much more automatic, accurate and high quality. We can make sure thatour machine could use more than 20 years without any problem. We can provide 2 years free qualityassurance.
3. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 60 working days. If you need machines in a hurry, we can make it for you less than a month.
