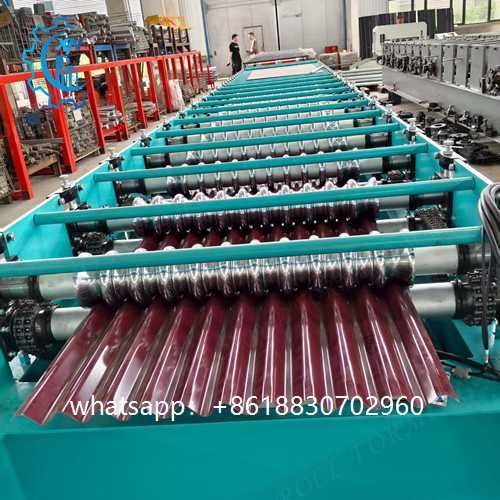

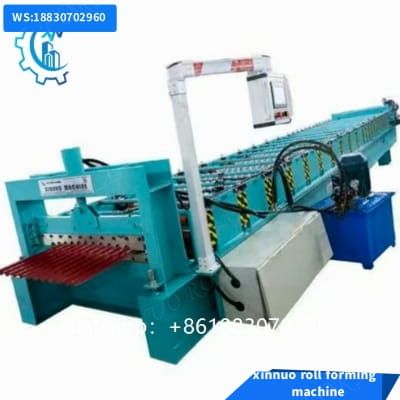

The corrugated roof panel roll - forming machine is a crucial piece of equipment in the construction industry, mainly used for manufacturing corrugated roof panels with high efficiency and precision.
This machine is designed to produce corrugated roof panels of various specifications from different materials, such as galvanized steel, aluminum, etc. It adopts advanced roll - forming technology to ensure the quality and appearance of the panels.
- Material Thickness: Usually applicable to materials with a thickness of 0.3 - 1.0mm, which can be adjusted according to specific production requirements.
- Forming Speed: The forming speed can reach 4 - 12m/min, which improves production efficiency and can meet the needs of large - scale production.
- Panel Width and Length: The width of the formed corrugated roof panel can be customized within a certain range, generally 600 - 1000mm; the length can be cut as required, and the accuracy of length control can reach ±5mm.
- Power: The power of the main motor is 15 - 30kW, which provides sufficient power for the operation of the machine.

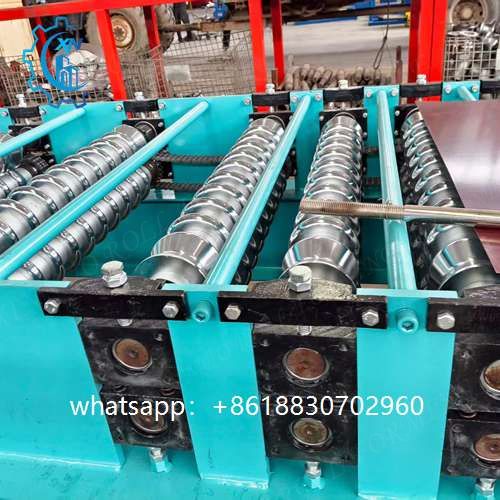

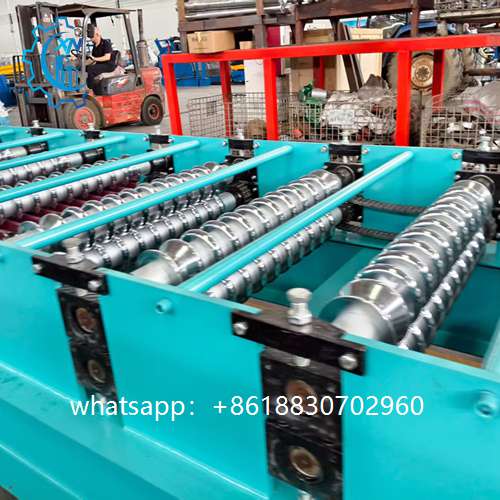

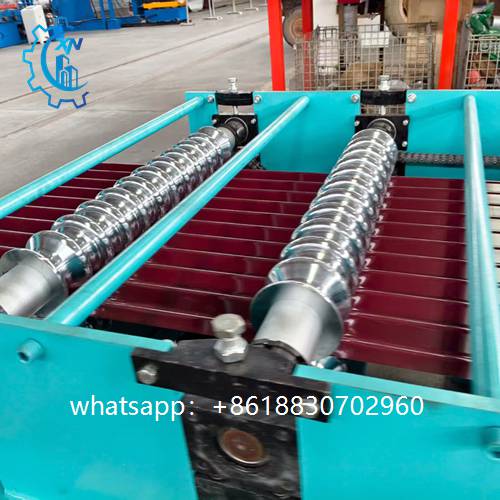

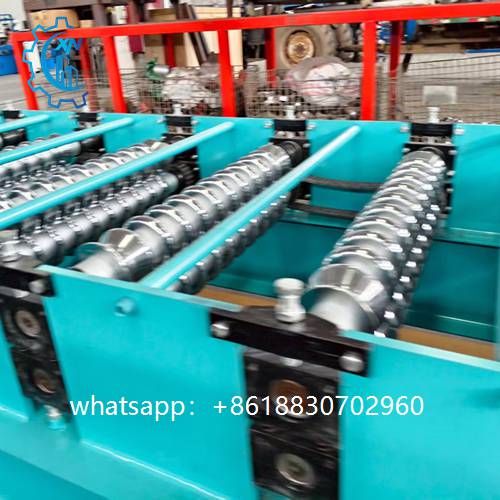

- High - precision Forming: The advanced roll - forming technology and precise roller design ensure that the formed corrugated panels have high - precision dimensions and a uniform and beautiful appearance. The error of the panel's height, width, and thickness can be controlled within ±0.1mm.
- High Production Efficiency: The high - speed forming and cutting mechanism enables the machine to produce a large number of corrugated panels in a short time, which can significantly improve production efficiency and reduce production costs.
- Strong Versatility: It can be adjusted according to different material thicknesses and panel specifications to produce various types of corrugated roof panels, such as trapezoidal corrugated panels, sinusoidal corrugated panels, etc., meeting the needs of different construction projects.
- Easy to Operate and Maintain: The user - friendly control system and simple mechanical structure make the machine easy to operate and maintain. Operators only need simple training to master the operation method of the machine. At the same time, the machine's components are easy to disassemble and replace, which reduces the maintenance time and cost.
- Good Safety Performance: The machine is equipped with a variety of safety protection devices, such as safety guards, emergency stop buttons, etc., which can effectively prevent accidents and ensure the safety of operators.
| Forming Material |
Galvanized steel, aluminum, color-coated steel |
| Material Thickness |
0.3 - 1.0 mm |
| Panel Width Range |
600 - 1200 mm (customizable) |
| Panel Length Accuracy |
±5 mm (hydraulic flying shear cutting) |
| Forming Speed |
4 - 15m/min (adjustable by material) |
| Main Motor Power |
15 - 30 kW |
| Roller Material |
Hardened alloy steel (HRC 58-62) |
| Control System |
PLC with touchscreen (parameter storage for 50+ profiles) |
| Machine Dimensions (L×W×H) |
10000×2000×1800 mm (approx.) |
| Machine Weight |
5000 - 8000 kg |
| Safety Features |
Emergency stop, protective covers, overload protection |
