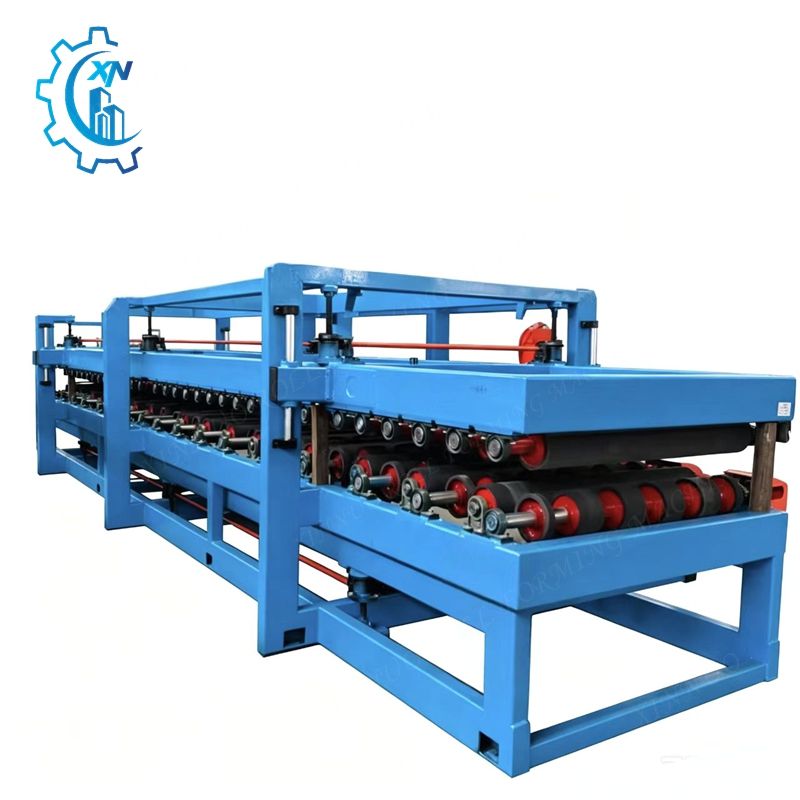

rock wool sandwich panel production line

Product Attributes :

Technical Specifications

Production Type : Continuous and automatic production
Thickness of Material : 0.3 – 0.8 mm
Width of Material : 1250 mm Max
Main Power : 75 kW
Total Power : 100 kW
Structure of Roll Forming Machine : Upper and lower pressing group producing with the pu complex mainframe

Product Description

XINNUO Sandwich Panel Line is the automation equipment that can continuously and efficiently produce rock wool sandwich panels of exquisite and diverse shapes. This Sandwich panel line has the advantages such as high durability, easy management, technology equivalent to those of advanced European companies and relatively competitive price, and it is the excellent facility that has been exported to Europe, Asia, Middle East, Russia and so forth as well as domestic market and is well received from customers.

Our rock wool sandwich panel has high strength and durability of insulating ability. which it has the resistance to flame so the panel has the high resistance to flame.

Specification : sandwich panel line>

1. Producing speed	:	Min. 2meter/min ~Max. 15meter/min
2. Length of Double belt conveyor	:	20~40meter
3. Factory Electricity	:	380V x 50Hz x 3Ph (User’s choice available)
4. Controlling Electricity	:	A.C. 220V (User’s Choice Available)
5. Factory’s Area	:	45~50(Length) x 20m(Width) x 5m(Height)
6. Pressure of compressed air	:	Over 6 bar required
7. Production	:	4~5 person

The advantages of this rock wool sandwich panel machine are the following:

1)High automatization

The whole rockwool production line adopts one full computer integration controlling system of digital servo technology frequency conversion yector technolgy and hydraulic controlling technology which realizes whole collecting contol and collecting managenent Adopt the cutting style of cut to length without machine stop, so that realize full automatically

2)Higheficiency

The production speed of rockwool sandwich panel machine is 3 - 8m/min (adjustable according to product forming requirement, The annual product capacity of this line can reach to 800000 M2 (count on the base of 250work days per year and 10 work hours per day.

3) Easy peration

Adopt collecting controlling system using man machine conversation Ater preparing for the raw material and finishing other production requtements, iput required parameters, then the machine can make the product automatically.

4)Low production cost.

Developing the machine's automatization, the whole line only needs 5- operators to operate the machine fully . which saves much labor cost and production management cost for enterprises.
