Product Description

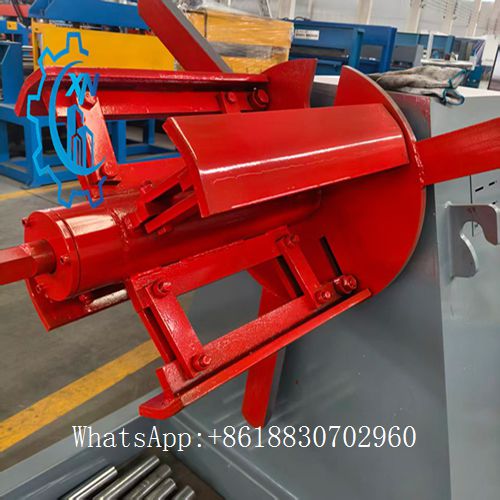

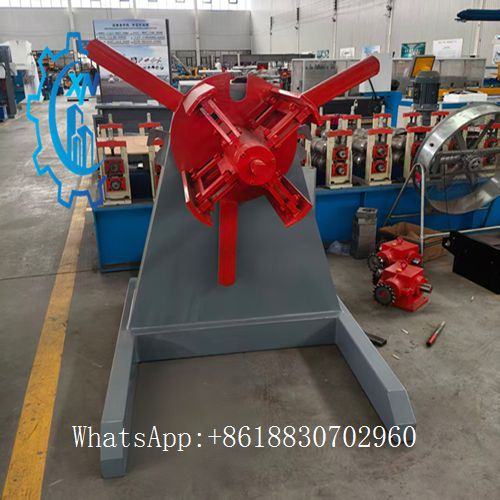

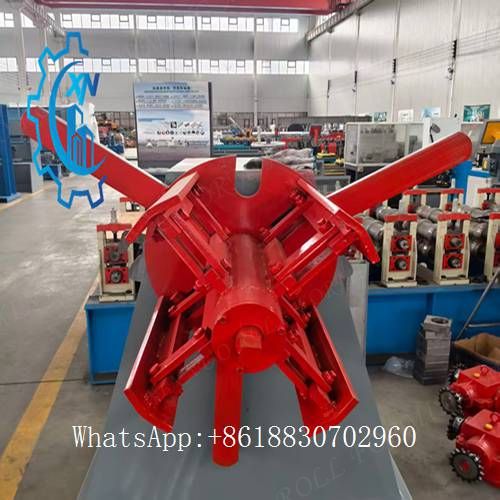

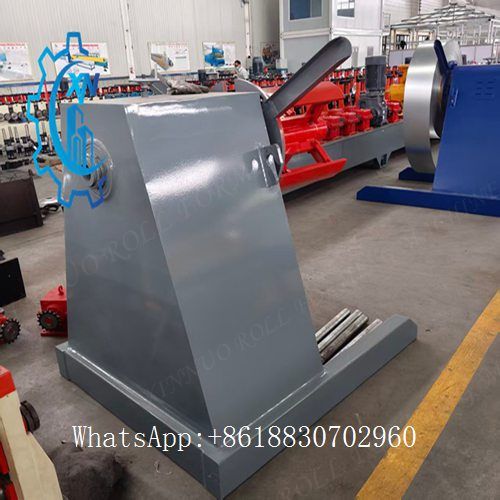

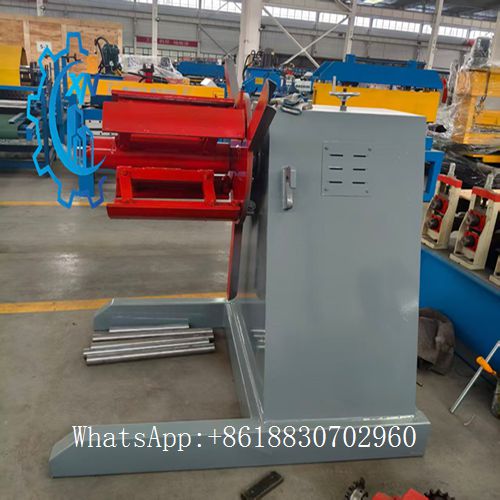

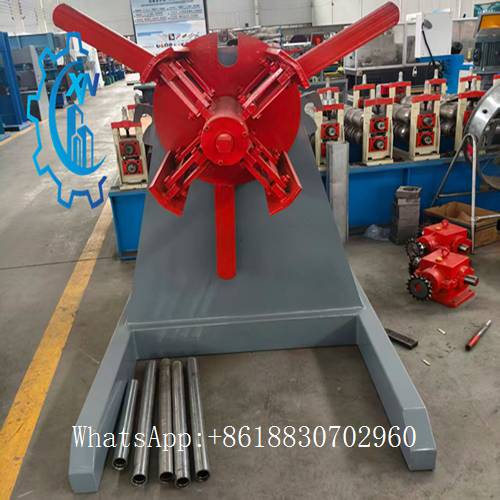

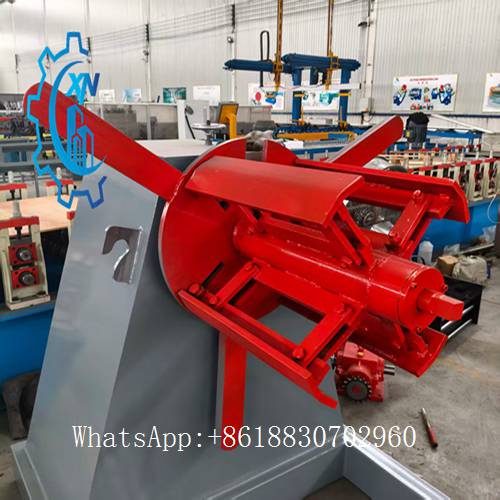

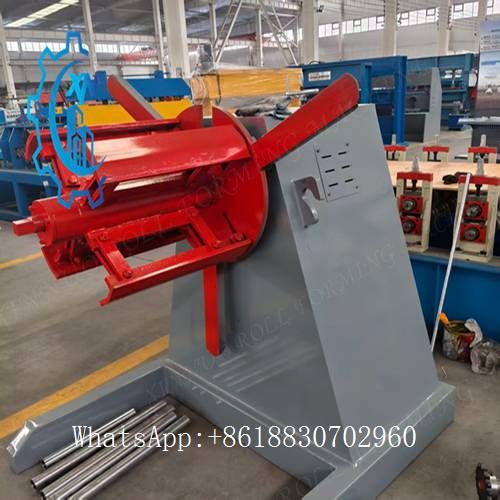

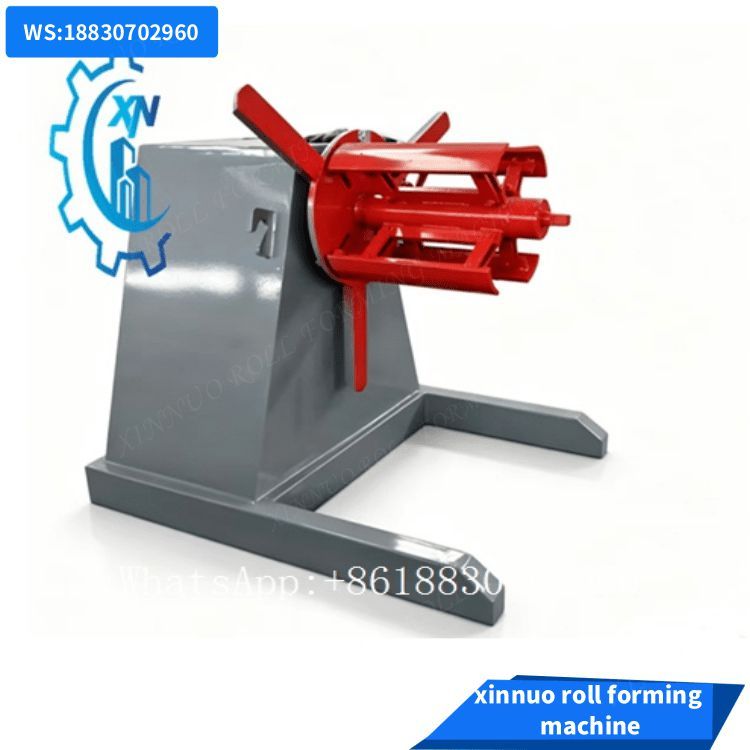

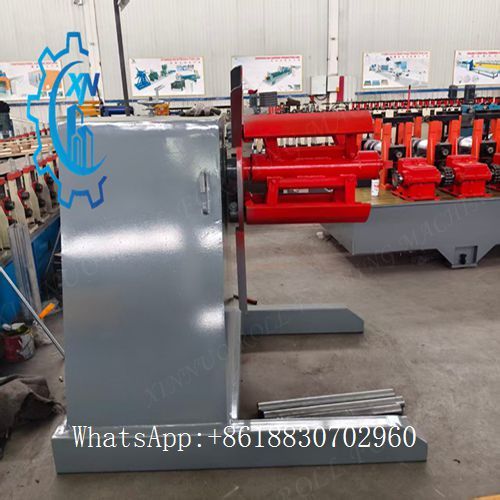

Manual Decoiler Machine

The manual decoiler is a convenient and practical equipment. Its design concept is to simplify the operation process while ensuring the flatness and integrity of the material.

XINNUO MACHINERY can customize manual decoilers of different styles and loads according to customer needs.

Specifications of manual decoiler

Capacity 2-10t (optional)
 Weight of machine 0.5-2t
 Material width 200-900mm
Suitable material Colored/ Stainless/Galvanized Steel, Aluminum sheet
Decoiling mode Passive
Material inner diameter 450-530mm
Material outer diameter 900mm

Operation way

First, make sure the decoiler is placed on a flat and stable ground, check whether all parts of the equipment are intact, place the material roll to be unrolled on the roller of the uncoiler,

and make sure that the axis of the material roll coincides with the axis of the roller.

Second,Adjust the decoiler: According to the thickness and texture of the material, adjust the spacing and pressure of the roller to ensure that the material can be unrolled smoothly and smoothly.

Third Start unwinding: Turn the handle of the decoiler to start the roller working. In the process of unwinding the material, maintain appropriate speed and strength to avoid damage or wrinkling of the material.



Main Features

Heavy-duty Hydraulic Expansion Mandrel

Made of No.45 forged steel, reliable clamping force, effectively prevent coil slipping and deviation during operation.
Stable Tension Control & Smooth Unwinding

Hydraulic motor drive delivers strong starting torque, stable low-speed operation, matched with hydraulic brake to avoid coil scattering and material wrinkling.
Optional Configuration

Hydraulic hold-down arm to prevent loose coil rebound; coil loading car for easy coil loading, greatly reduce manual labor and improve safety.
Wide Application Range

Available specifications: 5T / 8T / 10T / 15T hydraulic decoiler; support coil width up to 1250–1500mm. Suitable for galvanized steel, PPGI, stainless steel, aluminum coils.
High Compatibility

Perfectly matched with metal tile roll forming lines, floor deck machines, purlin machines, slitting lines and straightening cutting lines.
Simple Operation & Low Maintenance

Independent hydraulic station, easy inspection and maintenance; can be interlocked with downstream forming machine for synchronous automatic running.

Applications

Widely used in metal building material processing, steel structure manufacturing, sheet metal stamping, metal coil slitting industries.
Xinnuo supplies standard hydraulic decoilers and accepts custom design on coil weight, width, voltage and layout. We offer one-stop solution including machine design, production, factory testing,
installation guidance and long-term spare parts supply.

Hebei Xinnuo Machinery Co., Ltd.

Hebei Xinnuo Machinery Co., Ltd. is a leading manufacturer of cold roll forming machines and metal coil processing equipment in North China. We devote ourselves to designing and producing automated machinery for steel construction industry.
Our main products include metal roof panel machines, C&Z purlin roll formers, floor deck machines, cable tray equipment and supporting coil feeding devices. Our Hydraulic Decoiler (Hydraulic Uncoiler) is one of our star products.
Xinnuo hydraulic decoiler adopts full hydraulic driving structure with hydraulic expanding mandrel. Models from 5 tons to 15 tons are available, equipped with optional pressing arm and coil car. It provides steady tension control for galvanized coil, PPGI and aluminum coil unwinding. Widely supporting roll forming lines, slitting and cut-to-length lines.
We support customized dimensions, pass CE certification, provide overseas installation service and reliable after-sales support. Welcome global customers to negotiate cooperation.
