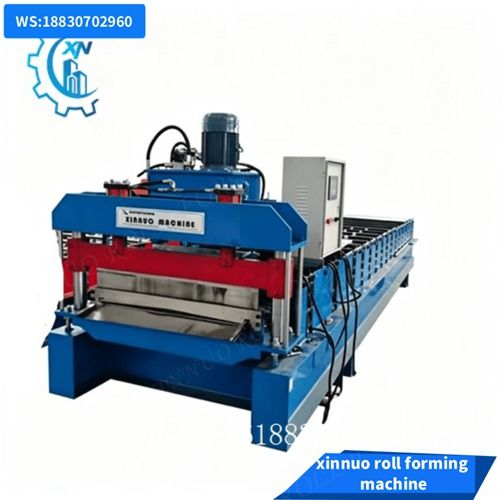

xinnuo standing seam roof panel roll forming machine

xinnuo standing seam roof panel roll forming machine

XINNUO standing seam roof panel roll forming machine is designed to produce concealed-fix standing seam roof panels for metal roofing systems. With precision forming stations and PLC-controlled hydraulic cutting, it delivers accurate dimensions,

stable profiles and high production efficiency for commercial, industrial and residential roofing projects.

Technical Parameters

Key Features

• Multi-station roll forming ensures smooth and precise profile shaping
• PLC control system with touch screen for easy, reliable operation
• Hydraulic cutting with automatic length control — accurate, burr-free edges
• High forming speed up to 15 m/min for maximum productivity
• Hardened rollers and heavy-duty frame for long service life
• Suitable for galvanized steel, color-coated steel and aluminum coils
• Customizable profile height (25 mm / 65 mm, etc.) and panel width

Standard Configuration & Options

• Standard: roll forming machine, hydraulic cutting device, PLC control cabinet, discharge table
• Optional: manual / hydraulic decoiler, automatic stacker, profile tooling change, safety guard

Applications

Standing seam roof panels for warehouses, factories, villas, stadiums, agricultural buildings and large-span steel structures.

Main Components

1. Decoiler – Holds the coil and feeds strip into the forming line smoothly.

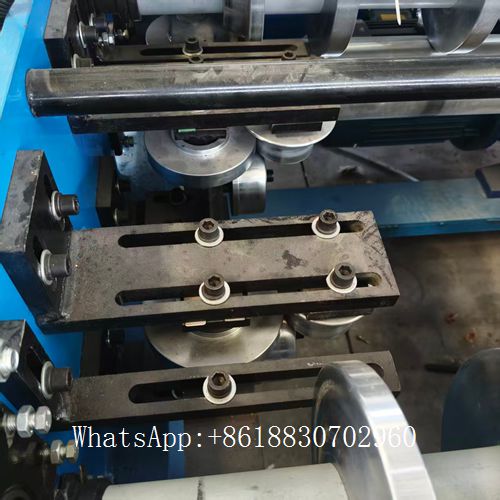

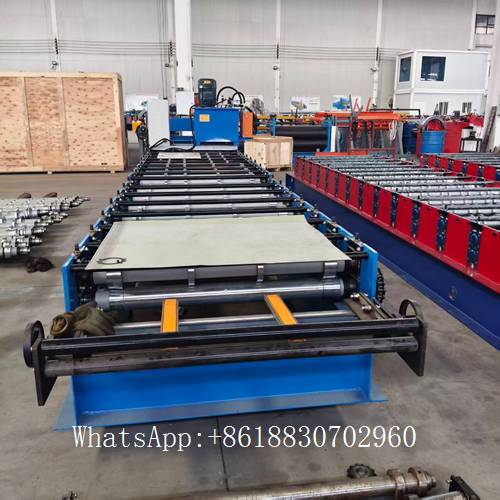

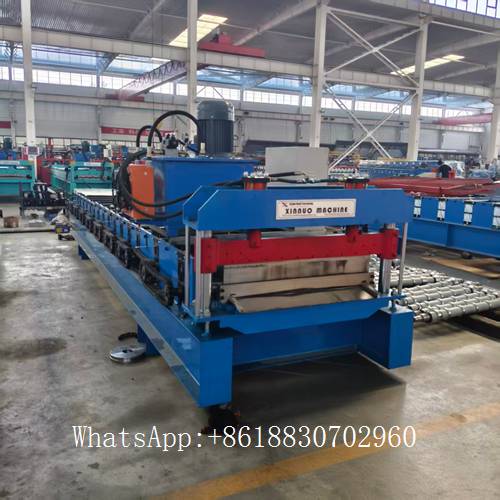

2. Roll Forming Machine – Precision rollers shape the strip into the standing seam profile in multiple passes.

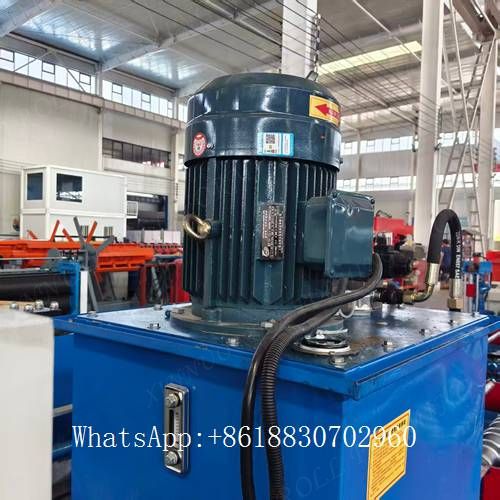

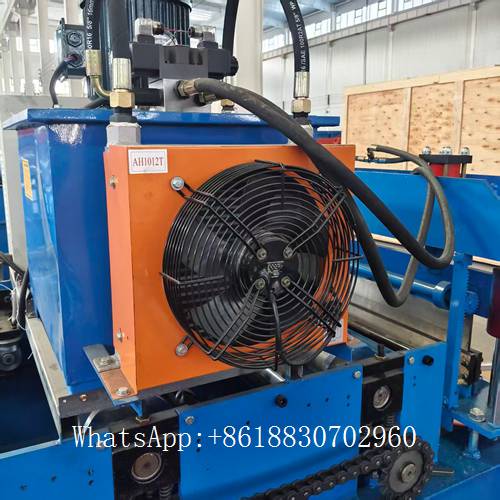

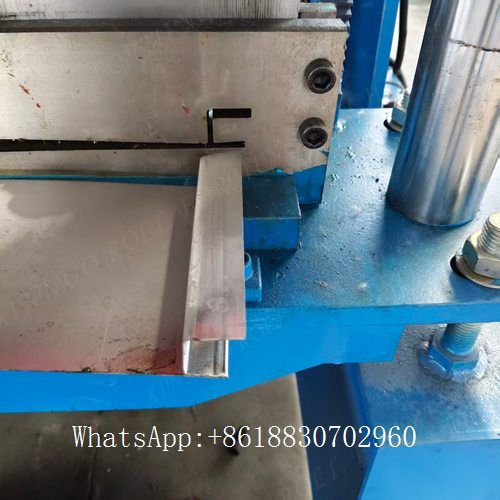

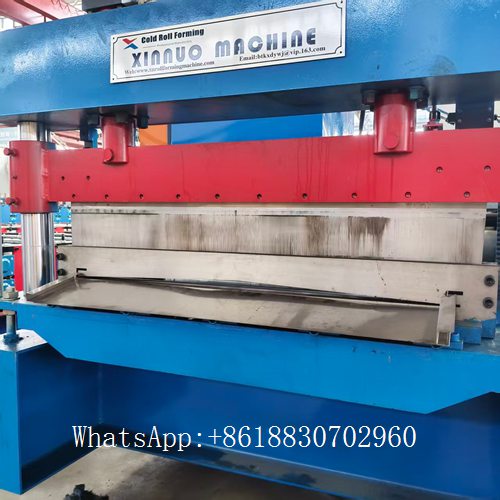

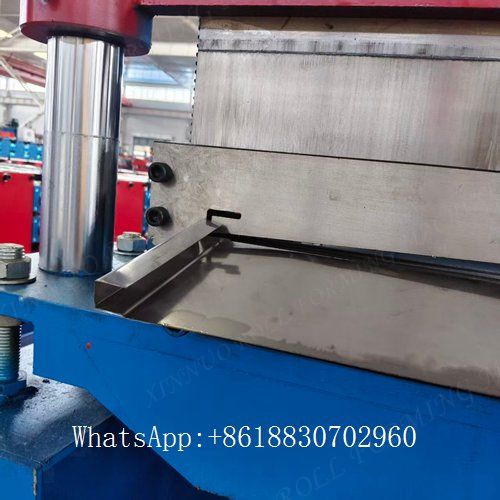

3. Hydraulic Cutting System – PLC-controlled cutting to preset length, accurate and burr-free.

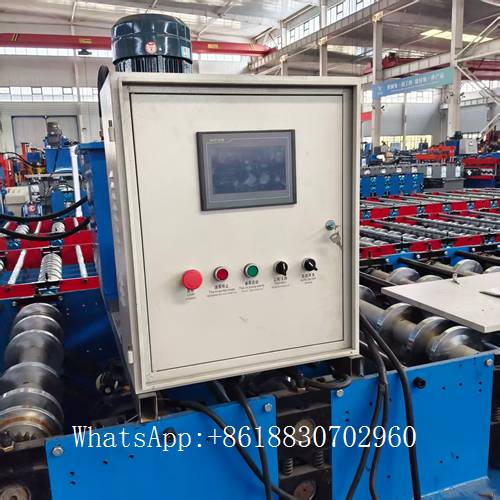

4. PLC Control System – Touch screen for setting length, quantity and speed; automatic length control and alarm.
5. Discharge Table – Roller conveyor transfers finished panels for stacking.

About Us

Xinnuo Machinery is a professional cold roll‑forming equipment manufacturer with decades‑long experience, located in Hebei, China. We focus on R&D, production and global supply of metal roofing machinery.

Our star product is the standing seam roof panel machine, fully‑PLC‑controlled to produce high‑precision interlocking metal roof panels for commercial, industrial and public‑building roofing projects.

It supports PPGI, aluminum‑magnesium‑manganese materials, delivers stable running and easy operation, with CE & ISO certification. We provide custom solutions, reliable after‑sales service and have exported to over 80 countries worldwide.
