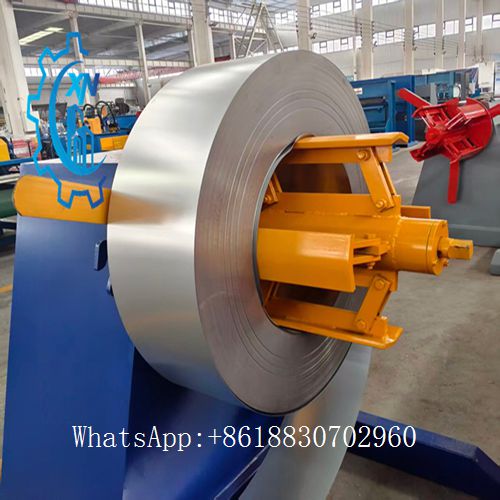

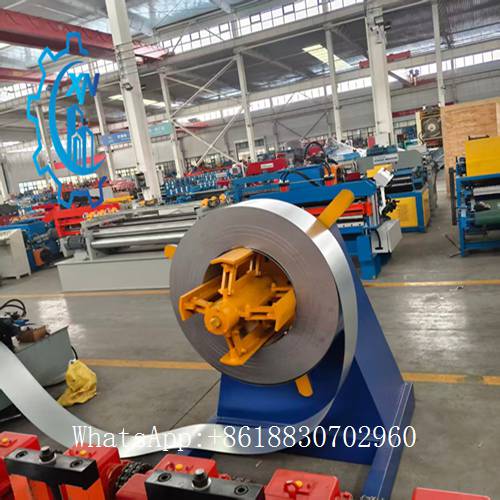

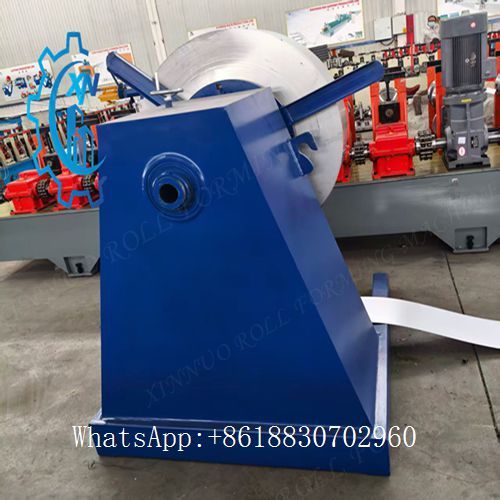

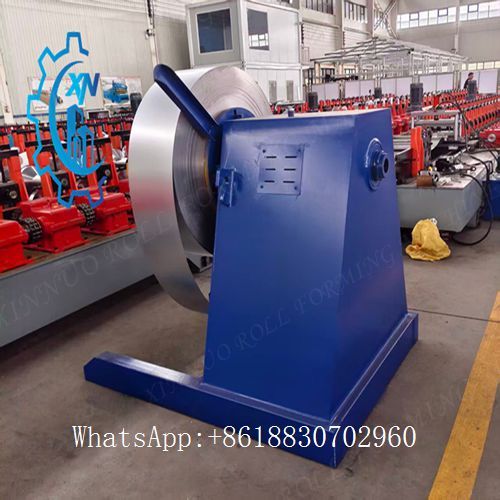

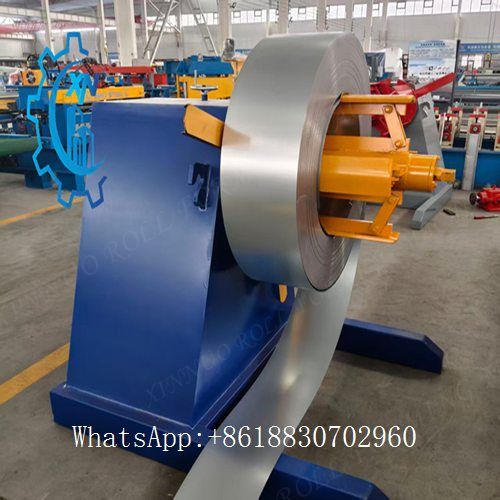

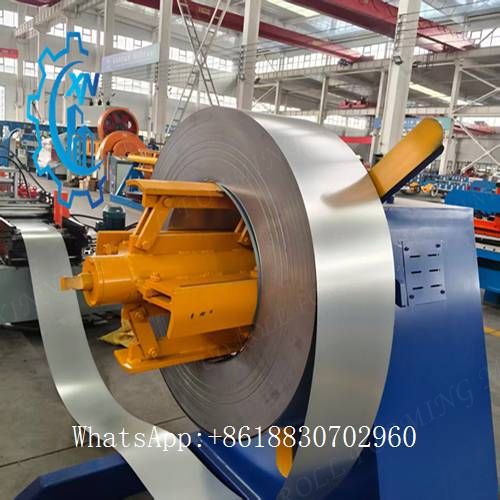

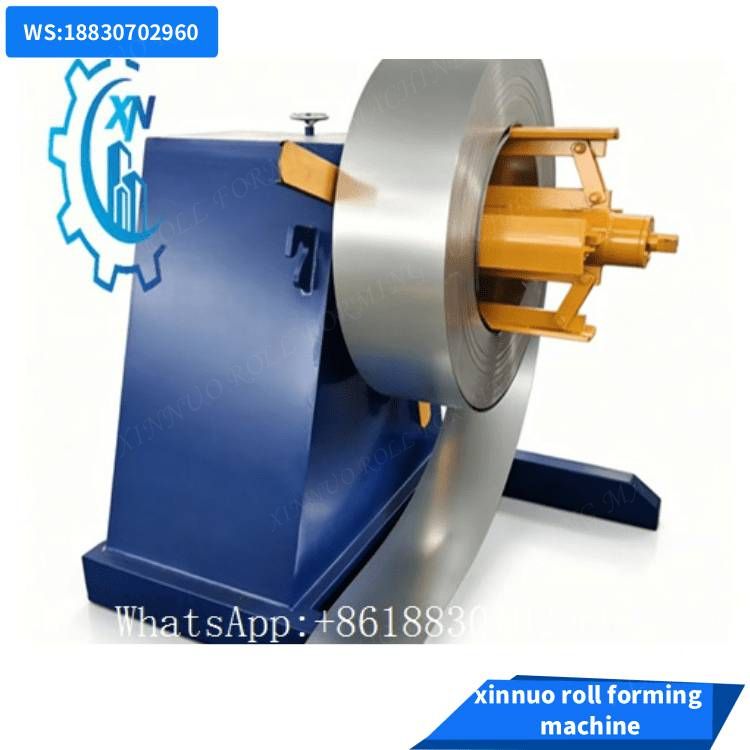

The Hydraulic Decoiler Machine is a heavy-duty coil unwinding solution for continuous sheet metal processing lines. Built with a robust cantilever-type welded beam steel frame and a hydraulically expanding 4-segment mandrel,
it grips coils from the inner diameter (Φ465–Φ515 mm) in seconds — eliminating manual crank tightening and significantly reducing changeover time.
A motorized chain-and-reducer drive rotates the mandrel actively at controlled speed, while an optional ultrasonic loop sensor automatically matches unwinding pace to the downstream line to prevent material slack and surface damage.
The independent hydraulic power unit (max 20 MPa) and separate electric control cabinet allow standalone operation of mandrel expansion, jog forward/reverse, and step motion. Optional upgrades include a hydraulic pressing arm, top support arm,
and motorized coil cart for fully automated coil handling.
| No. |
Advantage |
Detail |
| 1 |
Fast Hydraulic Clamping |
Expands mandrel to grip coil ID in seconds; max pressure 20 MPa |
| 2 |
Heavy-Duty Welded Frame |
Beam steel with shot blasting treatment; vibration-resistant under continuous duty |
| 3 |
Motorized Active Uncoiling |
Chain-driven reducer with dedicated motor; ≤45 m/min speed |
| 4 |
Adjustable Mandrel |
Standard ID range Φ465–Φ515 mm; custom ranges available |
| 5 |
Loop Control (Optional) |
Ultrasonic sensor auto-adjusts speed to prevent over-feed |
| 6 |
Independent Control Cabinet |
Jog, step motion, and E-stop — no host controller dependency |
| 7 |
Modular Add-Ons |
Pressing arm, top support arm, coil cart — build a complete station |
| 8 |
Custom Power & Direction |
380–460V, 50/60Hz configurable; L→R or R→L working direction |
Application
| Parameter |
HDC-5T |
HDC-8T |
HDC-10T |
HDC-15T |
| Max. Coil Weight |
5,000 kg |
8,000 kg |
10,000 kg |
15,000 kg |
| Coil ID Range |
Φ465–Φ515 mm |
← |
← |
← |
| Coil Width |
100–1,550 mm |
← |
← |
← |
| Max. Coil OD |
Φ1,350 mm (opt. Φ1,750) |
← |
← |
← |
| Uncoiling Speed |
≤45 m/min |
← |
← |
← |
| Main Motor |
5.5 kW |
5.5 kW |
7.5 kW |
7.5 kW |
| Hydraulic Power |
3.0 kW / Max 20 MPa |
← |
← |
← |
| Power Supply |
3-Phase 380V/50Hz (400–460V, 50/60Hz customizable) |
← |
← |
← |
| Max. Current |
22 A |
22 A |
27 A |
27 A |
