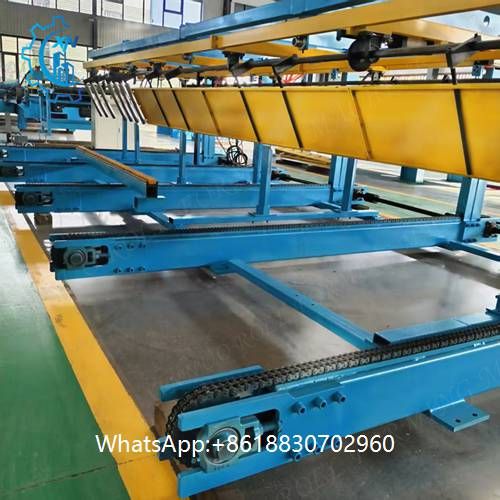

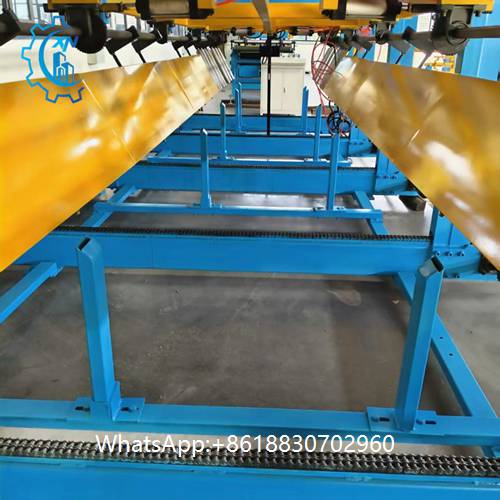

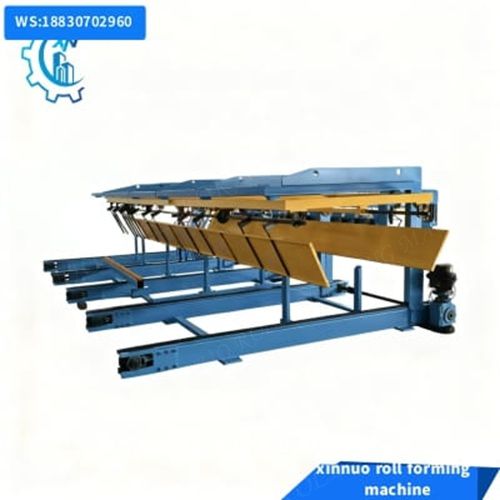

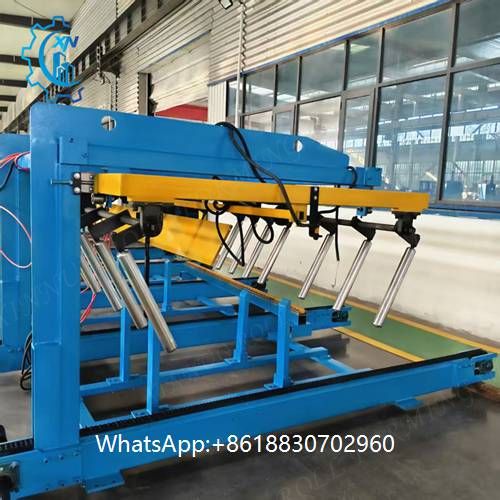

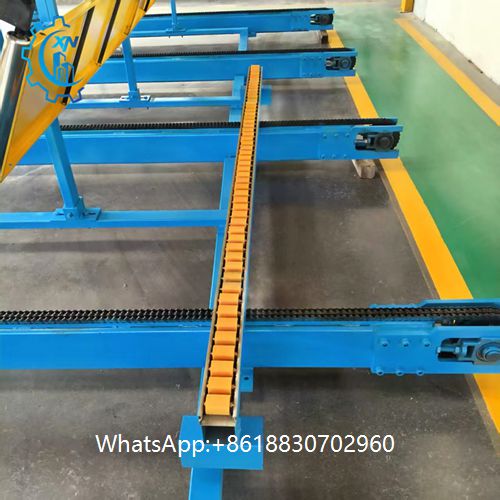

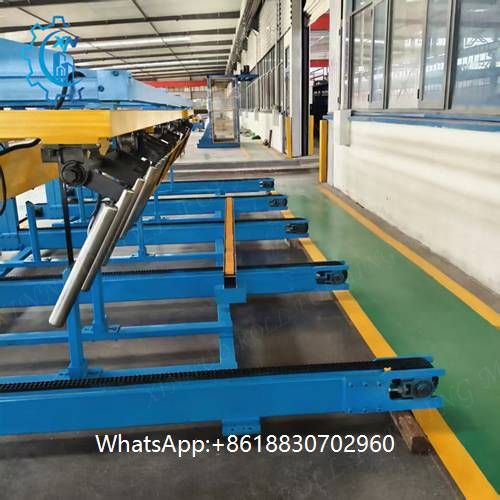

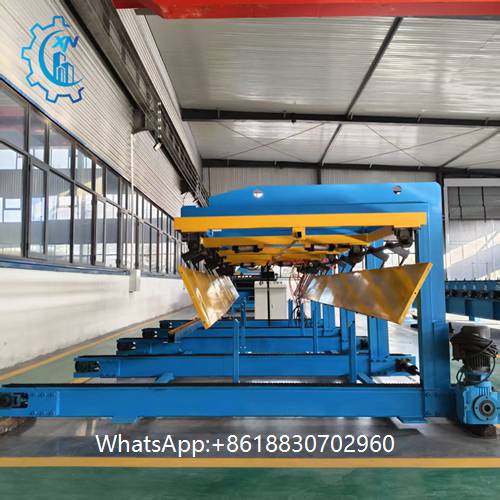

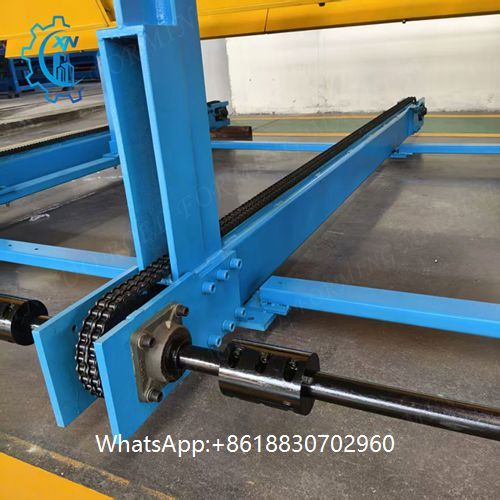

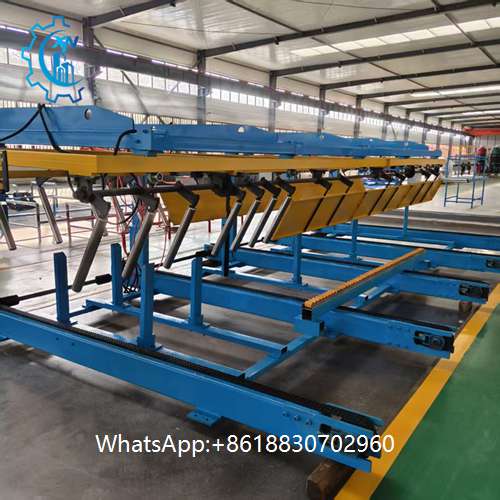

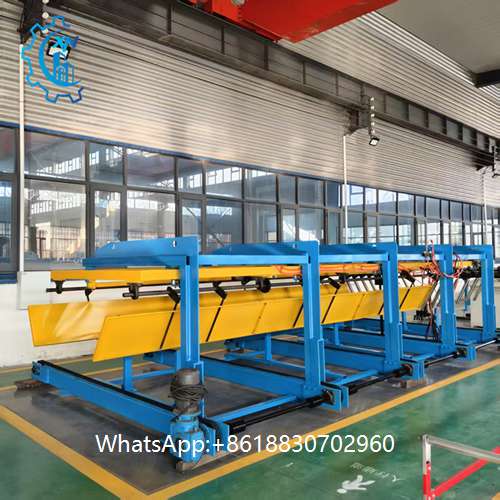

6m Forming Machine Sheet Material Receiving Rack: Designed for seamless matching with 6-meter forming machines. Features high-load steel structure (max load 1500kg), adjustable height (800-1200mm) & width, anti-slip roller surface, and stable base. Ensures smooth sheet conveying, reduces material damage, ideal for metal/plastic sheet processing.
| Applicable Machine |
6m Sheet Forming |
| Overall Length |
6000mm |
| Adjustable Height |
800-1200mm |
| Adjustable Width |
500-1800mm |
| Max Load Capacity |
1500kg |
| Roller Diameter |
80mm |
| Base Material |
Q235 Steel |
| Surface Treatment |
Powder Coating (RAL 7035) |
| Installation Type |
Floor-mounted (with Expansion Bolts) |
| Origin |
China |
The core advantages of the 6m Forming Machine Sheet Material Receiving Rack focus on three dimensions: precise adaptability, high-efficiency load-bearing capacity, and flexible adjustability, which directly address issues of stability, versatility, and safety in the conveyance of large-size sheets.
- Specifically designed for 6m forming machines, its overall length matches the output end of the equipment precisely, preventing sheet deviation or jamming during conveyance.
- It can be connected without additional equipment modification, reducing downtime for debugging and ensuring continuous operation of the production line.
- Adopts high-strength base materials such as Q235 steel, with a maximum load capacity of over 1500kg, enabling stable support for heavy sheets like thick metal plates and plastic plates.
- The widened base design plus fixed expansion bolts effectively prevents the receiving rack from tipping over due to sheet impact or center-of-gravity shift, reducing safety hazards.
- Both height (e.g., 800-1200mm) and width (e.g., 500-1800mm) can be adjusted on demand, adapting to 6m sheets of different thicknesses and widths without the need for custom-made dedicated racks.
- Roller spacing or surface materials (e.g., chrome-plated anti-scratch) can be adjusted according to sheet characteristics, avoiding deformation of thin sheets and slipping of thick sheets.
- Roller surfaces are mostly treated with chrome plating or rubber coating to reduce scratches and scuffs during sheet conveyance, lowering the rejection rate of finished products.
- The rollers operate smoothly and can convey sheets synchronously with the forming machine speed, eliminating the need for manual auxiliary receiving and saving labor costs.
- The main structure undergoes anti-rust treatment such as powder coating, adapting to humid and dusty workshop environments and extending service life.
- Wear parts (e.g., roller bearings) are designed to be detachable, making later maintenance and replacement simple without requiring professional technicians.
Pakage
For different machines or production line parts, we have different packing solutions:
a. For the machine or production line, we will use plastic film to cover and wrap. Then will be loaded to the container by
forklift or crane
b. For the key parts such as the roll forming rollers set, we will use the metal frame to package.
C. For the electrical cabinets, molds set, we will use wooden carton to package and load.
