1.Overall Dimension:8500×1800×1600mm (L×W×H)
2.Main Motor Power:11kW - 15kW (3-phase AC)
3.Control System:PLC with touchscreen operation
4.Email:xinnuo05@xinnuomachine.com
6.WhatsApp：+8618830702960
`
| Forming Material | Hot-rolled steel coil (Q235/Q355) |
| Material Thickness | 2.5mm - 4.0mm |
| Forming Speed | 8m/min - 15m/min |
| Forming Accuracy | ±0.5mm (dimensional tolerance) |

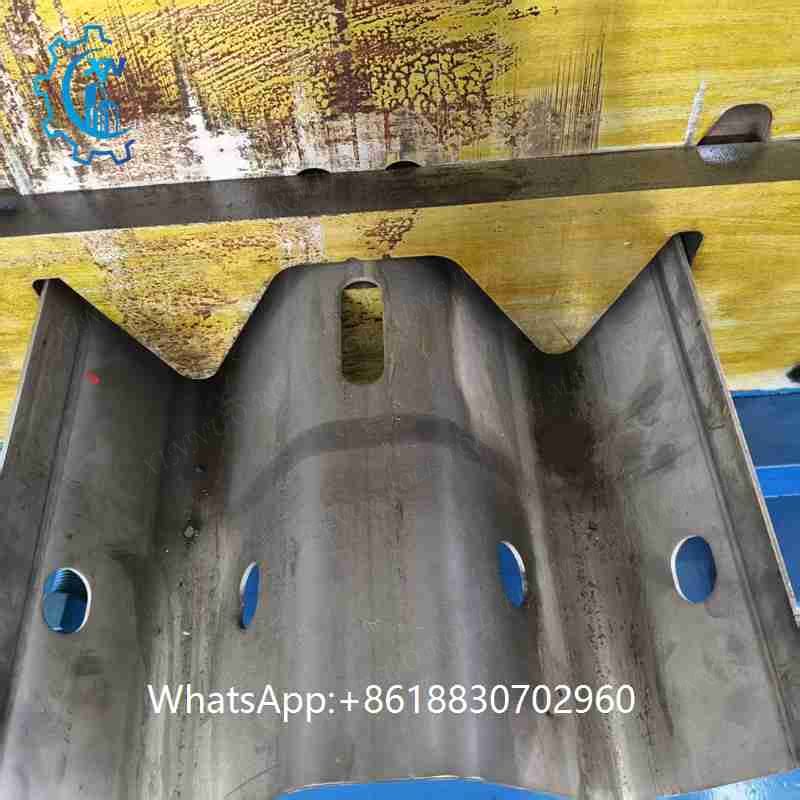

| Finished Product Width | 310mm (standard highway guardrail) |
| Main Motor Power | 11kW - 15kW (3-phase AC) |
| Control System | PLC with touchscreen operation |

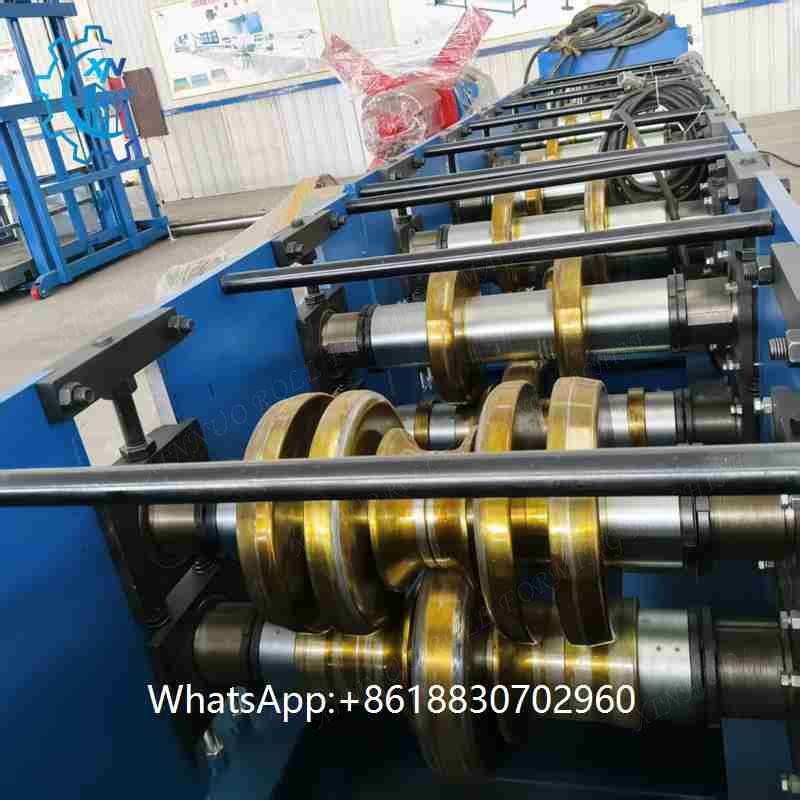

| Roller Quantity | 18-22 sets (chrome-plated alloy steel) |
| Overall Dimension | 8500×1800×1600mm (L×W×H) |
| Weight | 5000kg - 7000kg |
| Power Supply | 380V/50Hz (customizable for 220V/60Hz) |
package and loading
1. The main machine is covered by plastic film.
2. PLC control box, spare parts and other small parts are packed by wooden carton box.
3. If the machine is too long, we will divide it into two parts and pack them in one package with steel wire.
4. Rollers and shafts are covered with anti-rust oil.
5. Manual decoiler was nude packing.
6. The output-table put into a carton box.
7. Fit for ocean shipping.
8. Spare parts in a carton box.
9. Manual decoiler was nude packing.
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
