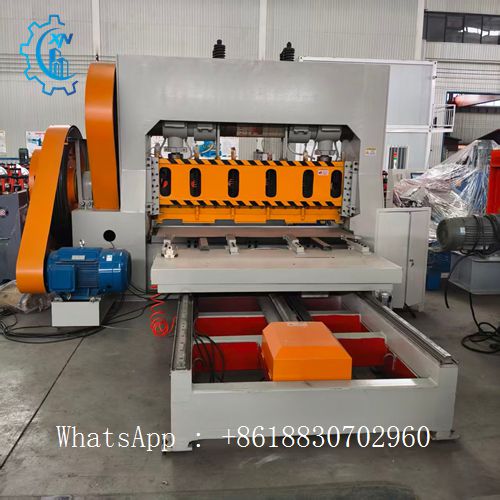

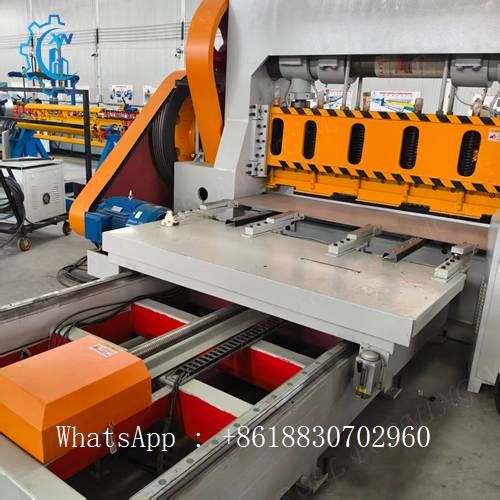

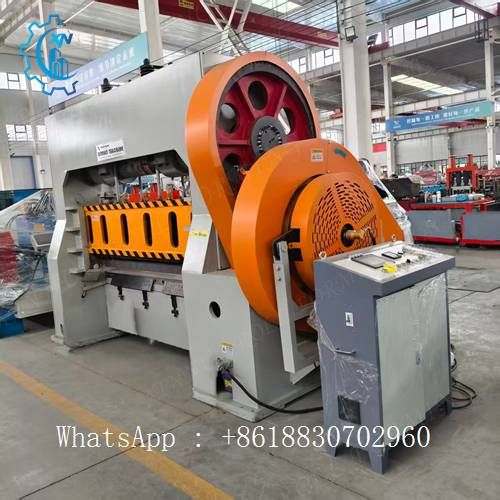

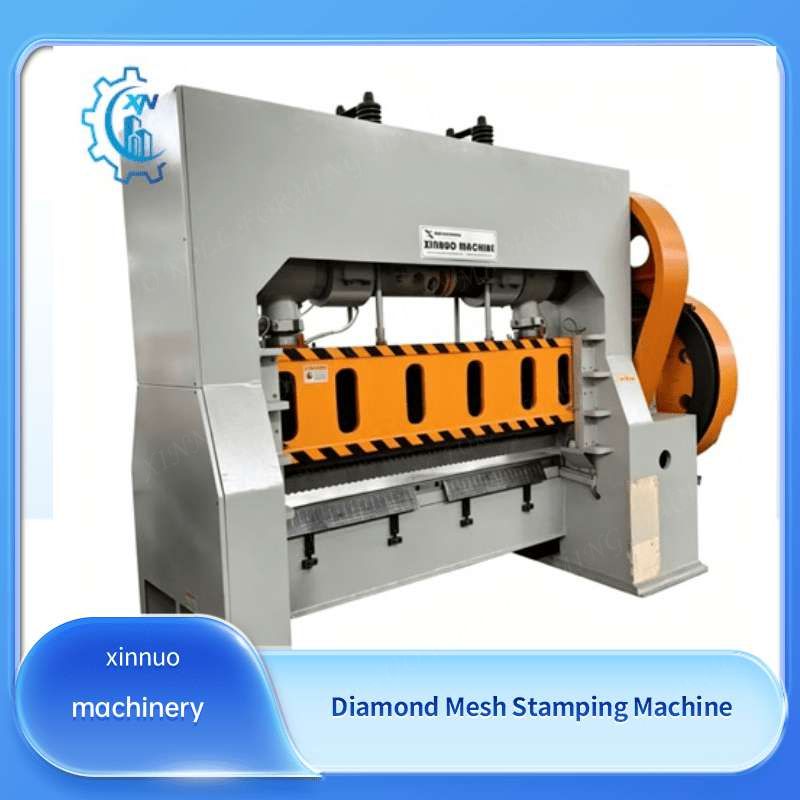

Diamond Mesh Roll Forming Machine
Automatic diamond mesh roll forming machine, also called expanded metal mesh machine, integrates continuous cold rolling, cutting and stretching technology. It forms integrated diamond mesh without welding.
The complete line consists of uncoiler, rolling cutting unit, stretching system, leveling unit and recoiler. Equipped with PLC touch screen control system, it realizes fully automatic unattended production.
This machine processes carbon steel, galvanized sheet, color coated steel, stainless steel and aluminum alloy. The finished mesh features flat surface, uniform holes and high tensile strength, widely applied in construction, infrastructure, safety protection, filtration and metal fabrication industries.
The main frame is integrally welded with thick H-beam and stress relieved. Hardened precision forming rollers ensure stable low-noise operation and low failure rate. We support customized sheet thickness, mesh size and working width, with single machine or full automatic line options available. All machines pass CE and ISO certifications and are exported to Southeast Asia, Middle East, Europe and America.
Core Advantages
- One-piece forming without welding, high structural strength of finished mesh
- Full automatic continuous production, high output and labor cost saving
- Thickened solid frame, anti-deformation, long service life
- Hardened alloy rollers, wear resistant, clear mesh shape

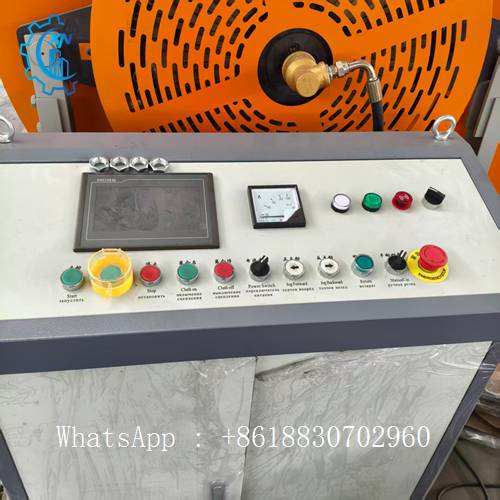

- Touch screen PLC control, easy parameter adjustment
- Wide material compatibility, adjustable mesh specification
- Complete safety protection design, stable running
- CE & ISO quality certification, suitable for export
Technical Parameters (Customizable)
- Applicable material: carbon steel, galvanized steel, stainless steel, aluminum sheet
- Material thickness range: 0.3–3.0mm
- Effective working width: 500–1600mm (customized)
- Mesh hole size: adjustable per customer demand
- Control system: PLC + touch screen
- Drive mode: motor & hydraulic drive
- Certification: CE, ISO9001
- Operation: one worker for full line
Application Scope
- Construction plaster mesh, wall reinforcement mesh
- Safety fence, highway protective mesh
- Machinery equipment protective cover
- Filter mesh, craft metal mesh
- Walkway platform expanded metal sheet
- Agricultural breeding protection net
Basic Info.
Voltage
220V/380V/415V/440V (Customized)
Mesh Size
20*20-100*100mm
Working Speed
120-260sqm/Hour
Control Way
PLC and Touch Screen
Weaving Motor
Double Servo Motors
Transport Package
Control Cabinet in Wooden Box, or Customized
After-sales Service
- Provide professional installation, commissioning and operation training
- Supply complete English operation manual and maintenance video
- Overseas engineers available for on-site debugging service
- Long-term supply of spare parts at factory price
- One-year warranty for whole machine, lifetime technical support
