top quality automatic metal steel self Lock seaming roofing sheet machine

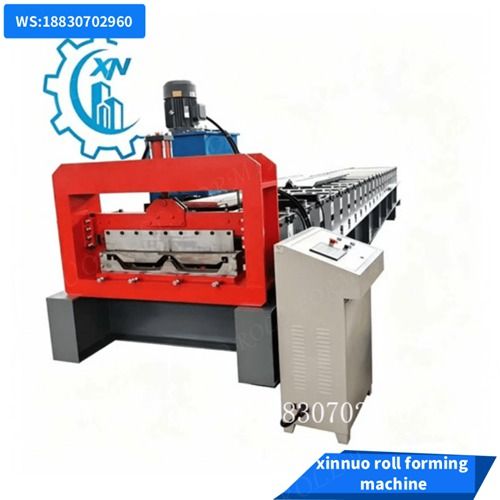

Self-Lock Roll Forming Machine

The Self-Lock (Snap Lock) Roll Forming Machine is a specialized cold roll forming line that converts galvanized, color-coated steel or aluminum coils into profiled roof panels with an integrated interlocking (hidden fastener) mechanism. Unlike traditional overlapping sheets

fixed with exposed screws, self-lock panels click together securely, forming a concealed roof system that is leak-proof, fast to install and visually clean.

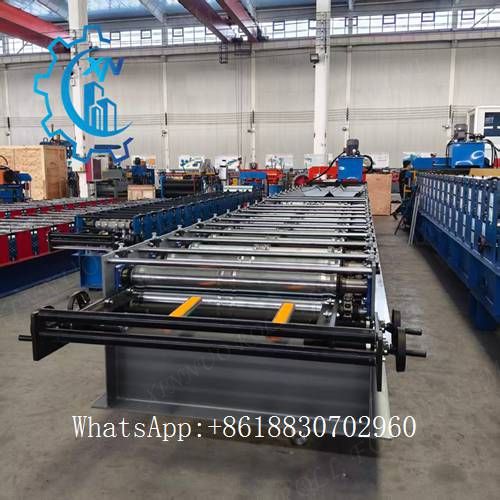

Working Process: Decoiling → Sheet Feeding → Roll Forming → Hydraulic Cutting → Finished Self-Lock Panels on Runout Table

Machine Features:

• PLC automatic control with touchscreen; panel length set via encoder, machine stops and cuts automatically at set length, then runs continuously.

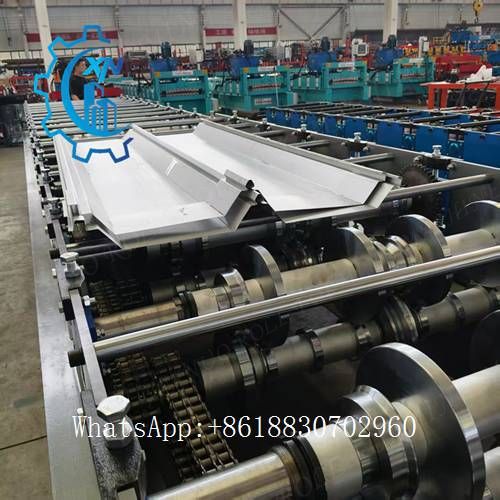

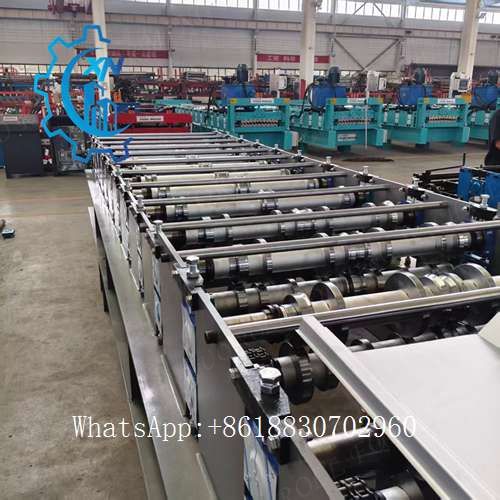

• Heavy-duty welded frame (A3 steel plate), solid 45# steel shafts and hard-chrome-plated rollers for long service life.

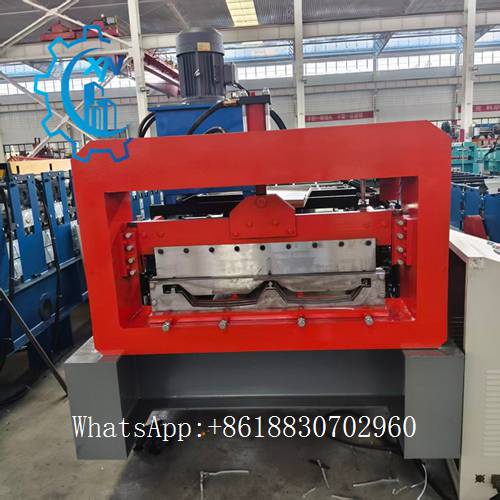

• Hydraulic cutting system with Cr12 hardened blades ensures clean, burr-free panel ends.

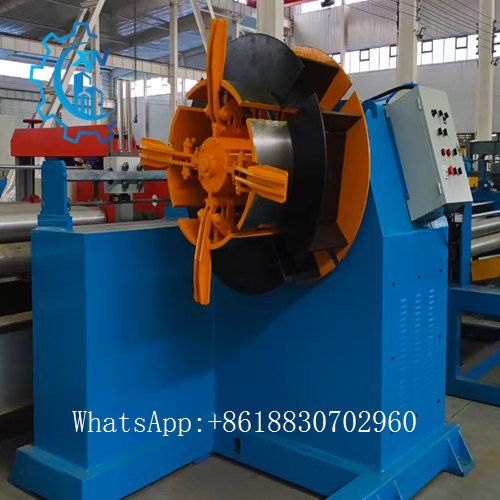

• Available as single machine or complete production line (manual/hydraulic decoiler, forming unit, hydraulic cutting, runout table).
• Customizable profile, material width, thickness and speed per customer drawings.

Applications:

 Industrial plants and warehouses, commercial complexes, agricultural sheds, residential roofing, and wall cladding systems — especially suitable for low-pitch roofs and high-wind regions.

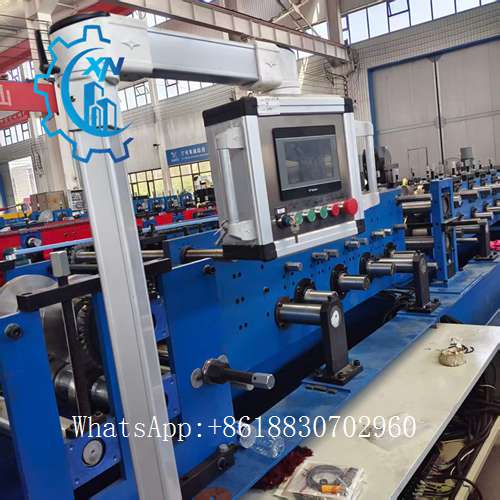

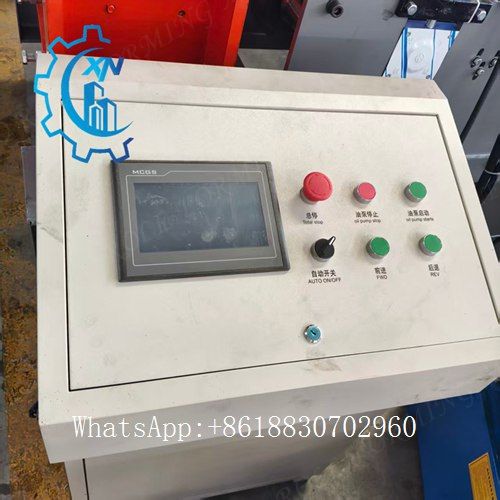

PLC Control System

The machine is equipped with a PLC automatic control system and a touchscreen HMI interface for simple, one-key operation:

• Automatic length control – Panel length is set on the touchscreen; a high-precision encoder measures the sheet in real time, and the machine automatically stops and cuts at the preset length, then resumes running continuously.
• Auto / Manual modes – Switchable jog mode for machine setup and testing, and full-auto mode for mass production.

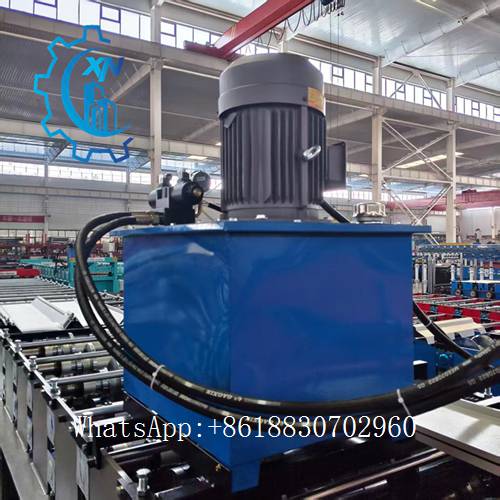

• Hydraulic pump control – Dedicated PUMP START / PUMP STOP buttons for safe, independent control of the hydraulic cutting system.
• Production counter – Real-time count of finished panels, convenient for production management.
• Emergency stop – Large mushroom-head emergency stop button and safety interlock ensure instant machine halt in any abnormal situation.
• Fault alarm & diagnostics – Real-time alarm display on the touchscreen for quick troubleshooting, minimizing downtime.
• Low skill requirement – One operator can master the machine within one day; no professional programming knowledge needed.

FAQ

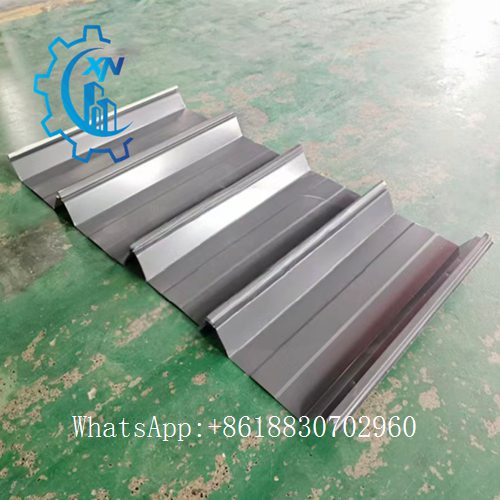

Q1: What is a self-lock roof panel?

 A: A roof panel with an integrated snap-lock / clip-lock joint. Panels lock together without exposed fasteners, reducing leak risk and speeding up installation.

Q2: Can the machine be customized?

 A: Yes. Profile, material width, thickness, speed and control system can be customized according to your drawings and raw material.

Q3: What is the delivery time?

A: Standard machines: 45–60 working days after deposit. Please confirm per order.

Q4: What are the payment terms?

A: T/T (40% deposit, balance before shipment) or L/C at sight.

Q5: What about warranty and after-sale service?

 A: 12 months warranty; free replacement of quality-defective parts during warranty; 24h online support, plus manuals and videos for installation and operation.
