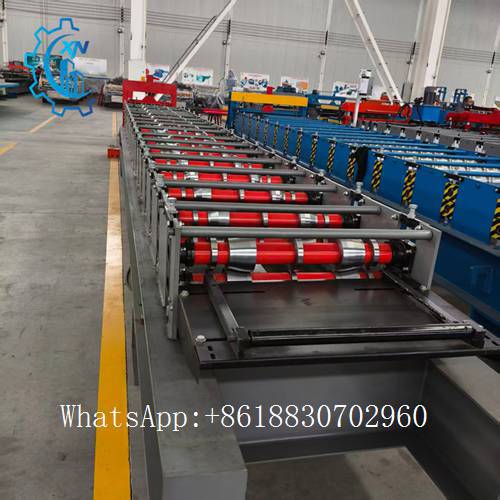

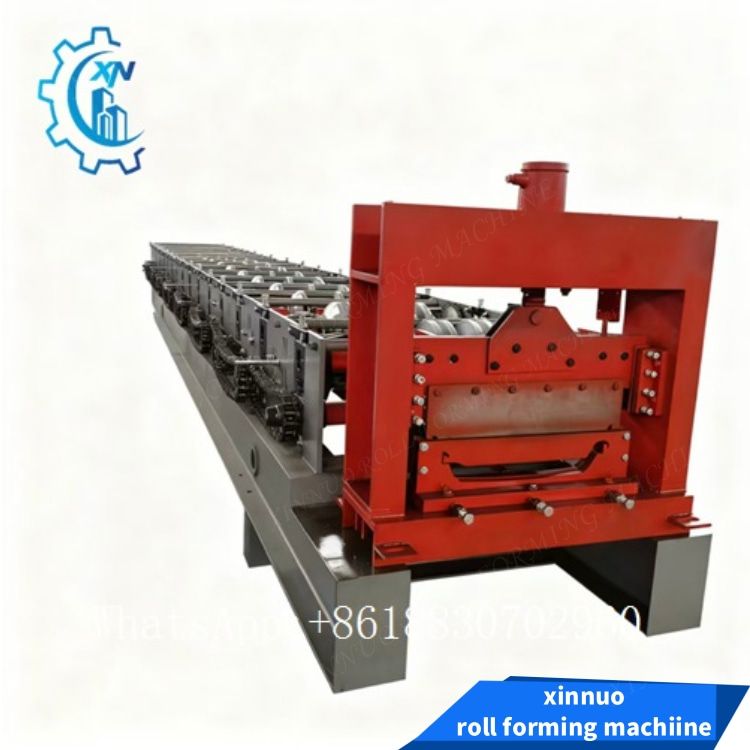

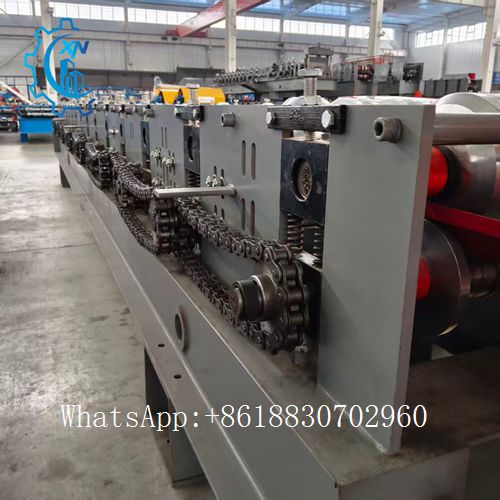

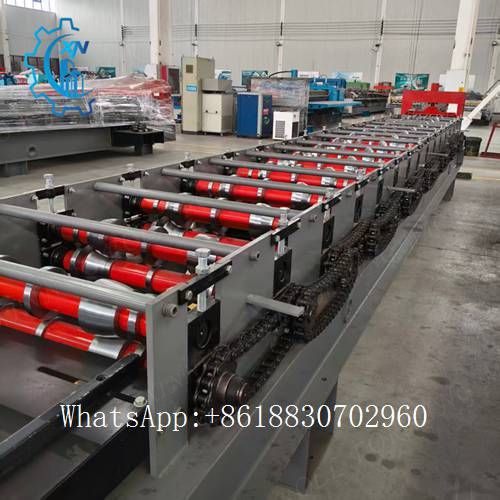

self lock standing seam roof sheet roll forming machine with hydraulic cutting

Product Attributes :

Product Details

1.Place of Origin:Cangzhou, China

2.Brand Name:XINNUO

3.Certification: ISO,CE

4.Minimum Order Quantity:1 set

5.Price: 9500

6.Packaging Details: Loading container

7.Delivery Time:50-60 workdays

8.Payment Terms:T/T

9.Email:xinnuo05@xinnuomachine.com

10.WhatsApp:+8618830702960

Product Description

Snap lock roof sheet metal machine

One peculiar feature that makes the self-lock distinct from the rest is that there is no direct nailing on the roofing sheets
thereby giving it an elegant look and leaves one wondering how on earth the fastening was carried out. It is suitable for all
residential buildings and is gaining grounds in the Prices: Depends on your request. You may request for a quote

Material thickness	0.3-0.8mm
Diameter of shaft(solid shaft)	70mm
Material of shaft (solid shaft)	45# Steel, quenching and tempering treatment

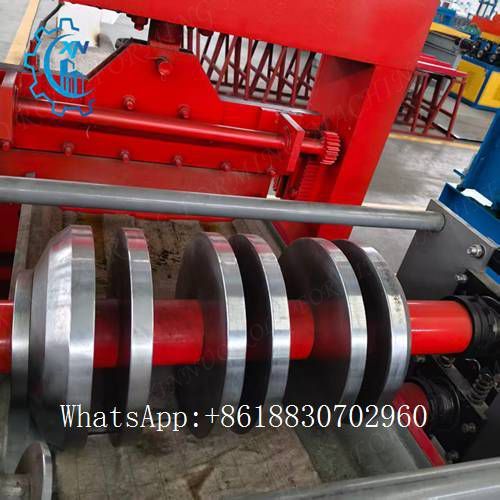

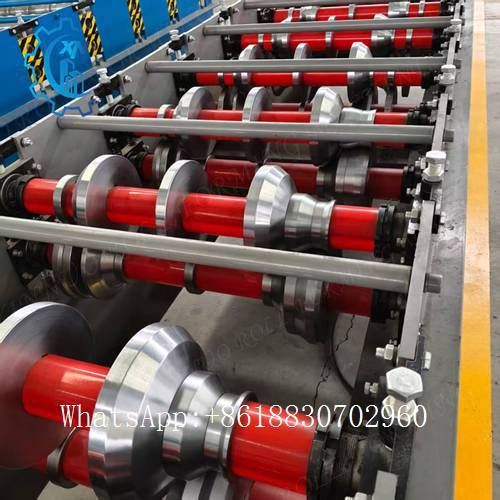

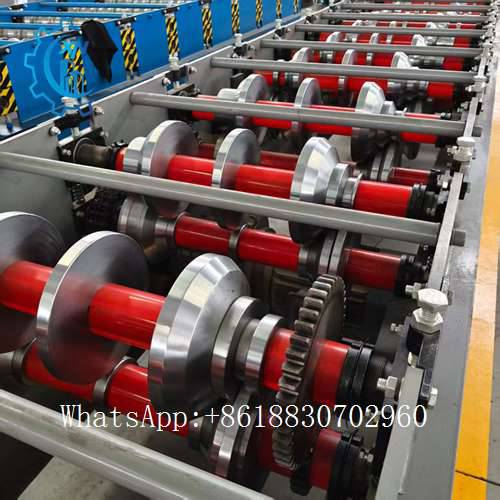

Material of roller	45# steel polished and coated with chrome HRC55-60°
Reducer	8# cycloid reducer (high grade)

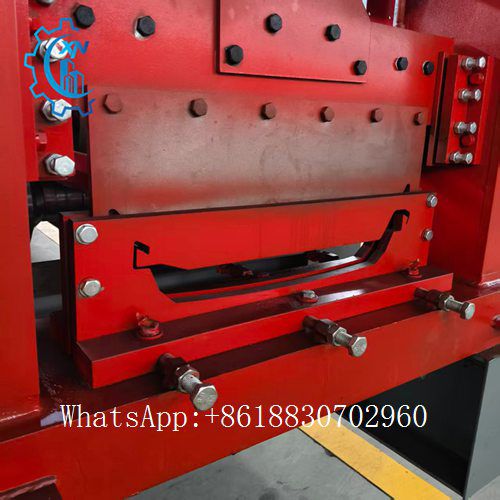

Cutting	hydraulic cutting after roll forming
Control system	PLC Frequency Control System with touch screen
Origin	China

Main Workflow Of Self Lock Roofing Sheet Making Machine:

Uncoiler ----- Molding core ----- Hydraulic System ----- Automatic Control system ----- Step Formed Mechanism -----Automatic Shearing Mechanism ----- Products Receiving Tables

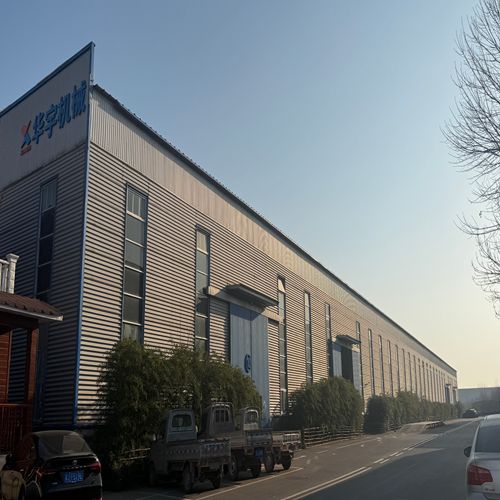

Our Company

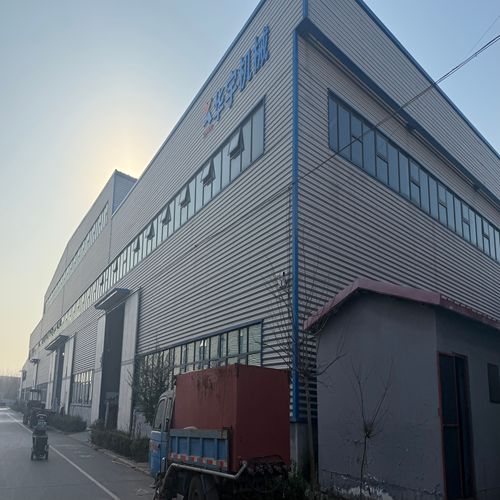

Xinnuo Roll Forming Machine Co.,Ltd Established in 1998, is a leading manufacturer specializing in the design and production of C/Z purlin roll forming machines, high-speed purlin lines, and other customized roll forming equipment. Our facilities cover over 100,000 square meters, including 2 modern factorys and 12 warehousing bases. Since 2002, Xinnuo machines have been successfully exported to over 180 countries worldwide, earning consistent praise fortheir performance, ease of operation, and our comprehensive customer service. Looking ahead, Xinnuo remains commited to the principle of "Quality First, Service First, Customer First." We continue to focson R&D in energy-saving and intelligent machinery for the construction sector, aiming to deliver fully automated, unmanned production solutions that drive efficiency and innovation for our global partners.
