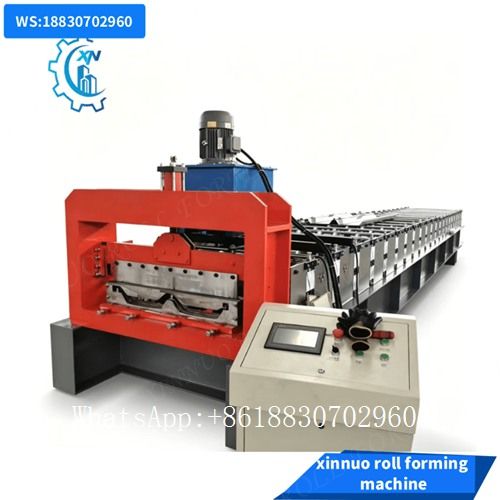

self-lock roofing sheet roll forming machine from China

Selflock Roofing Sheet Roll Forming Machine For Ghana

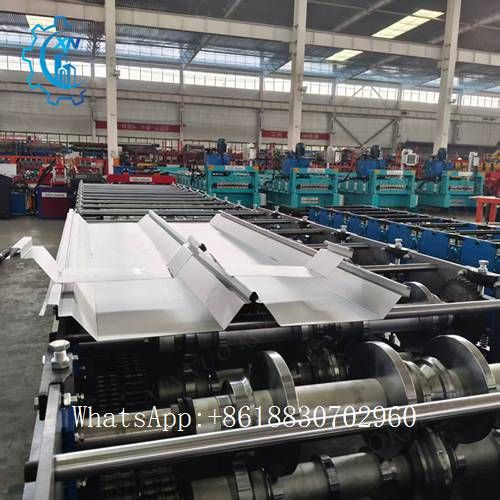

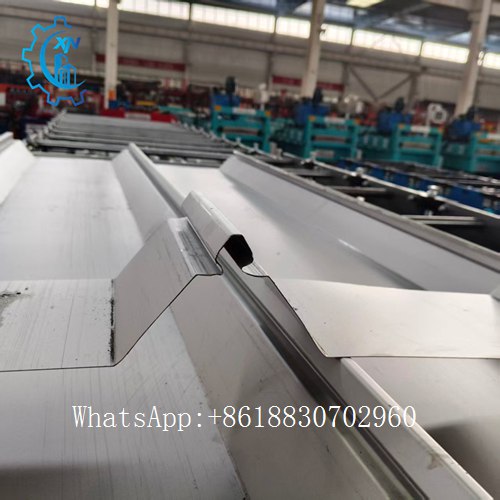

This type of roofing sheet can combined together by themself, no need nail and other tool. It is more
easy to install and has a long working life. The whole line main inculde five part, they are 5 tons decoiler,
main roll forming machine, PLC control system, Hydraulic cutting system and product receiving table.
The capacity of roofing sheet machine is 8-12m/min, this type of roofing sheet very popular in the world,
it play a very important role in the steel structure building. It is widly used in warehouse, workshop, roofing
and other part. In a word ,  it has a large market .

Specification Of Machine

* Suitable material: colored steel plate, galvanized plate, or aluminium plate

* Material thickness : 0.3~0.8mm                 * Material width : 1000 mm (according to the profile)

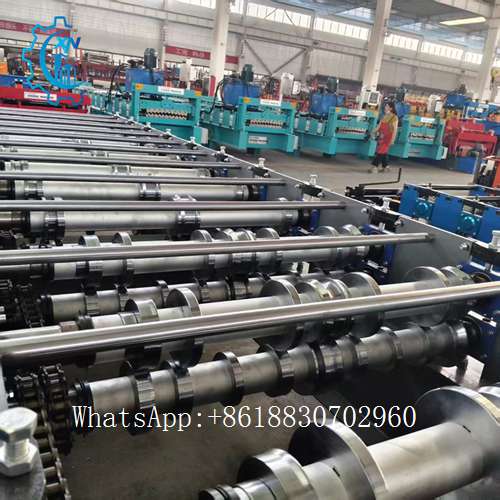

* Diameter of shaft : 70 mm                          * Roller Station : 15 steps (according to the profile)

* Sidewall Thickness : 18 mm                      * Main frame : 350 H steel

* Motor Power : 4Kw + 4Kw                        * Speed : 8-15m/min

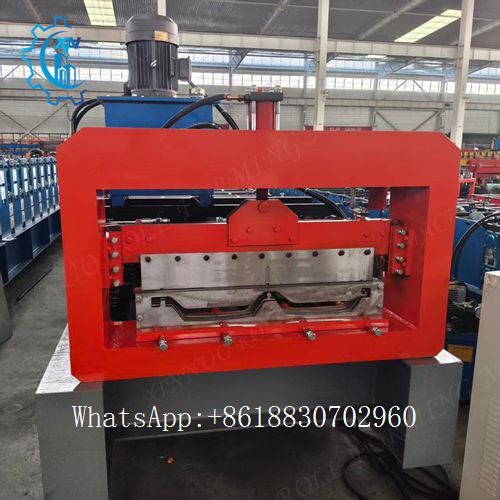

* Cutting Device : Hydraulic Cutting           * Material Of Blade : Cr12

* Drive Way : By Chain

Machine Feature

* Low Cost                     * High efficiency                         * 12 Months Warranty

* Reliable working         * Low energy consumption         * Easy to operate

* Long working life        * Accurate                                   * Full automatic

* No noise                      * Europe Standard

Component Of C Purlin Roll Forming Machine

* Manual Deciler

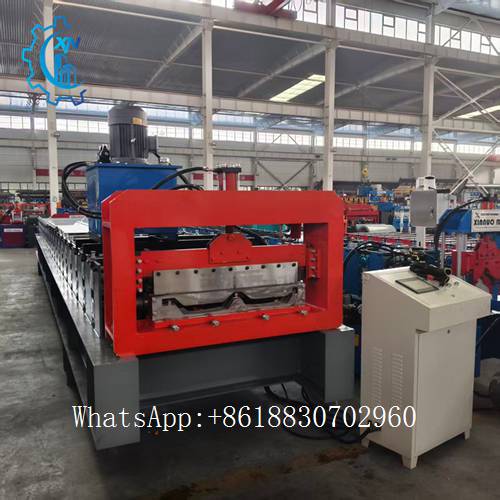

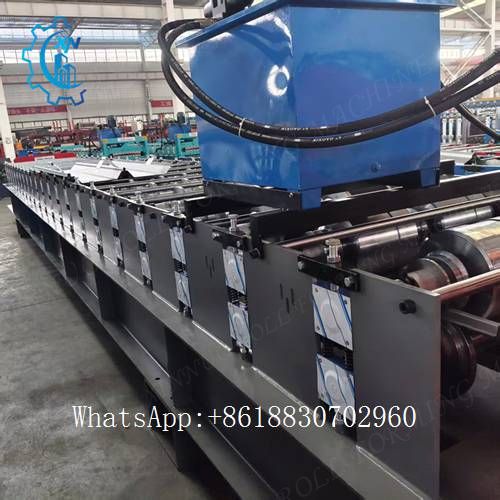

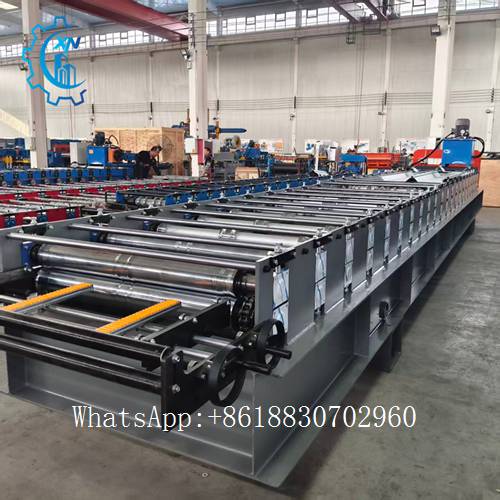

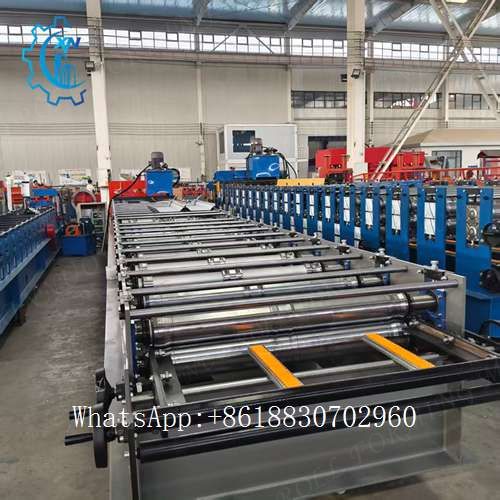

* Main roll forming machine

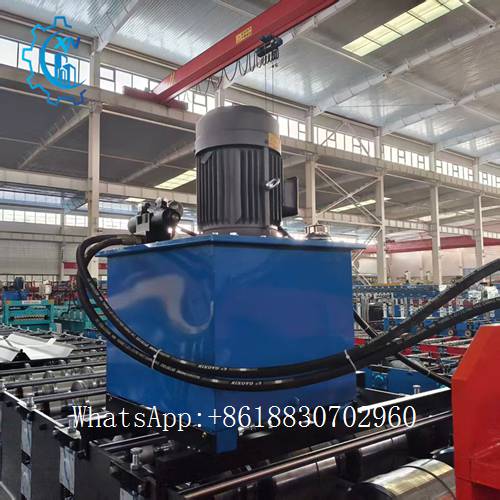

* Hydraulic pump

* PLC Control Cabinet

* Discharge table

* Spare Part

Application

This type of roofing sheet very popular in the world,  it play a very important role in the steel structure
building. It is widly used in warehouse, workshop, roofing and other part. In a word ,  it has a large market .
