1.Dimension(L*W*H):5.5m*1.2m*1.5m
2.Core Components:Pressure Vessel, Motor, Bearing, Pump, Engine, PLC
3.operate style:Full automatic
4.After-sales Service Provided: life time technology service
5.Payment Terms:30% T/T in advance,70% when shipping
6.Email:xinnuo05@xinnuomachine.com
7.whatsapp：+8618830702960
Product spotlights

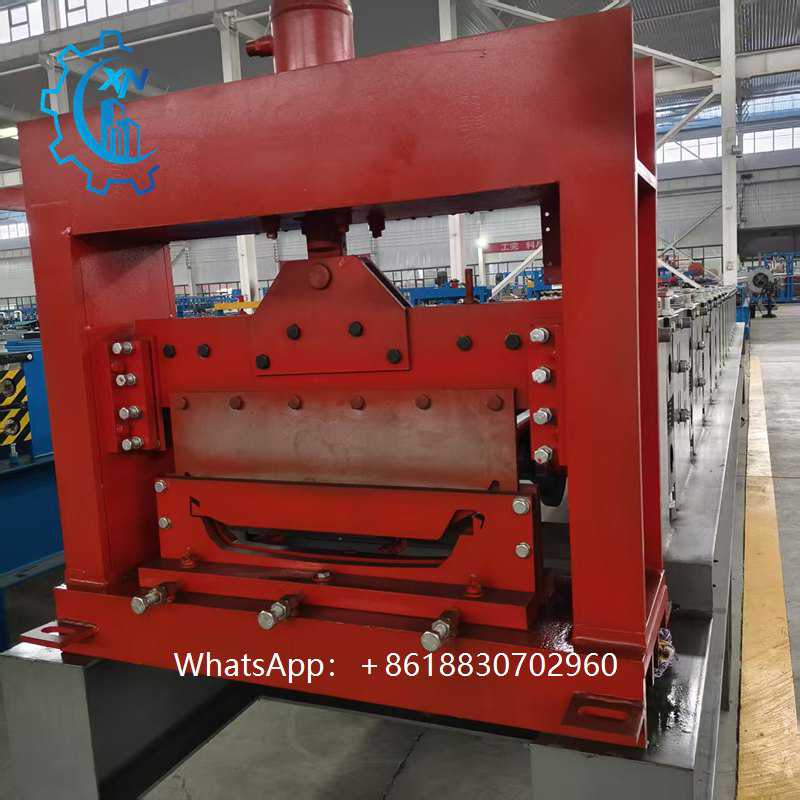

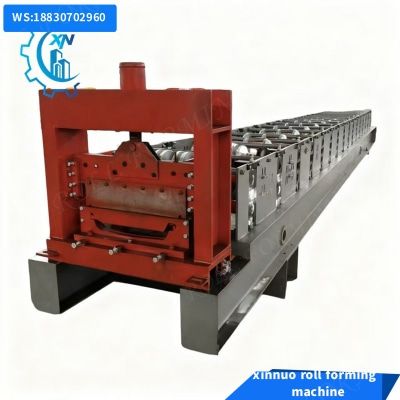

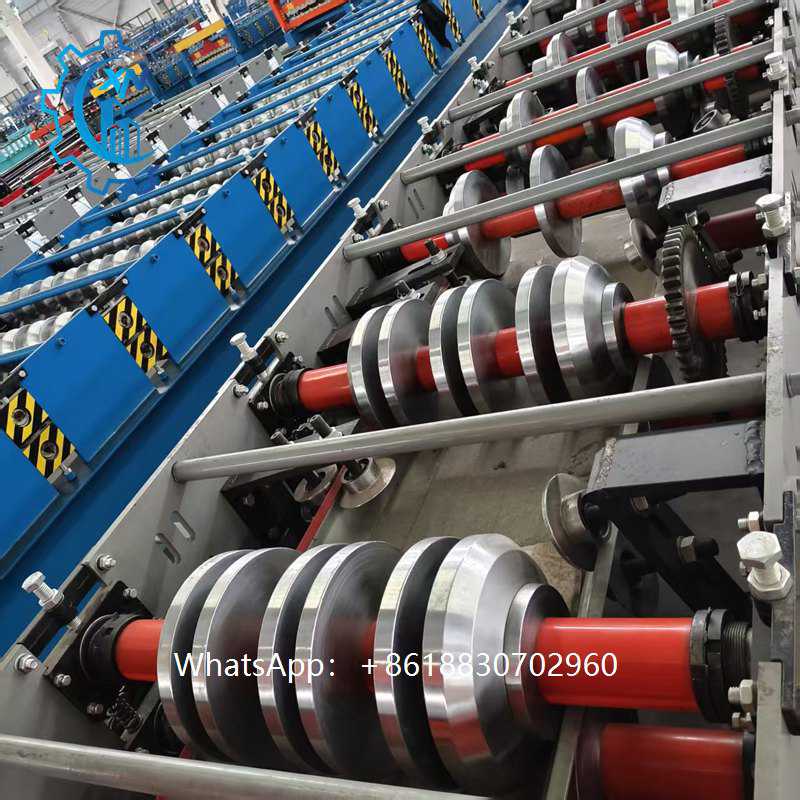

Feature highlights:The Full Automatic Roof Sheet Roll Forming Machine offers high efficiency and precision for producing snap lock standing seam roofing panels. With a production speed of 15-20m/min and adjustable settings, it ensures superior performance. The machine features a robust design with high-grade 45# steel rollers and shafts, a hydraulic cutting system, and a cooling system to prevent overheating. Its user-friendly PLC control system supports multiple languages and automatic batch production. Certified by CE, it ensures compliance with EU safety standards, providing market access and reliability. Suitable for PPGI, GI, and aluminum materials with thicknesses of 0.4-0.8mm.
| Suitable to process | Color steel plate, galvanized sheet,aluminum coils and etc. |
| Width of the feeding material | 1000mm |

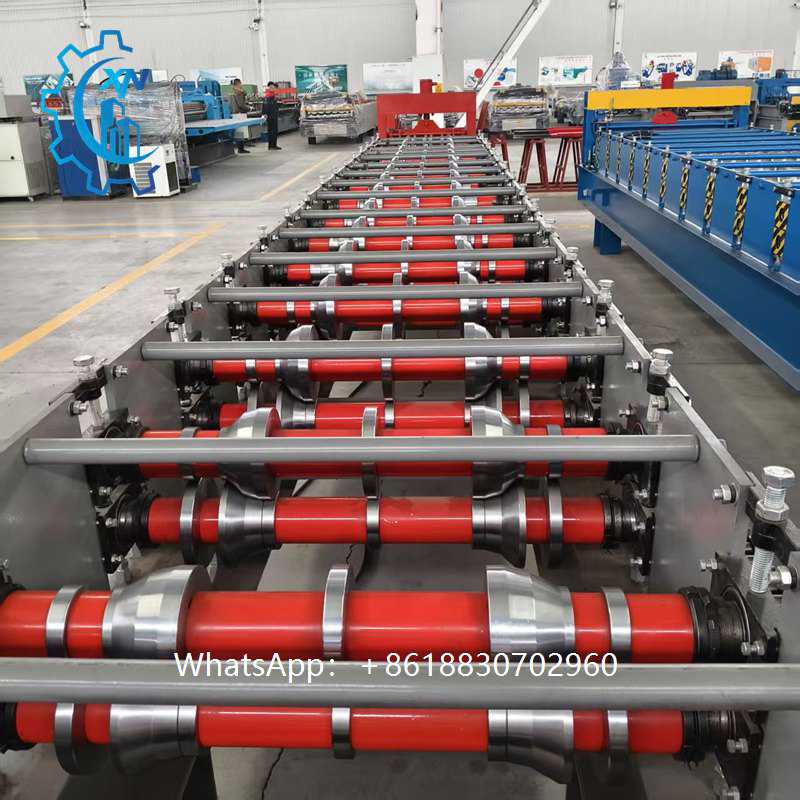

| Roller station | 22 rows |
| Thickness of feeding material | 0.3-0.8mm |
| Productivity | 8-12m/min |

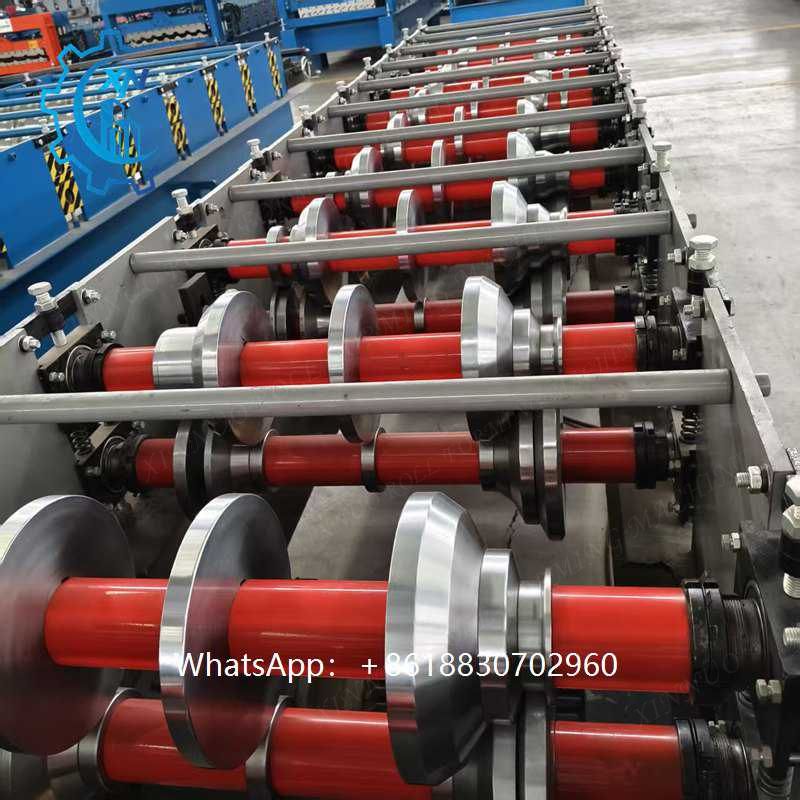

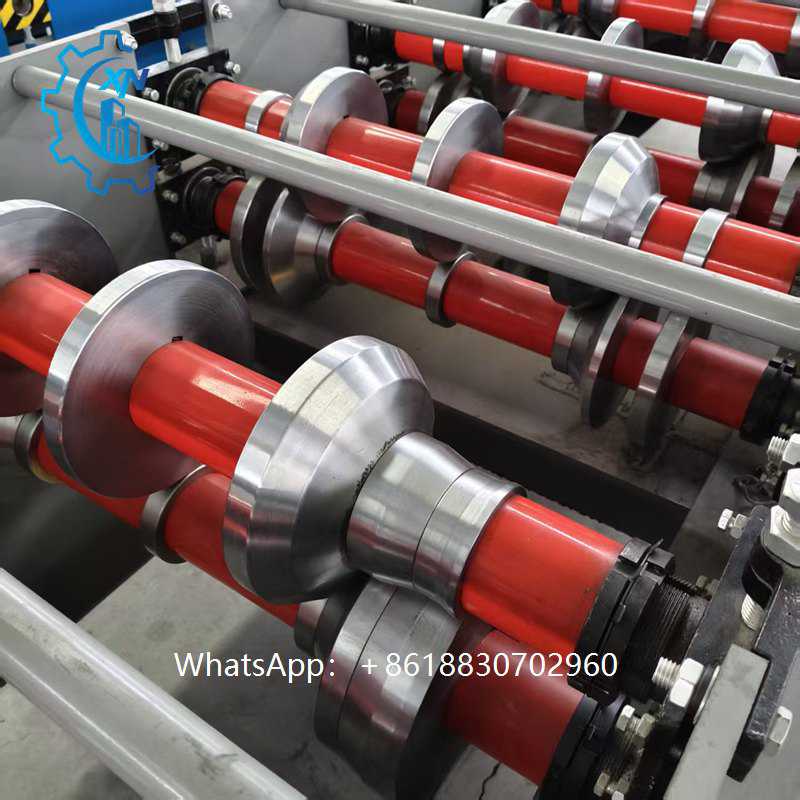

| Rollers' material | 45# steel |
| Diameter of shaft | 75mm |
| Voltage | 380V 50Hz 3phases |
| Wall thickness of main forming machine | 14mm steel plate |
| Main forming machine body | 300 mm H steel |
| Motor power | 7.5+4 kw |
| Size | 7500*1500*1400mm |
| Weight | About 5.8 T |
Our Company
Hebei Xinnuo Roll Forming Machine Co., Ltd is a industry and trade integration company, which is on the basis of original Botou Huayu Roll Forming Machine Factory The company located in botou city, that has superior geographical and convenient traffic.It is the professional manu-facturer for metal sheet roll forming machines with seniority qualifications and experience.
We have high technological background, advanced and mature production equipment and perfect means of inspection. We not only produce different type of roll forming machine, but also developed automatic production line of roll forming machine, roof panel, wall panel forming machine series, Glazed tile roll forming machine series, Floor deck roll forming machine series, Highway
barier forming equipment, double-deck color steel tile roll forming machine series, C, Z shape steel purlin machine series. precipitator anode plate forming machine, achcamber machine series, cutting machine and bending machine series, insulated sandwich panel machine on the base to traditional forming machine. Our machines are exported to demestic and foreign markets and are highly praised by new or old customer by their good-looking appearance, fair frame and standard model. We have prepared experienced professional workers and skilled staff for you. We could design different type of cold roll forming machine according to clients requirement.
FAQ
| 1. Q:Are you manufacturer? |
| A:Yes, we focus on cold roll forming machine manufacture over 12 years. |
| 2. Q: if you can accept OEM? Design and manufacture according our photo. |
| A: Yes, we can accept OEM,we owned expert engineer team, professional design CAD drawings and use famous brand components |
| according your demands. |
| 3. Q:What's the warranty for your machine? |
| A: we provide 2years guarantee and provide lifetime technical support. |
| 4. Q:How many workers is needed for the machine operation |
| A: One worker is enough, the machine use automatic PLC control system. |
| 5. Do you have after sales support? |
| A: Yes,Our engineer can supply remote-video technical support and online support teach your worker. |
| 6. Q.Can you be responsible for transport? |
| A.Yes,we owned expert export team, we can arrangement for you to your destination port or address. |
| 7. Q:What service can you provide before order? |
| A:About the pre-sale service, We provide professional solutions according your demands,such as design,technical parameter,delivery |
| flow etc. At the same time, we can supply invitation letter for your visit our factory and showing the machine operationfor you . |
| 8. Q: What is the after- sale service? |
| A: we will supply lifetime technical support,quick-wear parts within 2years,Also can provide field maintenance and repair service. |
| 9. Q:Any other service? |
| A: We can help you purchase raw material for machine,help you check ship date,update for you ship date etc |
| 10. Q:Any certification |
| A:Yes, we have SGS ISO certification. |
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
