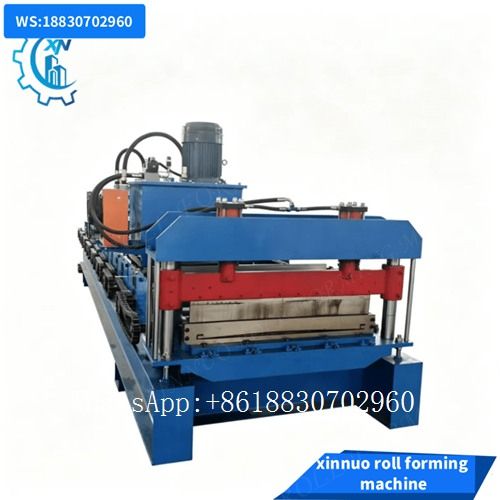

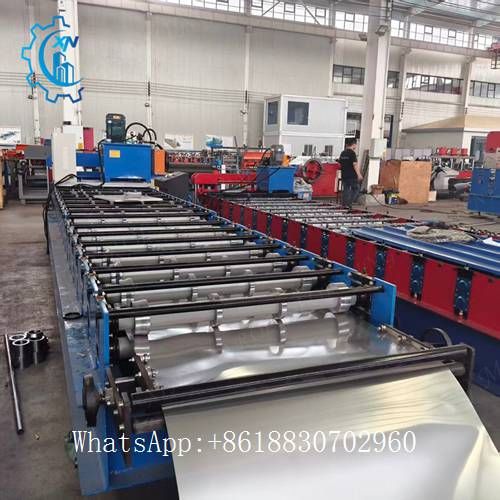

This self-lock standing seam roof panel roll forming machine is engineered for the European and North American metal roofing market, producing interlocking standing seam roof sheets widely used in industrial warehouses, commercial buildings, workshops,
and modern residential roofing systems. The finished panels adopt a hidden-fix self-locking design, eliminating exposed fasteners, delivering excellent waterproofing, wind resistance and thermal performance, perfectly matching strict building codes across Europe and the USA.
Built with heavy-duty welded frame and solid alloy steel forming rollers, the machine realizes continuous feeding, roll forming, hydraulic cutting in one fully automatic workflow. PLC control system ensures stable running, precise sheet length cutting and easy parameter adjustment.

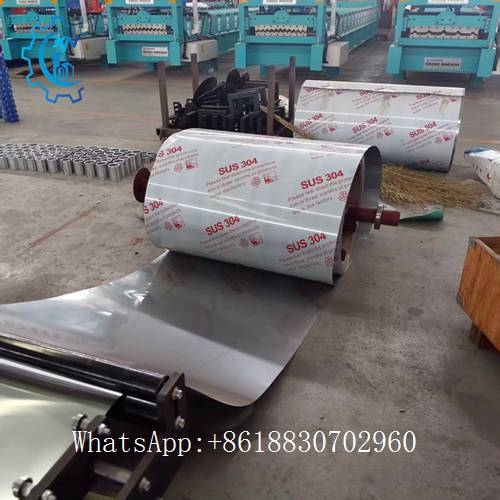

It can process galvanized steel, PPGI, aluminum sheets, adapting to diverse raw material requirements for western roofing projects.
Product parameter
Series |

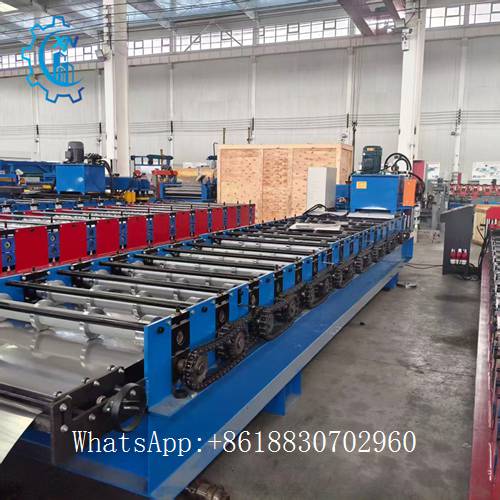

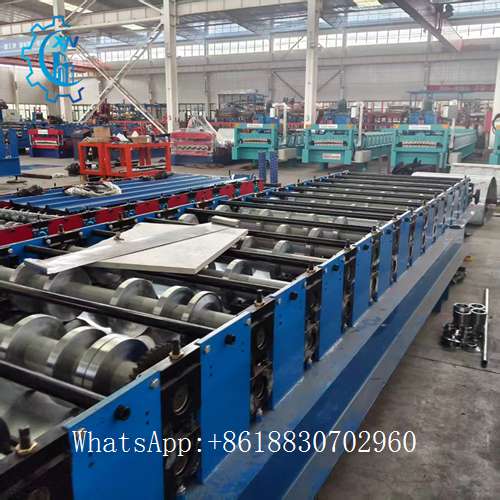

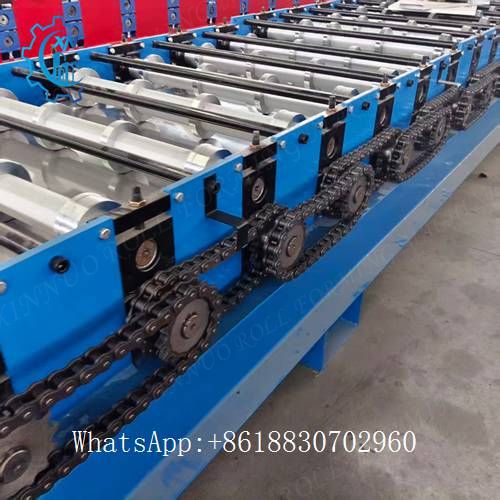

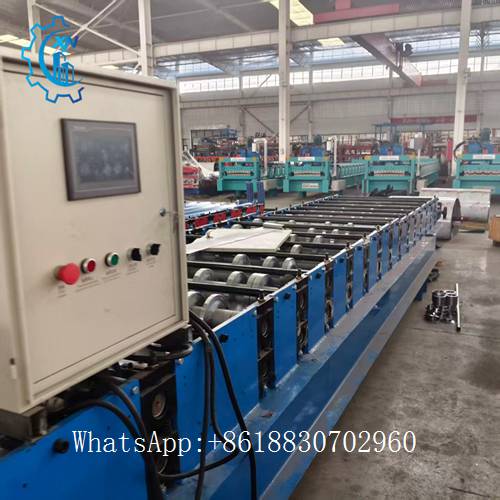

Details | Parameter | ||
| ProducT | Raw material | PPGI /PPGL | ||
| Material thickness | 0.3-0.8mm | |||
| Product cutting length | Adjustable | |||
| Coil width | 1250 mm | |||
| Coil weight | 5.8T | |||
| Decoiler | Work type | hand type | ||
| Structure | Steel channel for basic frame | |||
| Loading capacity | 5 Tons | |||
| Coil inner diameter | 550-610 mm(adjustable) | |||
| Max coil width | 1250 mm | |||
| Roll forming machine |
Feeding device | Platform, the width is adjustable | ||
| Roller stations | 16-20 stage | |||
| Roller shaft | Shaft material: 45# steel | |||
| Shaft diameter: φ75 mm | ||||
| Roller | Roller material: 45# steel | |||
| Roller spacer | Anti rusty treatment | |||
| Work speed | 6-15m/min | |||
| Main structure | Middle plate weld with structure | |||
| Motor power | 5.5KW ,brand: lichao | |||
| Transmission | 1.0 inch chains | |||
| Machine basic frame | 350# H steel welded with diagonal bracing inside | |||
| Bearing | Chinese famous brand: Harbin | |||
| PLC control system |
Frequency brand | Delta (original) | ||
| PLC brand PLC | Delta (original) | |||
| Screen type | Touch screen also have button | |||
| Screen language | English / Chinese/Arabic | |||
| Low voltage apparatus | TAIWAN DELTA | |||
| Encoder | Omron | |||
| Function | Cutting to length, quantity and work speed control. | |||

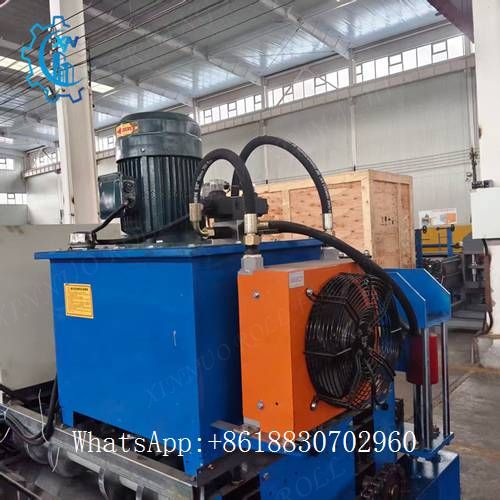

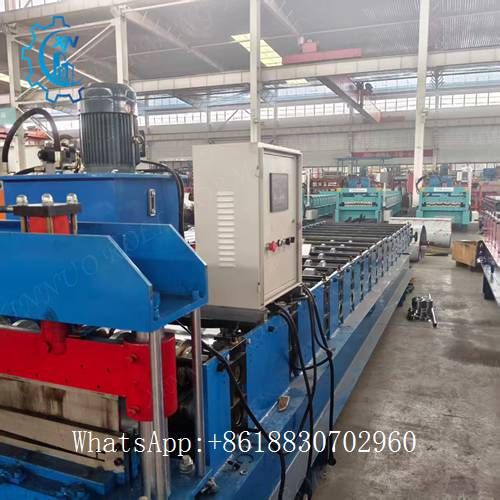

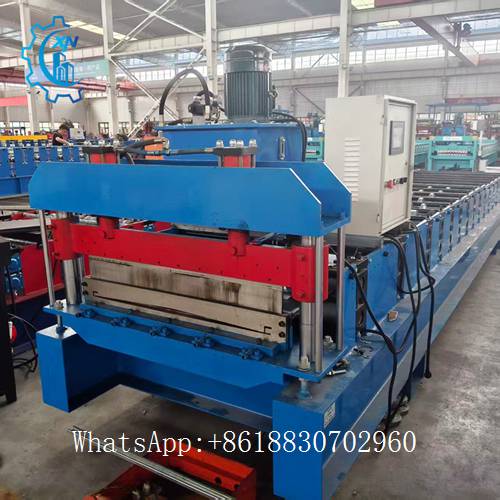

| Hydraulic system |
Work type | Hydraulic cutting | ||
| Driving type | By pillar type cylinder | |||
| Hydraulic motor power | 4.0KW | |||
| Cutter material | Cr12 | |||
| Cutting length tolerance | ±1-3mm | |||
| Product collect table |
Length | 3m | ||
| Width | 1.3m | |||
| Structure | Shaped steel welded | |||
| Machine weight | Around 5.8Tons | |||
Component line1000 Roof Panel Cold Roll Forming Machine
| No. | Name | Unit | Qty |
| 1 | Man-made uncoiler | set | 1 |
| 2 | Main machine for roll forming | set | 1 |
| 3 | Control system | set | 1 |
| 4 | Hydraulic system | set | 1 |
| 5 | mold pressing machine | set | 1 |
| 6 | Blade | set | 1 |
| 7 | Receiving table | set | 1 |
