Payment Terms: T/T 40% deposit, 60% before shipment; L/C at sight acceptable for European clients.
Lead Time: 45–60 working days after deposit confirmation.
Packaging: Standard export wooden crate / nude packaging with anti-rust treatment, suitable for sea freight.
WhatsApp : +8618830702960

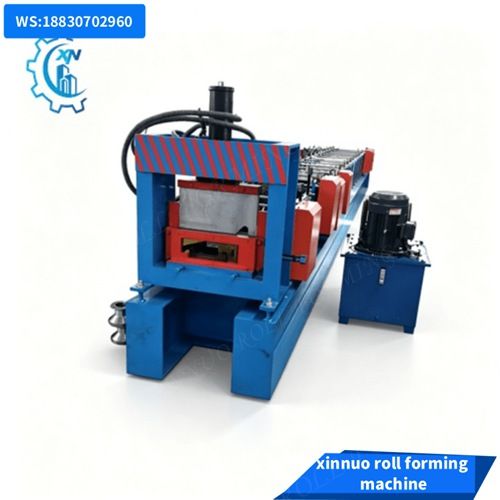

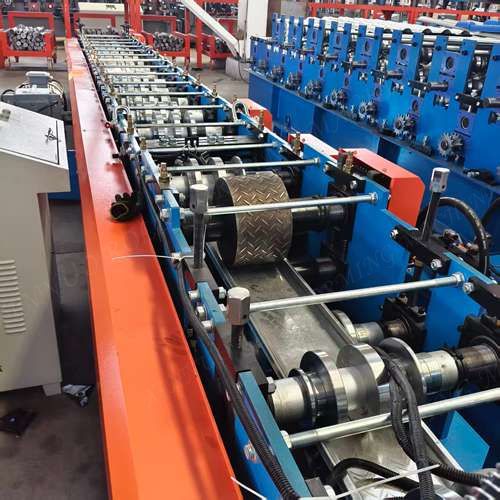

Our standing seam self-lock roof panel roll forming machine is engineered for the North American and European markets, delivering high-precision, continuous production of snap-lock and mechanical-lock metal roofing panels.

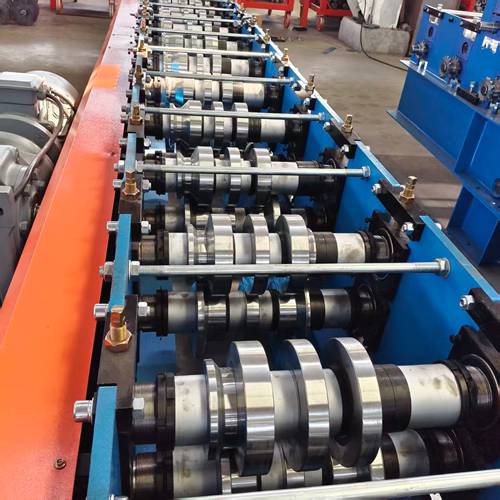

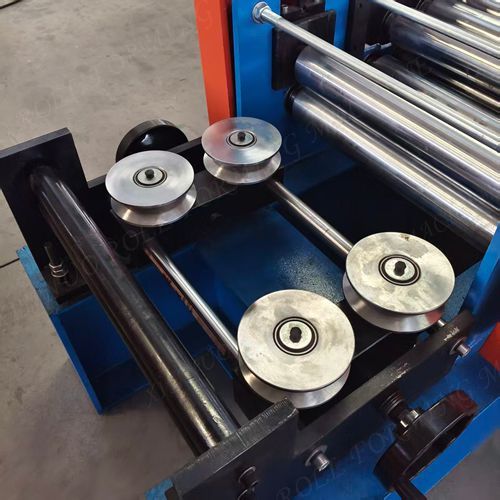

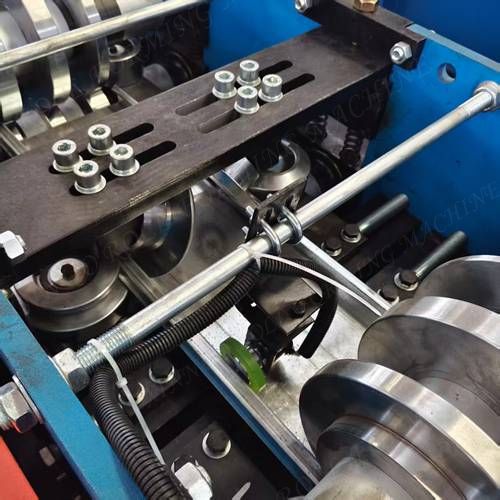

Designed with a heavy-duty welded steel frame and precision-machined 45# steel rollers (hard-chromed for extended durability), this machine ensures consistent panel geometry and tight seam engagement across every run.
Equipped with an industrial-grade PLC control system (Siemens / Delta compatible) and a user-friendly HMI touchscreen, operators can set panel length, batch quantity, and cutting parameters with ease.

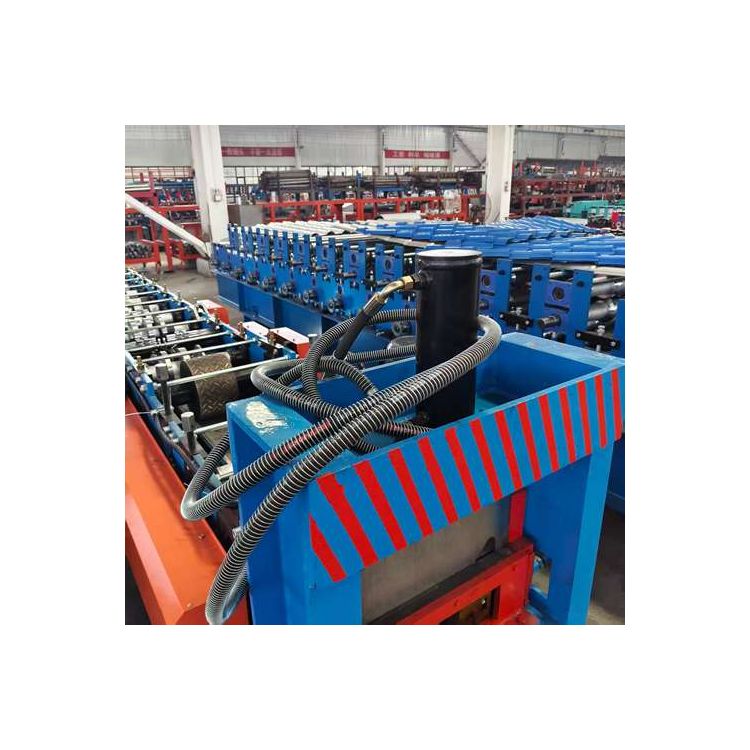

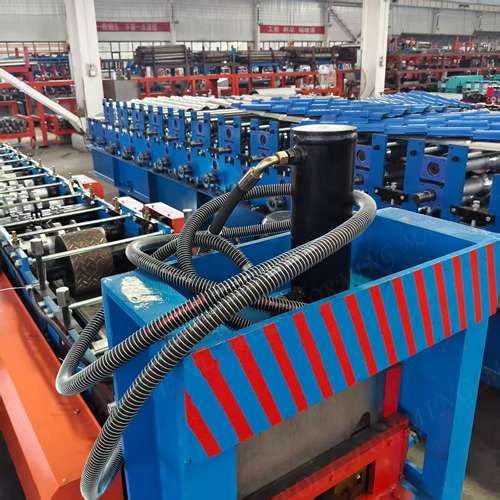

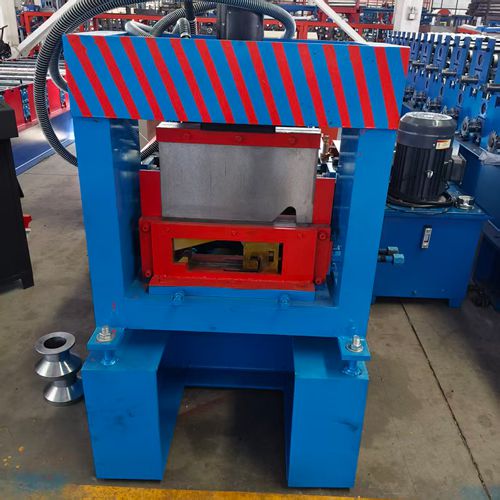

The integrated hydraulic flying-cut system delivers clean, burr-free edges while maintaining production speeds of up to 20 m/min.
| Parameter | Specification |
|---|---|
| Suitable Material | PPGI, PPGL (Galvalume), galvanized steel, aluminum |
| Material Thickness | 0.3 – 0.8 mm (customizable up to 1.2 mm) |
| Coil Width | Standard 1000 mm / 1200 mm / 1220 mm (customizable) |
| Forming Speed | 8 – 20 m/min (high-speed config up to 30 m/min) |
| Roller Stations | 12 – 18 stations (depending on profile) |
| Roller Material | 45# forged steel, hard-chromed surface (HRC 58-62) |
| Control System | PLC (Siemens / Delta), HMI touchscreen, automatic length control |
| Cutting System | Hydraulic flying shear, automatic tracking |
| Forming Tolerance | ±0.5 mm (length), ±0.3 mm (profile) |
| Power Supply | 380V / 50Hz / 3-phase (customizable for 480V / 60Hz) |
| Total Power | 15 – 22 kW |
| Machine Weight | Approx. 5,000 – 8,000 kg |
| Dimensions (L×W×H) | 8,000 × 1,500 × 1,600 mm (approx.) |

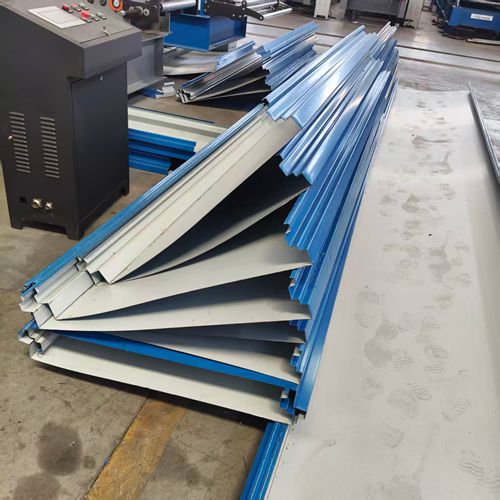

The self-lock standing seam roof panels produced by this machine are ideal for:
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
