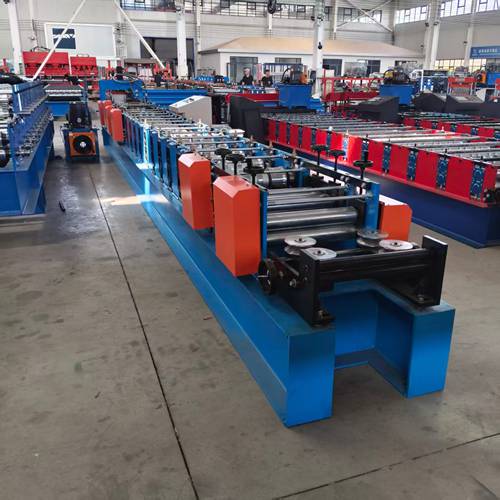

Core FunctionContinuously produces self-lock / standing seam roof panels with automatic forming, cutting and length control
Raw MaterialPPGI / PPGL color-coated steel coil, galvanized steel coil, aluminum coil; thickness 0.3–0.8 mm
AutomationFull-automatic PLC control system (Delta / Mitsubishi), touch screen operation, auto length setting & counting
Production Speed15–25 m/min (high-speed configuration available up to 30 m/min)
Precision & CustomizationForming tolerance ±0.5 mm; customizable profile, coil width, panel height and machine color
Application & ContactWidely used in industrial warehouses, workshops, commercial buildings and residential roofing.
WhatsApp : +8618830702960

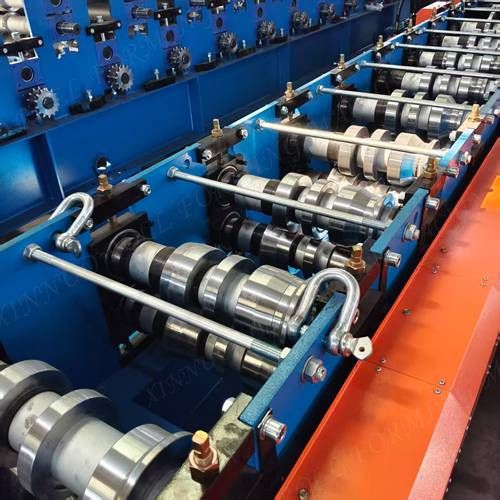

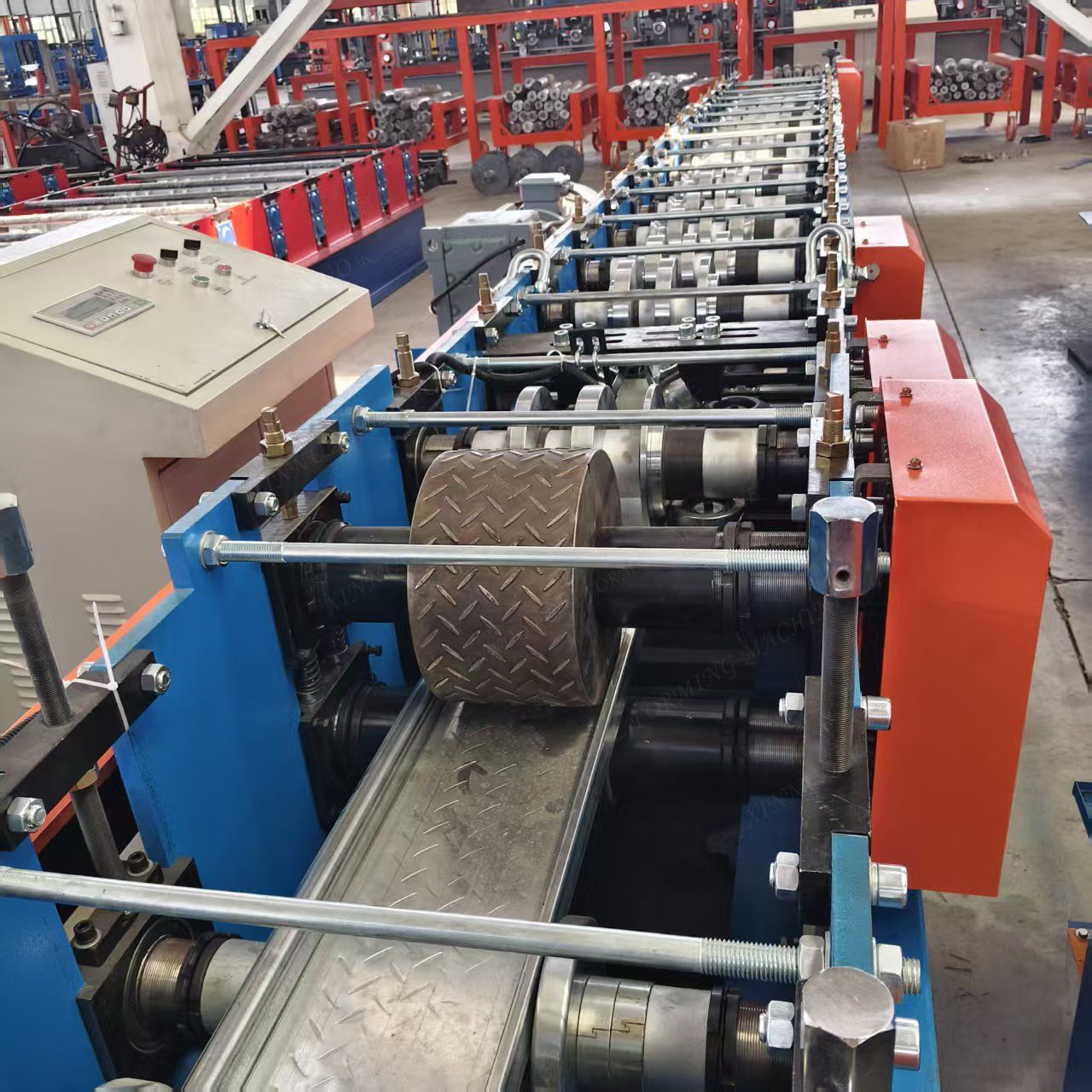

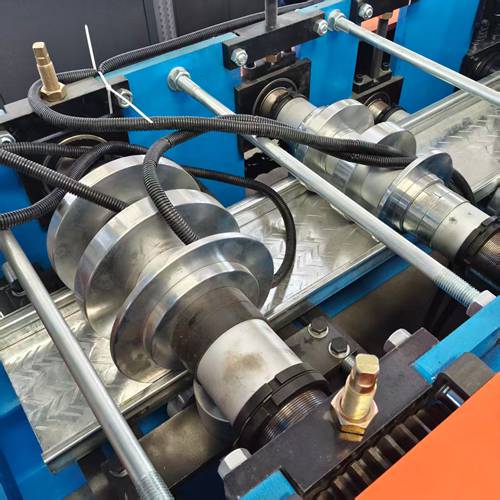

Our self lock roof panel roll forming machine adopts a heavy-duty welded steel frame and high-precision forming rollers (45# steel with chromed surface), ensuring stable operation and long service life. The machine integrates decoiling, feeding, roll forming,

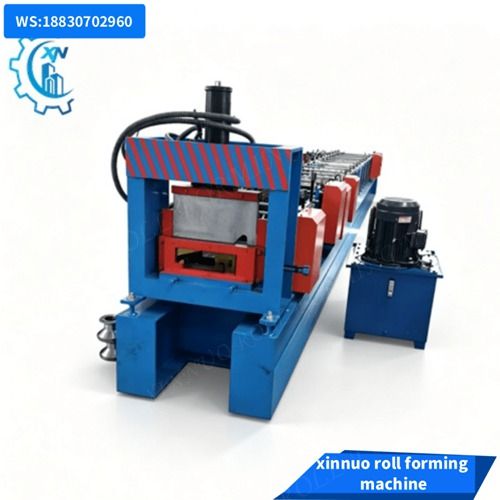

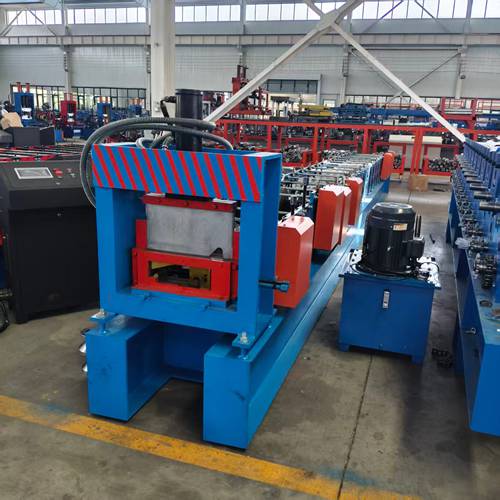

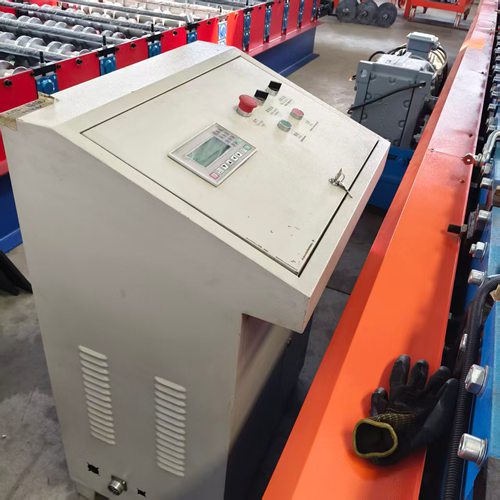

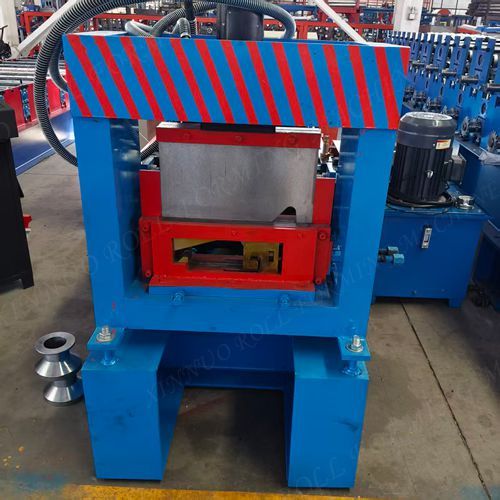

hydraulic cutting and discharging into one continuous production line. Equipped with a PLC control cabinet, operators can easily set panel length, batch quantity and cutting parameters via the touch screen. The hydraulic cutting system delivers clean, burr-free
edges with minimal material waste.

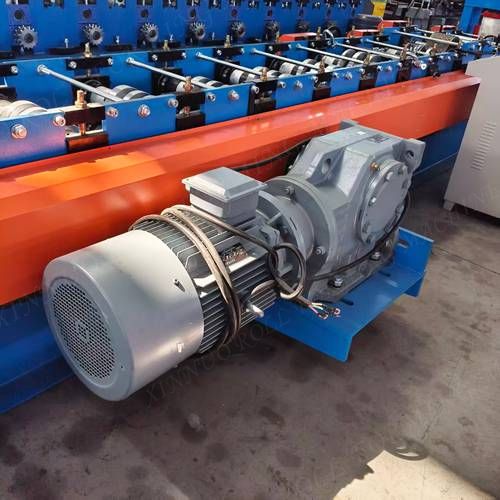

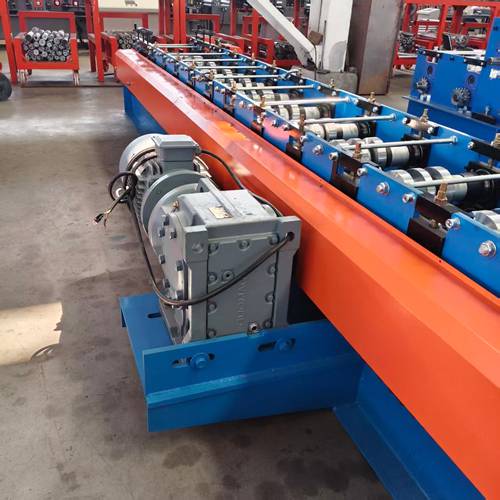

The machine is compatible with a wide range of raw materials including PPGI, PPGL, galvanized steel and aluminum coils ranging from 0.3 mm to 0.8 mm in thickness. All key components — gearbox, motor, hydraulic station and electrical parts — are sourced from
renowned brands (Siemens / Delta / Schneider). Every machine undergoes a 48-hour continuous running test before shipment and is CE & ISO 9001 certified.
The self-lock (standing seam) roof panels produced by this machine feature excellent water-tightness, wind resistance and aesthetic appearance, making them ideal for:
We provide comprehensive after-sales support including:
About Us
Hebei Xinnuo Machinery is a leading Chinese manufacturer of cold roll forming equipment based in Botou, Hebei. With 30+ years of experience, we produce self-lock standing seam roof panel formers, glazed tile and corrugated roof sheet lines,
C/Z purlin machines, cable tray lines, solar bracket formers, U-channel machines, rolling shutter equipment and high-speed nail making machines. CE & ISO certified with PLC control and global after-sales, serving 60+ countries.
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
