1.Applicable Raw Materials:Cold-rolled steel plates, galvanized steel plates
2.Equipment Dimension:6800mm × 1800mm × 2200mm (Length × Width × Height)
3.Safety Certification:CE Certification, ISO 9001 Quality Management System Certification
4.Email:xinnuo05@xinnuomachine.com
5.whatsapp：+8618830702960
| Machine Model | SSM - 3000 (Medium-duty) / SSM - 5000 (Heavy-duty) |
| Applicable Raw Materials | Cold-rolled steel plates, galvanized steel plates, thickness 0.3mm - 3.0mm |
| Production Speed | 10 - 20 meters per minute (adjustable according to shelf specifications) |
| Processing Shelf Height Range | 1200mm - 4500mm (customizable to extend up to 6000mm) |
| Processing Shelf Width Range | Processing Shelf Width Range |
| Control System | PLC programmable logic controller, with 7-inch color touch screen |
| Drive Method | Servo motor drive (feeding accuracy ±0.1mm) |
| Power Supply Specification | Three-phase 380V 50Hz, rated power 15kW |
| Equipment Dimension | 6800mm × 1800mm × 2200mm (Length × Width × Height, excluding material rack) |
| Weight | Approximately 4800kg |

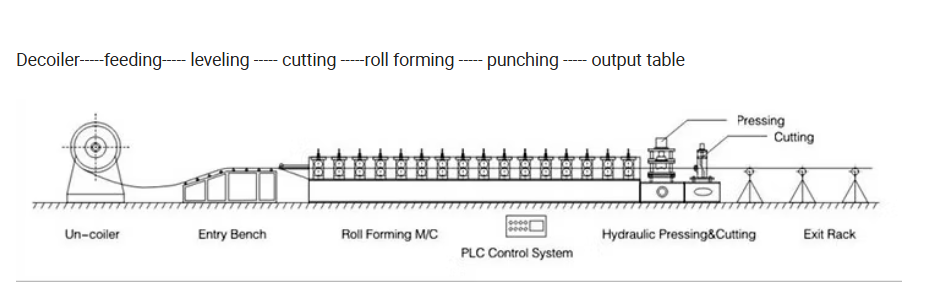

workflow
our company
Hebei Xinnuo Roll Forming Machine Co., Ltd is a industry and trade integration company, which is on the basis of original Botou Huayu Roll Forming Machine Factory The company located in botou city, that has superior geographical and convenient traffic.It is the professional manu-facturer for metal sheet roll forming machines with seniority qualifications and experience.
We have high technological background, advanced and mature production equipment and perfect means of inspection. We not only produce different type of roll forming machine, but also developed automatic production line of roll forming machine, roof panel, wall panel forming machine series, Glazed tile roll forming machine series, Floor deck roll forming machine series, Highway barier forming equipment, double-deck color steel tile roll forming machine series, C, Z shape steel purlin machine series. precipitator anode plate forming machine, achcamber machine series, cutting machine and bending machine series, insulated sandwich panel machine on the base to traditional forming machine. Our machines are exported to demestic and foreign markets and are highly praised by new or old customer by their good-looking appearance, fair frame and standard model. We have prepared experienced professional workers and skilled staff for you. We could design different type of cold roll forming machine according to clients requirement.
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
