Product Overview

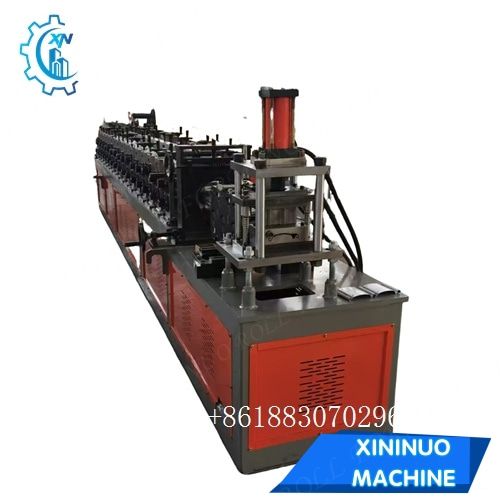

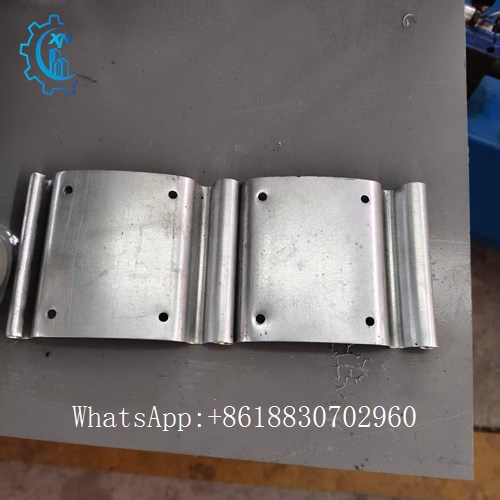

The Roller Shutter Roll Forming Machine is a specialized cold roll forming equipment engineered to continuously shape metal coils (such as galvanized steel, color steel, aluminum alloy, etc.) into interlocking slat profiles for roller shutter doors and windows. Adopting advanced PLC control and hydraulic transmission technology, the machine realizes automatic feeding, progressive forming, precise cutting, and slat discharging, ensuring stable performance and uniform product specifications even in long-term continuous operation. It is widely applied in the production of security roller shutters, garage doors, shop front doors, warehouse doors, and residential roller shutters, meeting the strict standards of various industries and regions.
Core Features & Advantages
-

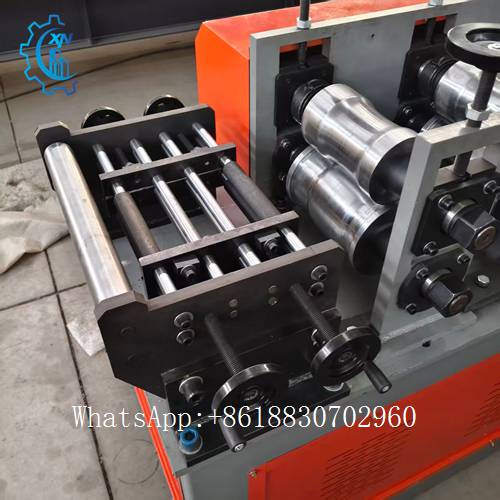

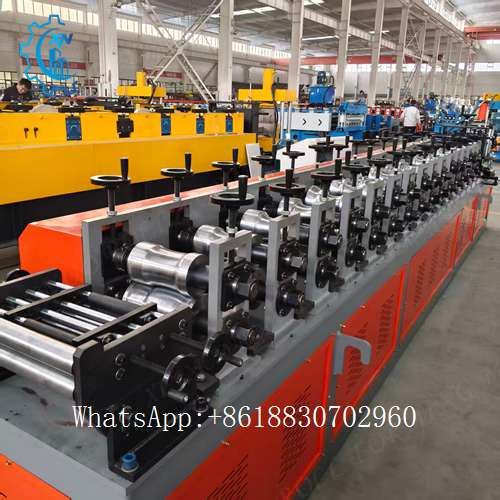

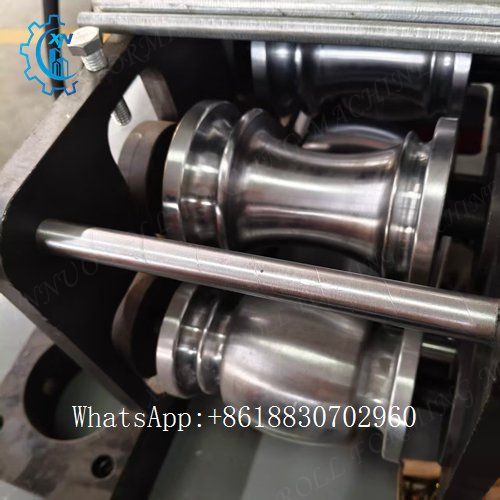

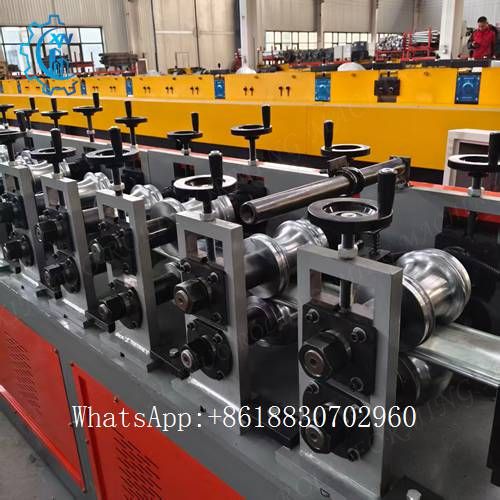

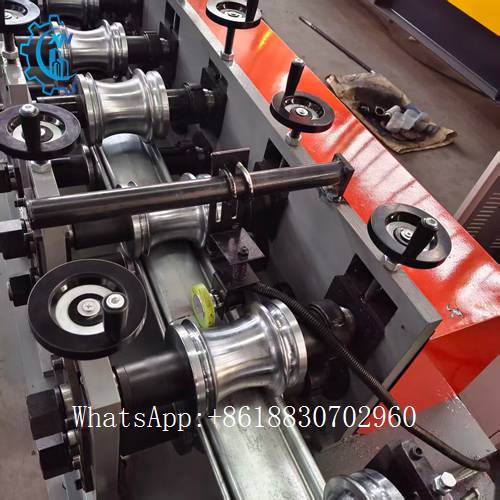

High Precision Forming: Equipped with 8-24 customizable forming stations (depending on slat type) and high-grade 45# steel rollers with hard chrome coating, the machine ensures precise bending and consistent slat dimensions with tight tolerances. The rollers are polished and heat-treated for corrosion resistance and long service life, avoiding slat deformation or surface scratches during the forming process.
-
Flexible Customization: Capable of producing various slat types, including C-shape, double C-shape, insulated slats, and custom profiles, with adjustable forming width (80-500mm) and material thickness (0.4-1.2mm) to meet
different regional standards and customer requirements. We also provide OEM/ODM services to tailor the machine to your specific production needs, such as adding punching, embossing, or stacking functions.
-
Sturdy Structure & Durability: Adopting robust welded steel frame construction, the machine features high stability and load-bearing capacity, suitable for long-term heavy-duty operation. Key components (motor, gearbox,
hydraulic parts) are sourced from world-renowned brands (Siemens, ABB, Denison, SKD11), ensuring reliable performance and reducing maintenance frequency.
Technical Specifications
|
Item
|
Specification
|
|
Machine Type
|
Roller Shutter Roll Forming Machine
|
|
Production Speed
|
10-40 m/min (adjustable)
|
|
Forming Width
|
80-500 mm (customizable)
|
|
Material Thickness
|
0.4-1.2 mm
|
|
Suitable Material
|
Galvanized steel, color steel, aluminum alloy, stainless steel
|
|
Number of Forming Stations
|
8-24 stations (customizable)
|
|
Main Drive Power
|
1.5-11 kw
|
|
Voltage
|
220-440 V, 3 Phase, 50/60 Hz (customizable for different countries)
|
|

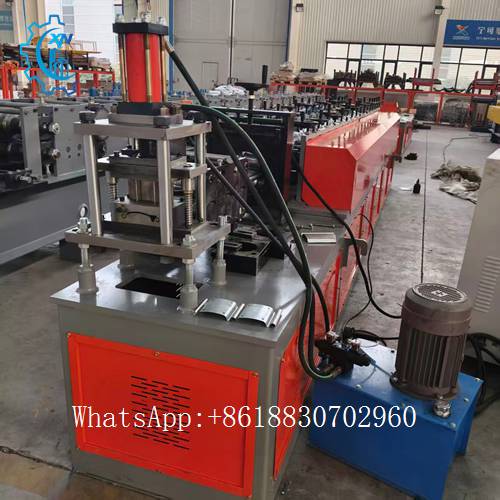

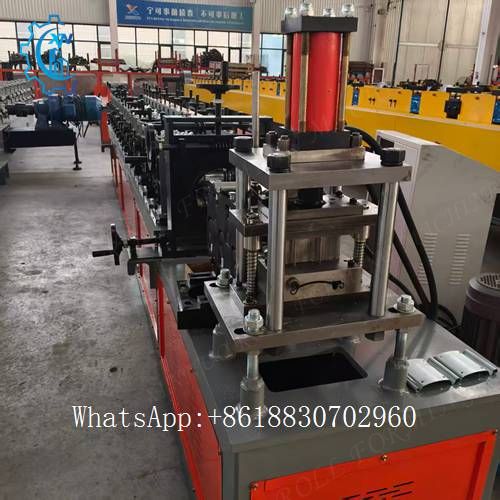

Cutting Method
|
Hydraulic post-cutting / Non-stop flying cutting (optional)
|
|
Control System
|
PLC Control (Siemens) + HMI Touch Screen
|
|
Machine Dimension (L×W×H)
|
4000-10000 × 1800 × 2000 mm (depending on model)
|
|
Machine Weight
|
1500-16000 kg (depending on model)
|
|
Certification
|
CE, ISO 9001
|
Application Fields
Our Roller Shutter Roll Forming Machine is widely used in various industries that require high-quality roller shutter doors, providing versatile solutions for:
-
Industrial & Manufacturing: Factories, warehouses, logistics hubs, and industrial parks (for security, fire-resistant, and heavy-duty roller shutter doors).
-
Commercial & Retail: Shopping malls, shop fronts, supermarkets, and commercial complexes (combining aesthetics, safety, and practicality).
-
Residential: Villas, apartment complexes, garages, and private residences (for anti-theft, soundproof, and wind-resistant roller shutters).
-
Public & Special Facilities: Hotels, resorts, hospitals, schools, and high-risk security facilities (customized solutions for specific needs like sound absorption or fire resistance).
About Us
Xinnuo Roll Forming Machinery is a professional manufacturer dedicated to the R&D, production, and sales of high-precision cold roll forming machines. Located in Hebei, China, we combine years of industrial experience with advanced technology to provide reliable, efficient, and customized metal forming solutions for global customers.
Our main products include roller shutter door machines, garage door machines, roofing sheet machines, C/Z purlin machines, and various profile roll forming lines. All equipment adopts PLC control, high-strength forming rollers, and stable transmission systems, meeting CE and ISO quality standards. We focus on precision, durability, and production efficiency to help clients improve output and reduce costs.
Adhering to the principle of “Quality First, Customer Supreme”, we offer OEM/ODM customization, on-site installation, and full after-sales support. Our machines are exported to more than 50 countries and regions worldwide, earning high trust from partners.
Xinnuo keeps innovating to provide cost-effective roll forming solutions and build long-term win-win cooperation with global clients.
