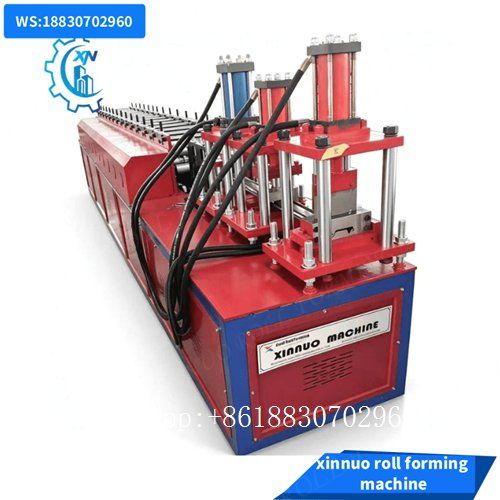

rolling shutter door roll forming machine

Flow chart: Decoiler—manual-pre-cut–feeding & guiding—rorming—-hydraulic cutting—out table

MATERIAL:

1) Suitable Coil Thickness: 1.5mm

2 ) Suitable Raw Materials: galvanized steel sheet, galvanized color sheet

3）Yield strength of raw material: 235Mpa

Main Components:

1. De-coiler

   Un-power: manual de-coiler; max. Capacity: 3 tons, stock width: 300mm

2.Roll-Forming M/C:

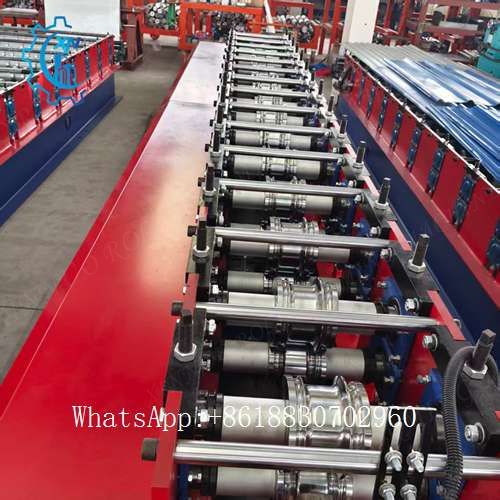

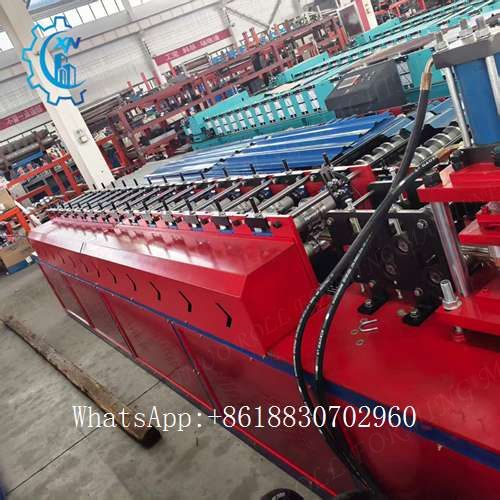

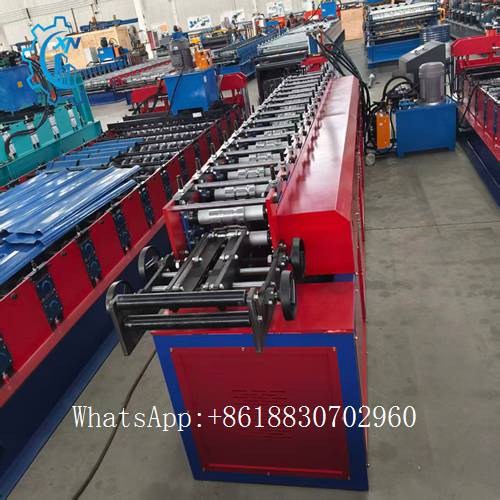

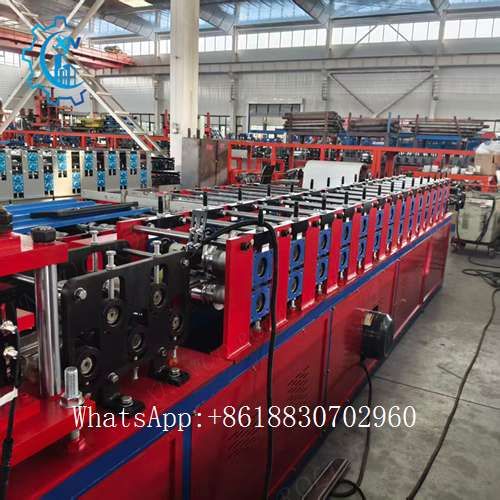

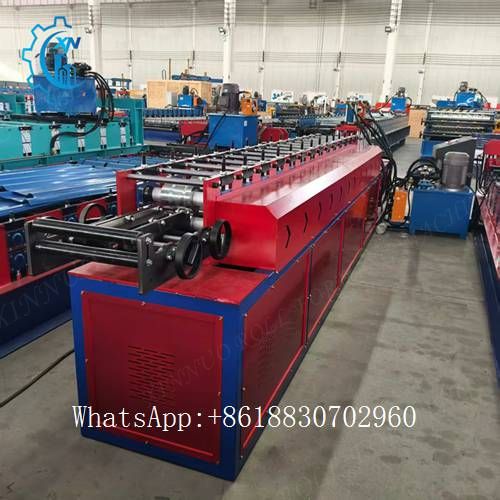

• The main frame of machine is welded separately and the outside wall is connected by screw after being roto blasted on the surface.
•  Roller Material is high grade No.45 forged steel, with digital-controlled procession.

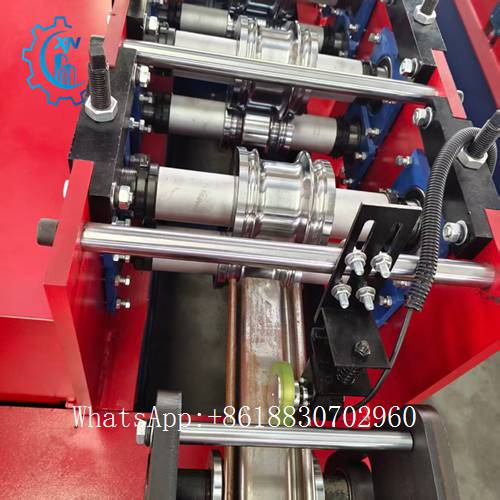

• Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product.

• The rollers are plated with hard chrome with thickness of 0.05mm on the surface after being machined by the exact machine tool. So that ensures long life of forming rollers.

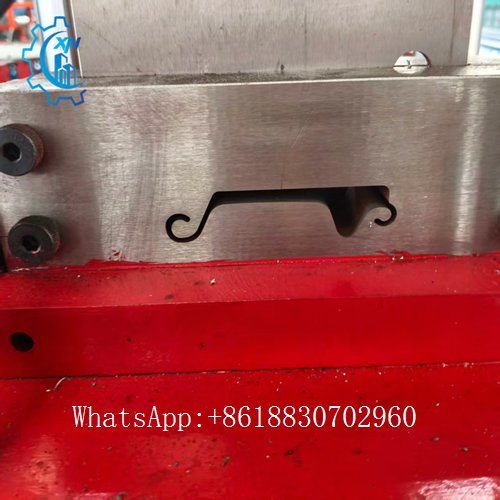

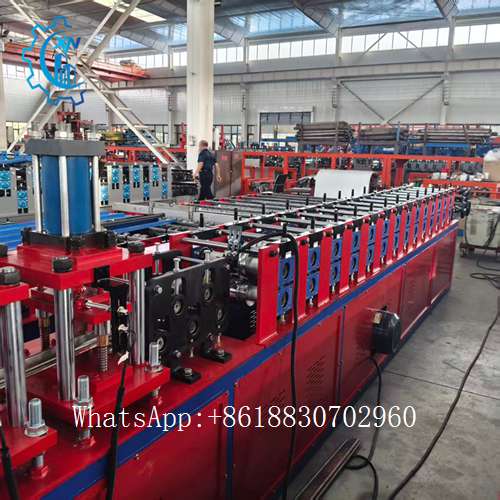

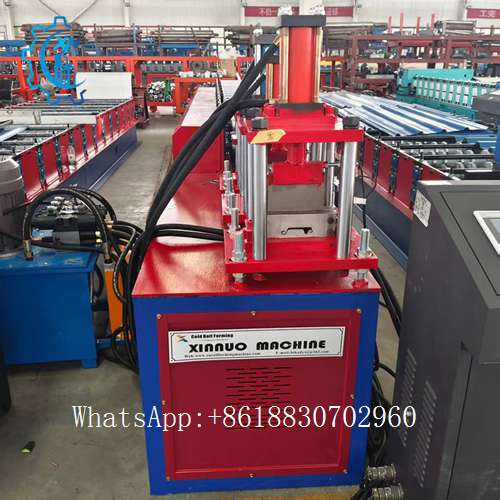

3. Hydraulic Post Cutting

1)  Adopts post cutting, Stop to cut;

2)  Burrless cold saw

3)  Adopts welded frame for good rigidity.

4)  Cutting frame has been heat treatment to avoid final product deformation.

5)  The final product can be cut as per set length in PLC controller, and the length is automatically measured by encoder.  When final product reaches the set length, machine will stop to cut the product automatically. Finish this action, machine will run again continuously.

4. Profile Stack

1)  They are used to put the final product when product coming out from cutting device.

2)  Support length: 3 meters.

3)  Collect the final product and final products are convenient to be stacked by workers.
