1.Machine Dimension (L×W×H):6500×1200×1500 mm
2.Weight:2800 - 3200 kg
3.Min.Order Quantity:1 Pieces
4.Payment Terms:30% T/T in advance,70% when shipping
5.Email:xinnuo05@xinnuomachine.com
6.whatsapp：+8618830702960

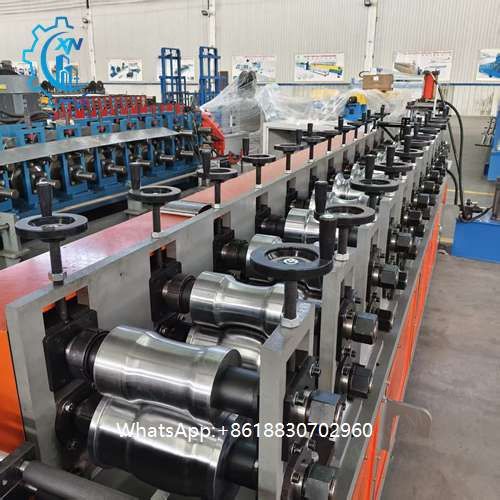

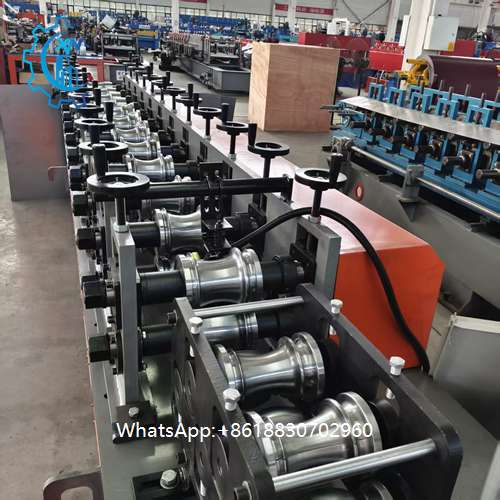

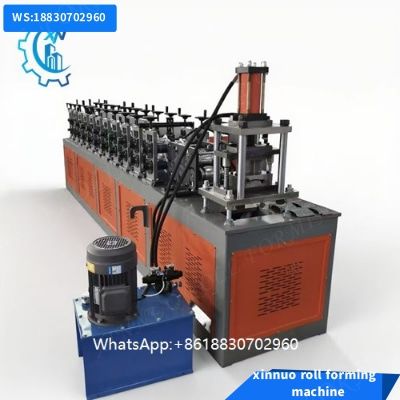

Rolling Shutter Forming Machine Product Description
The RS-FM 2025 rolling shutter forming machine boosts efficiency with 8-12m/min forming speed, handling 0.3-0.8mm galvanized steel/aluminum. Equipped with 18-22 forming rollers & PLC touch control, it adjusts to 800-1500mm finished width. 380V 3-phase power (7.5-11kW) ensures stable runs. Compact 6500×1200×1500mm size, 2800-3200kg weight—ideal for high-precision, continuous shutter production.
| Parameter Item | Specification |
| Forming Speed | 8 - 12 m/min |
| Raw Material Thickness | 0.3 - 0.8 mm (Galvanized Steel/Aluminum) |

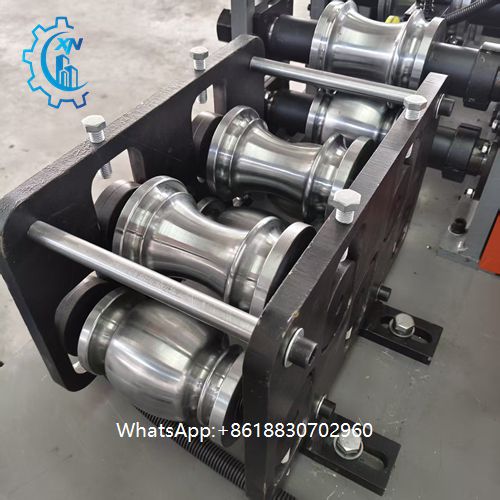

| Forming Roller Quantity | 18 - 22 Pcs |
| Power Supply | 380V/50Hz, 3 - Phase |
| Total Power | 7.5 - 11 kW |
| Machine Dimension (L×W×H) | 6500×1200×1500 mm |
| Weight | 2800 - 3200 kg |

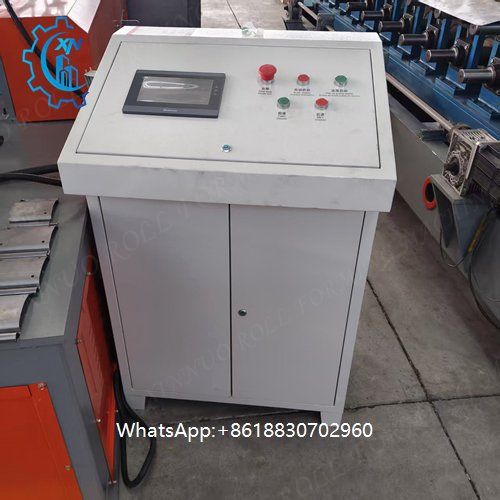

| Control System | PLC with Touch Screen |
| Finished Product Width | 800 - 1500 mm (Adjustable) |

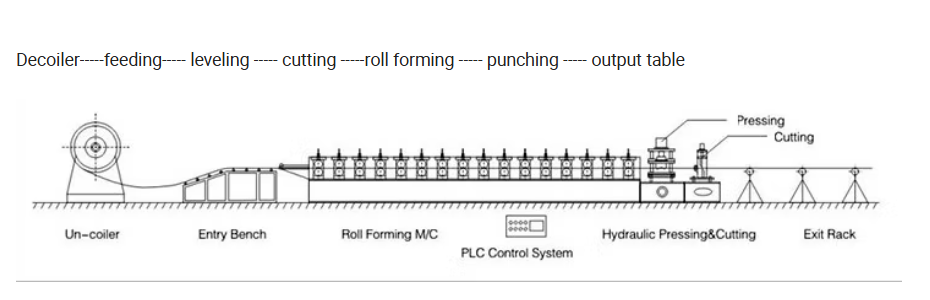

Workflow
Our company
Xinnuo Roll Forming Machine Co.,Ltd Established in 1998, is a leading manufacturer specializing in the design and production of C/Z purlin roll forming machines, high-speed purlin lines, and other customized roll forming equipment. Our facilities cover over 100,000 square meters, including 2 modern factorys and 12 warehousing bases. Since 2002, Xinnuo machines have been successfully exported to over 180 countries worldwide, earning consistent praise fortheir performance, ease of operation, and our comprehensive customer service. Looking ahead, Xinnuo remains commited to the principle of "Quality First, Service First, Customer First." We continue to focson R&D in energy-saving and intelligent machinery for the construction sector, aiming to deliver fully automated, unmanned production solutions that drive efficiency and innovation for our global partners.
FAQ
| 1. Q:Are you manufacturer? |
| A:Yes, we focus on cold roll forming machine manufacture over 12 years. |
| 2. Q: if you can accept OEM? Design and manufacture according our photo. |
| A: Yes, we can accept OEM,we owned expert engineer team, professional design CAD drawings and use famous brand components |
| according your demands. |
| 3. Q:What's the warranty for your machine? |
| A: we provide 2years guarantee and provide lifetime technical support. |
| 4. Q:How many workers is needed for the machine operation |
| A: One worker is enough, the machine use automatic PLC control system. |
| 5. Do you have after sales support? |
| A: Yes,Our engineer can supply remote-video technical support and online support teach your worker. |
| 6. Q.Can you be responsible for transport? |
| A.Yes,we owned expert export team, we can arrangement for you to your destination port or address. |
| 7. Q:What service can you provide before order? |
| A:About the pre-sale service, We provide professional solutions according your demands,such as design,technical parameter,delivery |
| flow etc. At the same time, we can supply invitation letter for your visit our factory and showing the machine operationfor you . |
| 8. Q: What is the after- sale service? |
| A: we will supply lifetime technical support,quick-wear parts within 2years,Also can provide field maintenance and repair service. |
| 9. Q:Any other service? |
| A: We can help you purchase raw material for machine,help you check ship date,update for you ship date etc |
| 10. Q:Any certification |
| A:Yes, we have SGS ISO certification. |
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
