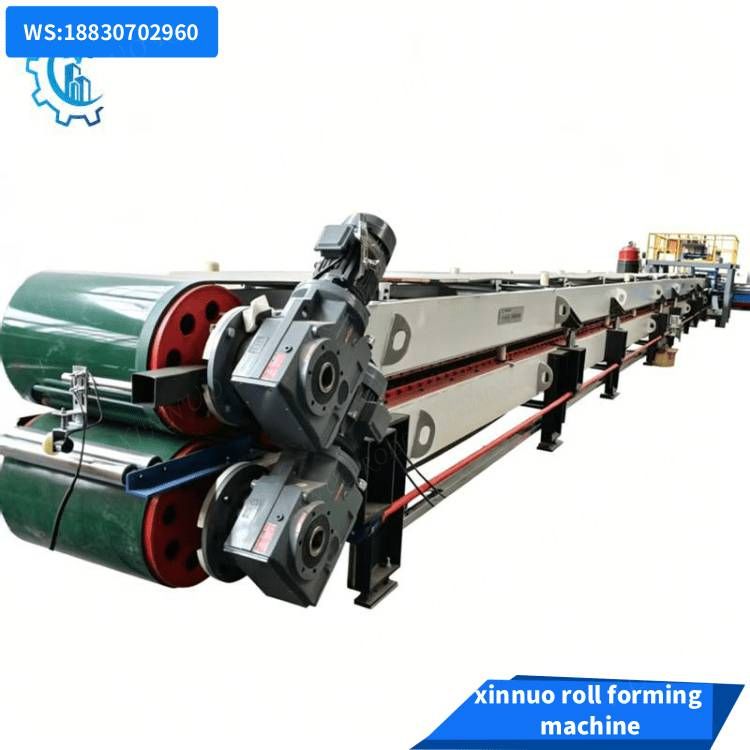

PU Rolling Shutter Door Roll Forming Machine Description
XINNUO is one of the professional roll forming machine manufacturer from China, has more than 30 years experience. XINNUO can supply different type of Door Roll Forming Machine, which including the rolling shutter door roll forming machine, fire rolling door machine and PU rolling shutter door roll forming machine.
PU Shutter Door Forming Machine is a mechanical equipment specially designed for producing polyurethane (PU) roller shutter doors, which produces roller shutter door panels with excellent thermal, acoustic and strength properties through continuous roll forming and PU foaming process. It is suitable for various industrial and commercial applications.

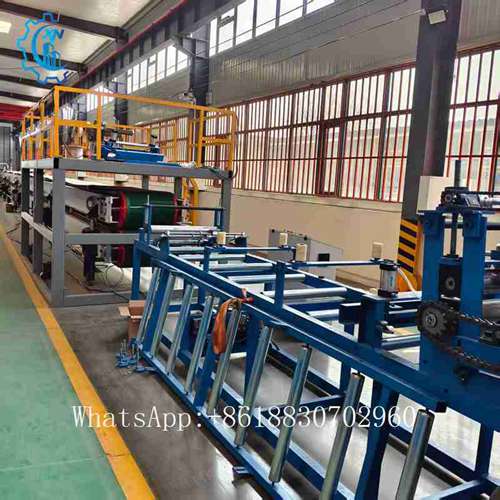

PU door shutter roll forming machine can continuously decoiler, feed, roll forming, preheating, PU foam injection, shaping and cut to length. The whole production line adopts PLC control system, which can run fully automatically.
| Item |
Parameter |
| Raw Material |
Galvanized Coil,Aluminum |
| Coil Thickness |
0.3-0.5MM |
| Coil Weight |
2Ton |
| Feeding Width |
229MM |
| Roller Material |
GCr15 |
| Drive Type |
Gear Box |
| Working Speed |
10-12M/Min |
| Cutting Model |
Hydraulic Cutting |
| Main Roll Forming Machine Power |
7.5KW |
| Production Line Length |
About 38m |

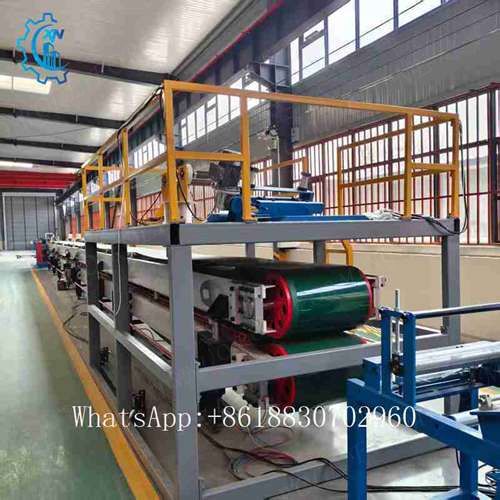

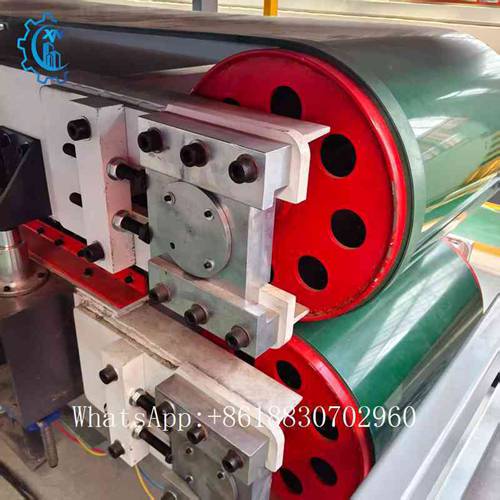

High-Pressure PU Foam System:
PU foaming machine is the key equipment in PU rolling shutter door forming machine, and its efficient and precise foaming process ensures that the roll gate panels have excellent thermal, acoustic and strength properties. Through advanced control system and precise foaming technology, PU foaming machine is able to meet various different demands for the production of rolling shutter panels and ensure the consistency and stability of product quality.
-
High pressure foaming system:
Uniform mixing: adopting high pressure mixing head, the polyurethane raw materials (A component and B component) are fully mixed under high pressure to ensure uniform foaming.
Precise metering: Equipped with precise metering pump to ensure the precise proportion of raw materials for each foaming and ensure the consistent quality of foam.
-
Efficient foaming:
Fast curing: PU foam can be cured quickly after injection to improve production efficiency and reduce waiting time.
-

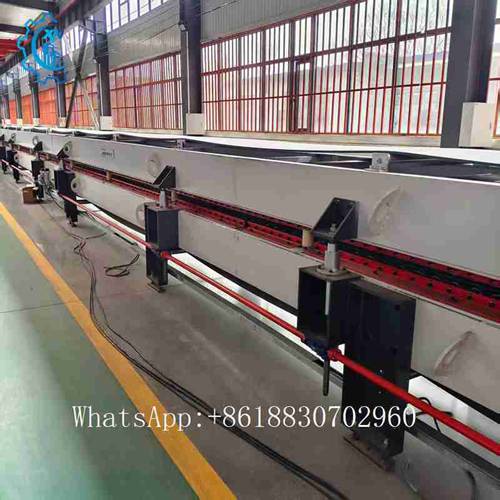

Continuous production:
Adapt to the needs of continuous production, can be seamlessly connected with the molding machine to ensure the smooth operation of the production line.

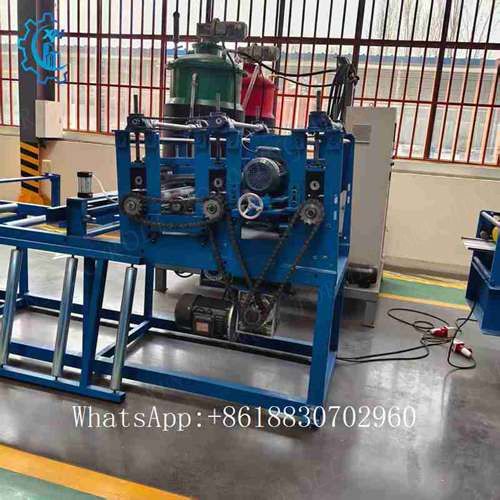

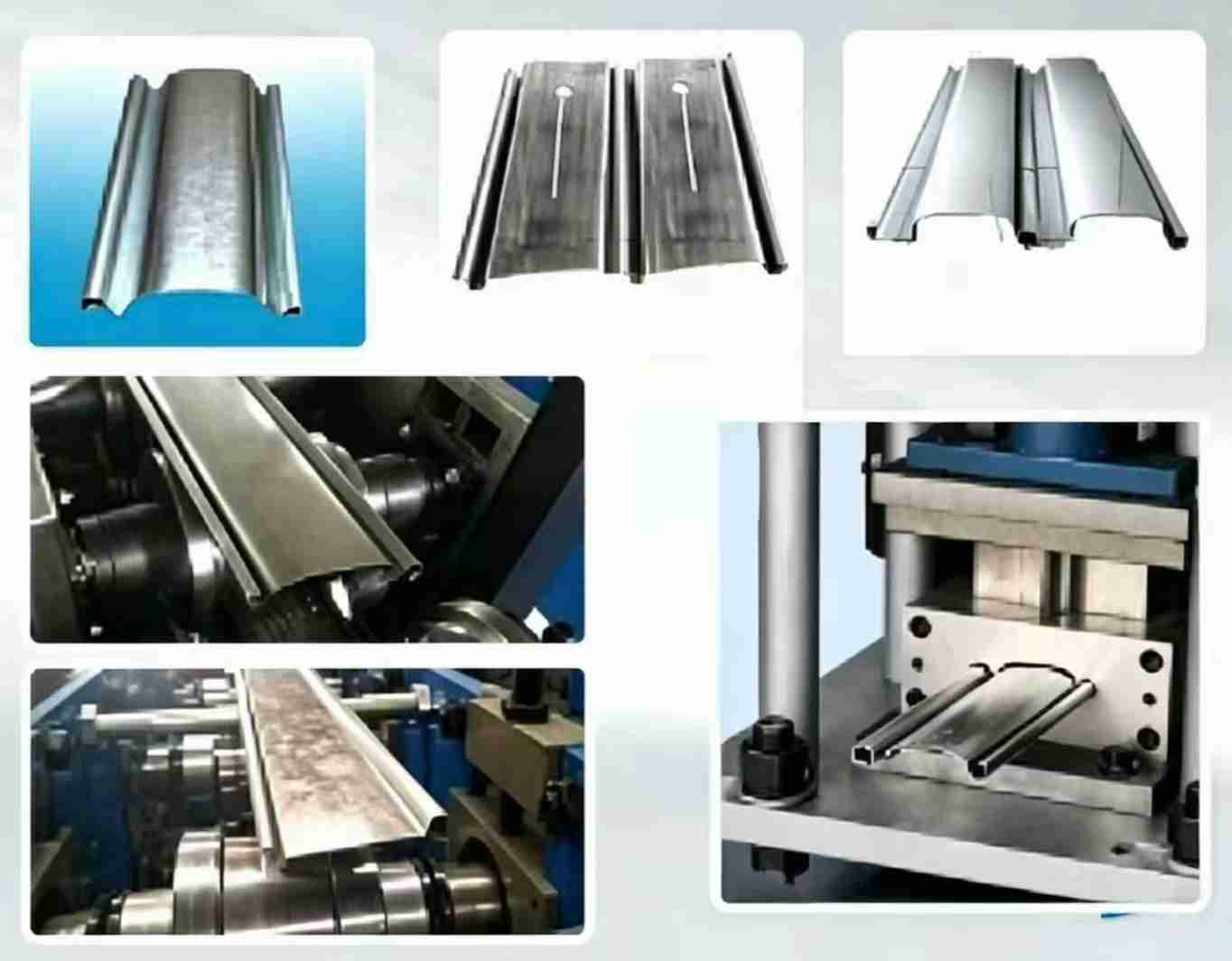

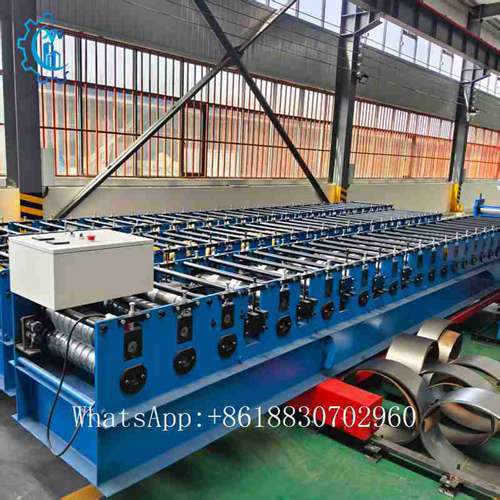

Roll Forming Machine:
Gradually molds the steel sheet into the shape of a rolled door panel through multiple roll forming passes. High forming precision ensures that the shape of each door panel is consistent.
-
Multi-pass roll forming:
Gradual molding: The steel plate is gradually molded into the shape of a rolling gate by multiple rollers, each roller is responsible for a certain amount of deformation to ensure a uniform and smooth molding process.
-
High precision:
Each roller is designed and manufactured with high precision to ensure the dimensional accuracy and consistency of the finished product.
-
Material compatibility:
A wide range of materials: it can handle various materials such as galvanized steel, aluminum, etc. to adapt to different production needs.
Wide range of material thickness: usually can handle 0.3-1.2mm thickness material, providing more product choices.
-
Modularized design:
Strong adjustability: roller position and spacing can be adjusted according to different product specifications, adapting to the production of different sizes and shapes of rolling gate panels.
-
Convenient maintenance:
modular design makes it easier to disassemble and replace the rollers, reducing maintenance time.
Other Parts
-
Decoiler Part:
Used to place and unroll steel or aluminum coils to ensure a continuous supply of material.
-
Cutting System:
Automatically cut the molded door panels to ensure the same length and shape of each panel. High cutting precision reduces material waste.
-
PLC Control System:
Advanced automation control system to realize fully automatic operation.
Provide a variety of operating modes to adapt to different production needs.

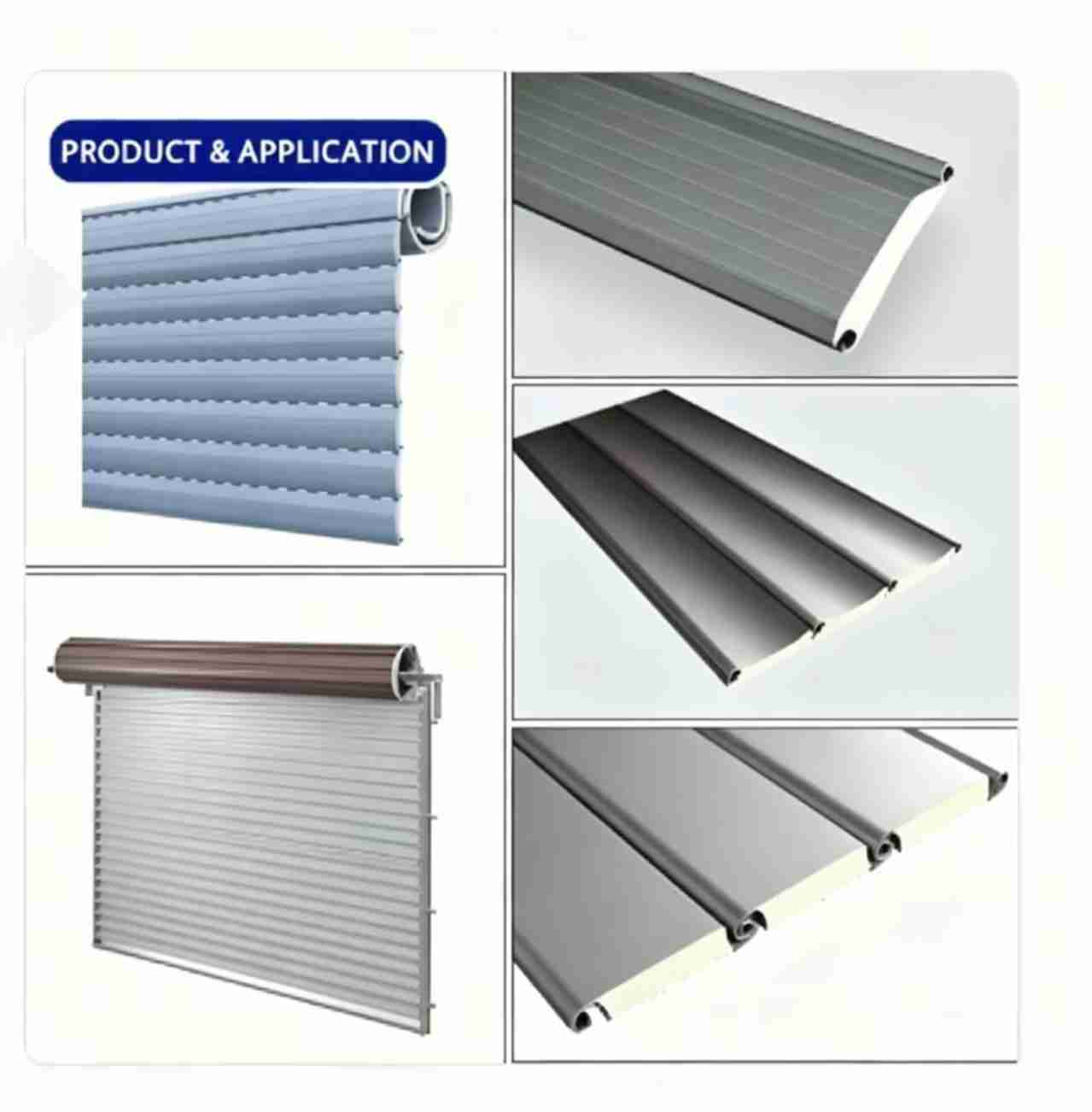

Widely used in places that require high heat and sound insulation requirements, such as garages, cold storage, industrial plants, shopping malls, logistics centers and so on.
Particularly suitable for environments that need to maintain indoor temperature and reduce noise.
Different Between Of Shutter Door And PU Shutter Door
shutter door：
