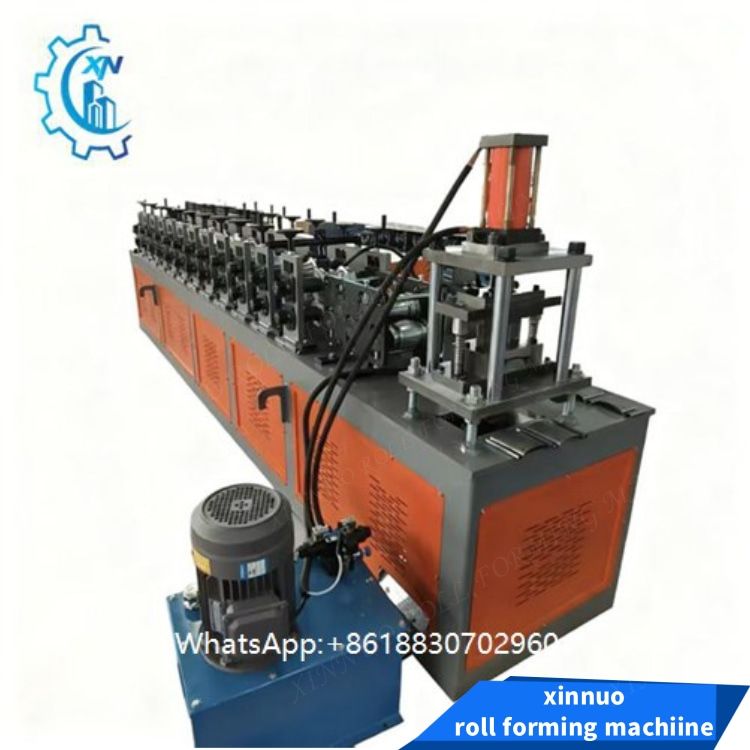

automatic shutter door rolling forming machine for metal slat production

Features of the machine:

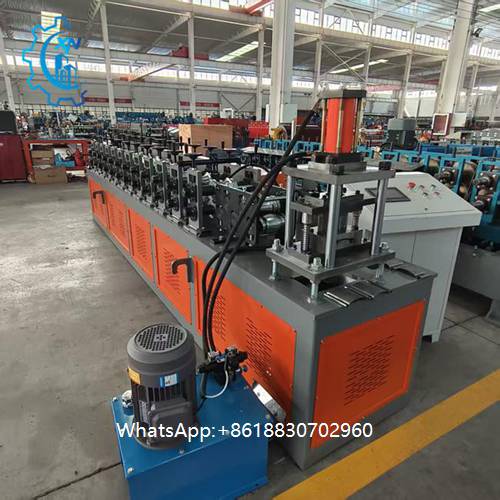

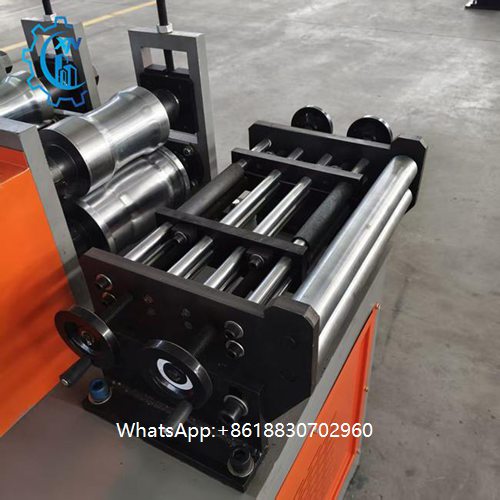

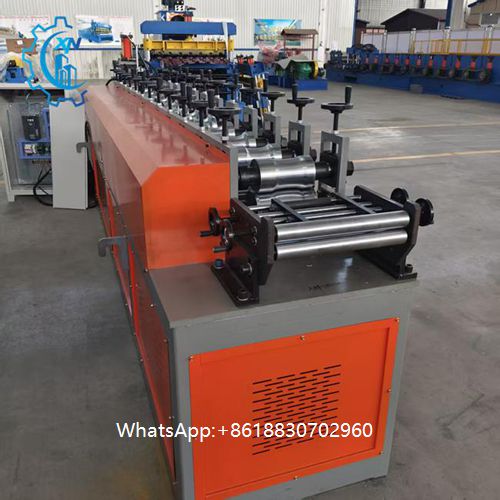

    Our YX6-72 shutter door roll forming machine consists of decoiler, feeding and levelling device, roll forming system, hydraulic post cutting, run out table, hydraulic station and PLC(controlling system). Long production line, good profile shape on final products; Time saving and labor saving, which is highly improved production efficiency and suitable for current production. This machine is easy to operate and run stable with good precision.

1.Materal:

1) Suitable Coil Thickness: 1.5mm

2 ) Suitable Raw Materials: galvanized steel sheet, galvanized color sheet

3）Yield strength of raw material: 235Mpa

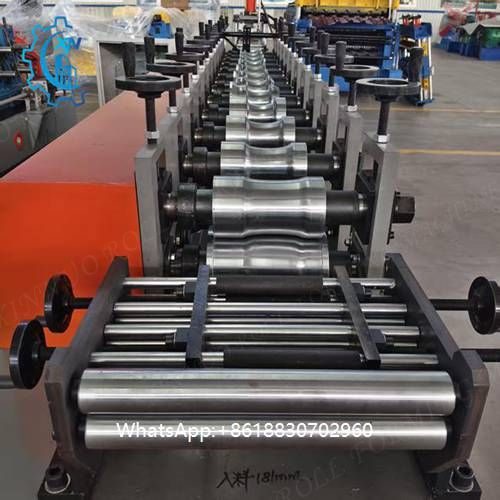

2.Roll-Forming M/C:

• The main frame of machine is welded separately and the outside wall is connected by screw after being roto blasted on the surface.

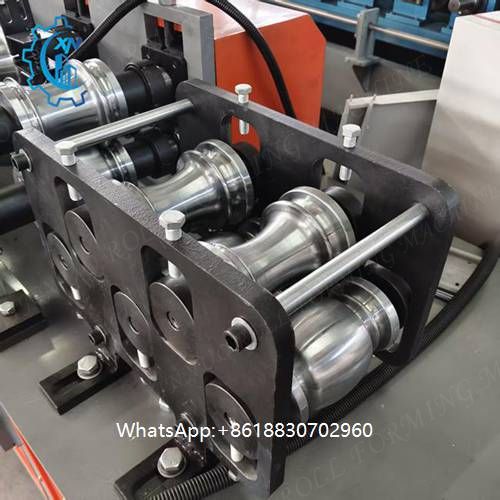

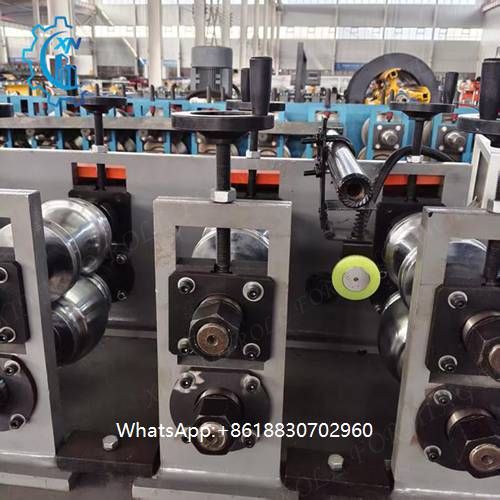

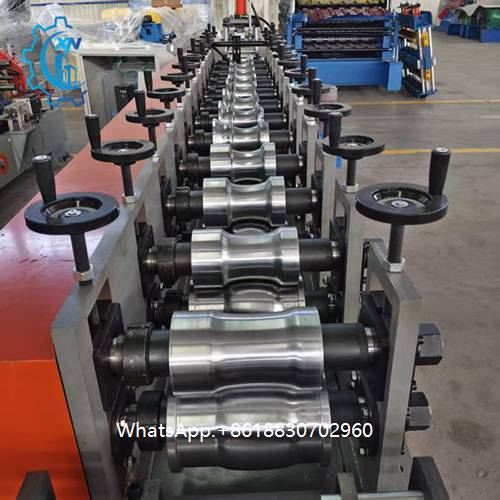

•  Roller Material is high grade No.45 forged steel, with digital-controlled procession.

• Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product.

• The rollers are plated with hard chrome with thickness of 0.05mm on the surface after being machined by the exact machine tool. So that ensures long life of forming rollers.

3. Hydraulic Post Cutting

1)  Adopts post cutting, Stop to cut;

2)  Burrless cold saw

3)  Adopts welded frame for good rigidity.

4)  Cutting frame has been heat treatment to avoid final product deformation.

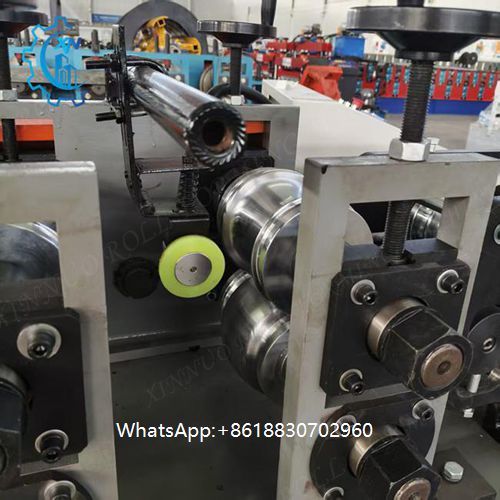

5)  The final product can be cut as per set length in PLC controller, and the length is automatically measured by encoder.  When final product reaches the set length, machine will stop to cut the product automatically.

4. Hydraulic station:

1)  It supplies the power for the hydraulic cutter.

2)  All hydraulic accessories are all use Chinese or importing famous brand products.

machine parameters

Why Choose us：

• 30+ years’ manufacturing experience in high quality equipment for cold formed steel structures.
• Competitive price and good quality
• One year free warranty
• Fast response of after sale service
• Can be customized by clients’ requirements
• Easy operate and easy to maintain
• Self-developed of post cutter, one blade to cutter all size of final products
