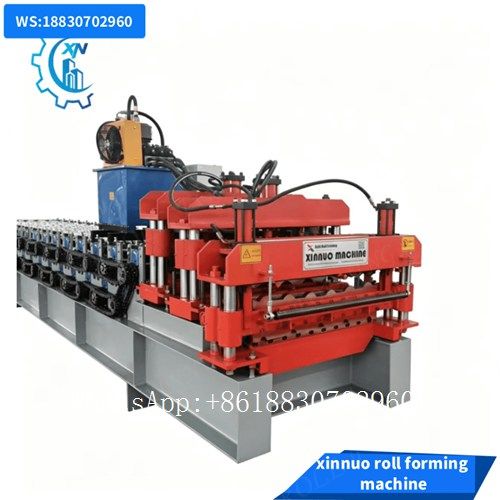

double layer metal glazed tile trapezoidal roof panel roll forming machine

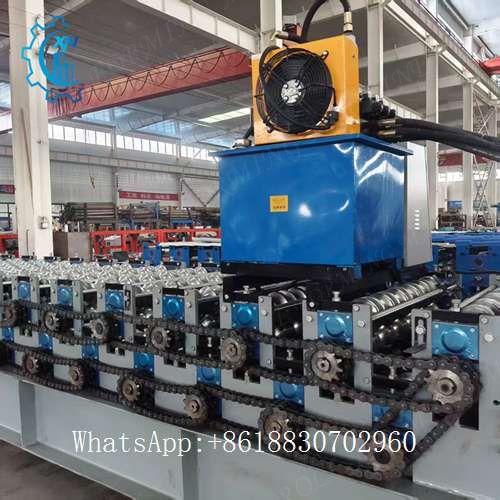

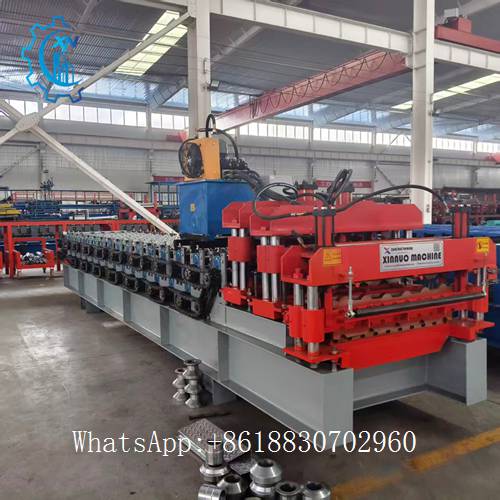

XINNUO glazed tile roll forming machine mainly consists of feeding platform, forming main unit, die pressing device, forming & shearing unit, hydraulic station and PLC computer control system. The finished panels feature light weight,

high strength, heavy load capacity and excellent shock resistance.

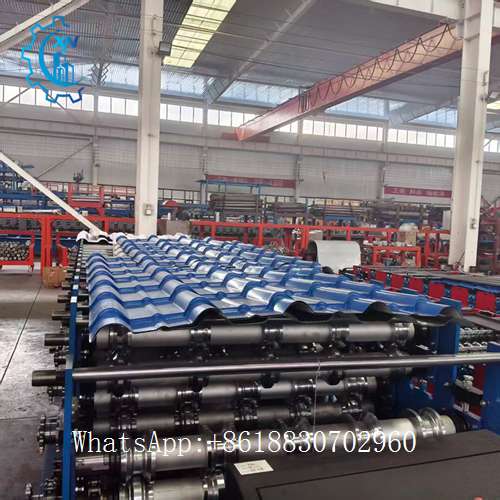

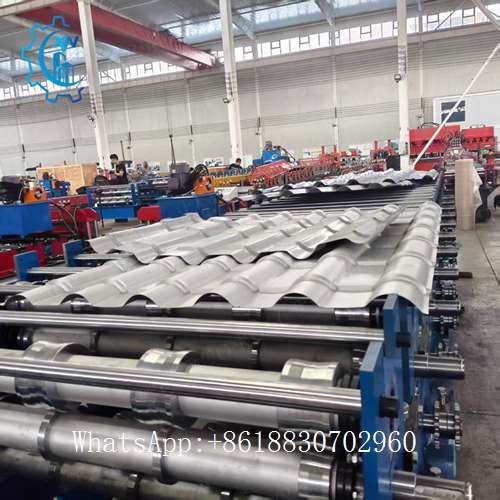

The antique glazed tiles produced by the 1100 glazed tile pressing roll die are beautiful, simple and elegant with noble texture.

The glazed tile making machine is widely used for garden-style factories, tourist attractions, pavilions, hotels, villas, exhibition halls, resorts, residential buildings and other architectural & outdoor decoration projects.

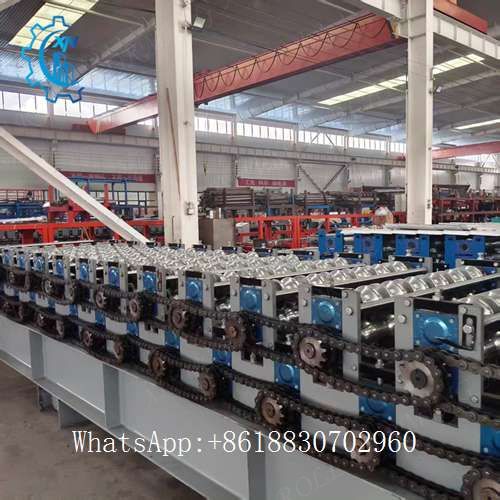

The roller table forming section of the glazed tile machine is driven by a motor. The chain drives each forming roller to rotate.

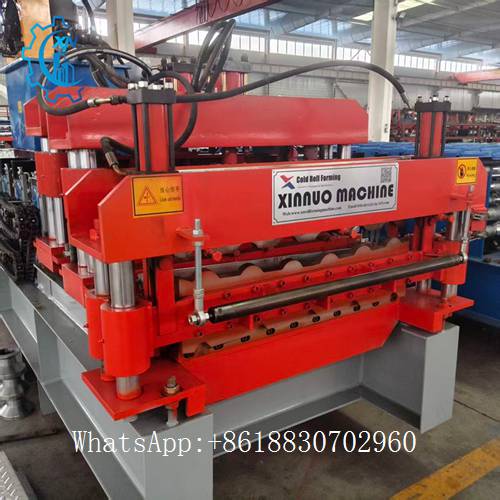

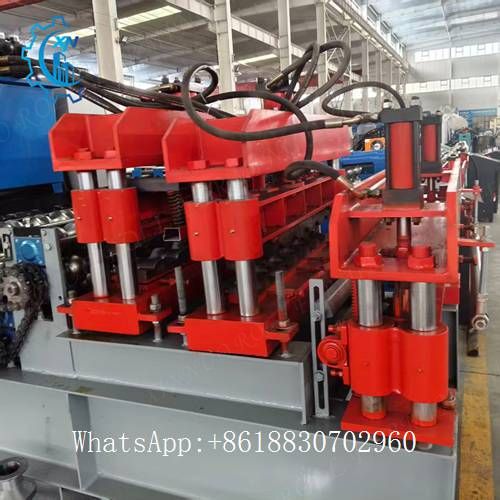

The pressing section adopts hydraulic cylinder to drive the mold moving up and down, which can form color steel sheets into segmented glazed tile profiles.

The cutting section uses hydraulic cylinder to drive the cutter up and down to cut color steel tiles.

Key Advantages

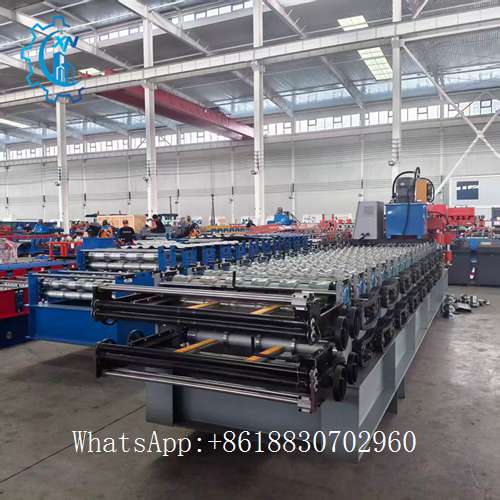

1. Dual Profiles in One Machine Two sets of forming rollers are integrated on one base frame. Operators can switch between glazed tile and trapezoidal roof sheet quickly. No need to purchase two separate roll formers, greatly lowering capital cost                                          and workshop occupation. Ideal for small and medium enterprises that take varied roofing orders in India.
2. Heavy-duty Roller System for Indian GI & PPGI Coils Forming rollers adopt high-grade alloy steel with quenching treatment. Stable rolling performance even for local Indian galvanized and color coated steel coils.                                                                                            The finished glazed tile has elegant embossed pattern, while trapezoidal panel features high rib strength for wind and rain resistance, matching India monsoon weather requirement.
3. Robust Welded Frame & Stable Transmission Thickened steel base frame, whole stress relief welding to avoid long-term running deformation. Chain drive system delivers consistent power under continuous heavy load.                                                                                   The machine can run steadily for long shifts, suitable for high-volume order production.

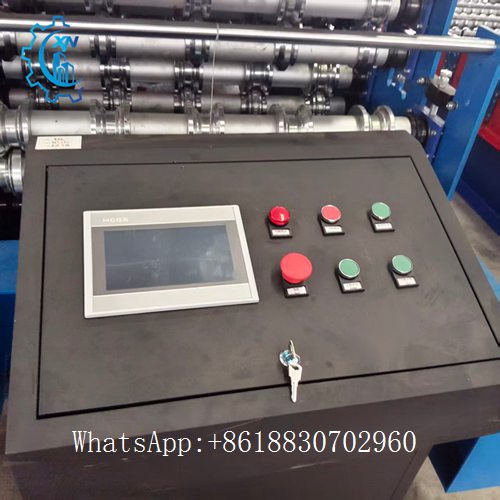

4. PLC Automatic Control & Hydraulic Cutting Equipped with PLC controller and hydraulic cutting unit. Users set target length on touch screen; the machine automatically forms, counts and cuts sheets. Cutting surface is clean without burrs.                                             Simple operation, local workers can master operation and daily maintenance quickly.
5. Wide Raw Material Compatibility Suitable for PPGI, GI galvanized steel coils. Thickness range covers mainstream metal sheet specifications widely used across India roofing industry.

Application in India Market

• Glazed tile: Residential building, farmhouse, villa, resort rooftop, renovation projects
• Trapezoidal roof sheet: Industrial shed, godown, poultry farm, factory roofing, temporary construction

Finished panels feature good corrosion resistance, heat reflection performance, fit for India high temperature and rainy season environment. Interlocking design ensures easy installation and good waterproof effect.

After-sales & Support for Indian Customers

We provide machine operation manual in English, operation video guide. Engineers support remote online troubleshooting. Spare parts can be packed together with machine shipment. Customized profile design is available if you have special tile dimension requirements.

Pre-shipment full running test to guarantee machine quality before delivery.

Hebei Xinnuo Machinery is a professional manufacturer of cold roll forming machines, with rich experience in designing and producing metal roofing equipment. Our flagship double-layer roll forming machine integrates glazed tile and trapezoidal roof panel production in one unit. It can process PPGI/GI coils, widely popular in India and other overseas markets, helping clients cut equipment investment and workshop space. We supply customized profiles, pre-shipment testing, English operation manuals and remote technical support. Our machines are exported to South Asia, Africa and Middle East, trusted by steel structure contractors and metal sheet processors.
