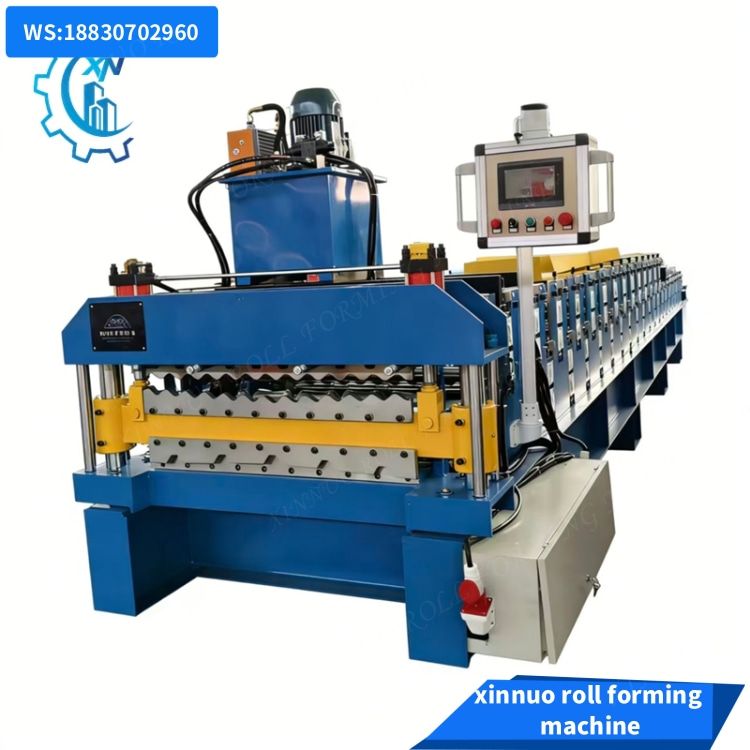

Double Layer Roll Forming Machine (Trapezoidal & Corrugated Panels)
Our Intelligent Double Layer Roll Forming Machine is exclusively developed for the efficient production of trapezoidal roof sheets and corrugated wall panels, integrating advanced intelligent control technology,
precision forming and energy-saving design. Different from traditional double-layer equipment, it realizes full-process intelligent operation, greatly reducing manual intervention, improving production accuracy
and efficiency, and becoming the core equipment for modern metal panel processing enterprises to enhance competitiveness.
Core Intelligent Features
-

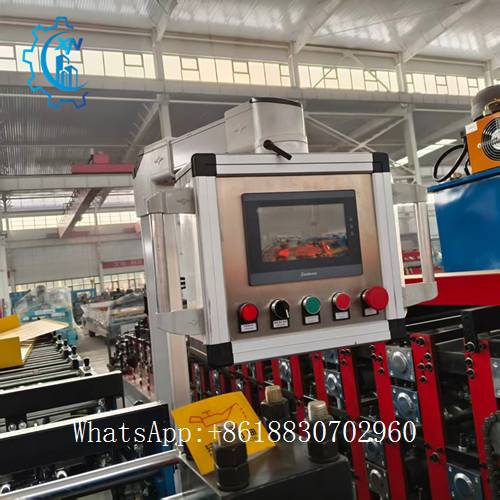

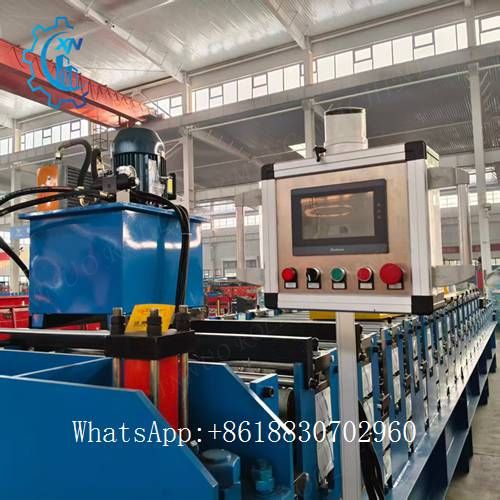

Intelligent PLC Touch Screen Control System: Adopt imported high-performance PLC controller and 10-inch color touch screen, with intuitive operation interface and humanized design. One-click start/stop,
-
parameter setting, fault prompt and production statistics can be completed on the screen, and the operation is simple without professional technical foundation. The system supports multi-language switching
-
(English, Spanish, Russian, etc.), adapting to global user needs.
|
Item
|
Specification
|
Remarks
|
|
Machine Type
|
Double Layer Roll Forming Machine
|
For Trapezoidal & Corrugated Roof Panels
|
|
Suitable Materials
|
PPGI/PPGL, Galvanized Steel, Aluminum Sheet
|
Customizable according to demand
|
|
Material Thickness
|
0.3-1.0mm
|
Adjustable
|
|
Material Width
|
1000-1250mm
|
Customizable
|
|
Production Speed
|
8-20m/min
|
Intelligent frequency conversion speed regulation
|
|
Forming Precision
|
Cutting Tolerance: ±0.3mm-±1.5mm
|
Stable forming, no deformation
|
|
Roller Material
|
High-quality Alloy Steel
|
Precision machining + Hard chrome plating
|
|
Control System
|
Intelligent PLC + 10-inch Color Touch Screen
|
Multi-language support, one-click operation
|
|
Cutting System
|
Integrated Hydraulic Cutting
|
Automatic fixed-length, burr-free
|
|
Power Supply
|
380V, 50Hz, 3Phase
|
Customizable by regional standards
|
|
Warranty Period
|
1Years
|
ISO9001 Certified
|
|
Special Function
|
Remote Fault Diagnosis (Optional)
|
Intelligent production management
|
Product Adaptability & Basic Advantages

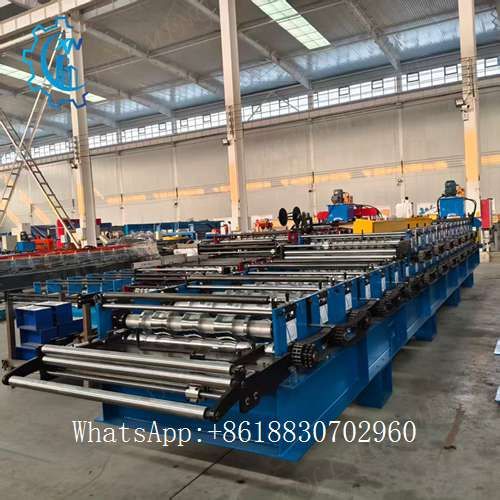

Exclusively customized for trapezoidal roof sheets and corrugated wall panels, the machine adopts a vertical double-layer independent forming structure, which can produce two different specifications of
panels at the same time or switch flexibly, saving workshop space and investment cost. It is suitable for PPGI/PPGL colored steel coil, galvanized steel, aluminum sheet and other raw materials, with a material
thickness of 0.3-1.0mm and a material width of 1000-1250mm (customizable).

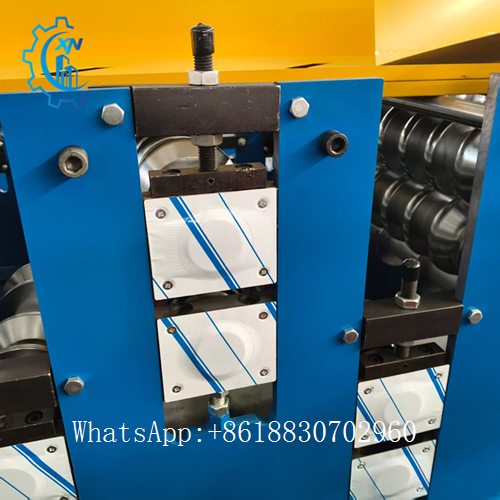

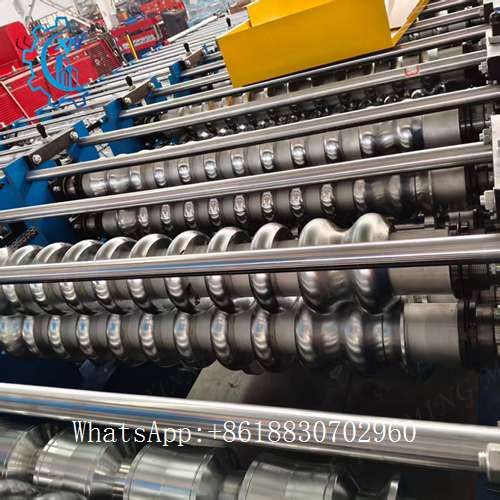

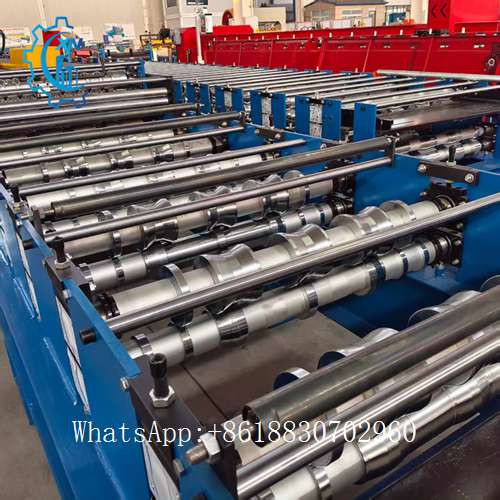

The forming rollers are made of high-quality alloy steel,经过 precision machining and hard chrome plating, with high wear resistance and corrosion resistance, ensuring consistent forming precision (cutting
tolerance ±0.3mm-±1.5mm). The integrated hydraulic cutting system realizes automatic fixed-length cutting, no burrs on the cutting surface, and stable performance.
Intelligent Application Scenarios
It is widely used in the production of trapezoidal roof panels and corrugated wall panels for residential buildings, industrial workshops, warehouses, commercial buildings, agricultural greenhouses and
other projects. It is especially suitable for large-scale production enterprises, building material processing plants and construction units that pursue high efficiency, high precision and intelligent management,
and can meet the needs of mass production and customized production.
Intelligent After-Sales & Quality Assurance
The machine has passed ISO9001 quality system certification, with a 1year warranty period. The intelligent control system supports remote fault diagnosis (optional), and our professional after-sales team
can provide 24-hour online technical support, remotely guide parameter adjustment and fault maintenance, saving maintenance costs and time.
We also provide free operation training, and customize intelligent upgrade solutions according to customer needs, helping enterprises realize the transformation of intelligent production and improve market
competitiveness.
Choose our Intelligent Double Layer Roll Forming Machine, and enjoy the convenience brought by intelligent production, reduce costs and increase efficiency, and win more market opportunities!
