1.Main frame: 300mm H beams, 45# steel
2.Middle plate: 16mm
3.Wheel: 45# steel, hardness HRC 58-60℃
4.Working speed:8-15m/min
5.Payment Terms:40% T/T in advance,60% when shipping
7.WhatsApp：+8618830702960

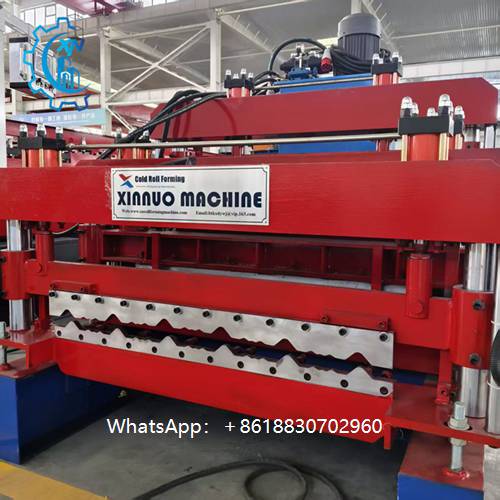

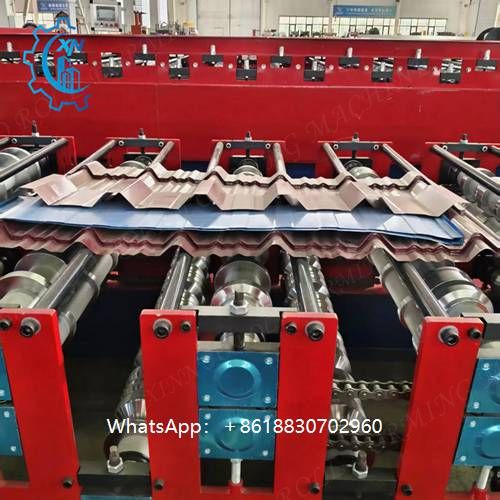

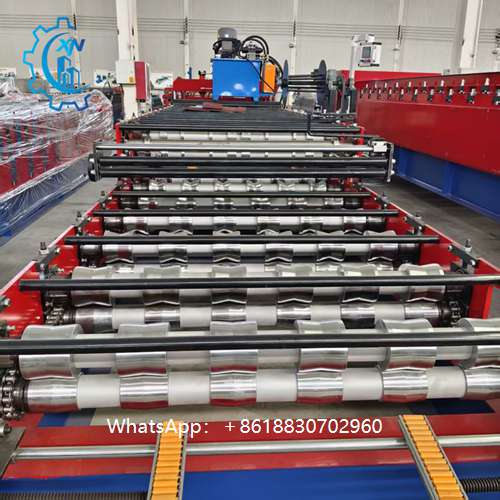

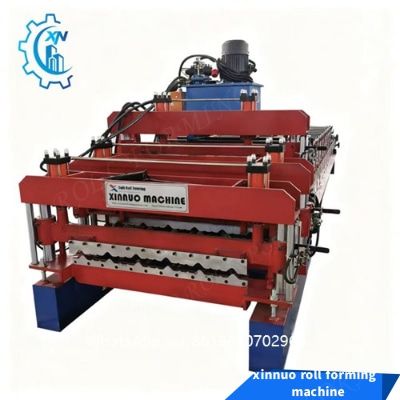

Three-layer roof panel machine

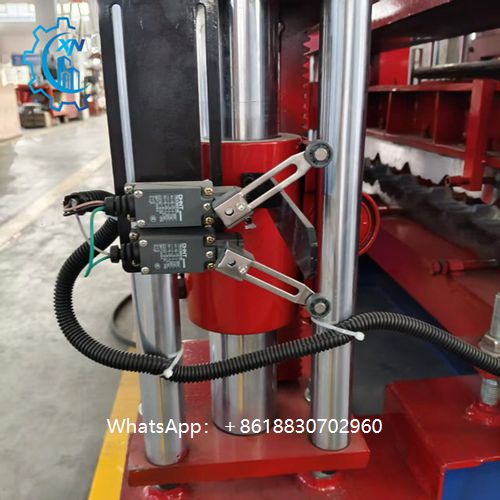

Limit Switch with Roller Lever
Core sensor for cutting unit. It sends trigger signal when panel reaches preset length to activate hydraulic shear for accurate fixed-length cutting. It also limits cutter travel range to avoid overstroke damage of cylinder, ensuring precise cutting and safe machine operation.
Raw material: Galvanized steel coil/ Galvalume steel coil/ Color steel coil/ Aluminum steel coil/ Stainless steel coil
Feeding thickness: 0.3-1.0mm(Galvanized steel coil/ Galvalume steel coil/ Color steel coil/ Stainless steel coil); 0.3-1.5mm (Aluminum steel coil.
machine parameters:
| Main motor power | 5.5KW |
| Voltage | 380V/50HZ/3 phase, or as requirement |
| Productivity | 8-12m/min |
| Mainframe | 350mm H beams, 45# steel |
| Middle plate | 18mm |
| Wheel | 45# steel, hardness HRC 58-60℃ |
| Shaft | high quality 45# forged steel, with anti-return pad |
| Shearing knife | Cr12 / Cr12MOV, heat treatment, HRC 58-60℃ |
| Decoiler | Manual decoiler for free |
| Cutting blade | Manual cutter |
| Cutting method | Hydraulic guide column cutting |
| Control System | PLC Control System, 360 degree rotation |
| PLC Display languages | Chinese, English, (Spanish or Russian) |

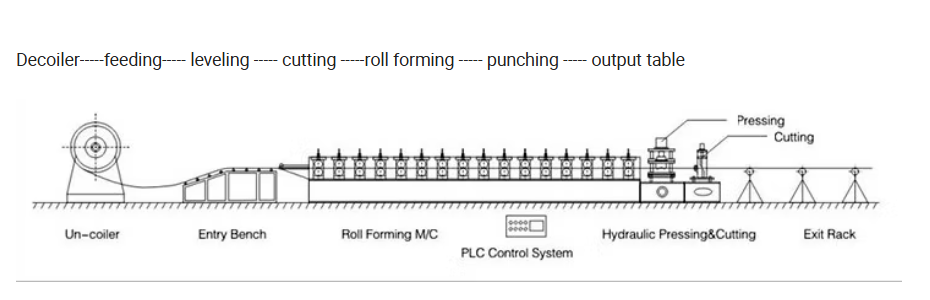

Workflow
Our Company
Xinnuo Roll Forming Machine Co.,Ltd Established in 1998, is a leading manufacturer specializing in the design and production of C/Z purlin roll forming machines, high-speed purlin lines, and other customized roll forming equipment. Our facilities cover over 100,000 square meters, including 2 modern factorys and 12 warehousing bases. Since 2002, Xinnuo machines have been successfully exported to over 180 countries worldwide, earning consistent praise fortheir performance, ease of operation, and our comprehensive customer service. Looking ahead, Xinnuo remains commited to the principle of "Quality First, Service First, Customer First." We continue to focson R&D in energy-saving and intelligent machinery for the construction sector, aiming to deliver fully automated, unmanned production solutions that drive efficiency and innovation for our global partners.
After Sales Service :
1. Warranty :One year,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 45 days after deposit receipt your payment
3. Guarantee period: 12months free service/ pay service all the machine life
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your
workers/technician face to face.
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
