Suitable for thickness: 0.3-0.8mm
Roller material:No.45 forged steel, with hard chrome coating 0.05mm
Forming speed:About 15m/min
Email: xinnuo05@machine.com
WhatsApp:+8618830702960

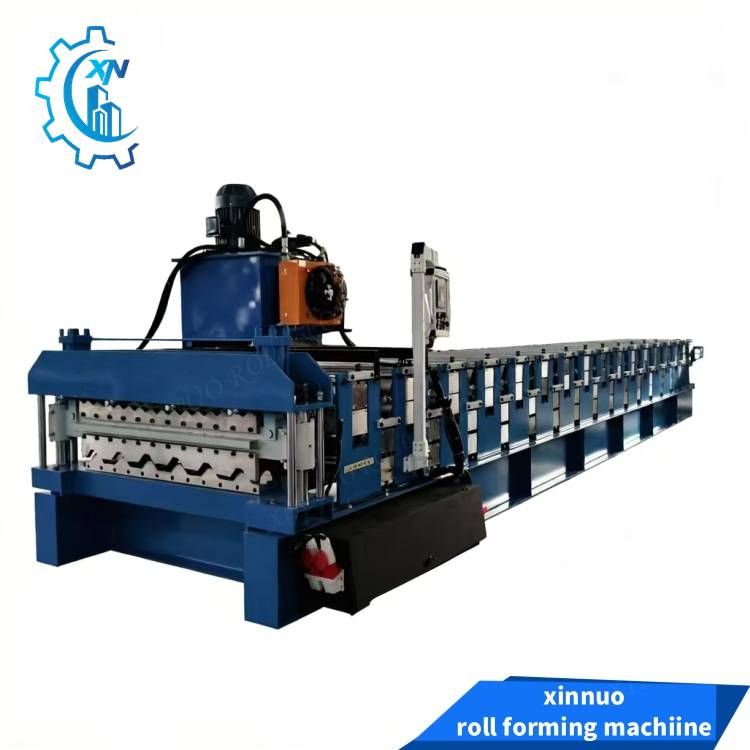

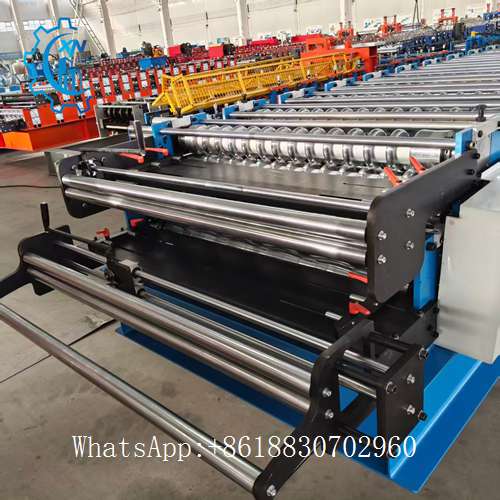

Xinnuo high-performance Double Layer Roof Panel Roll Forming Machine specializes in dual-type roof sheet production with one machine multi-spec design. Boasts fast forming speed, precise dimension control, stable operation and durable steel structure. Fully customizable for various roof panel specifications, factory direct with professional global after-sales support.
Parameter
| Item | Specification | |
|
Material |
Type | Pre-painted steel coil & galvanized coils |
| Thickness | 0.3-0.7mm | |
| Yield strength | 235Mpa or 550Mpa | |

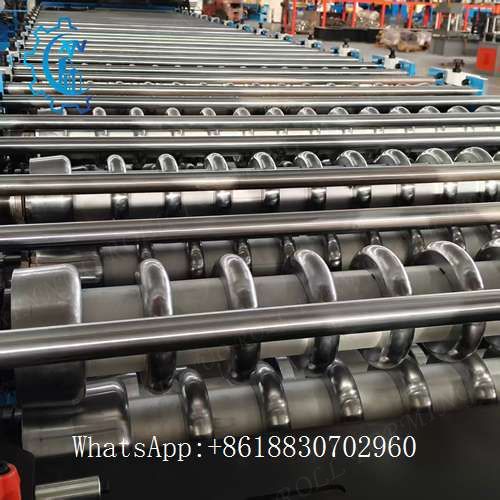

| Roller material | No.45 forged steel, with hard chrome coating 0.05mm | |
| Forming speed | About 15m/min | |
| Speed adjusting mode | AC Frequency | |

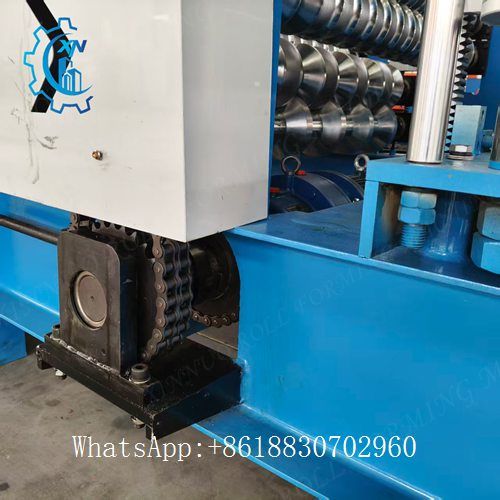

| Roller drive | Decelerating motor + Chain drive | |

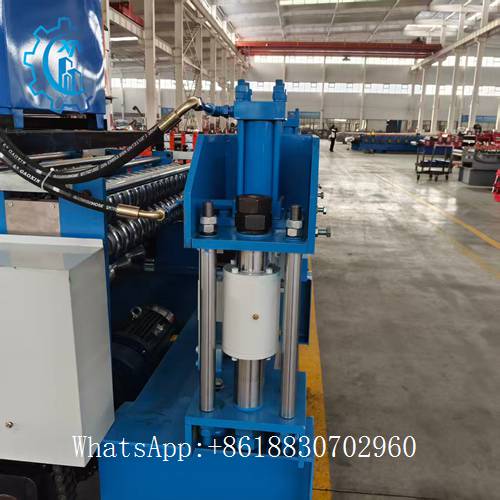

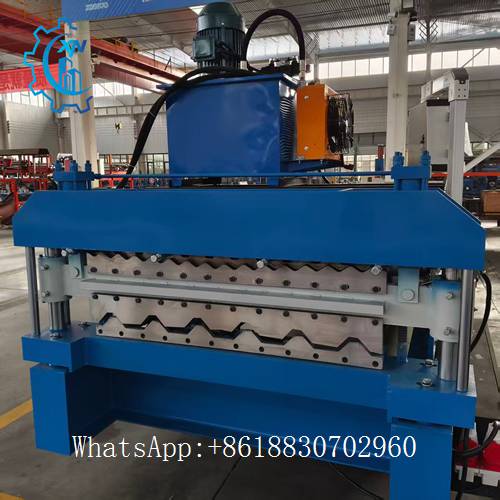

| Cutting mode | Hydraulic cutting | |
| Cutter material | Cr12 mould steel | |
| Length measurement | Encoder | |
| Control mode | Mitsubishi PLC | |
| Operating mode | Button + Mitsubishi Touch screen | |
| Main motor | 7.5KW | |
| Hydraulic station motor | 2.2KW | |
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
