Double Layer Roll Panel Making Machine
As a revolutionary equipment in the metal panel production industry, our Double Layer Roll Panel Making Machine integrates efficiency, precision and cost-saving advantages, dedicated to providing high-quality,
multi-functional production solutions for manufacturers in construction, industrial and commercial fields worldwide . It breaks through the limitations of traditional single-layer equipment, realizing the production
of two different types of metal panels on one machine, which greatly optimizes production layout, reduces investment costs and improves market competitiveness .
Product Overview

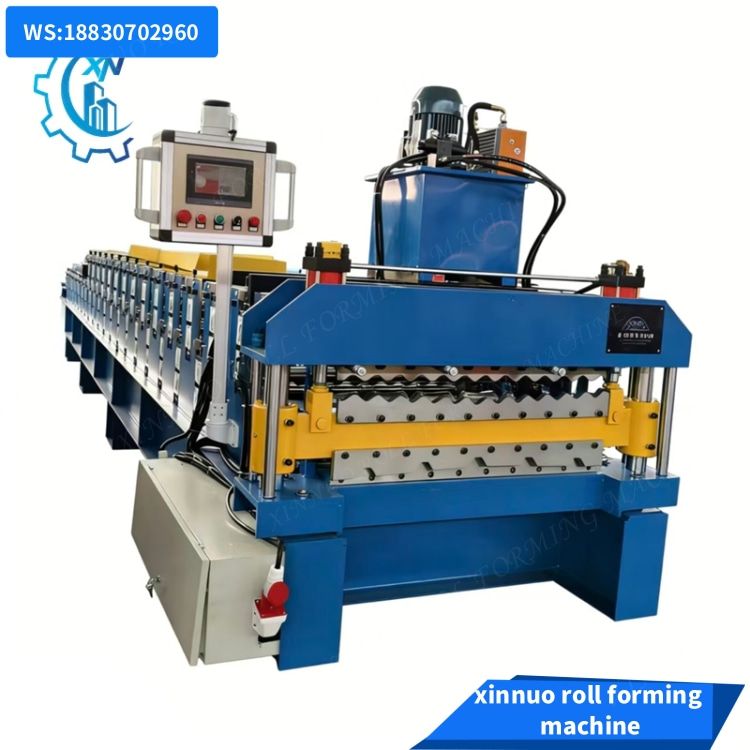

The Double Layer Roll Panel Making Machine is a professional forming equipment designed for continuous production of metal panels, featuring two sets of vertically stacked forming rollers that operate
independentlyand can be switched flexibly . This innovative double-layer design allows you to produce two different profiles (such as trapezoidal roofing sheets, corrugated wall panels, decorative cladding
panels, etc.) withoutpurchasing two separate machines, saving valuable workshop space and reducing initial investment and operation costs significantly .
Technical Parameters
|
Item
|
Specification
|
Remarks
|
|
Suitable Material
|
Colored steel coil (PPGL/PPGI), galvanized steel, aluminum sheet
|
Customizable according to demand
|
|
Material Thickness
|
0.3-0.8mm
|
Adjustable
|
|
Material Width
|
1000/1200/1250mm
|
Customizable
|
|
Production Speed
|
10-20 m/min
|
Frequency conversion speed regulation
|
|
Roller Stations
|
13-20 stations (upper/lower layer)
|
Determined by profile
|
|
Cutting Tolerance
|
±0.5mm-±2mm
|
Hydraulic cutting
|
|
Total Power
|
5.5-22kw
|
Depends on machine model
|
|
Machine Dimension (L×W×H)
|
12×1.6×1.8m
|
Customizable
|
|
Machine Weight
|
8-15 tons
|
Depends on configuration
|
|
Control System
|
PLC + Touch Screen
|
Imported brand optional
|
|
Power Supply
|
380V, 50Hz, 3Phase
|
Customizable according to regional standards
|
Working Principle
The working process of the Double Layer Roll Panel Making Machine is fully automated, with clear steps and high stability :
-

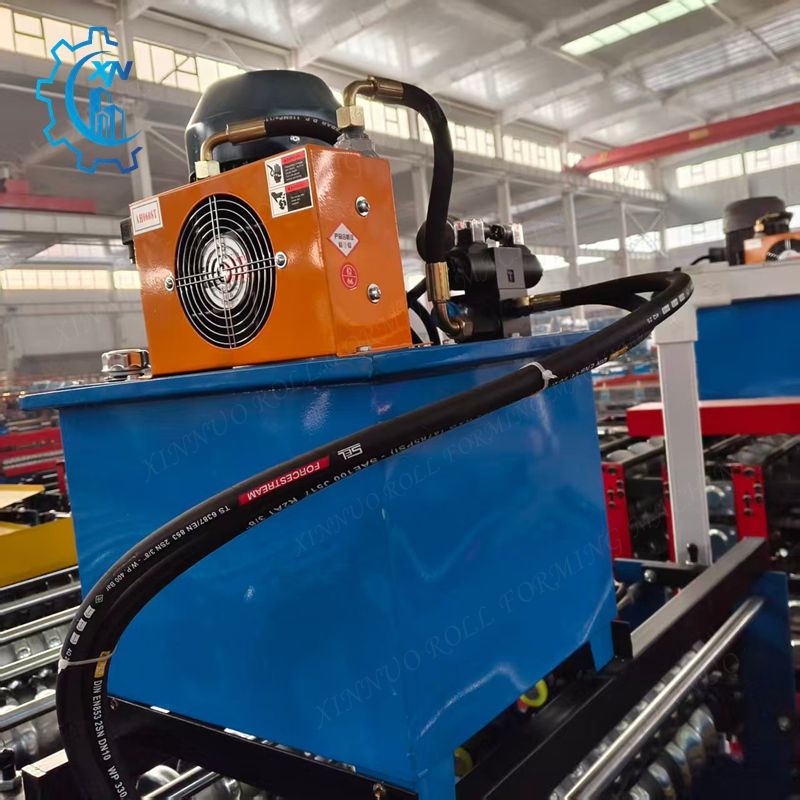

Material Feeding: Load the metal coil onto the hydraulic decoiler (3-20 tons capacity optional), which feeds the material into the leveling device at a stable speed through the feeding guide table .
-
Leveling Treatment: The leveling roller corrects the bending and deformation of the metal sheet, ensuring the flatness of the material before forming .
-

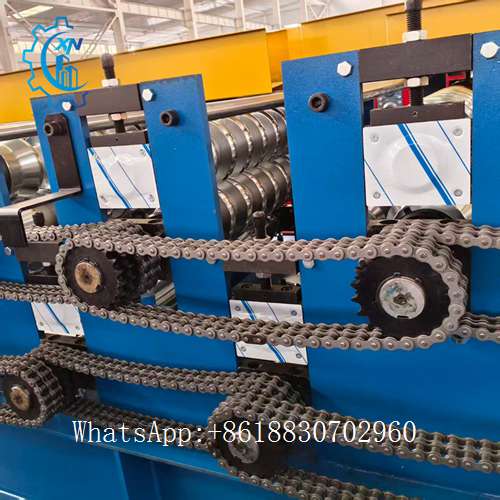

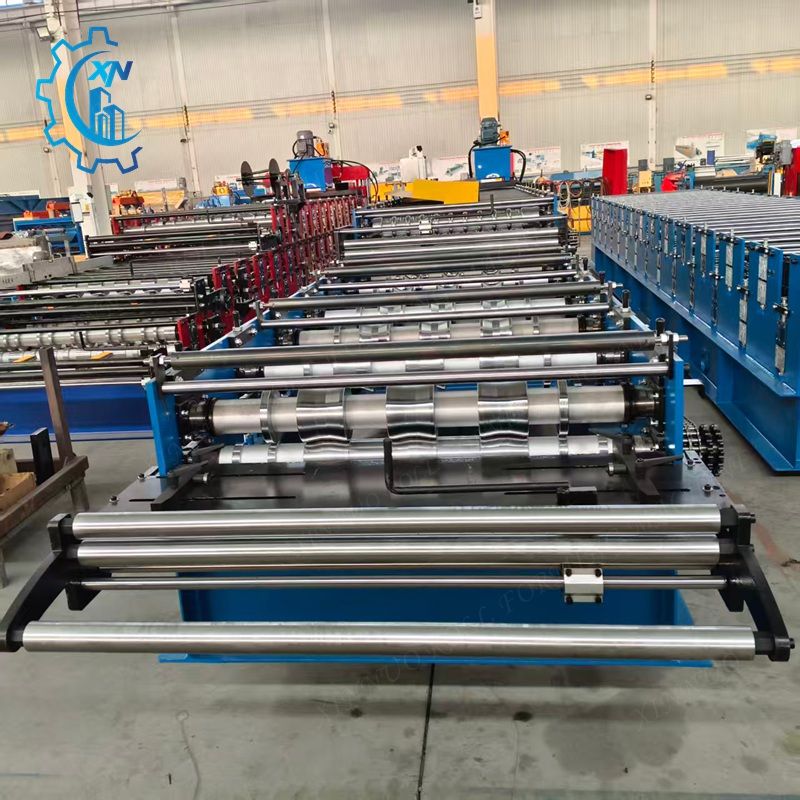

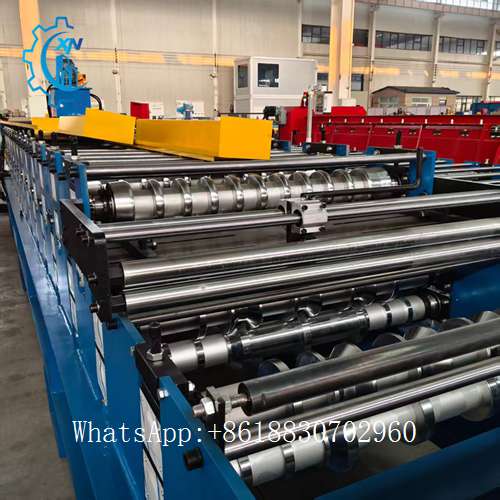

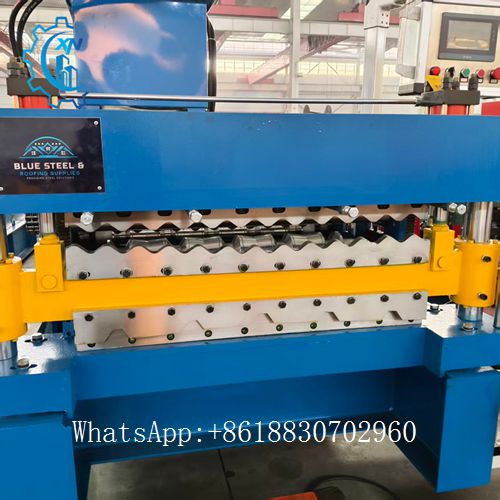

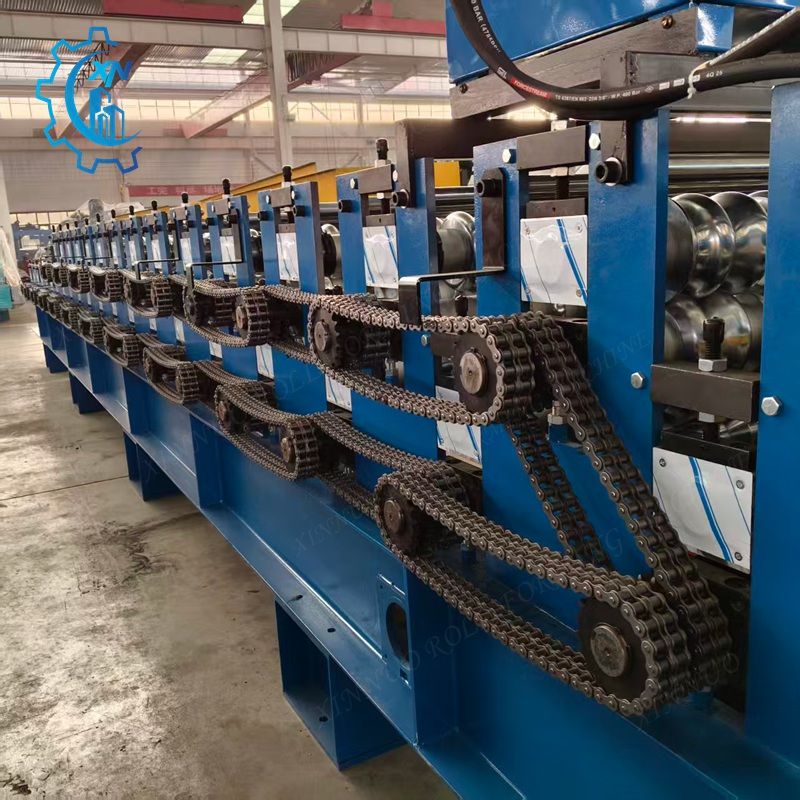

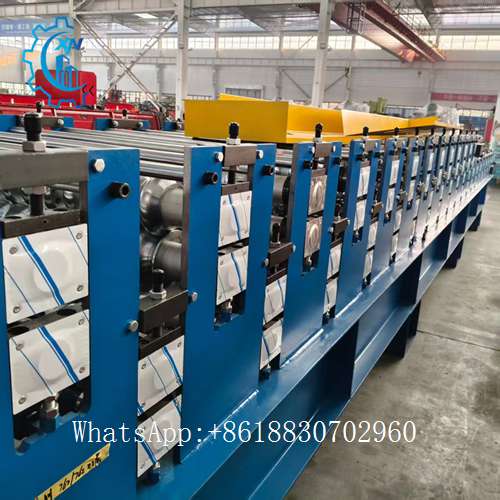

Double-Layer Forming: The leveled metal sheet enters the upper and lower forming hosts respectively, and is gradually formed into the required profile through the progressive extrusion of multiple
groups of forming rollers . The two layers of forming systems operate independently, and can be switched flexibly through the clutch .
4. Precision Cutting: According to the preset length and quantity, the hydraulic cutting system performs accurate cutting, ensuring the consistency of the finished product size .
5.Finished Stacking: The cut panels are conveyed to the output table, and can be equipped with an automatic palletizing robot (optional) for automatic stacking, improving the efficiency of finished
product handling .
Application Scenarios
Our Double Layer Roll Panel Making Machine is widely used in various fields that require metal panels, including but not limited to :
-
Construction Industry: Production of roofing sheets, wall panels, floor decking, decorative cladding for residential buildings, commercial buildings, industrial workshops, warehouses, etc .
-
Infrastructure: Manufacturing of panels for highways, railways, airports, stadiums and other public facilities .
-
Industrial Production: Production of metal profiles for electrical cabinets, container panels, equipment casings, etc .
-
Other Fields: Customized panel production for advertising signs, agricultural greenhouses, exhibition halls, etc .
Quality Assurance & After-Sales Service
We adhere to the principle of "quality first, customer-oriented", and all our Double Layer Roll Panel Making Machines have passed strict quality inspection before leaving the factory, with a warranty period of
1 years (customizable) . During the warranty period, we will provide free replacement of wearing parts and professional technical support . Our after-sales team has rich experience and can provide 24-hour
online consultation, and can send technicians to the customer's factory for installation, commissioning and operation training if needed (extra cost applies) .
In addition, we have long-term cooperative relationships with well-known component brands at home and abroad, ensuring the stability and durability of the machine . We also provide lifelong maintenance
services and spare parts supply, solving your worries in the later operation process .
Why Choose Us?
- Professional R & D Team: We have a team of experienced engineers, who can provide customized solutions according to your specific needs .
- Advanced Production Technology: Adopt advanced processing equipment and production technology to ensure the precision and quality of the machine .
- Global Export Experience: Our products have been exported to many countries and regions around the world, with a good market reputation and rich export experience .
- Cost-Effective Products: Provide high-quality products at competitive prices, helping you reduce costs and increase profits .
- Comprehensive Service: One-stop service from pre-sales consultation, customization design to after-sales maintenance, ensuring a smooth cooperation process .
If you are looking for a high-efficiency, multi-functional and cost-saving Double Layer Roll Panel Making Machine, please contact us now . We will provide you with detailed product information, technical parameters and quotation, and look forward to cooperating with you to create a better future!
