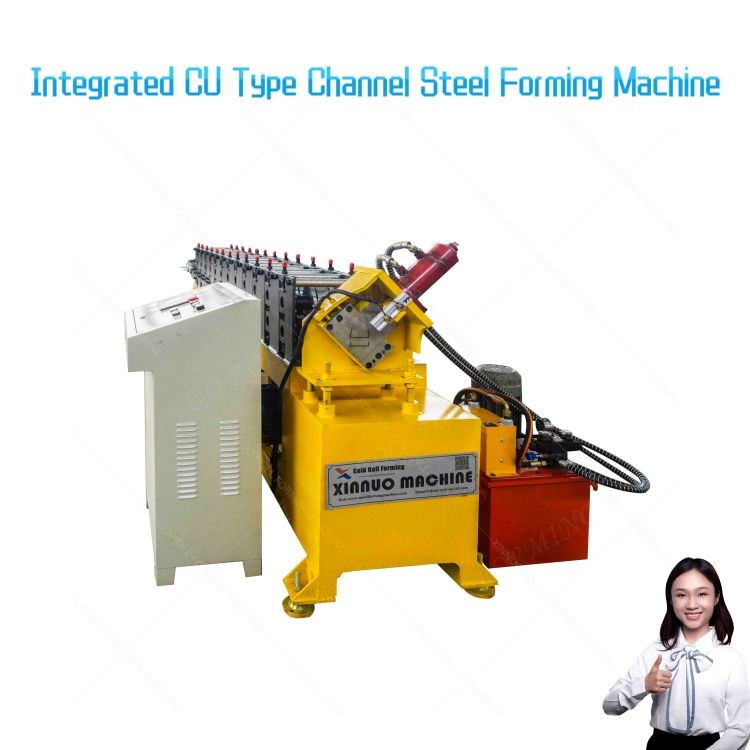

Integrated CU Type Channel Steel Forming Machine
Product Description
PLC control system with multilingual interface (Chinese/English/Portuguese).
International brand electrical components for reliability.
Optional Windows-based system for data entry, smart monitoring, and remote control.

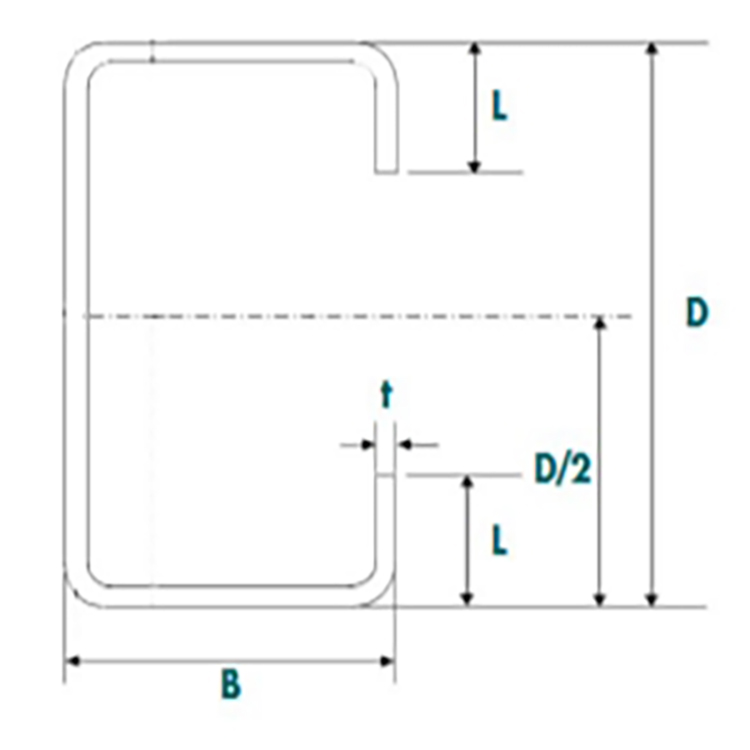

Profile Drawing

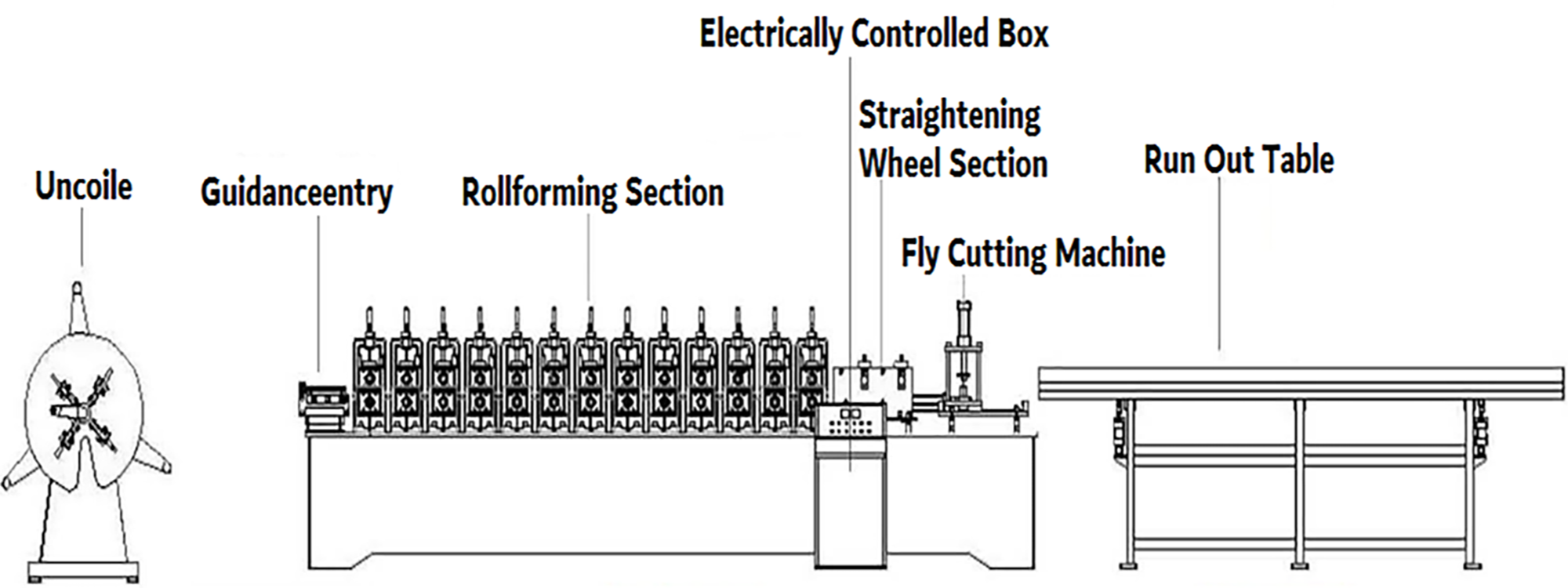

Working Flow

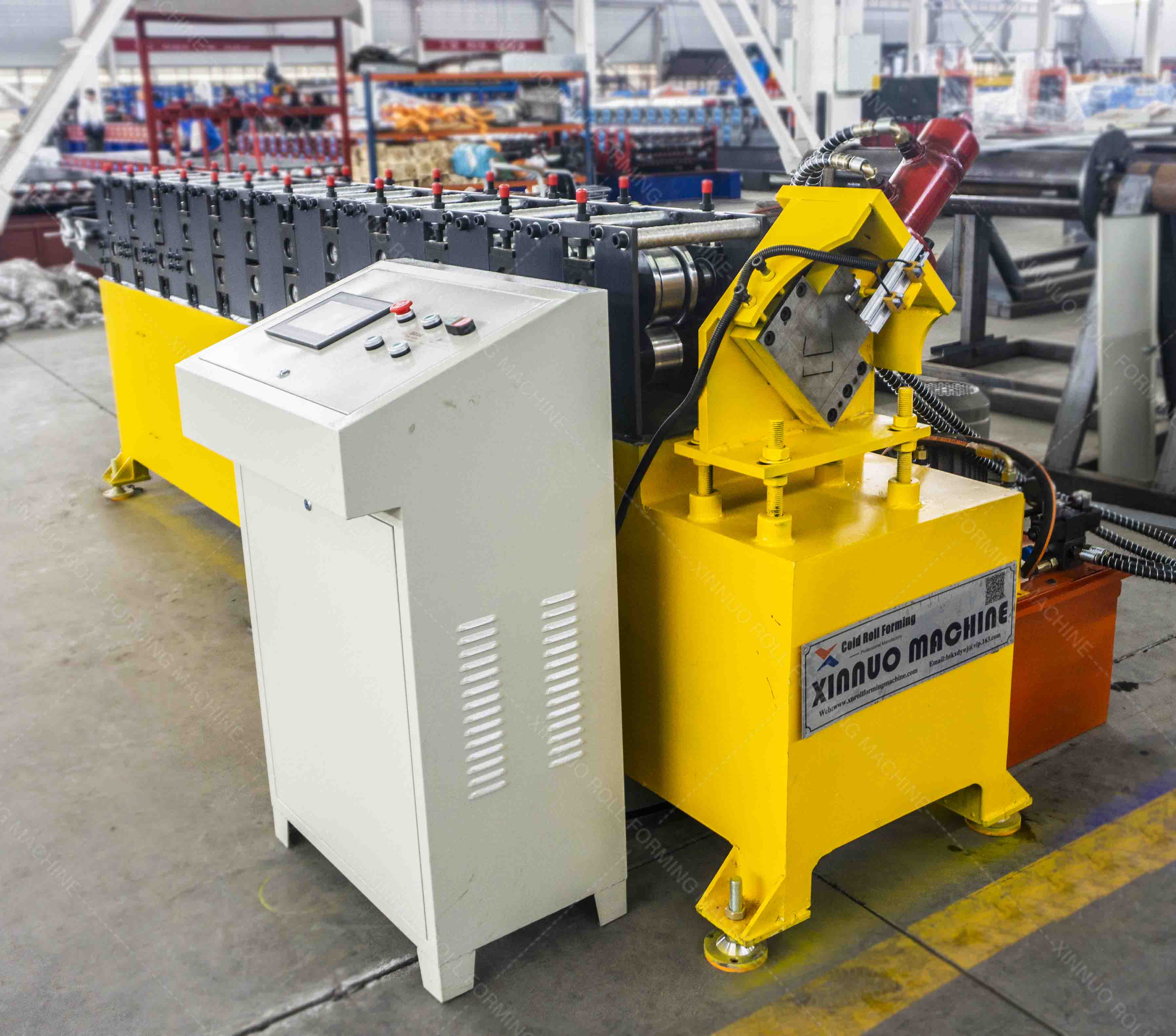

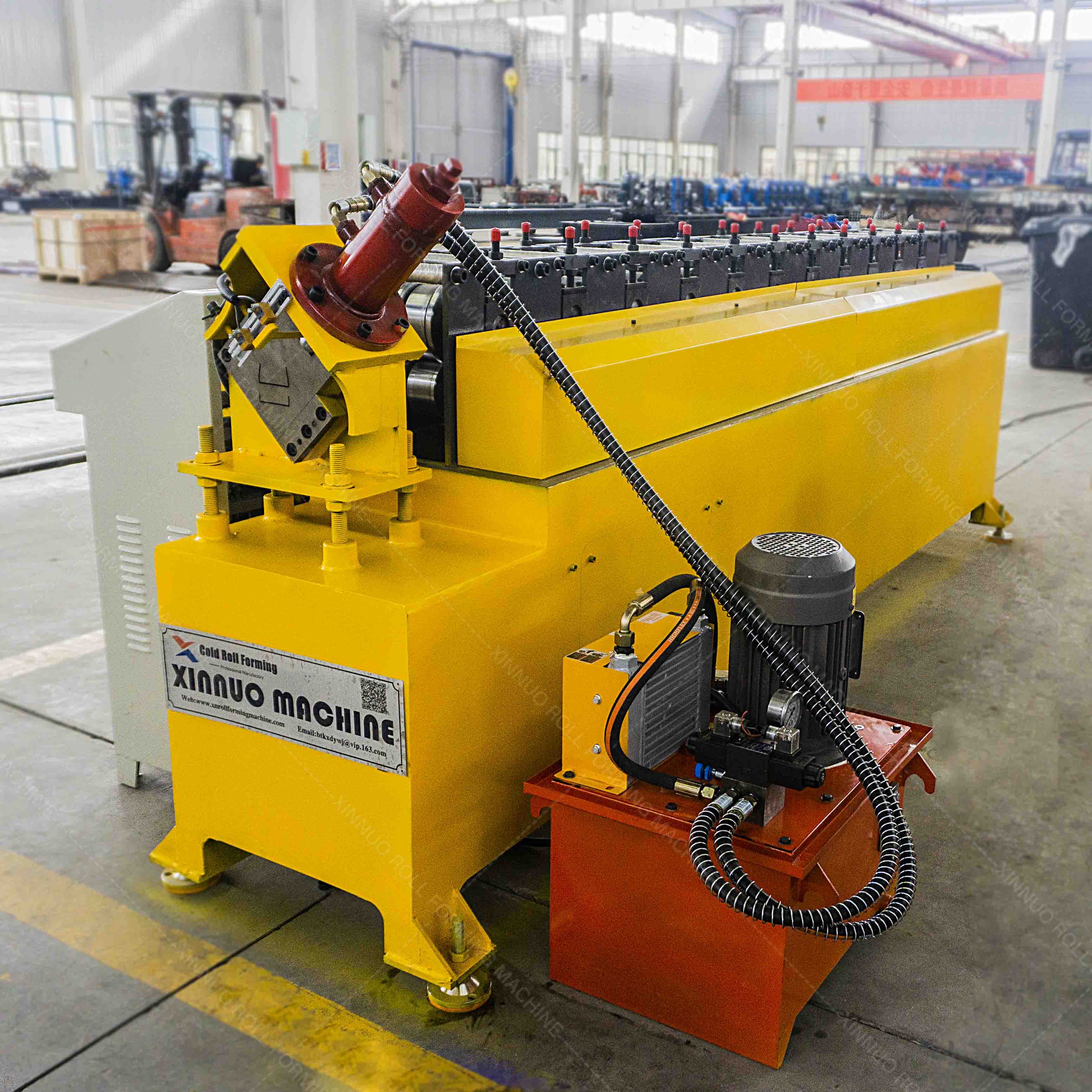

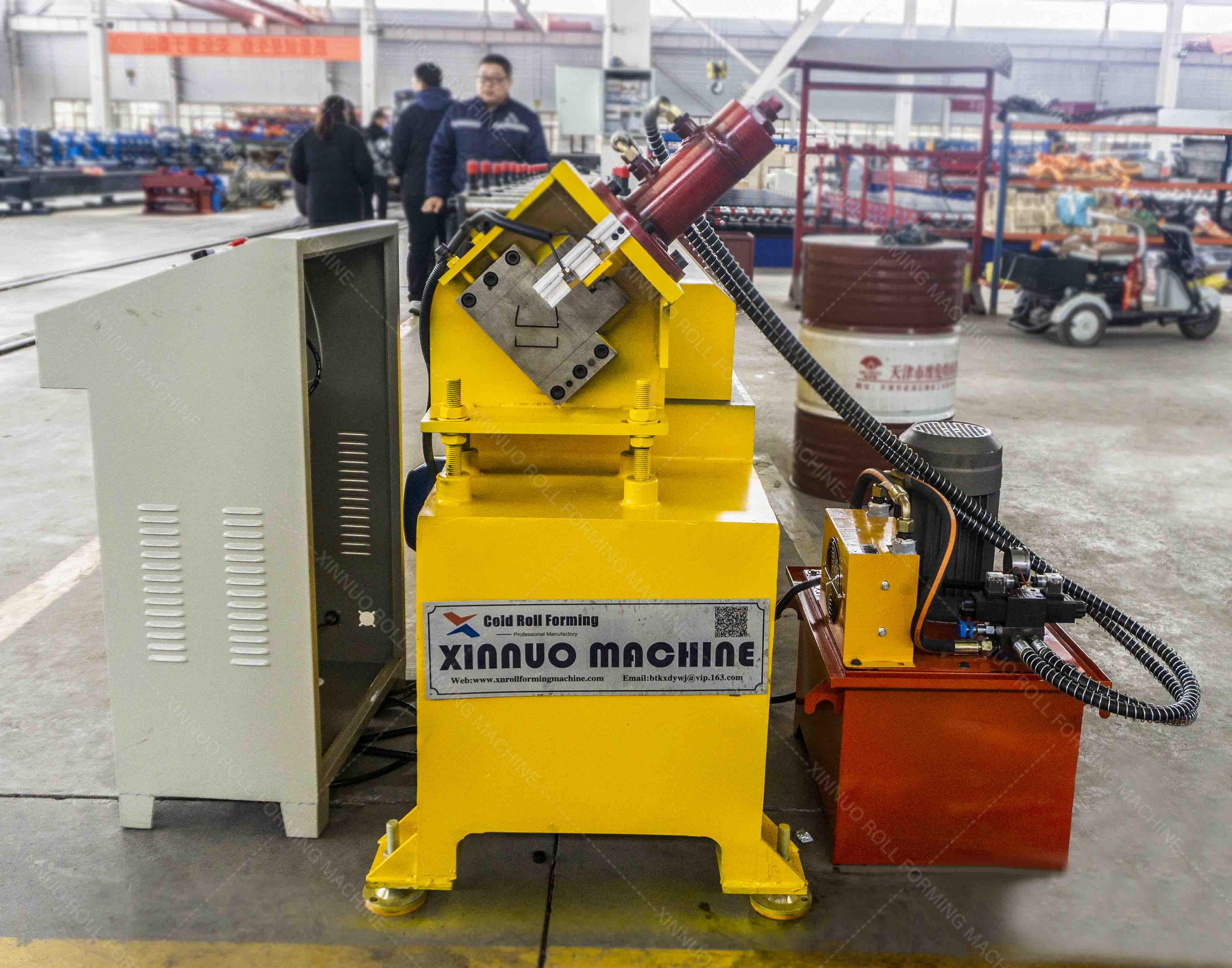

Product Details
Machine Parameters
|
Name
|
Integrated CU Type Channel Steel Forming Machine
|
|
Suitable to process
|
Galvanized steel strips/cold rolled strips
|
|
Roller
|
14Rows
|
|
Dimensions
|
8*1.0*1.2m
|
|
Motor Power
|
5kw
|
|
Pump Station Motor
|
3kw
|
|
Thickness of the plate
|
0.5mm-1.0mm
|
|
Productivity
|
10-30m/min
|
|
Material of the cutting blade
|
Cr12MoV,Quenched treatment 58ºC-60ºC
|
|
Diameter of the roller
|
70mm
|
|
Weight
|
About 5500Kgs
|
|
Main structure of the machine
|
300 H Beams and arch structure
|
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
Control system
|
PLC control
|
|
Drive mode
|
Motor driver
|
|
Rolling materials
|
GCr15(bearing steel)hard chrome plated after heat treatment
|
|
Length Tolerance
|
±1mm
|
|
Type of cutting
|
Length-set cutting Guiding pipe Hydraulic cutter Each side one Oil cylinder |
Prodcut Application
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
