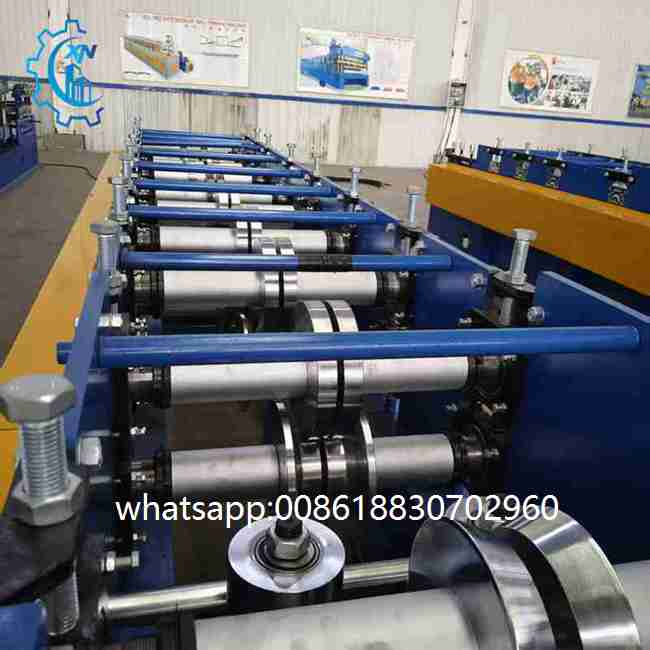

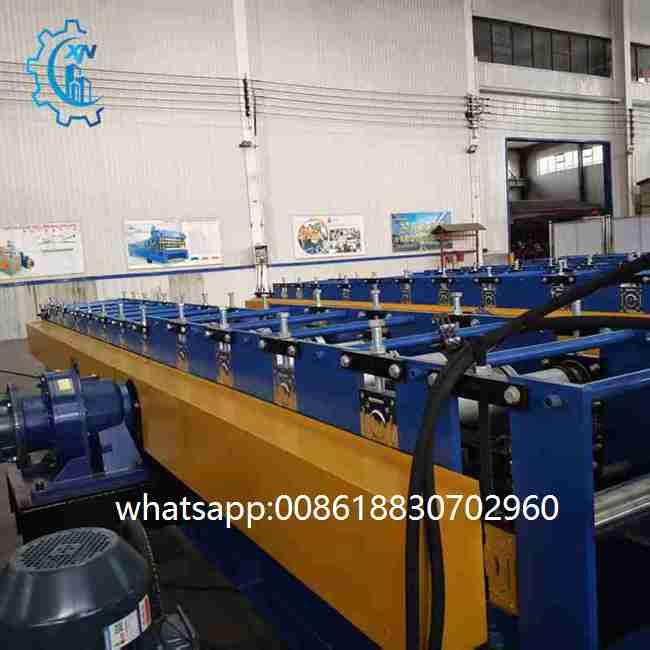

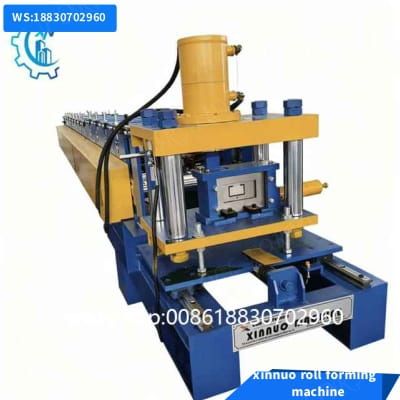

high-efficiency c purlin former for steel structure construction

1)Features and Advantages of C Purlin Roll Forming Machine

1.Fully automatic continuous C profile purlin roll forming machine for both heavy and light-duty use.

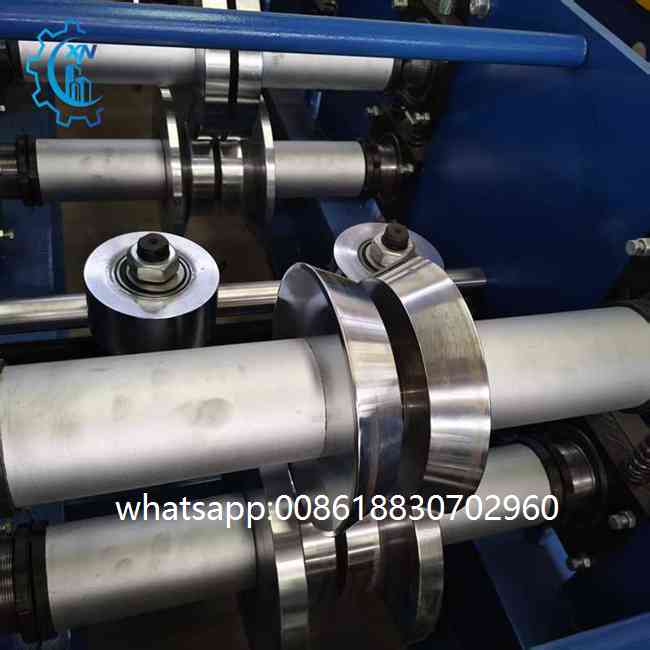

2.Adopts changing spacers to make multi sizes profiles sections.

3.Inline flexible punching system integrated

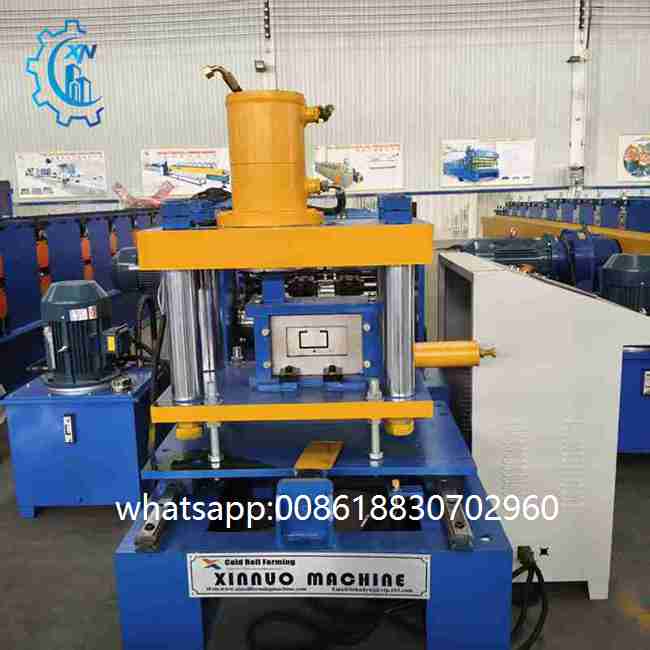

4.Pre-cutting and Post cutting is optional: lf need to produce many sizes, we can adopt pre-cutting to save cost and muchtime on changing blades during change sizes.

5.If profile sizes are not so many, post-cutting can improve profile quality greatly.

6.Forming speed: 12-15 m/min

7.Certified with Multi-Patents: CE Certified, EUROPEAN quality standard

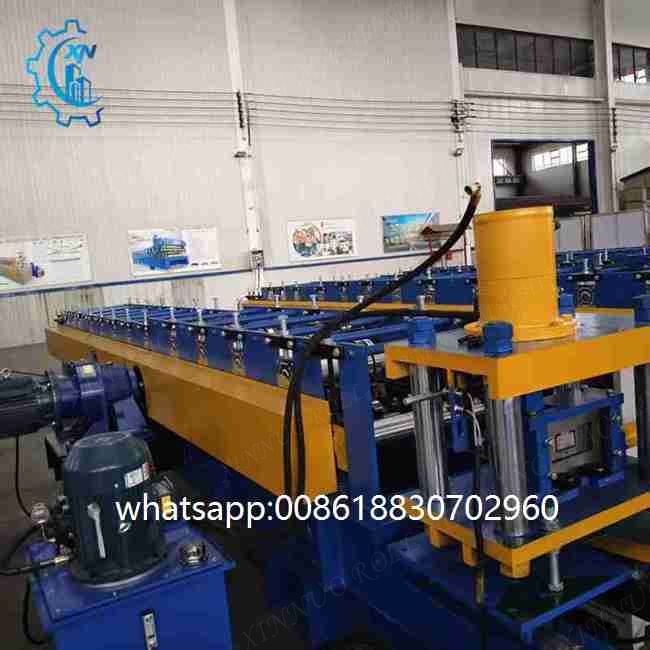

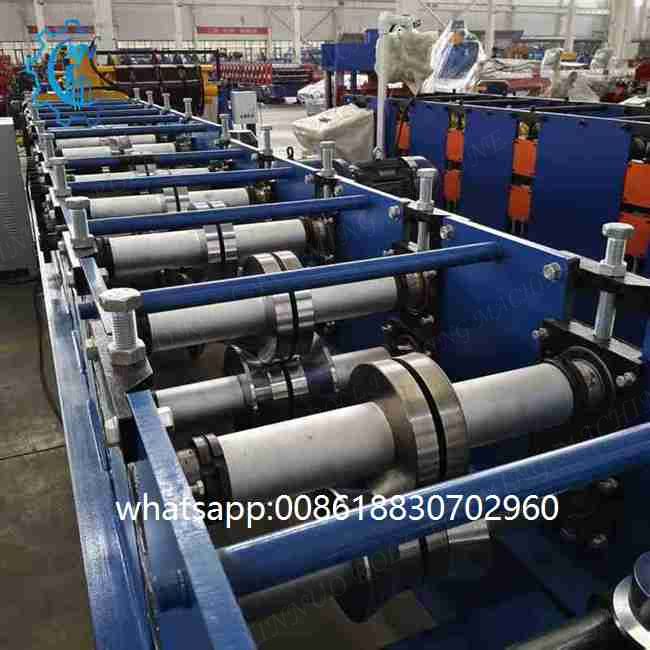

2)Machine Details

1.Purlin Specification Material: cold rolled coil, hot rolled coil, galvanized coil

2.Yield strength: Q195, 235B

3.Coil Thickness     0.8-3.0mm

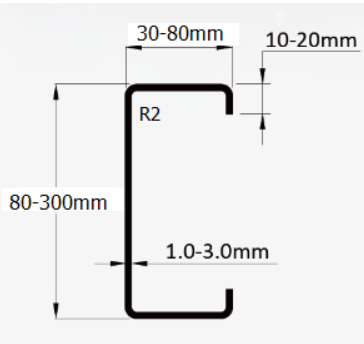

4.Product Spec

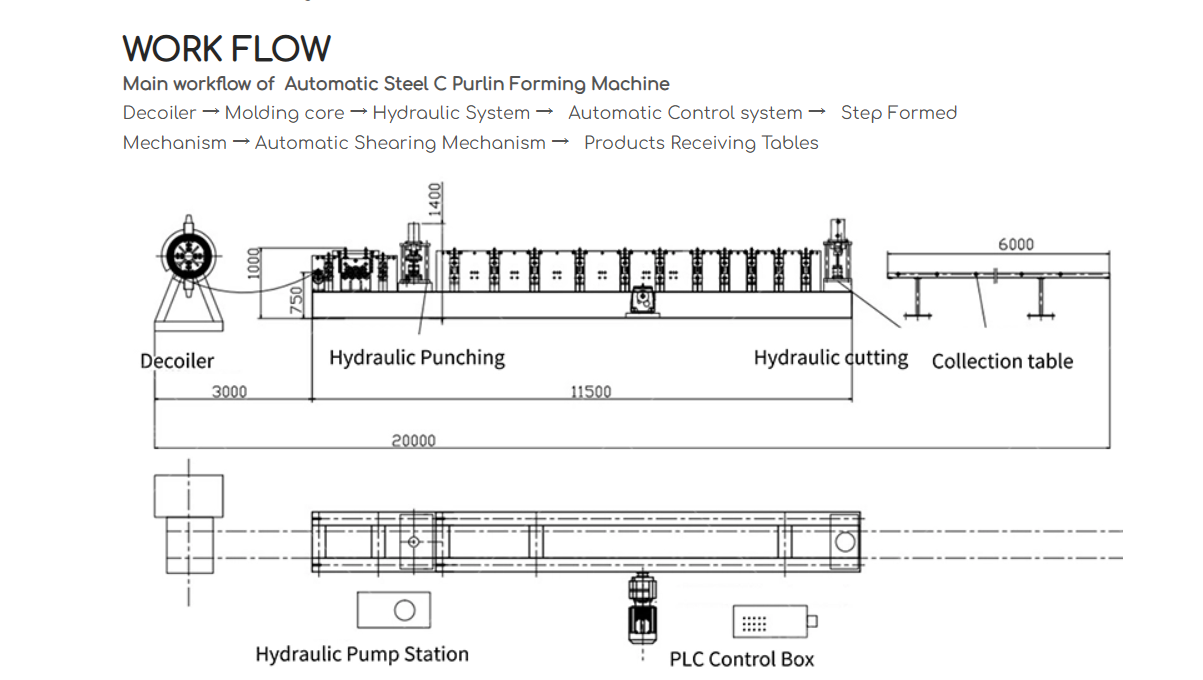

3）Workflow

4) Detailed Parameter Table of the Machine

5) our company

Xinnuo Roll Forming Machine Co.,Ltd Established in 1998, is a leading manufacturer specializing in the design and production of C/Z purlin roll forming machines, high-speed purlin lines, and other customized roll forming equipment. Our facilities cover over 100,000 square meters, including 2 modern factorys and 12 warehousing bases. Since 2002, Xinnuo machines have been successfully exported to over 180 countries worldwide, earning consistent praise fortheir performance, ease of operation, and our comprehensive customer service. Looking ahead, Xinnuo remains commited to the principle of "Quality First, Service First, Customer First." We continue to focson R&D in energy-saving and intelligent machinery for the construction sector, aiming to deliver fully automated, unmanned production solutions that drive efficiency and innovation for our global partners.

6) RFQ

1.Q: What kinds of experience do you have in producing purlin roll forming machine?

  A: We have exported C/Z purlin roll forming machine to to India, Serbia, UK, Peru, Argentina, Chile, Hondulas, Bolivia, Egypt, Poland, Russia, Spain, Romania etc. It’s the most popular roll forming machine of all. In Construction Industries, we are able to manufacture more machines like main channel roll forming machine, furring channel roll forming machine, ceiling roll forming machine, wall angle roll formign machine, light gauge steel roll forming machine, drywall roll forming machine, stud roll forming machine, track roll forming machine, metal deck(floor deck) roll forming machine, vigacero roll forming machine, roof/wall panel roll forming machine, roof tile roll forming machine etc. Simply the best steel frame machine for your project.

2. Q: How many sizes can produce this machine?

A: This machine can produce C purlin, Z purlin, U purlin, Sigma purlin, and each section could produce many sizes, width range is 80-300mm, height range is 50-100mm, recommendable thickness range is 1.5-3mm. It’s your best and affordable choice for steel frame.

 3. Q: What is delivery time of cable tray machine.

    A: 60 workdays to 70 workdays depends on your drawing.

4. Q: What is your machine speed?

   A: Normally forming speed is around 20m/min (adjustable) with flying cutting for thickness 1.5mm. For 3mm, forming speed is lower, around 15m/min.

5. Q: How could you control your machine’s precision and quality?

  A: Our secret to producing such precision is that our factory has its own production line, from punching moulds to forming rollers, each mechanical part is completed independently by our factory self. We strictly control the accuracy at each step from design, processing, assembling to quality control, we refuse to cut corners.

6. Q: What is your after-sales service system?

   A: We don’t hesitate to give you a one-years warranty period for whole lines: If there will be any quality problems caused by non-human factors,   we will handle it immediately for you and we will be ready for you 7X24H. One purchase, lifetime care for you.
