Product Attributes :

C purlin machine is used in the fields of steel structure purlins, wall beams, etc. It has a fast production speed and can produce C-shaped steel products of different specifications.

Customized Profile:can design the profile according to customer request.

Full automatically change size from 100mm to 300mm by PLC control in 1 minute.

Product Description

  lApplication of C Purlin Roll Forming Machine

Construction industry: can be used as wall support, beams, roof trusses, columns, brackets, steel structures, etc.

Decoration engineering: can be used in construction and decoration engineering, such as door and window frames, guardrails, billboards, etc.

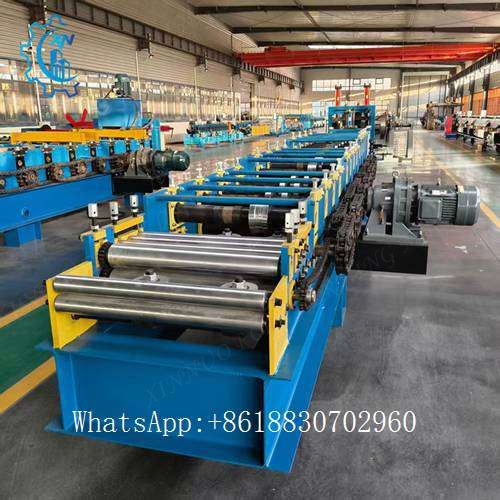

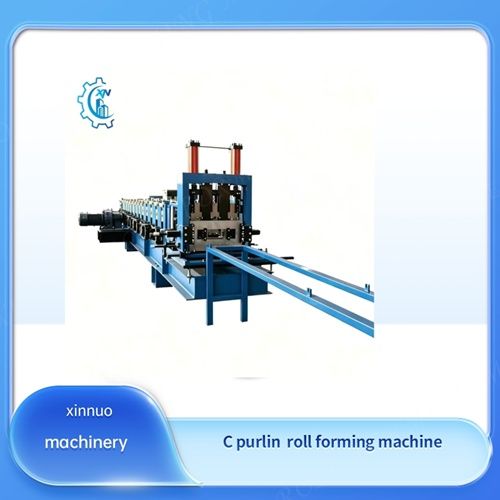

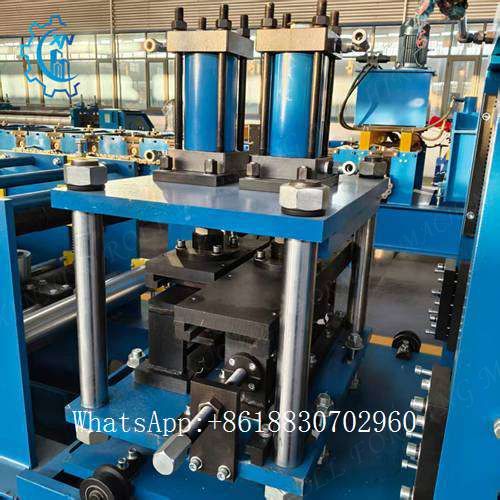

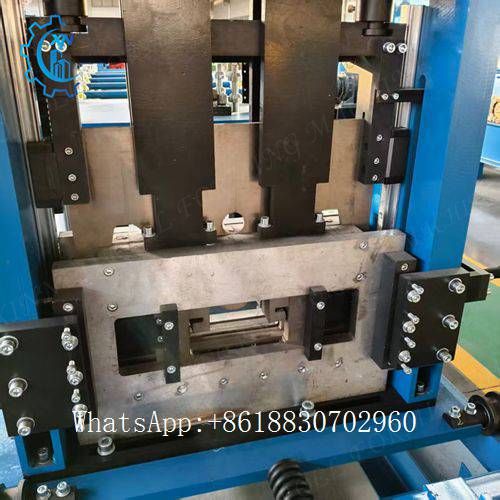

It is mainly composed of a passive loading rack, leveling device, punching device, post-forming cutting device, hydraulic station, computer control system, etc.

  lMain workflow of c purlin rolling machine

Decoiler  →  Molding core  →  Hydraulic System  →   Automatic Control system  →   Step Formed ----Mechanism  →  Automatic Shearing Mechanism  →   Products Receiving Tables

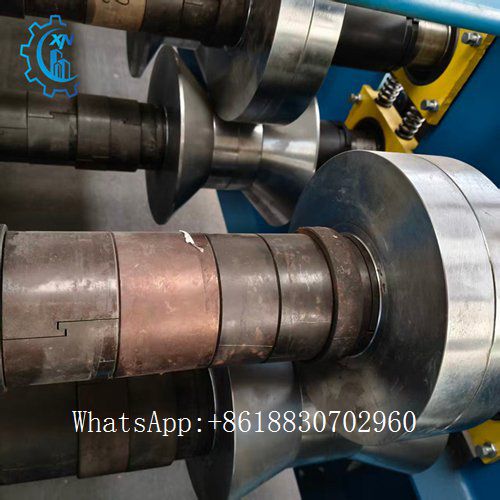

 lReplacement of the spacer sleeve size for the C-purlin roll forming machine.

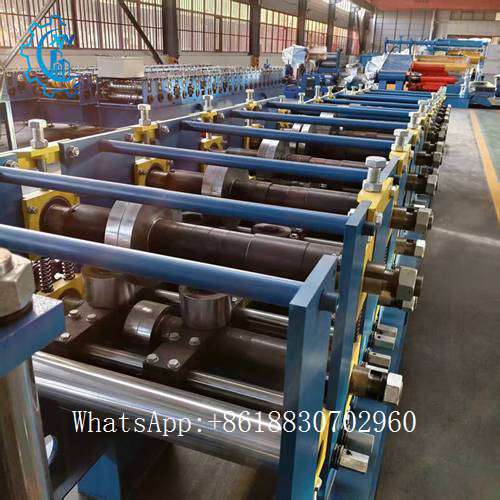

Roll Forming Machine Components:



  l



Decoiler

1 set
Roll Forming Machine 1 set

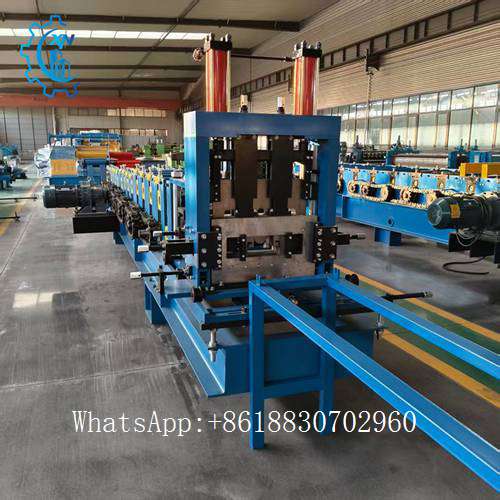

Cut-off and Punching Device

1 set

PLC Control Box

1 set
  Hydraulic Pump Station 1 set
Production Support Table 1 set

 Machine  parameters:



  l

  l

Product Name C Purlin Roll Forming Machine
Material Thickness 1-3mm (15-9 gauge)
Coil Width 150-500 mm adjusted
Machine Frame Machine base frame is made of U beam weld steel.
Material Of Rollers High grade 45# forged steel
Roller Material Cr12 CNC processing heat treatment to HRC: 58-60, finish turning

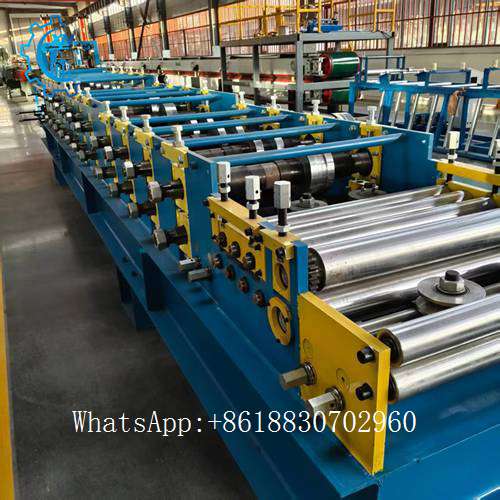

Forming Stations Roller stations: 23 rows
Diameter Of Shafts Φ90 mm solid
Material Of Shafts 40 Cr CNC processing HRC28-32, finish turning and electroplate
Forming Speed Max 30 m/min
Voltage 380v/50hz/3p (As Requested)

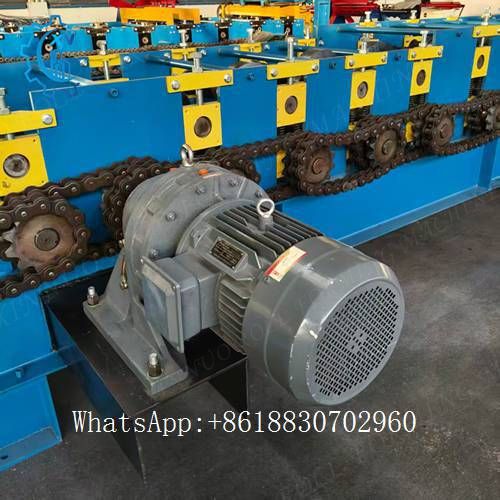

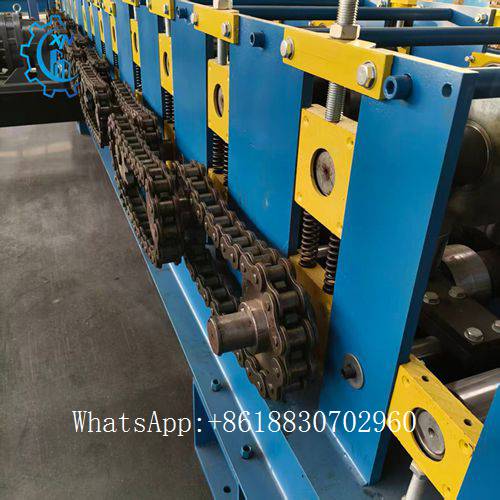

Transmission Way By 1.5 inch chain
Motor Power 35KW
Cutting Blade Material Gcr12 quenched treatment
Cutting Type Hydraulic post cutting
Control Sizes adjust by PLC control and button C and Z section changing by PLC control
Base Frame 350H steel
Shaft Material and Diameter 45# steel, 80mm
Cutter Material CR12 MOV
Weight (kg) 10000
Video Outgoing-Inspection Provided
Machinery Test Report Provided
Warranty of Core Components 1 Year
Warranty 1 Year
