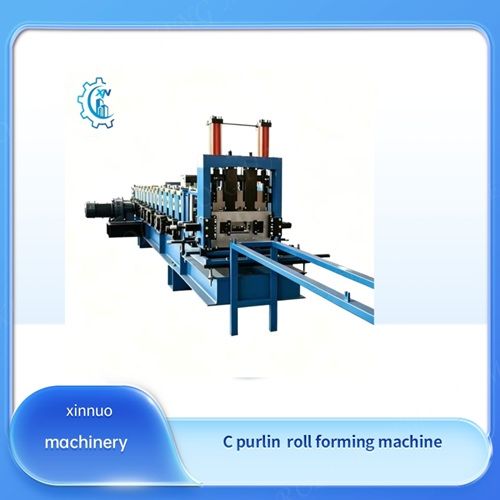

adjustable-size c purlin roll forming machine

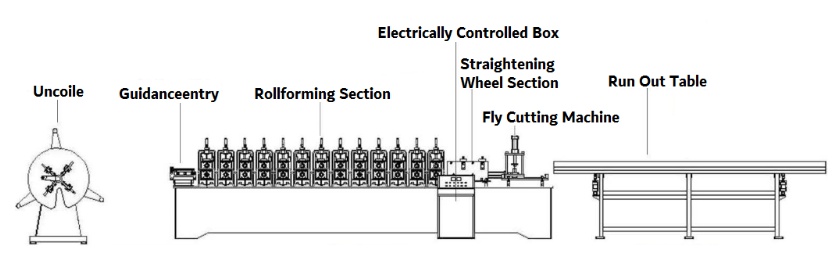

Workflow

Machine  parameters

Machine Components

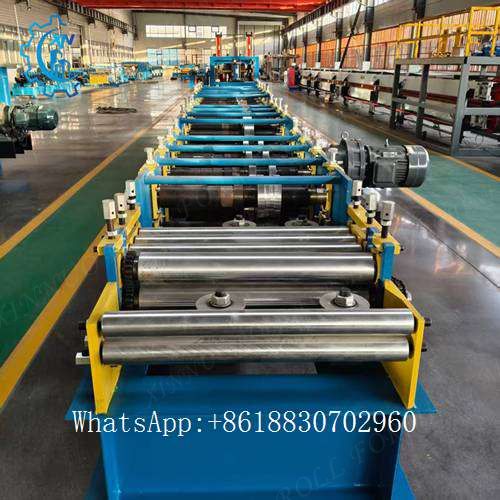

1. Feeding and Leveling Device
Side wall thickness: Q235 t25mm; tie rod:ф20
Shafts manufactured from 45# steel,
Diameter=φ115mm, Tone plated with hard chrome coating, precision machined

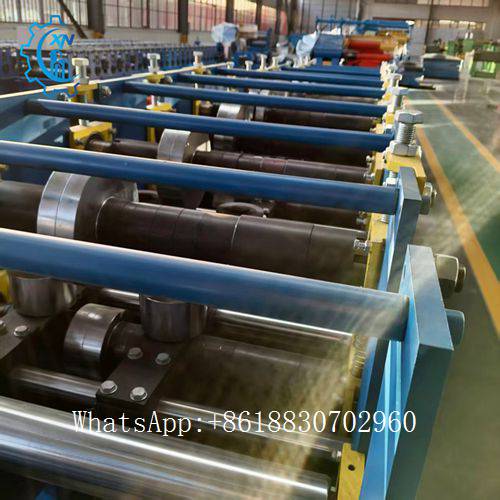

2. Main machine

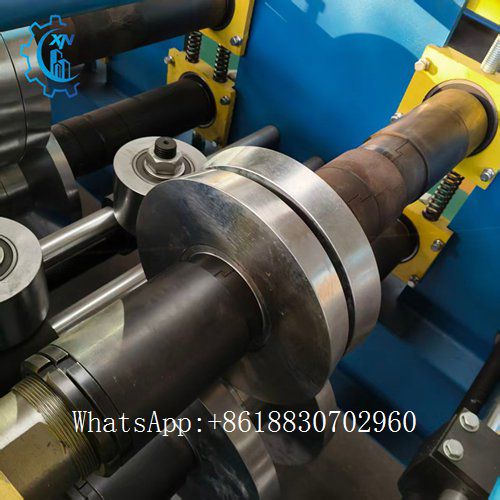

Shafts Diameter = 95, precision machined

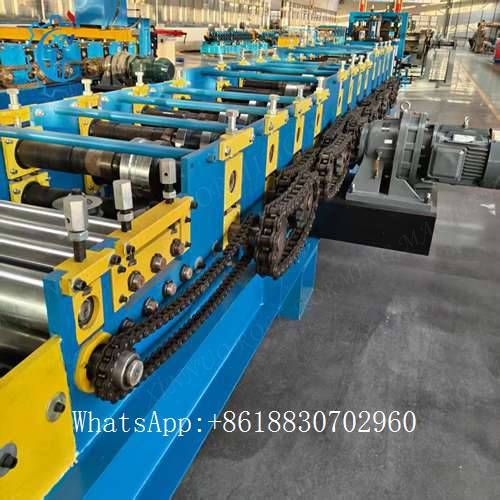

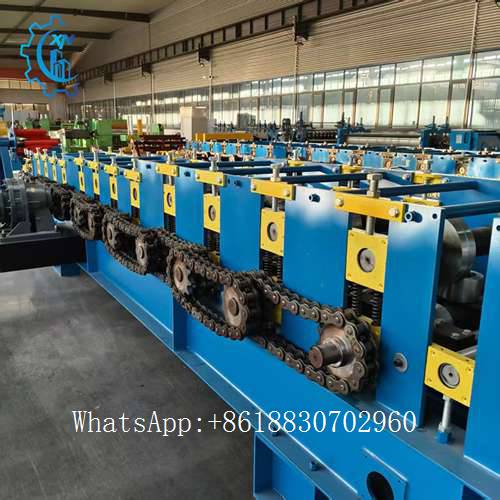

Gear/Sprocket driving
Main Servo Motor = 30kW

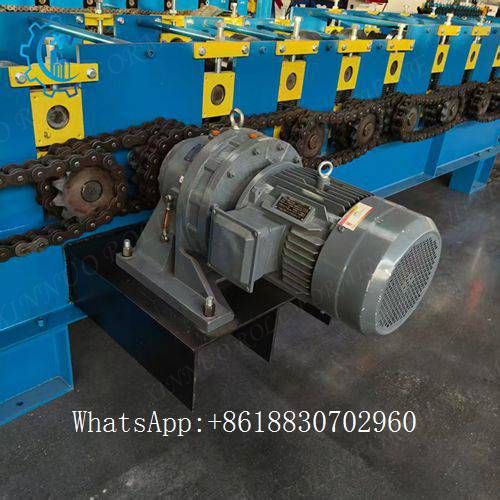

Speed ​​reducer motor:K series;
Size changing motor: 6 pieces,
Automatically controlled by a computer system
Sliding block: 150 * 150mm

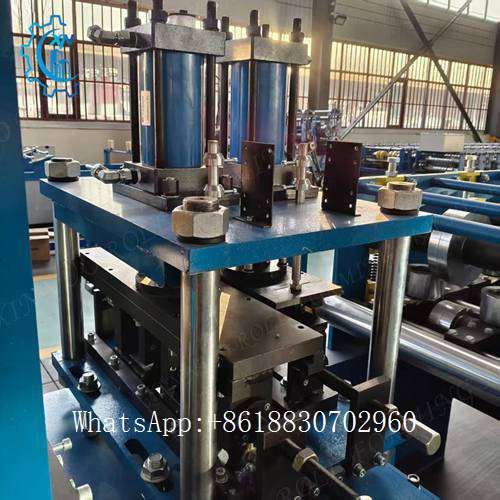

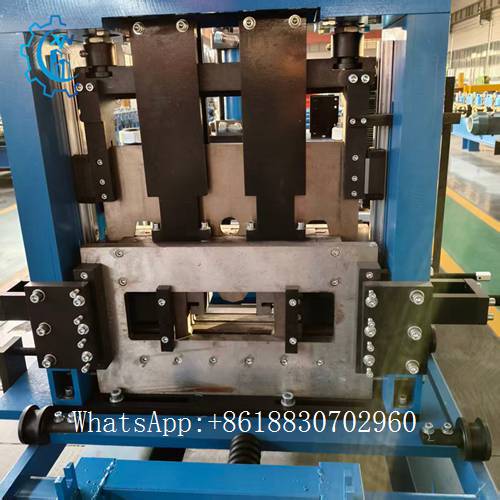

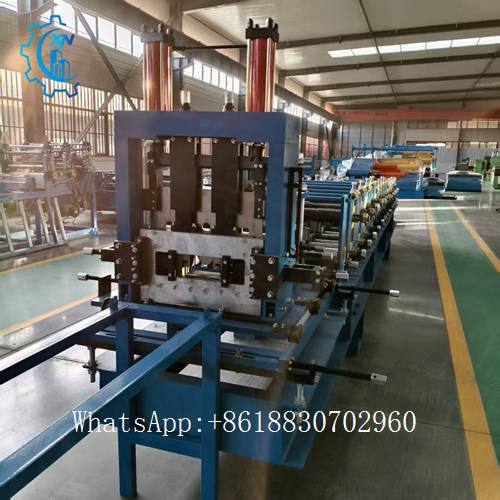

3. Post Hydraulic Cutting Device
Post to cut, stop to cut
One cutter could cut all forming sizes

Application scope of the CZ-type purlin machine.

1. Construction: C-type purlin machines produce C steel purlins for building constructions. They are used to support beams and columns, as well as roofs and wall frames.

        These steel purlins are lightweight, sturdy, and easy to install, increasing construction efficiency while cutting costs.

     2.Bridge engineering uses C steel purlins for bridge support structures, deck pavement, guardrails, and other parts. Its excellent bearing capacity and stability meet bridge engineering

        material requirements.

    3.Tunnel engineering requires a number of supporting structures and protective facilities. C steel purlins are lightweight and durable, making them useful for tunnel construction.

      They may support the roof, reinforce the side walls, and add tunnel ventilation, drainage, and other systems.

   4.A robust roof and wall construction are required when building a factory or warehouse. C steel purlins are ideal for these applications. They can easily create bright, spacious rooms that withstand wind and earthquakes.

   5.C steel purlins may also be used to construct stadiums, exhibition halls, greenhouses, and other constructions. C purlin machines are crucial construction equipment because of their versatile uses and configurable features.
