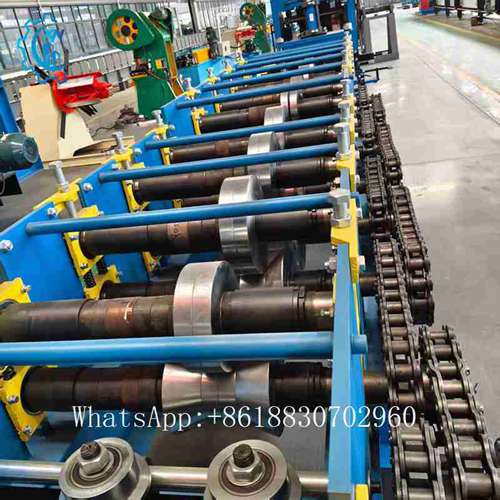

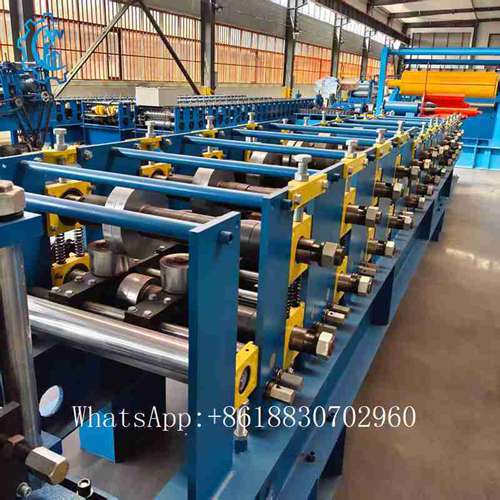

purlins machine rollers

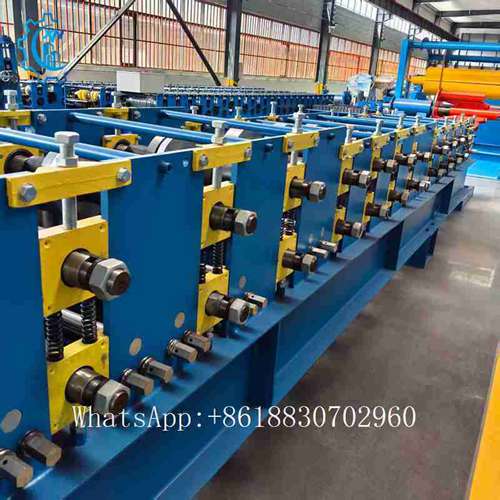

Rollers manufactured from high quality bearing steelGCr15, CNC lathes, Heat Treatment.with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 400#H type steel by welding
|

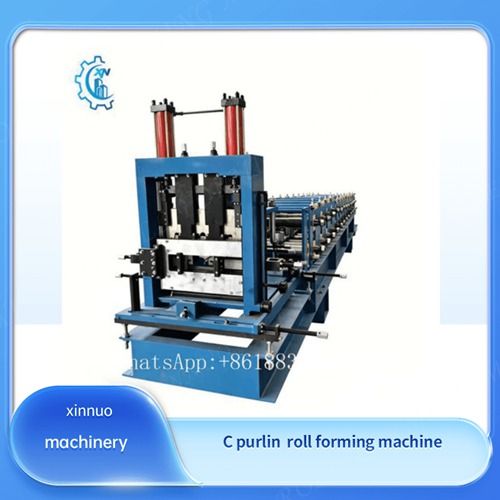

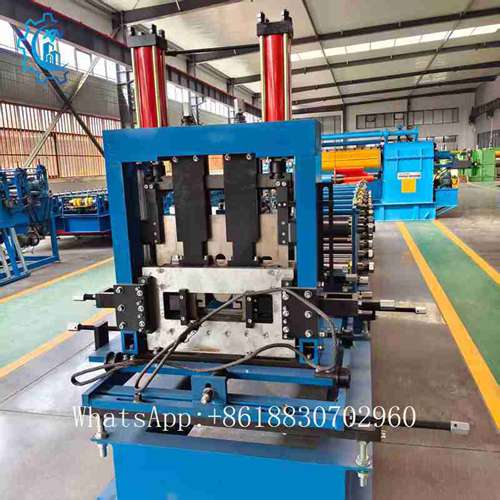

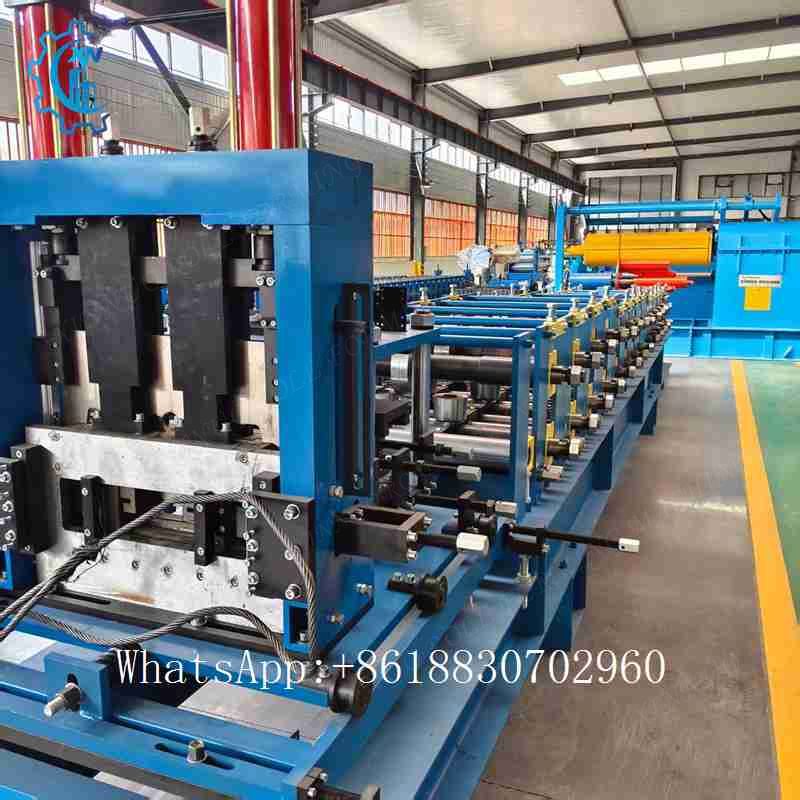

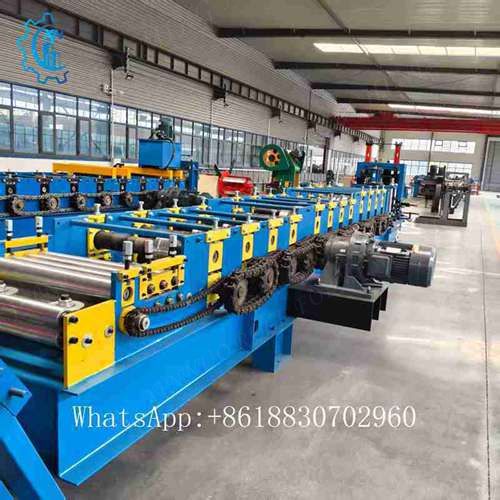

C PURLIN ROLL FORMING MACHINE
|
|
|
Product Name
|
C Purlin roll forming machine
|
|
Keywords
|
Roll Forming Machine
|
|
Machine Model
|
Steel frame Machine
|
|
Operation Way
|
Automatic Machine
|
|
Control Type
|
PLC Control System
|
|
Customized
|
Customized
|
|
Weight
|
About 10T
|
|
Material Thickness
|
1.5 mm-3.0mm
|
|
Cutting Material
|
Cr12 .MOV.
|
|
Power
|
22+7.5KW
|
|
Forming Rollers Qty
|
17stations
|
|
Shafts Diameter
|
70mm
|
|
Roller Material
|
45# Steel, Plated Chrome
|
|
Machine Frame
|
H400
|
|
Wall Thickness
|
Cast Memorial Archway
|
|
Forming Speed
|
15-25m/min
|
Feeding material
Several support rollers have been configured to ensureasmoother and unobstructed material feeding process.
Two sets of nylon rollers are cleverly installed in thecenterof the platform, effectively protecting the surfaceof thematerial from damage while accelerating andsimplifyingthe feeding process.
The handwheel design makes adjusting the feeding sizeeasy and the operation more convenient. Roll pressingsystem

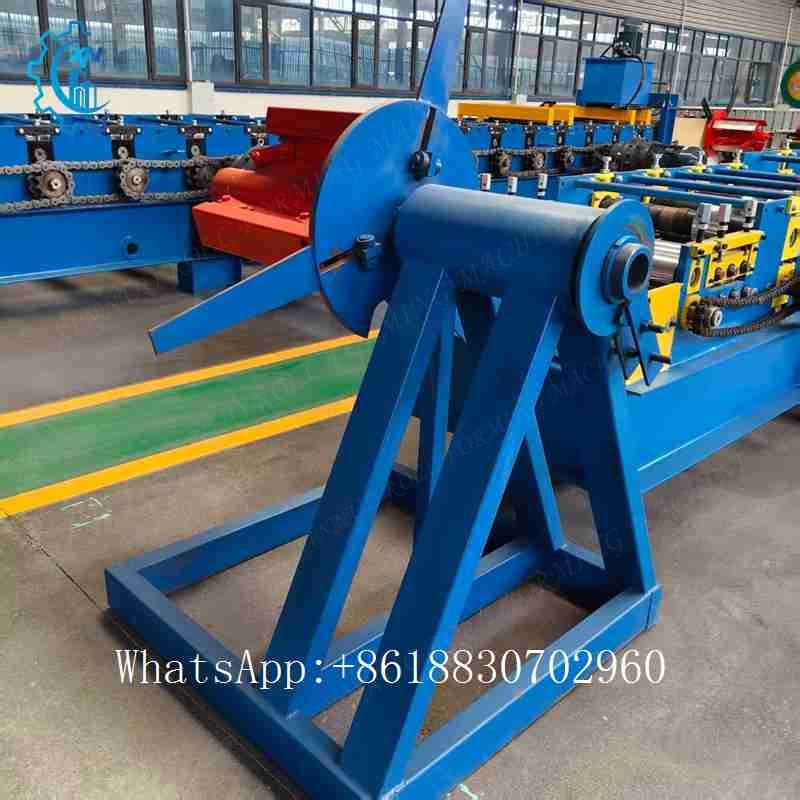

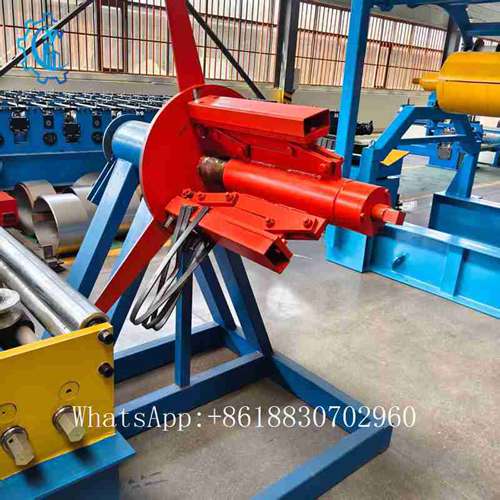

3 Ton Manual Uncoiler, max load capacity 3 tons. Hand-crank four-jaw expansion design fits steel & color steel coils with adjustable inner diameter 470-530mm.
Thick square tube frame ensures stable operation without deviation. No motor required, ideal matching equipment for purlin, tile and cable tray roll forming lines, easy installation & low maintenance cost.
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
