warehouse shelf upright rack making machine

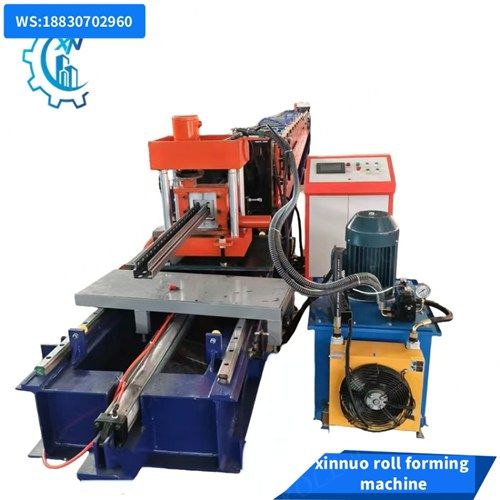

Xinnuo Shelf Upright Rack Making Machine is used to manufacture metal rack upright. It usually consists of frame, feeding system, forming system, punching machine and other equipment.

Shelf Column Rack Roll Forming Machine can feed the metal sheet into the forming system through the feeding system, and then get the finished products of shelf column after processing and forming.

The shelf column roll forming machine has the characteristics of high efficiency, precision and stability, which can greatly improve the production efficiency and quality of shelf column.

1. Material & Construction

   • Made of high-grade 45# carbon steel (or optional 40Cr alloy steel) with quenching and tempering treatment, offering excellent strength, wear resistance, and anti-deflection performance.
   • Precision ground on CNC lathes to ensure high concentricity, eliminating wobble and ensuring uniform forming pressure across the entire working length.

2. Key Features

   • High Rigidity Design: Thick-diameter shafts (typically Ø50–Ø80mm) are engineered to minimize deflection under heavy forming loads, guaranteeing consistent dimensional accuracy of the finished profile.
   • Keyway & Mounting: Full-length keyways are machined to securely lock the forming rollers, preventing slippage and maintaining precise alignment during continuous operation.
   • Bearing Support: Each shaft is supported by high-quality tapered roller bearings (on the drive side) and deep-groove ball bearings (on the idle side), reducing friction, lowering noise, and extending service life.

3. Performance Advantages

   • The precision-machined surface ensures smooth rotation and uniform material feeding, avoiding scratches or deformation on the workpiece.
   • The robust structure supports high-speed, continuous production with minimal maintenance requirements, making it ideal for long-running industrial applications.

Technical Parameters

Working Process

1. Uncoiling: Hydraulic or manual uncoiler feeds the steel coil into the line.
2. Feeding & Leveling: The material is leveled and fed into the forming section.

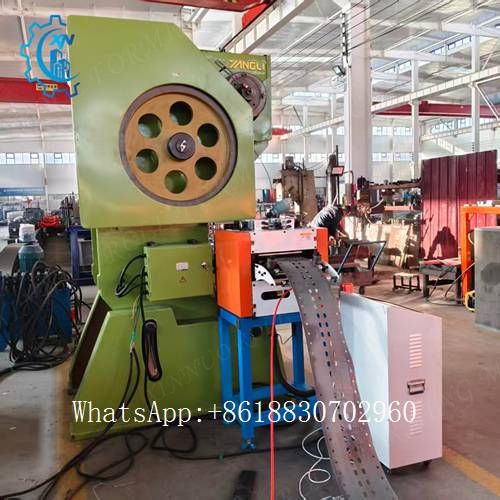

3. Punching: Pre-punching of connection holes at high speed.
4. Roll Forming: The material is gradually formed into the upright profile by multiple sets of forming rollers.
5. Cutting: The formed profile is cut to the set length automatically.
6. Output: Finished products are discharged to the stacking table.

Applications

Heavy-duty warehouse storage racks

• Industrial shelving systems
• Supermarket display racks
• Logistics equipment support structures
• Custom metal profile production
