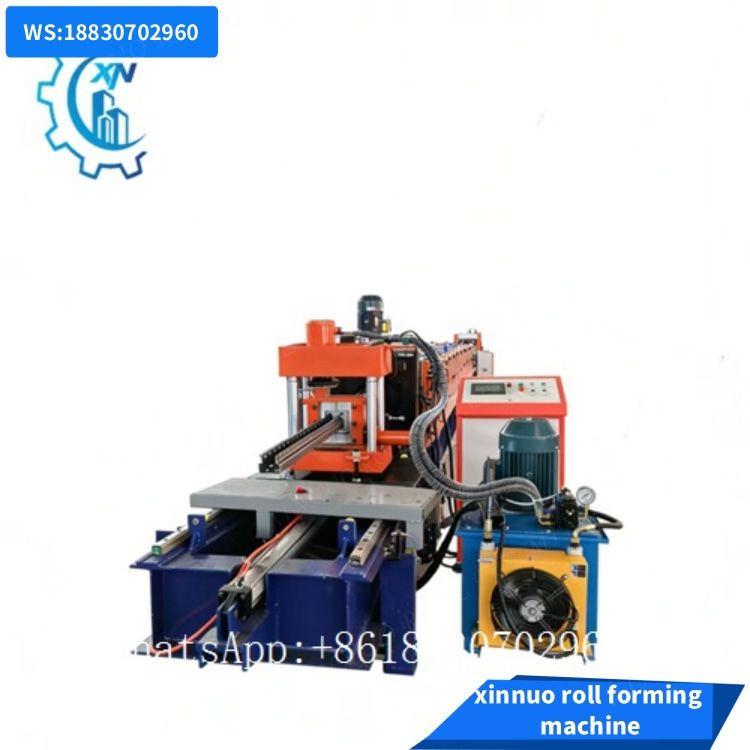

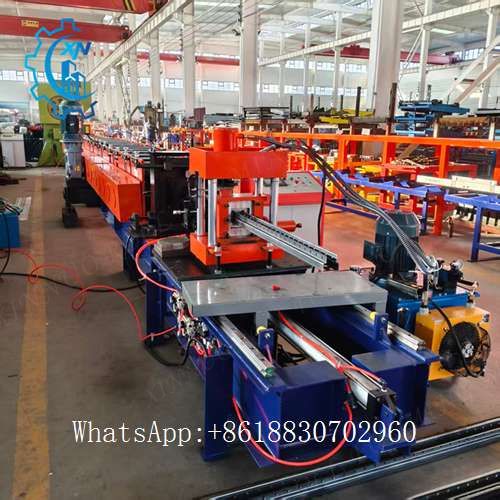

Moldal : storage shelf series machine
Color : customized
Payment Terms:40% T/T in advance,60% when shipping
Email:xinnuo05@xinnuomachine.com
WhatsApp:+8618830702960
Technical Details
| The Line’s Specifications | |
|---|---|
| Weight | About 10000kgs |
| Whole line’s dimension | About 25m x 2m x 1.6m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized or Galvalume Coils |
| Thickness | 2.0-2.5mm |
| Coil width | 238mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |

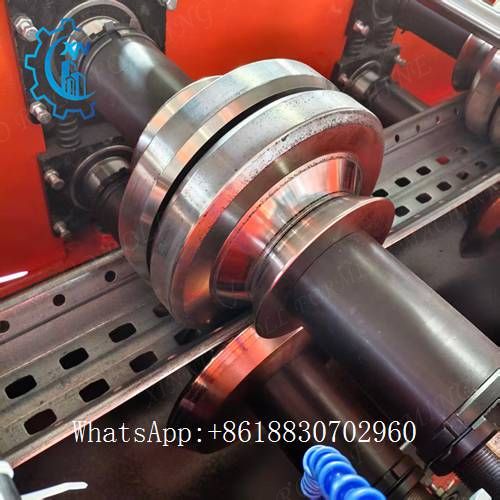

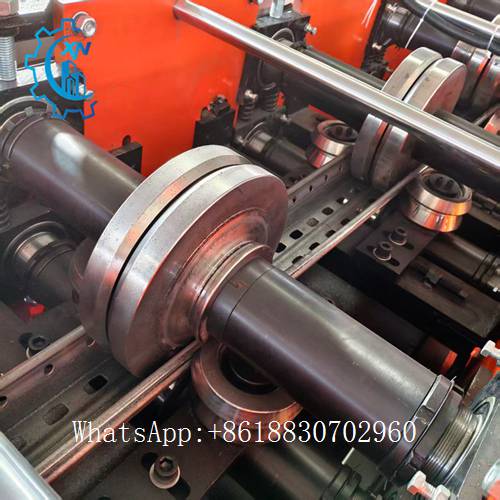

| Quantity of forming rollers stations | 22-26 |
| Diameter of forming rollers shafts | 82mm |
| Roll Forming Speed | 8-10m/min |
| Production Speed | 4-6m/min |
| Forming rollers material | GCR15 mould steel, with quenched treatment |

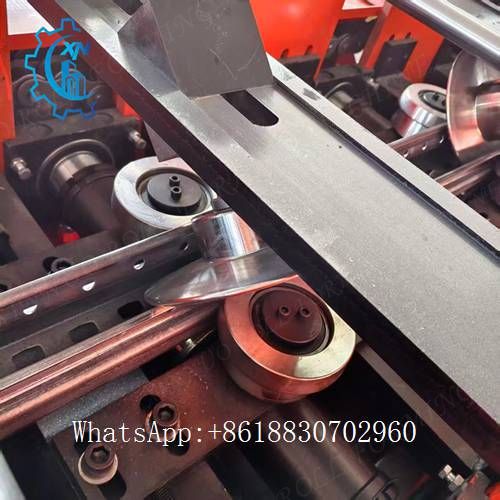

| Cutter material | CR12 mould steel, with quenched treatment |

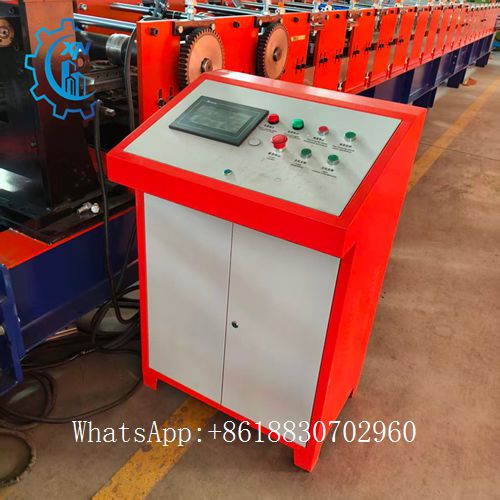

| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 15kw |

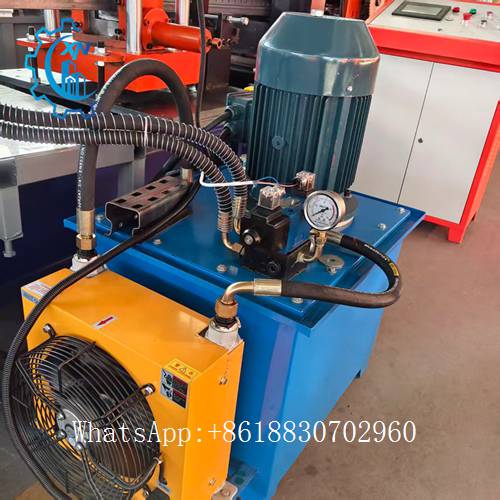

| Hydraulic unit motor power: 7.5kw | |
| Electric voltage | According to customer’s requirement |

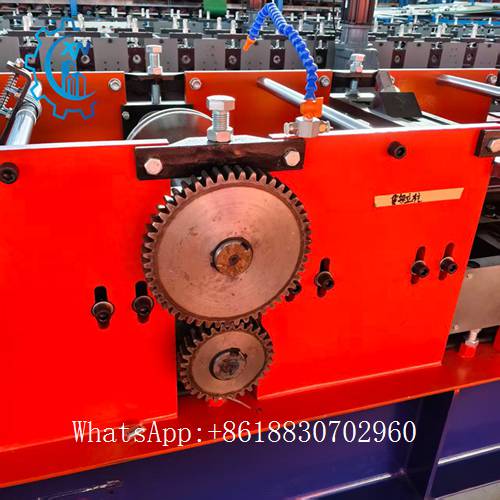

Machine Body Structure

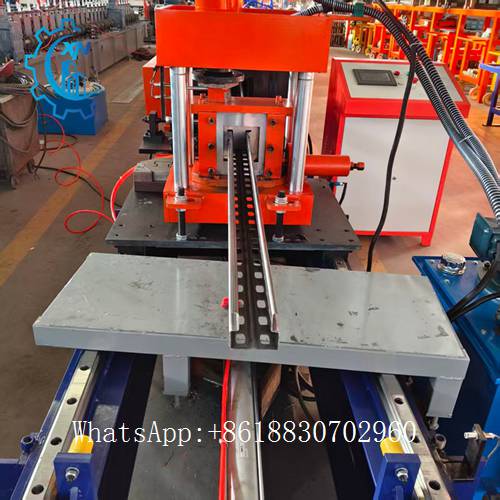

Machine Details Display
About Us
Hebei Xinnuo Roll Forming Machine Co., Ltd., specializes in designing and producing high-performance roll forming equipment. We focus on storage shelf upright roll forming machines with PLC control,
high precision, and stable performance, suitable for 0.8–3.0mm steel profiles. Our product line also includes purlin, floor deck, shutter door, and keel forming machines. Adhering to strict quality standards, we
provide customized solutions, OEM/ODM services, and reliable after-sales support. Our machines are widely exported to global markets, trusted by warehouse racking manufacturers for efficient, consistent production.
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
