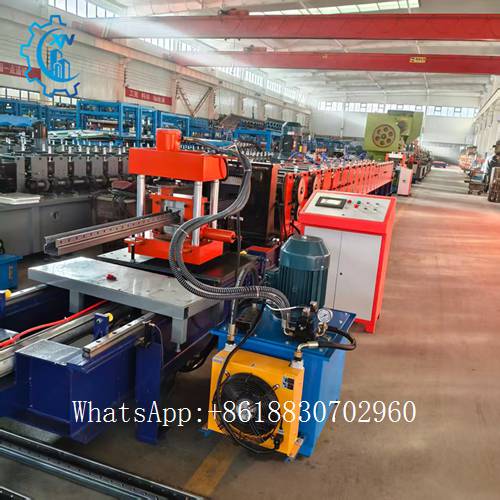

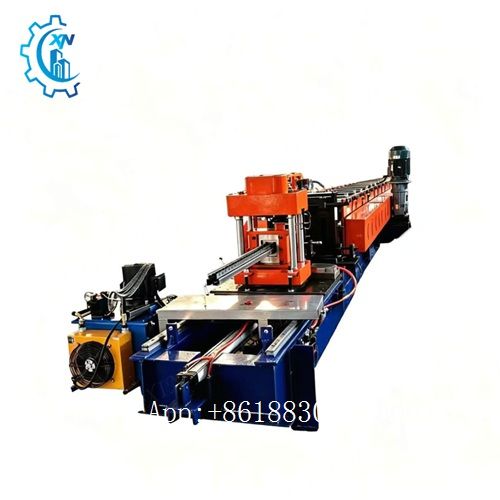

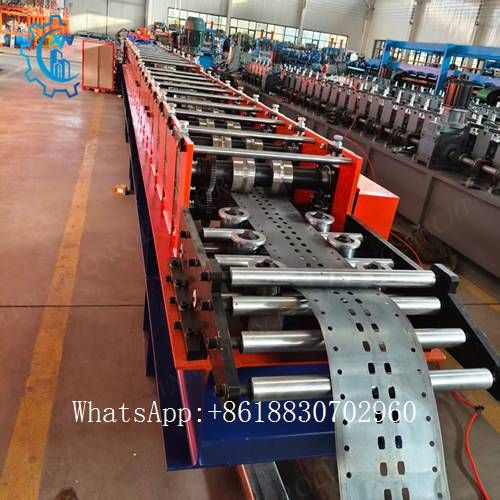

SHELF UPRIGHT ROLL FORMING MACHINE

Product Overview

Key Features

• Roller shafts made of high-grade 45# steel, quenched and tempered for high rigidity and low deflection.

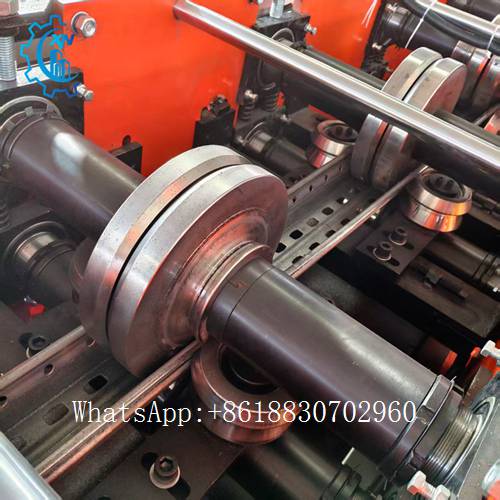

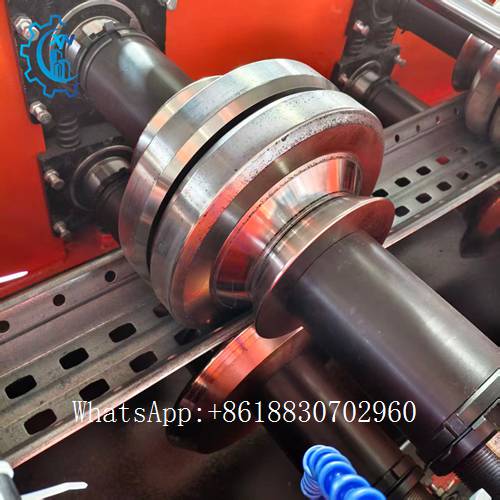

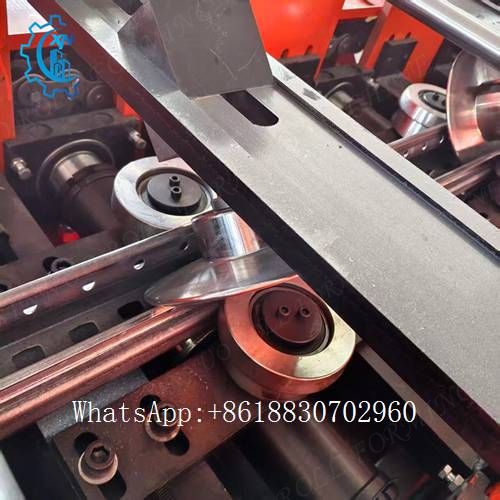

• Forming rollers made of Cr12MoV die steel with vacuum heat treatment for wear resistance, ensuring consistent profile accuracy.
• Tolerance control: ±0.3mm for dimensions, meeting strict racking system standards.

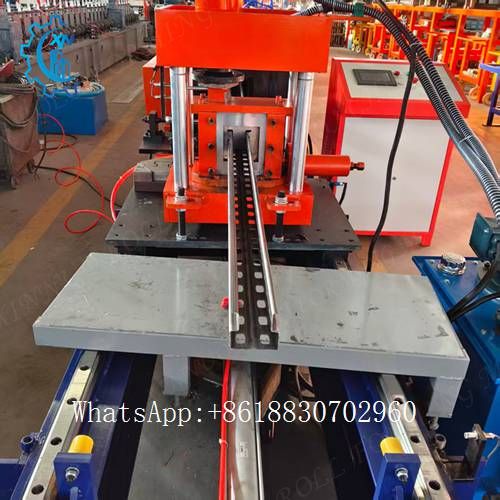

• Servo-driven punching station for pre-punching of holes (e.g., diamond holes, round holes, or custom patterns) for beam connections.
• High-speed hydraulic punching with adjustable position, ensuring accurate hole alignment.

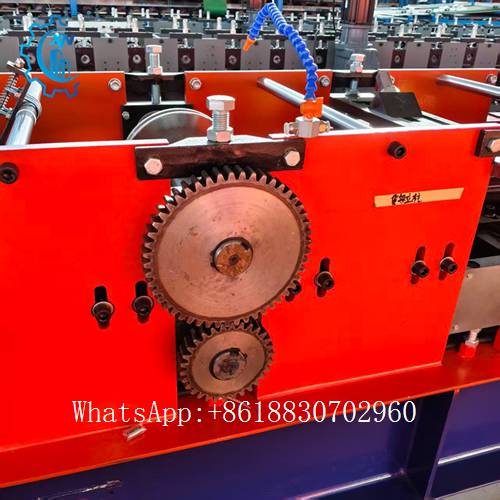

• Heavy-duty welded frame with stress-relief treatment for long-term stability under high-speed operation.

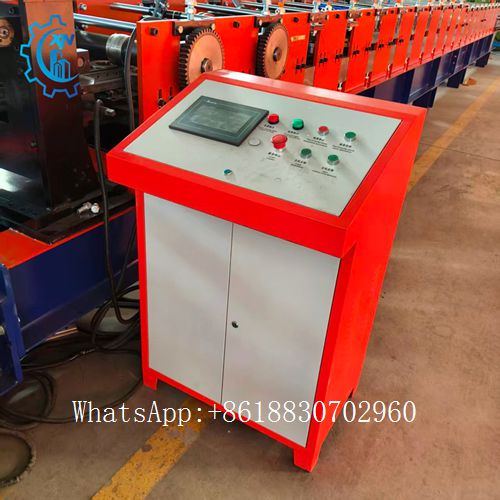

• All key components adopt well-known brands (e.g., Siemens PLC, Schneider electrical parts, SKF bearings) for reliable performance.

• Adjustable forming stations to produce different sizes of upright profiles by changing rollers.

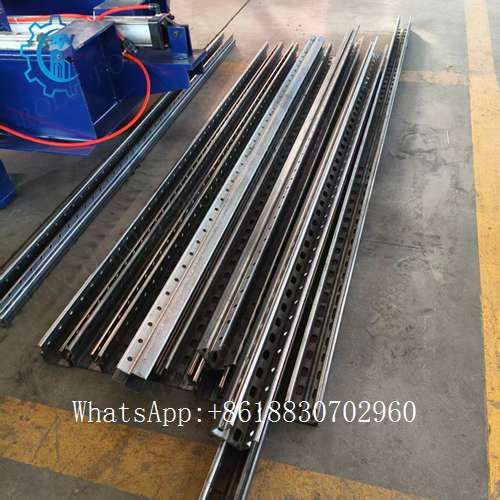

• Suitable for materials: Galvanized steel, cold-rolled steel, stainless steel (thickness 1.5–3.0mm).
• Customizable cutting modes: Hydraulic shearing or flying saw cutting for smooth, burr-free ends.

Technical Parameters

Advantages

• High Efficiency: Continuous production greatly improves output and reduces labor costs.
• Cost Saving: Low material waste and long service life of components reduce overall production costs.
• Customization: We offer tailor-made solutions for different profile sizes, hole patterns, and production requirements.
• After-Sales Service: 12-month warranty, 24/7 technical support, and overseas installation guidance available.

Diverse Rack Upright Production Solution

Xinnuo is good at providing customers with a variety of rack upright production solutions. Xinnuo's machines are capable of producing upright posts, thick angle profiles, box beams, and step beams of different sizes. You are welcome to inform Xinnuo engineers of your drawings and specific production requirements. Xinnuo engineers will provide customized rack upright roll forming machine manufacturing solutions after full communication with you.

Technology Support

As a professional manufacturer of roll forming machine in China, Xinnuo has been in design - production - installation - after-sales for more than 20 years. Xinnuo is able to customize production solutions according to customer‘s drawings and specific parameter requirements. After you ordered, Xinnuo technical team will test the machine in an effort to insure every mechanical and electrical parts are in perfect condition.
