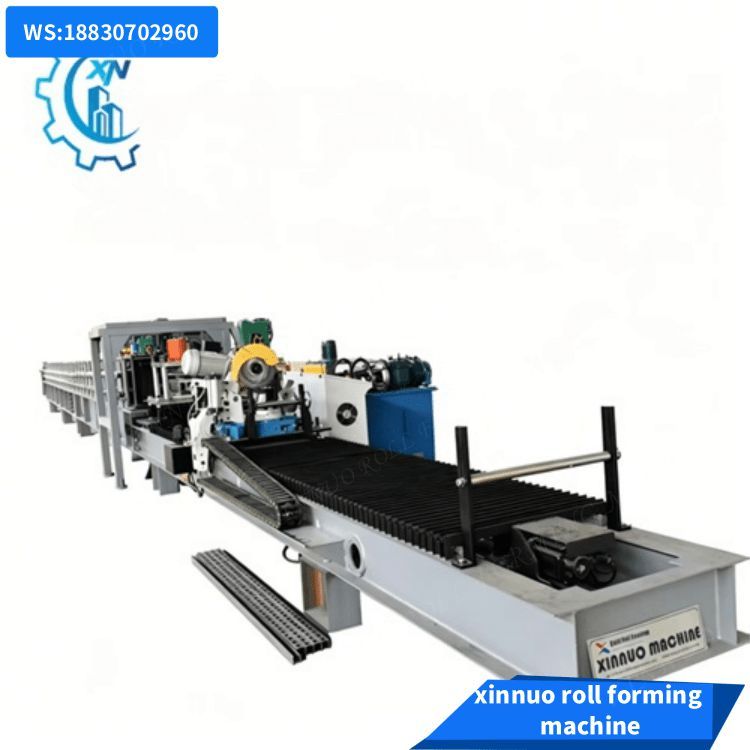

fully automatic solar strut channel roll forming machine

Solar Strut Channel Roll Forming Machine is designed to produce solar strut with thickness from 2.0mm to 3.0mm, dimension size of 21*21, 41*21， 41*41， 41*52，41*62，41*72，41*82 or as per your requirement.

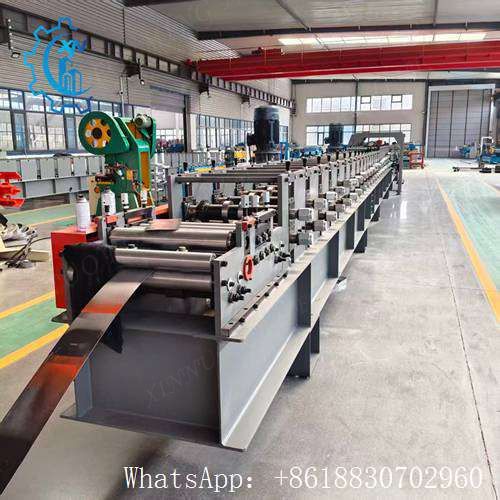

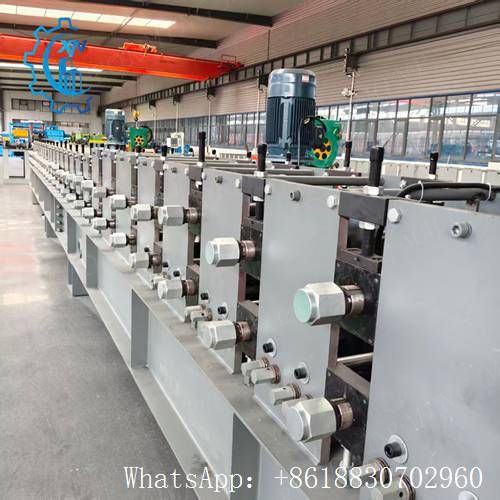

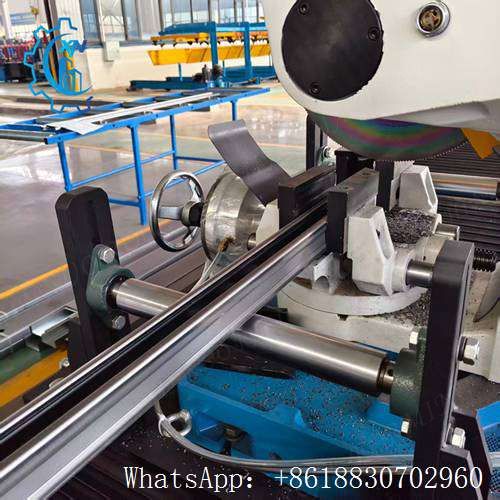

The machine is composed of decoiler, leveler, servo feeder, punch press,  main forming machine,  cutting device, outer table, hydraulic stations and PLC control system. The advantage of our downspout gutter roll forming

machine are high strength, high automation, easy operation and lower cost.

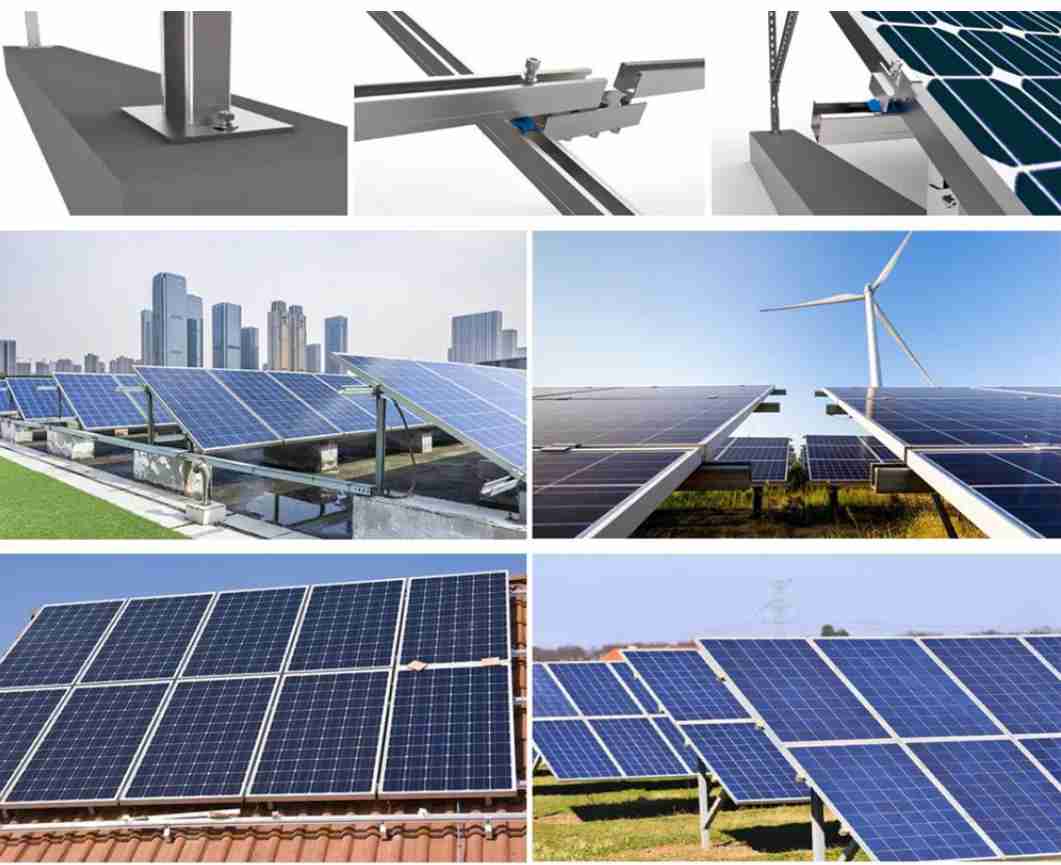

Strut channel roll forming machine applications:

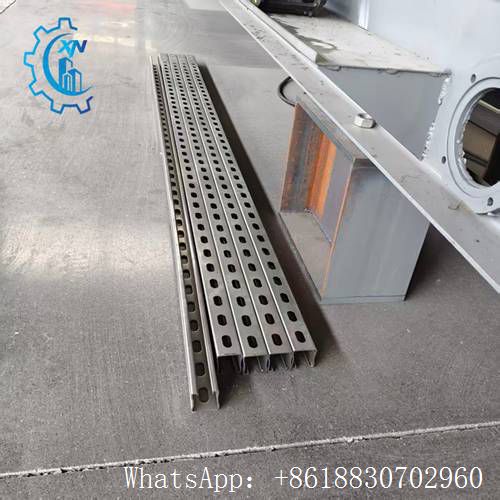

Strut channel roll forming machines are used to produce C-shaped or U-shaped steel channels, commonly known as strut channels. These channels have various applications across multiple industries due to their

versatile nature and ability to support various systems. Some of the primary applications of strut channels produced by roll forming machines include:

Working Process

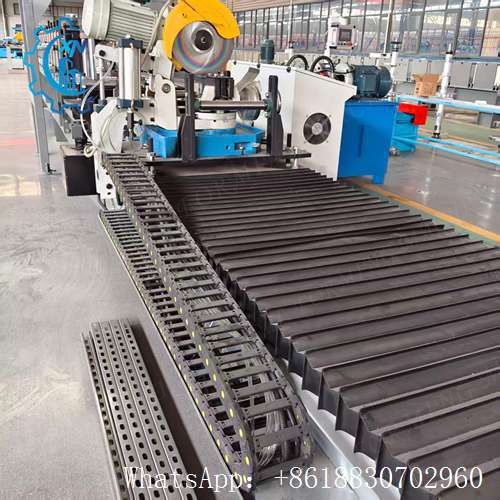

Decoiling-Leveler- Servo Feeder- Press Machine- Main Roll Forming- Cut to Length- Outer table

Technica Parameters

• Material thickness:1.5-2.5mm
• Roller stations: about 22 stations
• Forming speed: 0-15m/min.
• Main shaft diameter: ￠75mm, material 40Cr

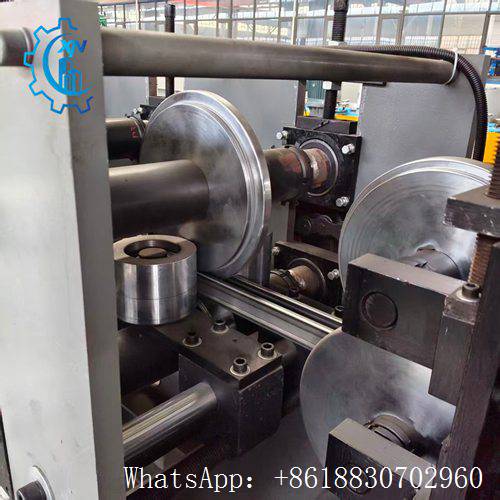

• Roller material: GCr15
• Main motor power:22KW
• Hydraulic station motor power: 7,5KW

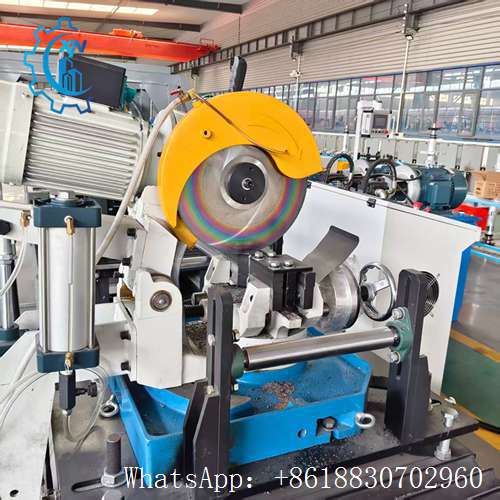

• Cutting blade material: Cr12Mov, HRC:56-58°

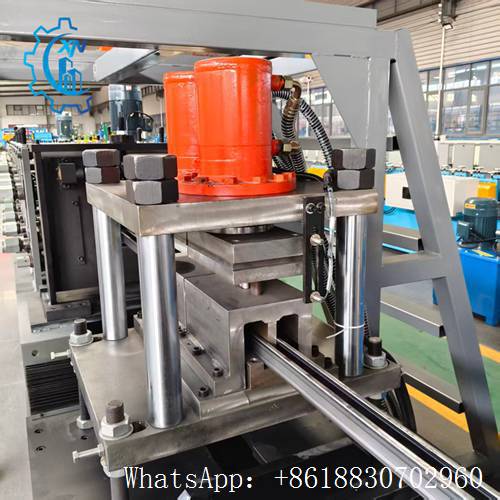

Punching Device

Solar mounting strut channel roll forming machine Parameters

Key Features:

High Production Speed:

Strut channel roll forming machines can produce channels at a high speed, which increases overall productivity and reduces labor costs.

Versatility:

These machines are capable of producing strut channels with various sizes, materials, and profiles, including slotted, solid, and back-to-back configurations. This flexibility allows manufacturers to cater to a wide range of applications and customer requirements.

Precise and Consistent Profiles:

Strut channel roll forming machines utilize advanced technology to ensure precise and consistent channel profiles. This accuracy is critical for maintaining structural integrity and compatibility with other components in the support system.

Automated Control System:

Modern strut channel roll forming machines are equipped with programmable logic controllers (PLCs) that enable automated operation and minimize human intervention. This automation leads to increased efficiency, reduced errors, and consistent production quality.

Material Efficiency:

The roll forming process used by these machines results in minimal material waste, making it an environmentally friendly and cost-effective manufacturing method.

Low Maintenance:

Strut channel roll forming machines are generally built with durable components and require minimal maintenance, resulting in reduced downtime and overall lower operational costs.

In conclusion, strut channel roll forming machines offer numerous advantages, including high production speed, versatility, precise profiles, automation, material efficiency, and low maintenance. These features make them an essential piece of equipment for manufacturers in the construction, electrical, and mechanical industries.
