high speed solar strut roll forming machine production line for photovoltaic bracket roll forming machine

Full Production Line Overview

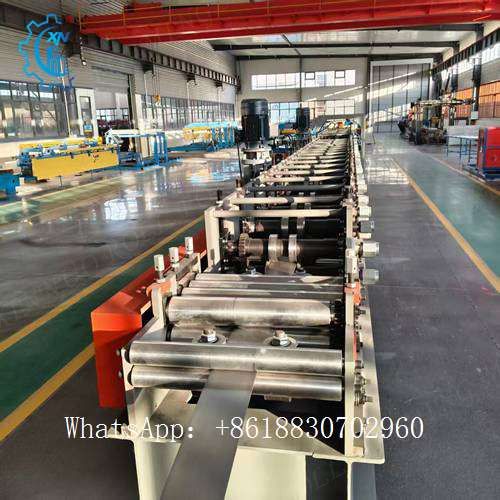

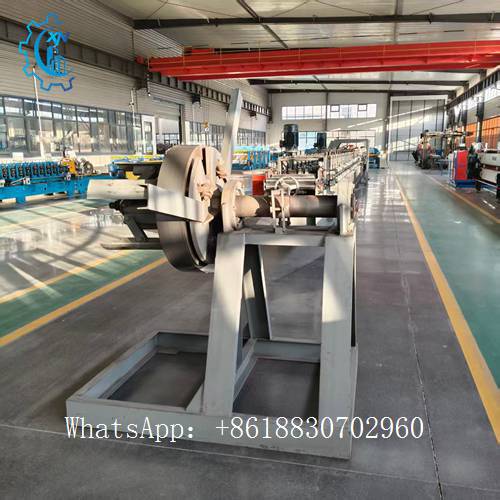

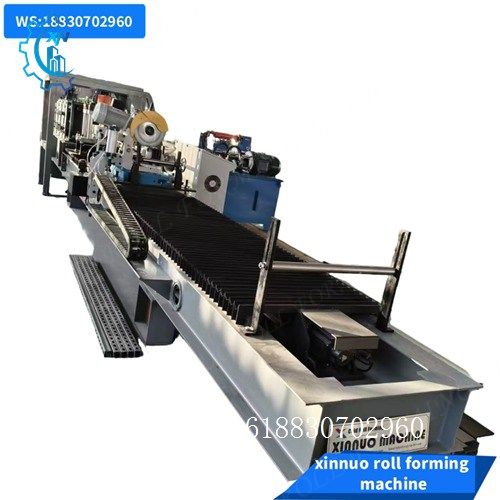

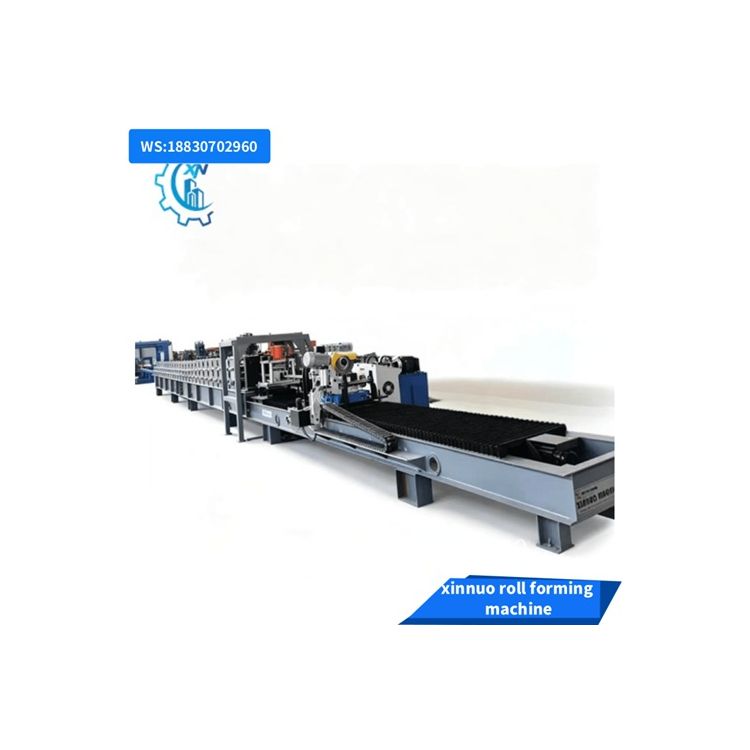

The complete layout of the solar strut roll forming machine, including core modules such as the decoiler, forming main unit, punching station, and cutting device. The compact structure adapts to standardized factory workflows and

can be seamlessly integrated into existing production lines.

Hydraulic Punching Unit

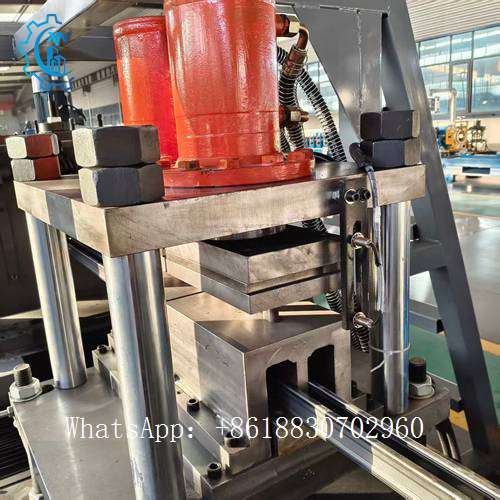

Close-up view of the hydraulic punching mechanism, featuring high-tonnage hydraulic cylinders and custom dies. It completes multi-specification punching processes (e.g., mounting holes and connection holes) for PV brackets

in one operation, ensuring high precision and consistency of hole positions to guarantee reliable subsequent installation.

Hydraulic Punching Unit Detail

Close-up view of the hydraulic punching mechanism, featuring high-tonnage hydraulic cylinders and custom dies. It completes multi-specification punching processes (e.g., mounting holes and connection holes) for PV brackets in one operation, ensuring high precision and consistency of hole positions to guarantee reliable subsequent installation.

Working Status of Fixed-Length Cutting Unit

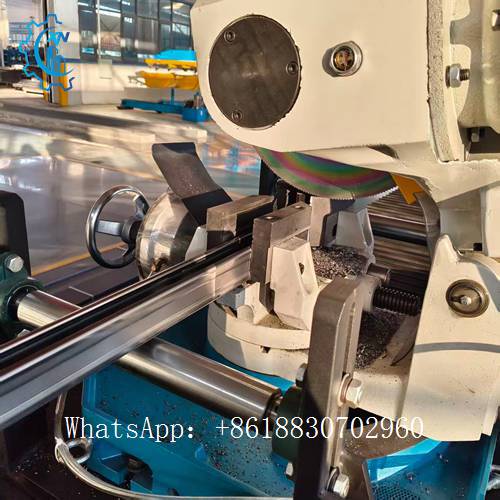

Close-up view of the on-line fixed-length cutting device, adopting a burr-free flying saw cutting process. The cut end face is flat and free of deformation. Length parameters can be preset according to production requirements to

realize automatic fixed-length blanking, greatly improving production efficiency and material utilization.
