Roll forming unit
Suitable raw material
Our EPS continuous production line is designed to produce the panels for use in roofing and walls, such as cold storage, general storage, factory buildings, temporary buildings, prefabricated buildings that can produce the most cost-effective way.
Designed in the production rate of 5 ~ 12m / min production facilities, production facilities and flexible can be easily expanded by the addition of a molding machine to produce panels of various types as needed

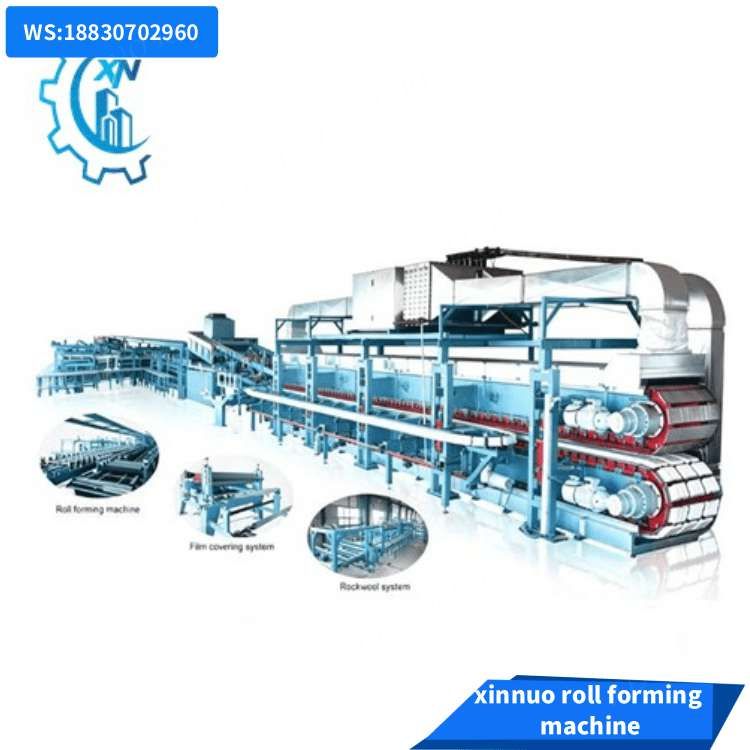

Expanded Polystyrene Sandwich Panel Producing Line consists of Un-coiler that inputs and releases coil, Roll Forming Unit that makes shape of coil, E.P.S. Board Supplying System that inputs expanded polystyrene board and properly cutting/processing it, Side & Surface Trimming System that cuts the binding sites and surface of panel in accordance with the required specification, Glue Applying System that applies bond to attach steel plate and expanded polystyrene, Laminating Unit that makes the shape of sandwich panel, Panel Cutting Unit that cuts the fabricated sandwich panel, Auto Stacking Unit that loads the finished panels, and Panel Packing Unit that packs the loaded panels with plastic wrap and discharge them.

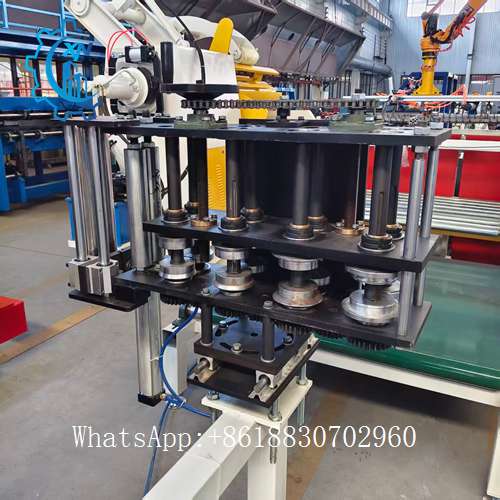

Adjustable multi-layer pressing unit
Precision compound pressing module with multi-group compression rollers. The roller gap can be adjusted freely to produce rock wool panels of different thickness, ensuring uniform bonding, flat panel surface and stable compression strength.

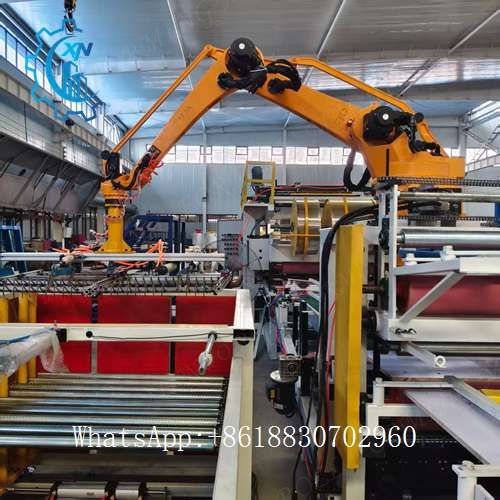

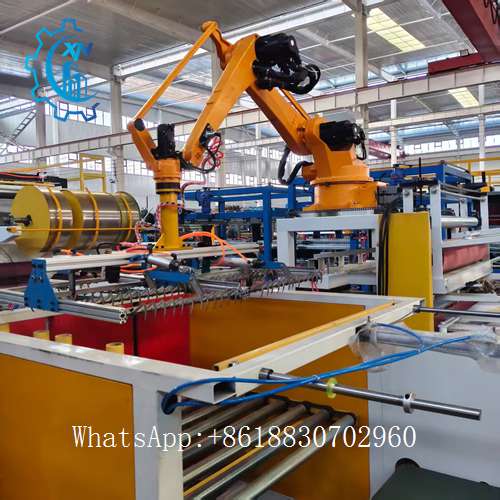

Complete production line with robotic stacking arm
The whole line is equipped with an industrial robot stacking system. After cutting, finished panels are automatically transported and stacked, drastically cutting labor costs and improving production efficiency. The centralized touchscreen
control cabinet realizes one-stop operation of the whole production workflow.

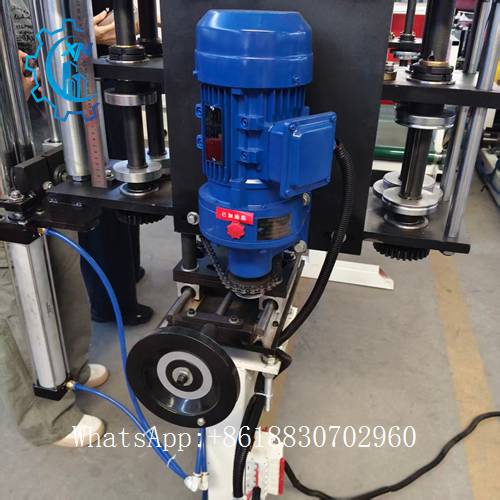

Heavy-duty drive motor assembly
High-performance blue driving motor with chain transmission structure. Reliable power output guarantees long-time continuous running of the pressing section, reducing downtime and maintenance frequency.

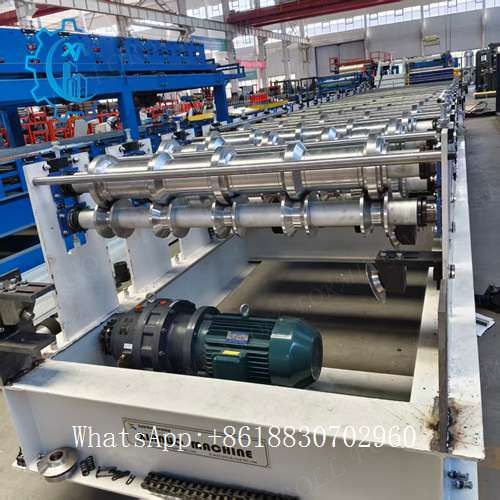

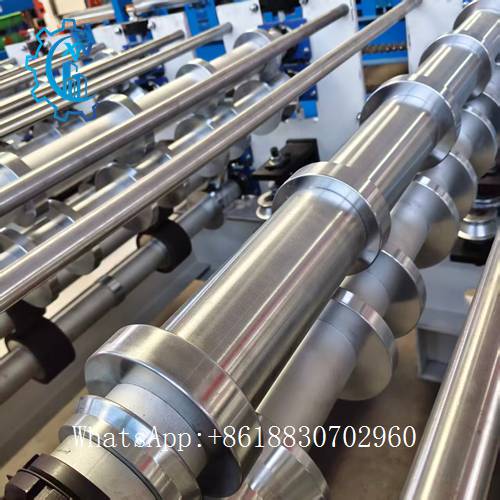

Roll forming unit
It is a device that continuously gives shape to sandwich panel as steel coil fed from Un-coiler is engaged between the upper and lower sections of a metal roller.
Usually it makes the beautiful and delicate shape of variety wall and roof type panel. It designed in cassette type and rail way wheel type to easily change to make different shapes.
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
