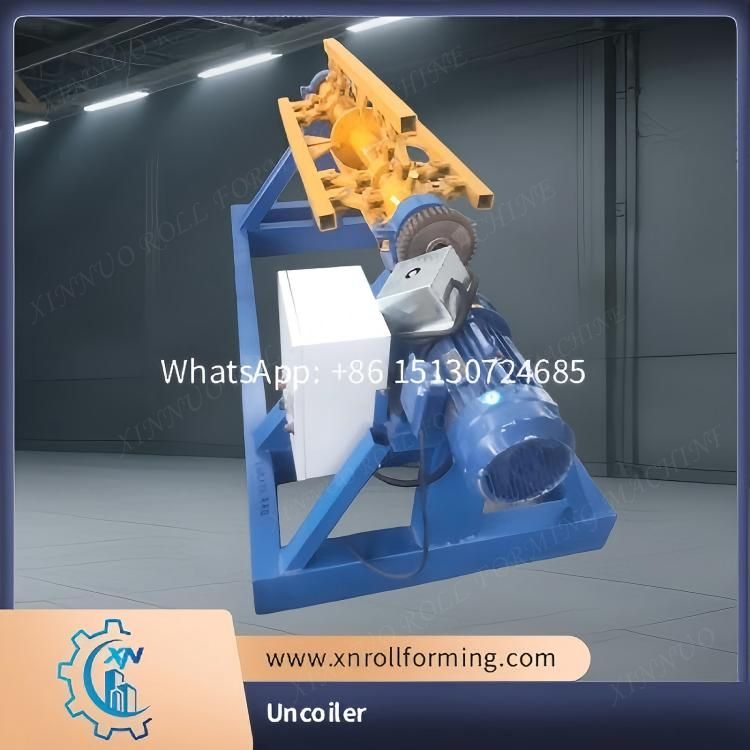

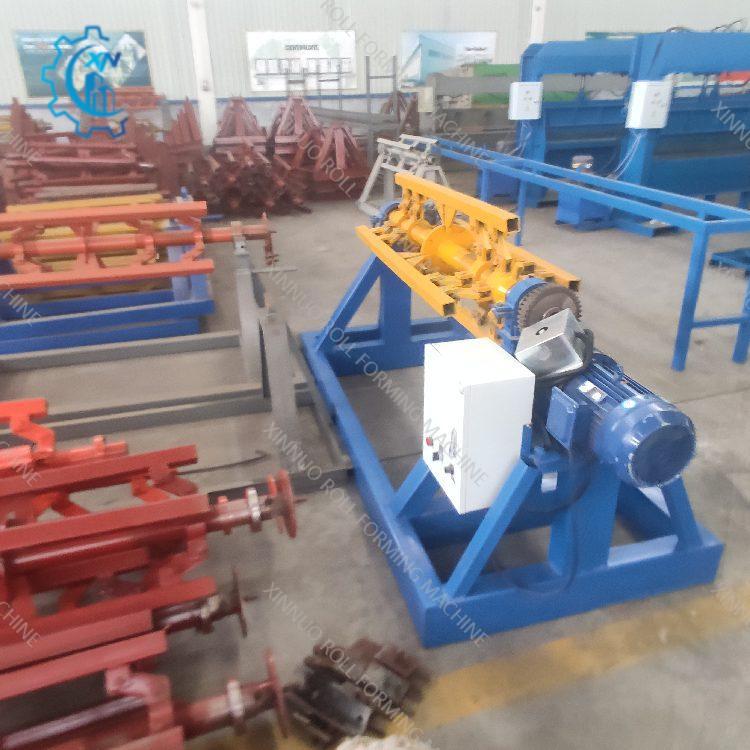

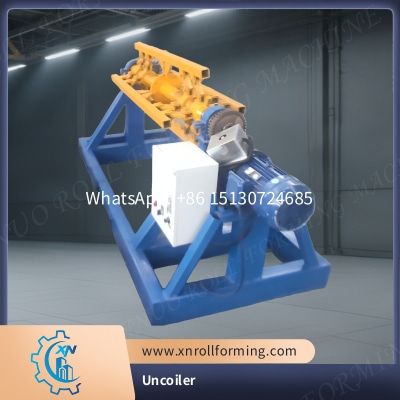

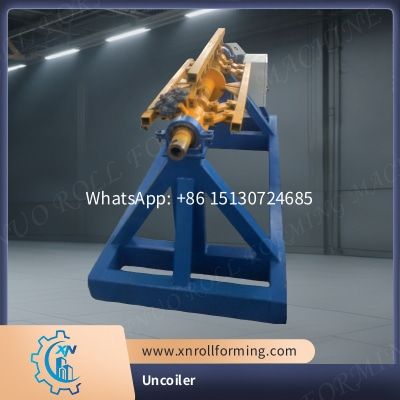

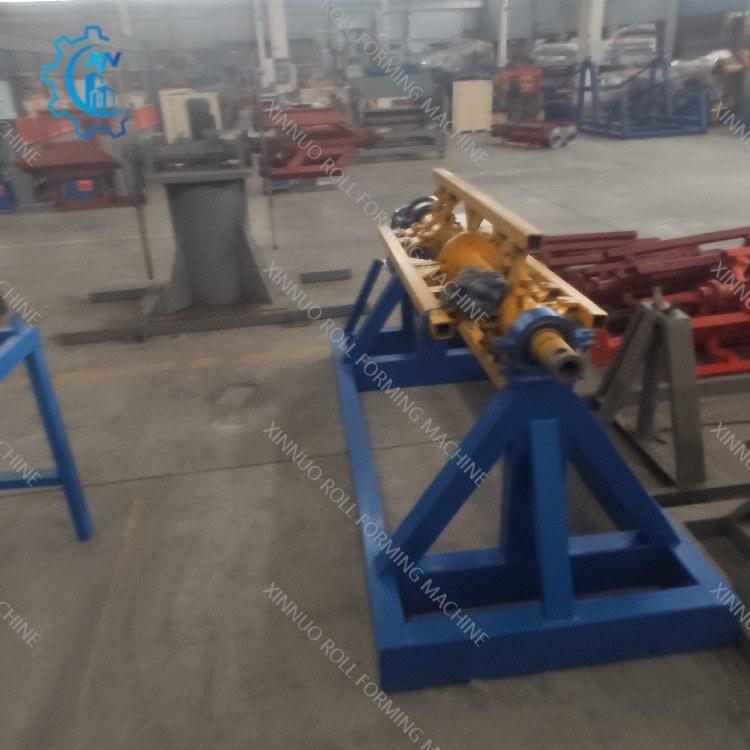

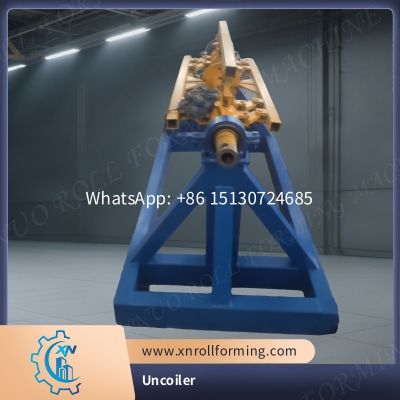

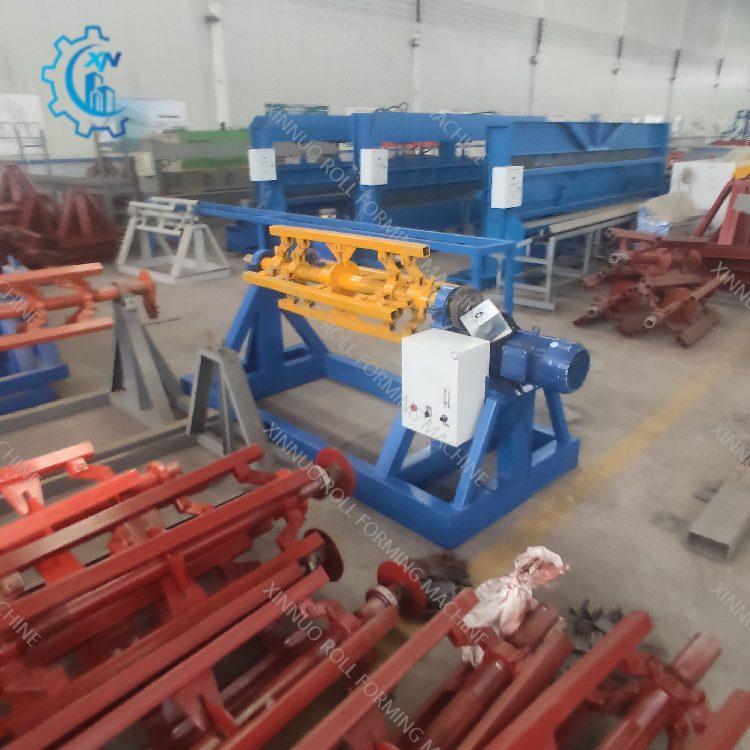

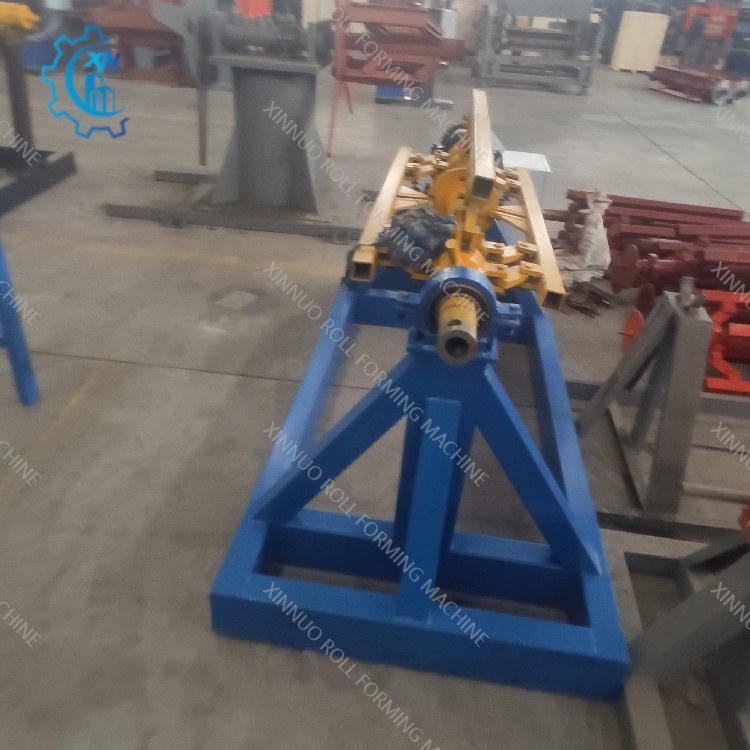

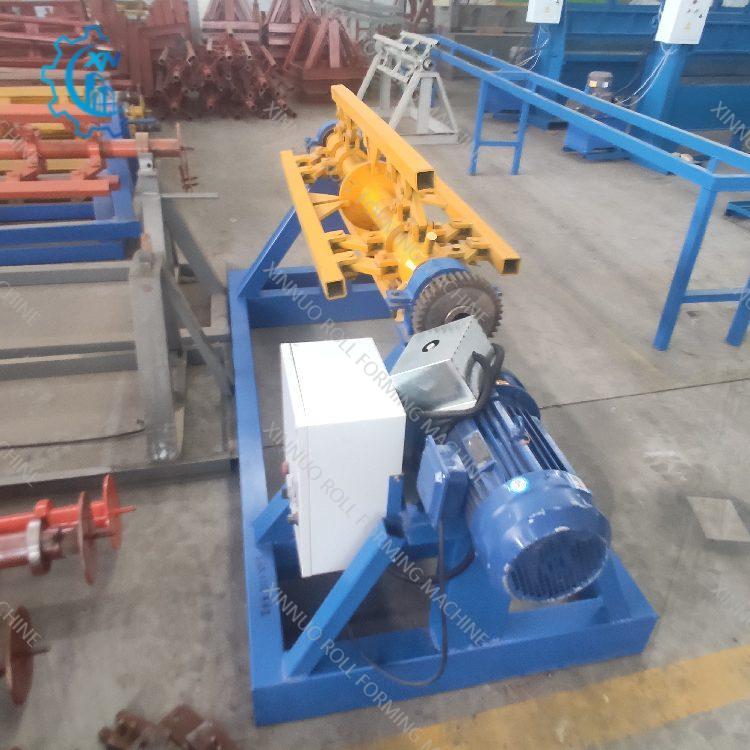

Xinnuo Uncoiler: Unleashing Efficiency in Material Handling
Xinnuo presents its advanced Uncoiler, a crucial piece of equipment in modern manufacturing processes. This machine is designed to unwind and feed various coil materials with precision and efficiency, serving as a cornerstone for seamless production lines across multiple industries.
Function and Working Principle
The Uncoiler operates on a straightforward yet highly effective principle. At its core, it features a motorized spindle that rotates to unwind the coil of material, be it metal sheets, wires, or other coiled substances. As the spindle turns, the material is smoothly unrolled and fed into subsequent machinery, such as stamping presses, roll formers, or cutting machines. Some of our models are equipped with intelligent sensors that constantly monitor the tension of the material. These sensors adjust the spindle's speed in real-time, ensuring the material remains neither too loose, which could lead to sagging or misalignment, nor too tight, which might cause stretching or breakage. This precise tension control is vital for maintaining the quality of the material throughout the production process.
Technical Specifications
Xinnuo's Uncoilers come in a range of specifications to meet diverse industrial needs. Our machines can handle coil materials with thicknesses typically ranging from 0.3mm to 6.0mm, accommodating a wide variety of applications. The maximum feeding width varies depending on the model, with options up to 1800mm, allowing for the processing of large and small - scale projects alike. The coil inner diameter can be customized to fit different coil sizes, usually spanning from 450mm to 530mm, while the outer diameter can reach up to 1400mm. In terms of load capacity, our Uncoilers are robust, with some models capable of handling coils weighing up to 20 tons, ensuring they can meet the demands of heavy - duty production. The decoiling motor power varies from 1hp to 5hp, depending on the model, providing the necessary torque to unwind materials smoothly at speeds of up to 15m/min.
Types of Uncoilers
- Standard Uncoiler: Our standard model offers versatility and comes in a wide range of sub - models. It can be used for both unwinding and winding operations, making it suitable for various production setups. It is easy to operate and has a high degree of customization, allowing businesses to adapt it to their specific production requirements.
- Hydraulic Uncoiler: This type is designed for heavy - duty applications. With a maximum load capacity of up to 20 tons, it can handle large and heavy coils with ease. The hydraulic system enables smooth and precise operation, reducing the labor intensity involved in handling large coils. It is often used in industries such as metal fabrication, where large - scale coil processing is required.
- Small Uncoiler: Ideal for light and thin plate materials, our small uncoilers, such as the CR - 100 and CR - 200 models, are compact yet efficient. They can also be used for rewinding purposes, mainly for handling scraps, which helps in optimizing material usage in the production process.
- Disc Uncoiler: Also known as the flat electronic feeder, this horizontal uncoiler is specialized for unwinding thin plates and narrow materials. It is commonly used in conjunction with high - speed punching machines, enabling fast and accurate feeding of materials for high - volume production.
- Double - Head Uncoiler: Developed for high - speed stamping production lines, the double - head uncoiler features two expanding and shrinking reels. This design allows for continuous production as when one reel is depleted, the other can be immediately connected without any downtime. It significantly reduces the time spent on refueling and debugging, thus boosting overall production efficiency.
Applications
Xinnuo's Uncoilers find applications in numerous industries. In the metal stamping industry, they are used to unwind metal sheets for the production of various metal parts, from automotive components to household appliance parts. In the construction hardware sector, they play a crucial role in providing a continuous feed of metal materials for the manufacturing of door and window frames, roofing materials, and other construction - related items. The electronics industry also benefits from our uncoilers, especially in the production of components such as motor stators and rotors, where precise feeding of thin metal sheets is essential.
Pricing and After - Sales Service
The price of Xinnuo's Uncoilers varies depending on the type, model, and specific customization requirements. Our sales team is ready to provide detailed quotations based on your specific needs. We offer a comprehensive one - year warranty on all our Uncoilers, covering any manufacturing defects. Our after - sales service team provides on - site installation guidance, operator training, and regular maintenance services. We are committed to ensuring that your Uncoiler operates at peak performance for years to come, providing you with reliable and efficient material handling solutions.
