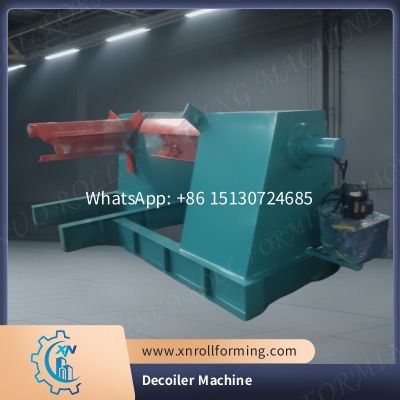

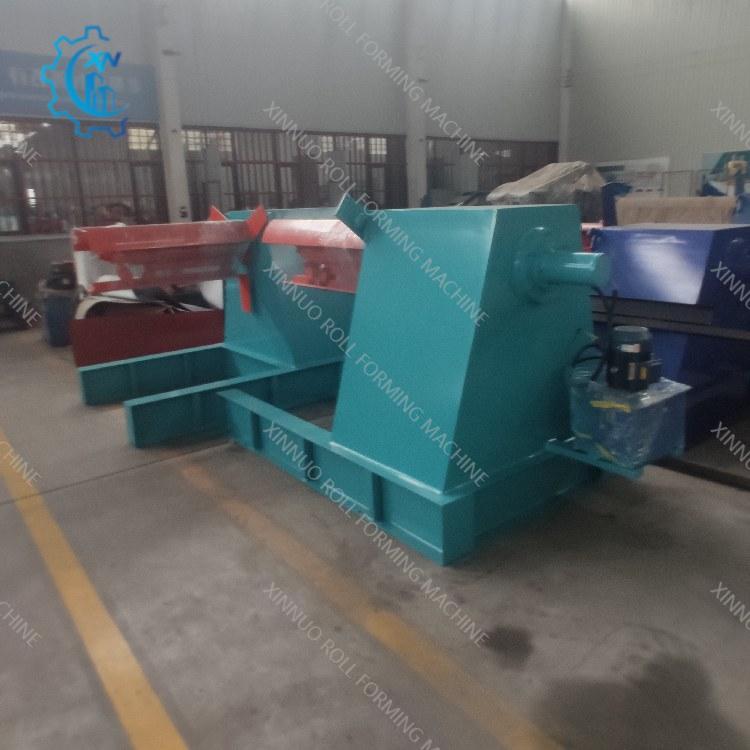

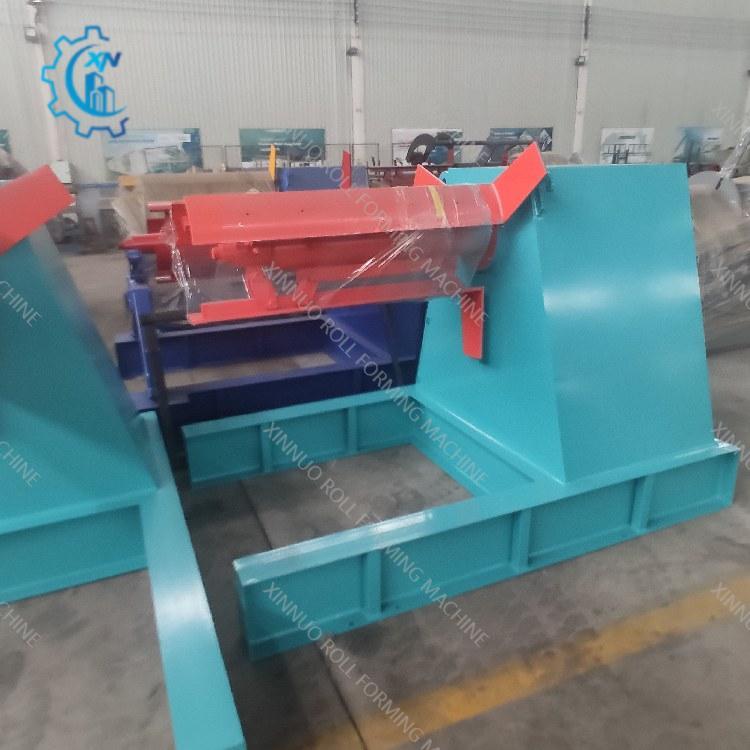

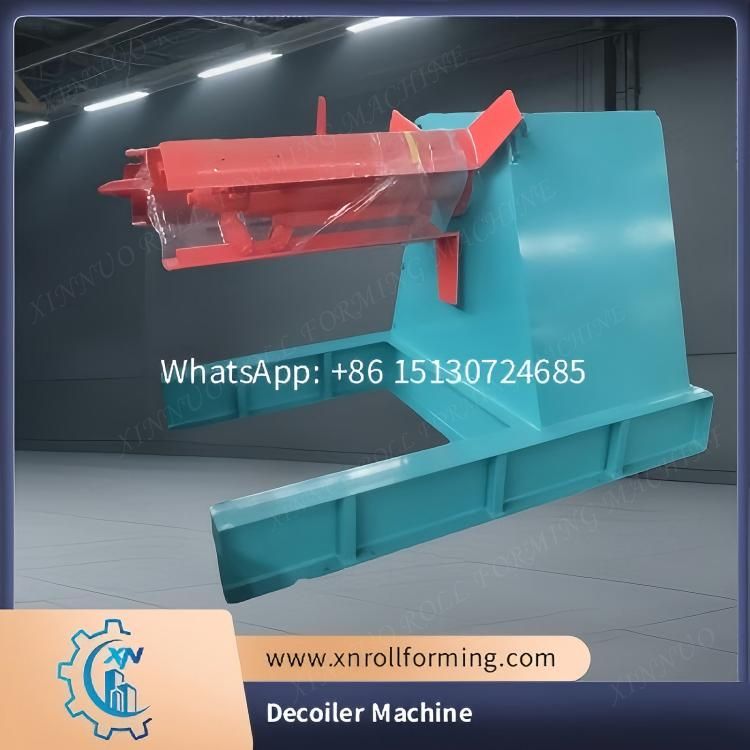

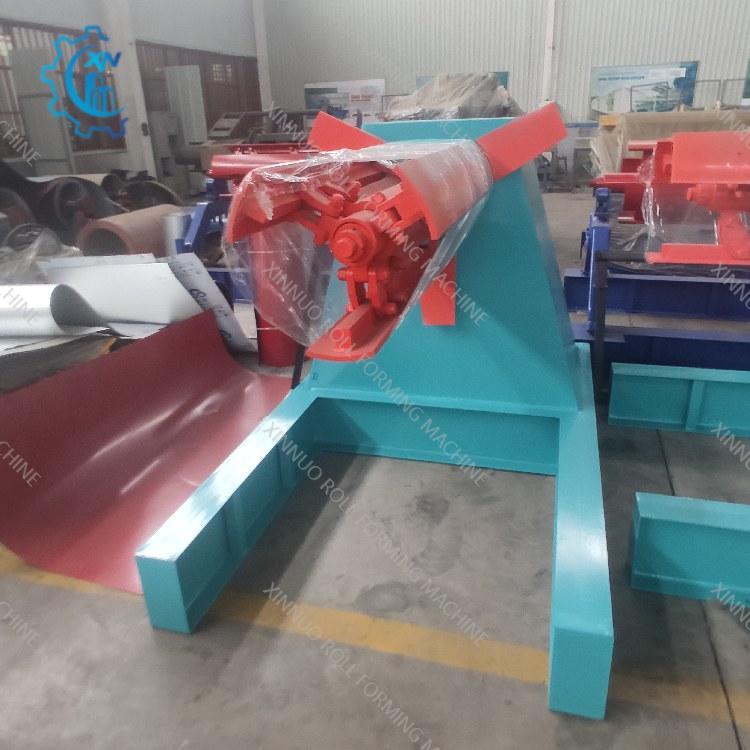

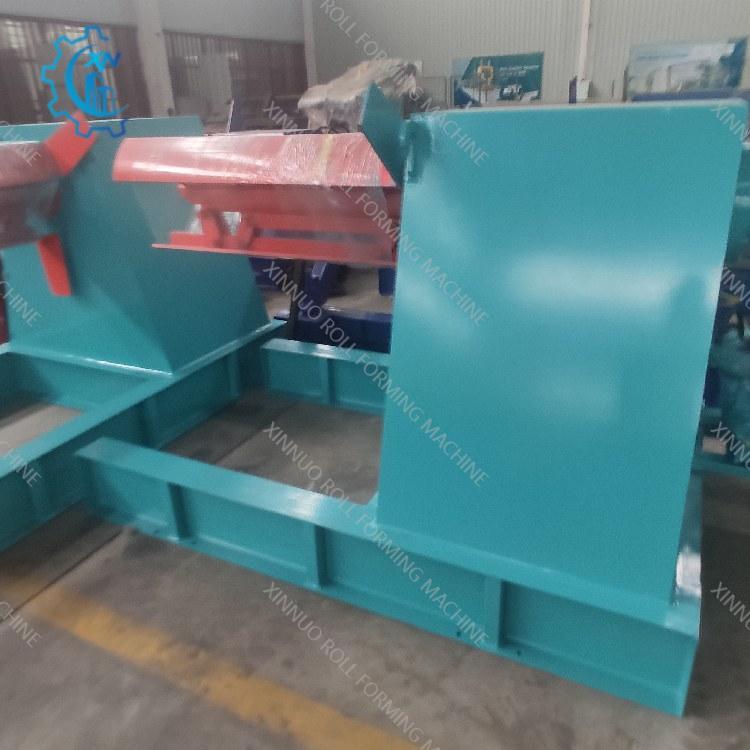

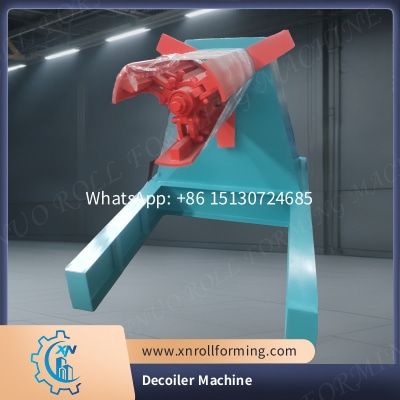

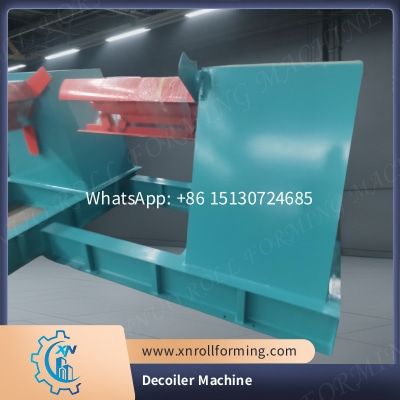

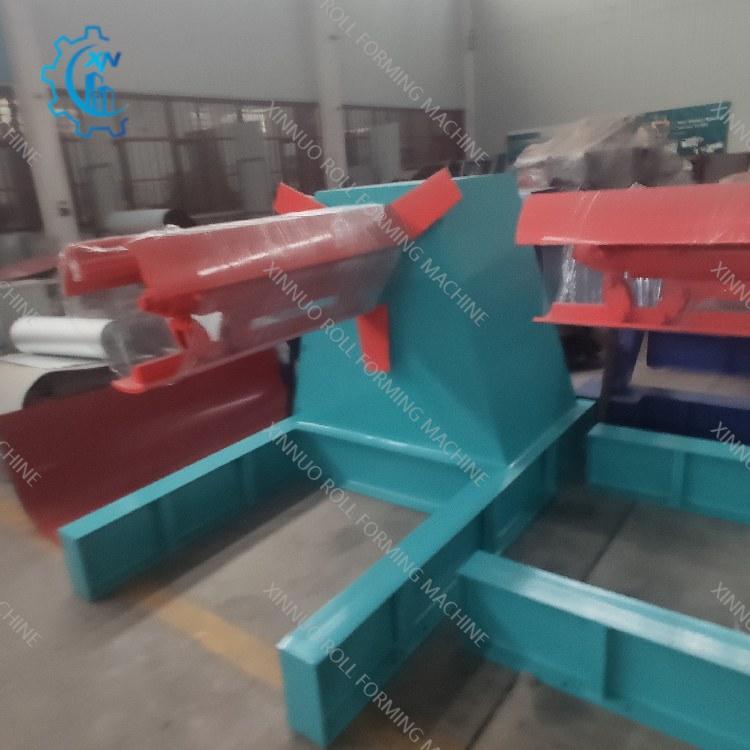

Xinnuo Decoiler Machine: Streamlining Coil Processing with Precision
Xinnuo’s Decoiler Machine stands as a vital component in modern coil processing lines, engineered to unwind coiled materials with unmatched efficiency and accuracy. Designed to integrate seamlessly into diverse production workflows, this machine ensures a steady, controlled feed of materials, reducing downtime and enhancing overall productivity across industries.
Core Functionality and Mechanism
At its essence, the Decoiler Machine simplifies the unwinding of coiled materials—such as steel, aluminum, copper, or plastic—by converting rigid coils into flat, manageable sheets. Its motor-driven mandrel expands to secure the coil’s inner diameter, preventing slippage during rotation. As the mandrel turns, a tension control system adjusts speed dynamically, maintaining consistent material tautness. This prevents wrinkling, stretching, or breakage, critical for preserving material integrity, especially with thin or high-tensile substrates. Optional guiding rollers further align the material, ensuring precise feeding into downstream equipment like presses, cutters, or roll formers.
Technical Excellence
Xinnuo’s Decoilers are built to handle varied specifications, catering to both light and heavy-duty applications. They accommodate coil thicknesses from 0.2mm to 8mm and widths up to 2000mm, with inner diameters ranging from 300mm to 600mm and outer diameters up to 1800mm. Load capacities span 1 ton to 30 tons, supported by robust steel frames that minimize vibration during operation. The drive system, powered by 0.75kw to 7.5kw motors, enables unwinding speeds of 5m/min to 30m/min, adjustable via a user-friendly control panel. Advanced models feature PLC integration, allowing operators to preprogram tension settings and monitor performance in real time.
Model Variants for Diverse Needs
- Manual Decoilers: Ideal for small-scale operations, these cost-effective models rely on hand-cranked mandrel adjustment, suitable for lightweight coils (up to 3 tons) and simple production lines.
- Motorized Decoilers: Equipped with electric mandrel expansion and variable speed control, these handle medium loads (3–10 tons) and integrate smoothly with semi-automated systems.
- Hydraulic Decoilers: Designed for heavy-duty tasks, they use hydraulic power for mandrel expansion and tension regulation, managing coils up to 30 tons. They excel in industries like automotive manufacturing, where large-volume, thick-gauge materials are standard.

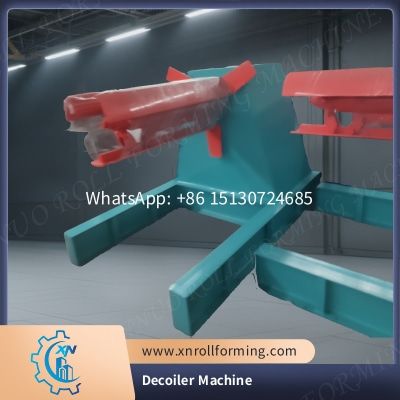

- Double-Station Decoilers: Featuring two mandrels, these enable continuous operation—while one coil unwinds, the other is loaded—eliminating changeover delays in high-speed production.
Industry Applications
The Decoiler Machine is indispensable across sectors. In automotive manufacturing, it feeds steel coils for stamping body parts. In construction, it unwinds galvanized sheets for roofing and ductwork. The appliance industry uses it to process aluminum coils for refrigerators and washing machines. Even in electronics, it handles thin copper strips for circuit boards, thanks to its precise tension control.
Support
All Decoilers come with a 1-year warranty, covering parts and labor. Xinnuo’s service includes on-site installation, operator training, and lifetime technical support. CE and ISO certifications ensure compliance with global standards, making Xinnuo’s Decoiler Machine a reliable choice for businesses seeking to optimize coil processing efficiency.
