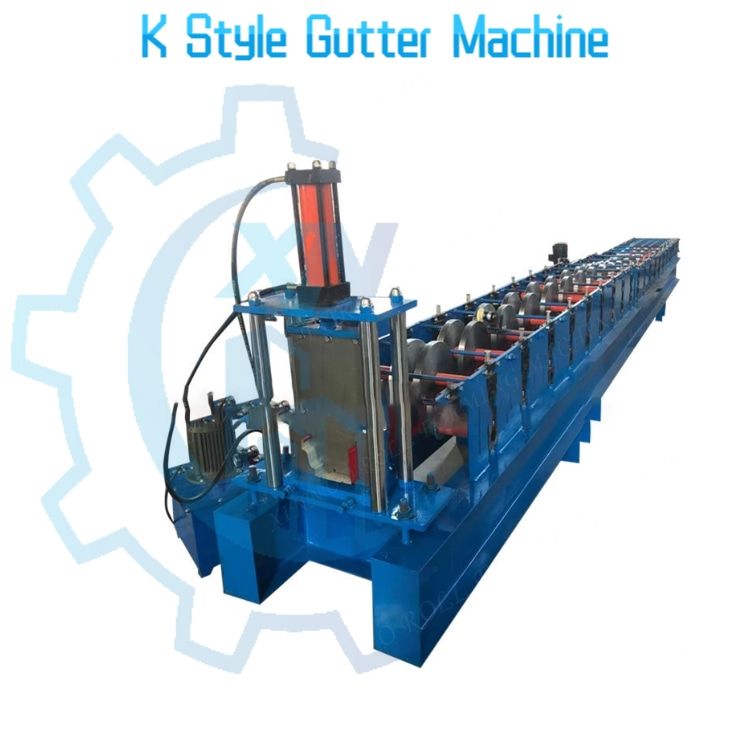

K Style Gutter Machine
Why Choose the K Style Gutter Machine?
✔️ Precision Roll Forming
This machine is engineered with advanced rollers and guides to ensure smooth, accurate K-style gutter profiles every time. No distortion, no cracking — just consistent quality.
✔️ Heavy-Duty Design
Built with high-grade steel and industrial-strength components, the K Style Gutter Machine can handle continuous production with minimal maintenance. It's a long-term investment that delivers real ROI.
✔️ Material Flexibility
Capable of processing pre-painted galvanized steel, aluminum, and even copper coils, with thickness from 0.3 mm to 0.8 mm and widths up to 400 mm, giving you a wide range of options to meet different market demands.
✔️ Portable or In-Plant Use
The machine can be mounted in your workshop or on a trailer for on-site installation, making it ideal for gutter contractors looking to produce and install at customer locations.
✔️ Smart Operation
Optional PLC touchscreen, hydraulic cutting, auto length control, and encoder systems provide easy control and repeatable precision for each job.
Product Details
Machine Parameters
|
No
|
Item
|
Parameters |
|
1
|
Raw material width
|
300-600 mm
|
|
2
|
Sheet effective width
|
80-200 mm
|
|
3
|
Raw material
|
Color steel sheet , Stainless steel or galvanized steel sheet
|
|
4
|
Material thickness
|
0.3-0.8 mm or customized
|
|
5
|
Forming roller material
|
45# steel plated with chrome
|
|
6
|
Shaft diameter
|
40 mm
|
|
7
|
Forming roll station
|
8-16 steps
|
|
8
|
Main motor power
|
3 KW 4 KW 5.5 KW(according to type)
|
|
9
|
Hydraulic power
|
4 KW (according to type)
|
|
10
|
Control system
|
PLC control
|
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
