| Develivery time:45-60 workdays |
| Model: K-stype roll forming machine |
| Payment:40% T/T deposit,60% balance before shipping |
| Voltage:380V 50HZ 3Phase or based on customer’s need . |
| Warranty : 1 years for machinery warranty |
Gutter Roll Forming Machine
Product Overview: Efficient & Precise Building Drainage Solution
Hebei Xinnuo's Gutter Roll Forming Machine is a modern cold roll forming equipment integrating precision mechanics, advanced electronic control, and high-efficiency production. It is designed to automatically process metal coils (e.g., color steel, galvanized steel, aluminum) into various specifications of gutters and photovoltaic water channels.
This machine is an indispensable core production equipment for modern building roof drainage systems and photovoltaic support systems. It significantly improves production efficiency, ensuring the dimensional accuracy, surface quality, and structural strength of each gutter product.
Working Principle: Fully Automated Precision Process
The machine adopts advanced cold roll forming technology, with a fully automated workflow:
Coil Loading: Heavy-duty decoiler with hydraulic expansion securely holds the coil.
Feeding & Guiding: Precision guiding device ensures the sheet is flat and centered.

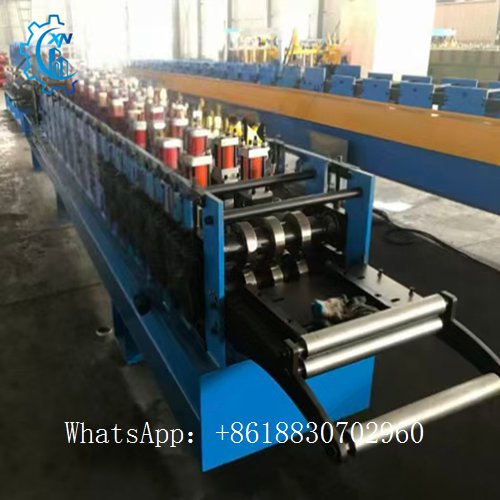

Continuous Roll Forming: 14-18 passes of precision-machined rollers progressively bend the sheet into shape at room temperature.

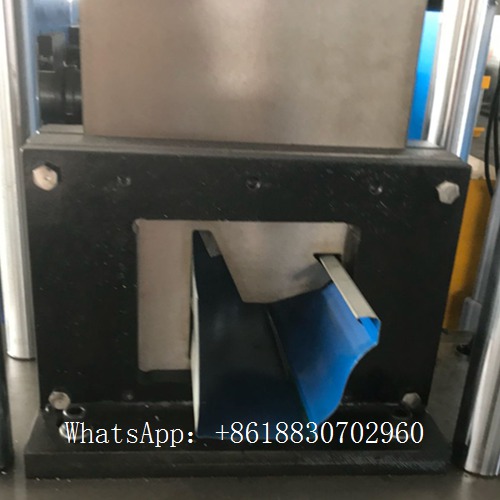

Optional Punching: Integrated punching unit for hanging holes and drainage holes, controlled by PLC.
Cutting to Length: High-speed flying saw or hydraulic cutter performs precise cutting.
Product Output: Finished gutters are conveyed to the output table, with optional automatic stacking.

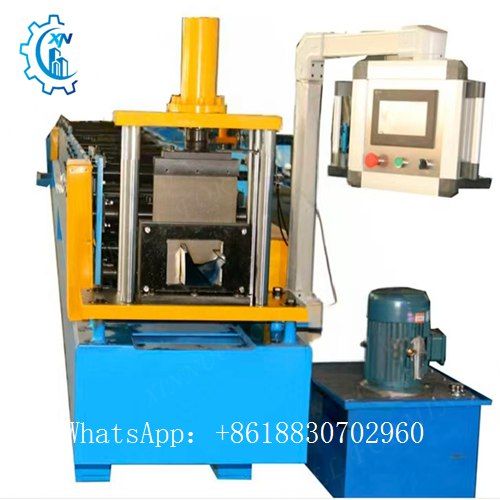

The entire process is managed by a PLC + touch screen control system for high automation and stability.
| Parameter | Specification |
|---|---|
| Applicable Materials | Color steel, galvanized steel, aluminum, stainless steel |
| Material Thickness | 0.6 - 1.5 mm |
| Forming Speed | 8 - 20 m/min |
| Forming Stations | 14 - 18 passes |

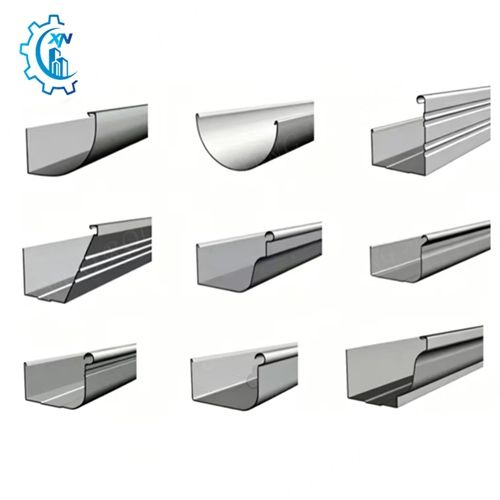

| Product Specifications | 5", 6", 7"，8‘’ U-type gutters; W-type photovoltaic channels |
| Cutting Method | High-speed flying saw / Hydraulic cutting |
| Control System | PLC + Touch Screen |
| Total Power | Approx. 15 - 25 kW |
| Power Supply | 380V / 50Hz / 3-phase |
Applications
Our gutter products are widely used in:
High-end residential buildings and villas
Commercial buildings and high-rises
Industrial plants and steel structures
Photovoltaic power station systems
Municipal engineering and public facilities
We offer comprehensive customization to meet your unique requirements:
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
