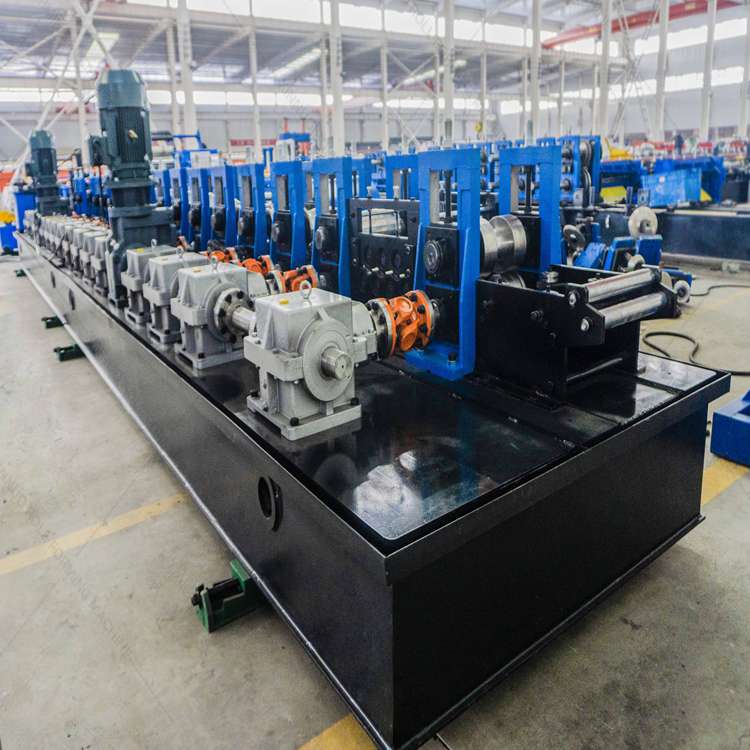

Hat Shaped Steel Forming Machine
Product Description
The Hat Shaped Steel Forming Machine is designed for fast and precise production of hat channels used in ceilings and partitions. Compact, durable, and ideal for light steel construction.
Fully automatic, no manual roller changes required.
High-precision rollers with polished chrome plating ensure clean edges and accurate dimensions.
Integrated PLC system supports English, Portuguese, and Spanish languages. Remote upgrade and monitoring available.
One operator can handle the entire production line with minimal training required.
Custom punching positions on flange, web, or edge. Adaptable for structural engineering requirements.

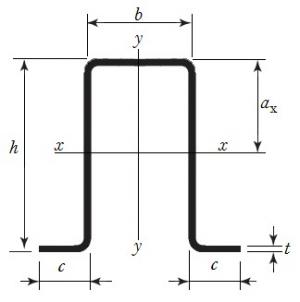

Profile Drawing

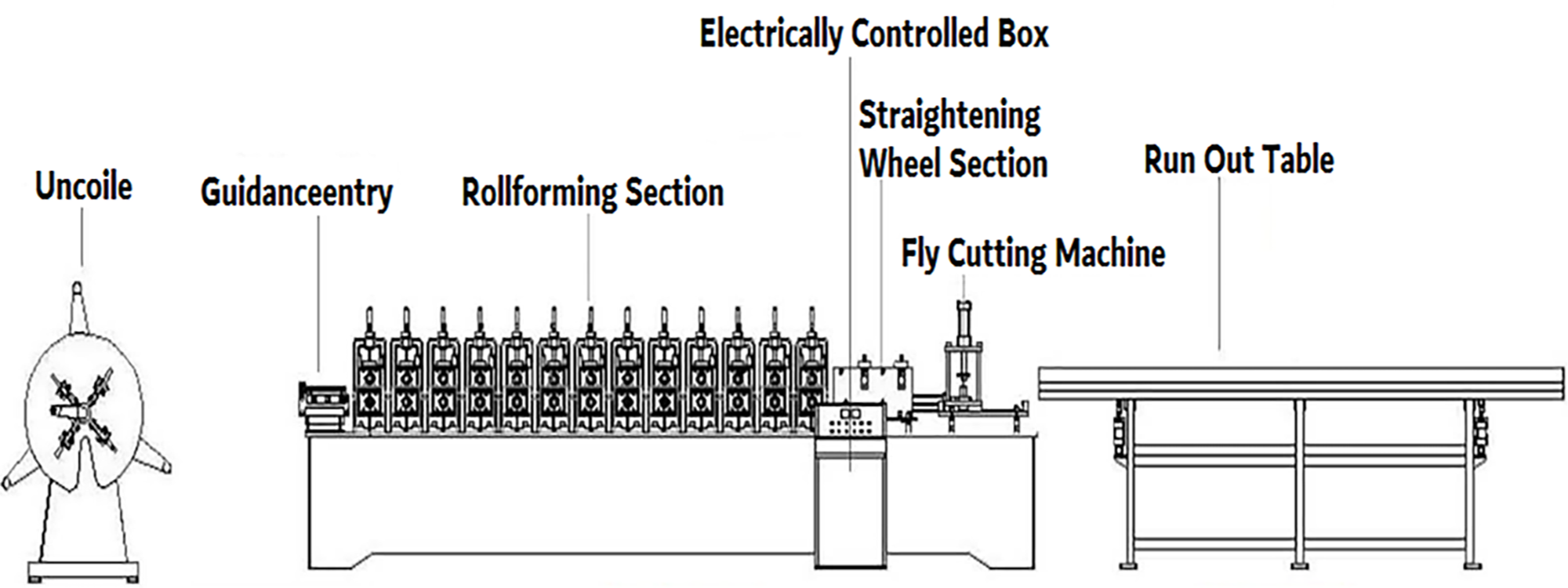

Working Flow

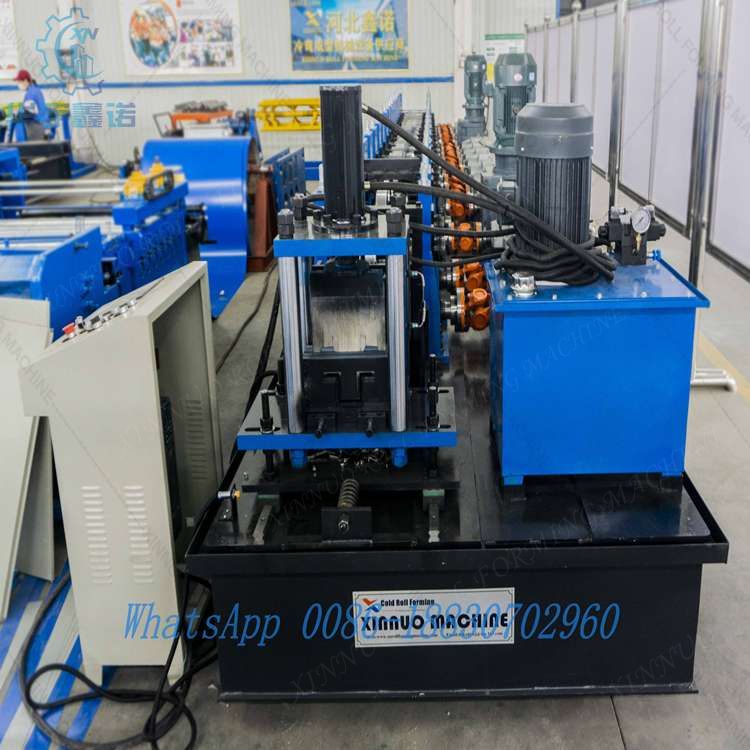

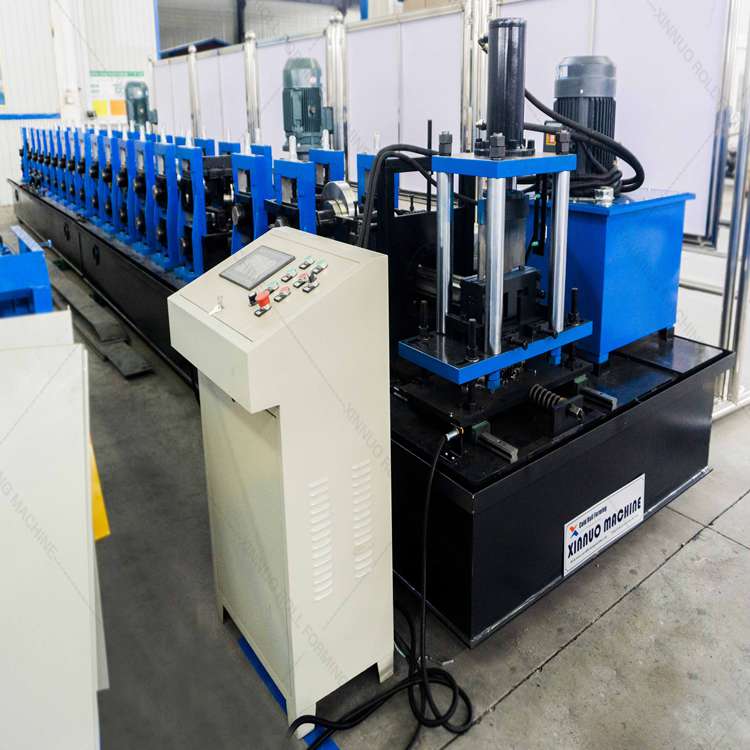

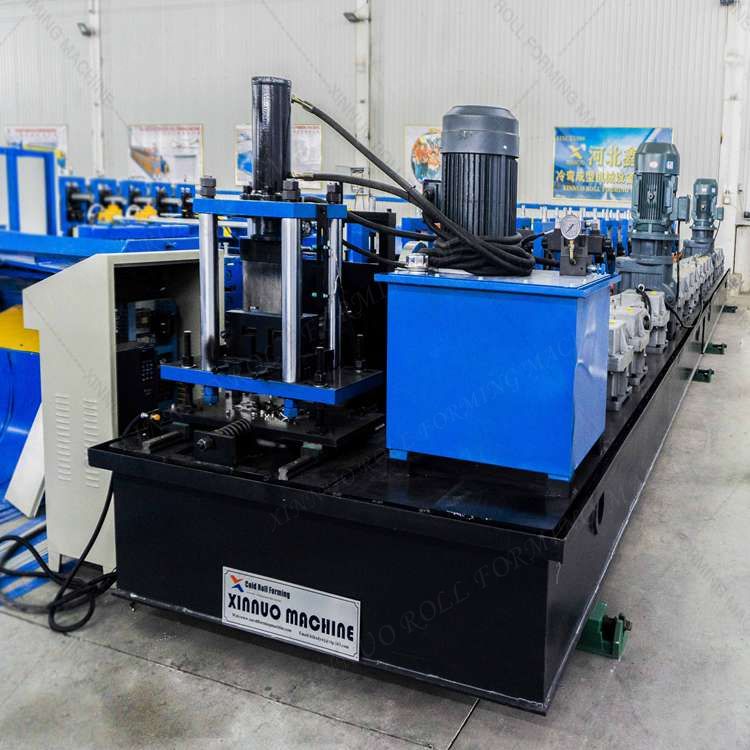

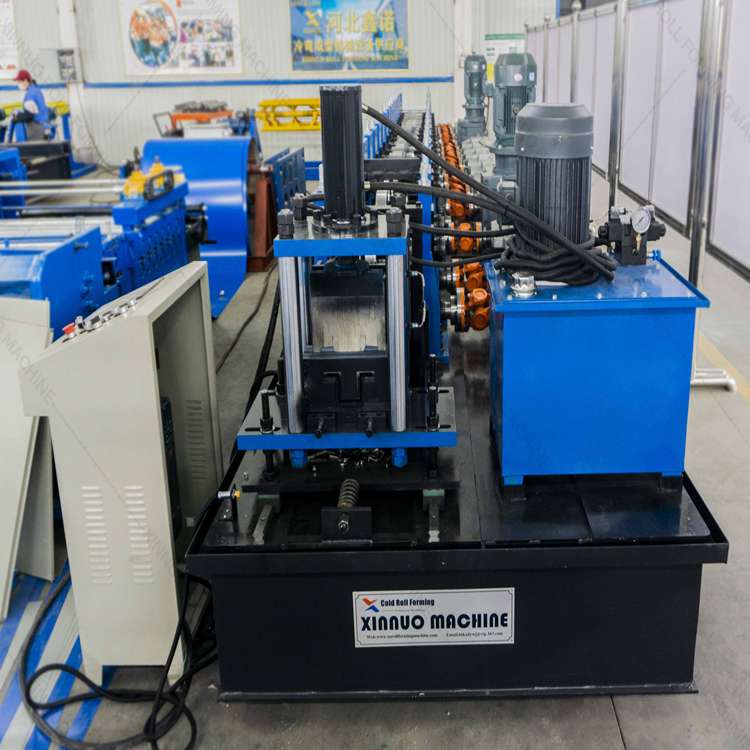

Product Details
Machine Parameters
| Raw material | Galvanized steel coil |
| Thickness | standard 0.3-0.8 or other thickness also can do up to 1.5mm |
| Machine size | around 8*2.0 *1.6m |
| Machine weight | around 14 tons |
| Rollers | around 18-24 rollers, it depends on the profile drawing |
| Roller material | CR12 Steel , Quenched treatment with high temperature |
| Maine motor | 30kw |
| Pump motot | 11kw |
| Shaft diameter | 100mm |
| Maine structure | Arch structure |
| Transmission | Gear/ gear box |
| Control systerm | PLC control |
| Punch hole | it depend on customer need |
| Speed | 25-50 meters/ minutes |
Prodcut Application
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
