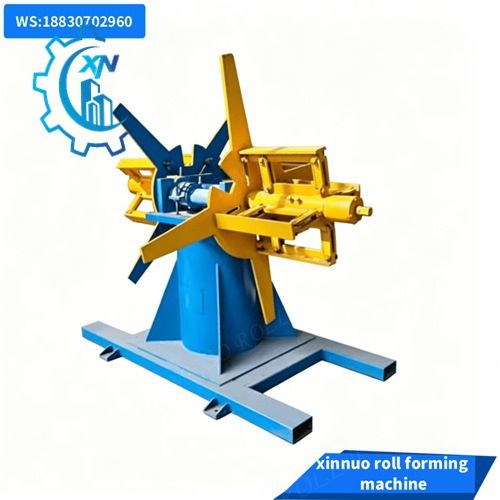

Xinnuo Uncoiler Machine: Efficient Coil Handling for Seamless Production
Xinnuo’s Uncoiler Machine is a specialized device designed to simplify the initial handling of coiled materials, serving as a foundational element in production lines where consistent material flow is critical. Unlike more complex decoiling systems, this machine focuses on safe, efficient unwinding, making it ideal for operations that prioritize simplicity and reliability.
Key Design and Operation

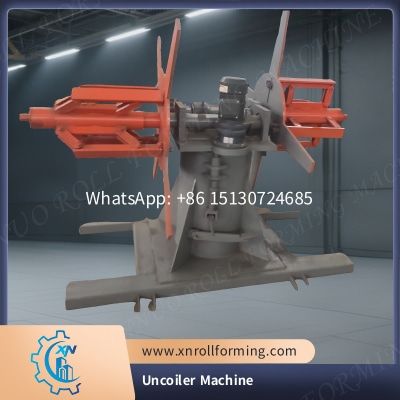

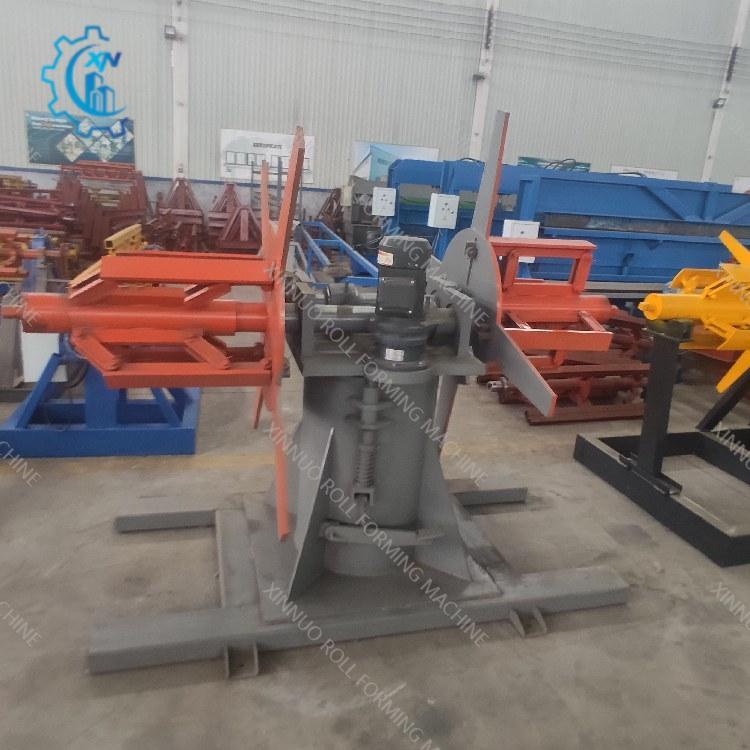

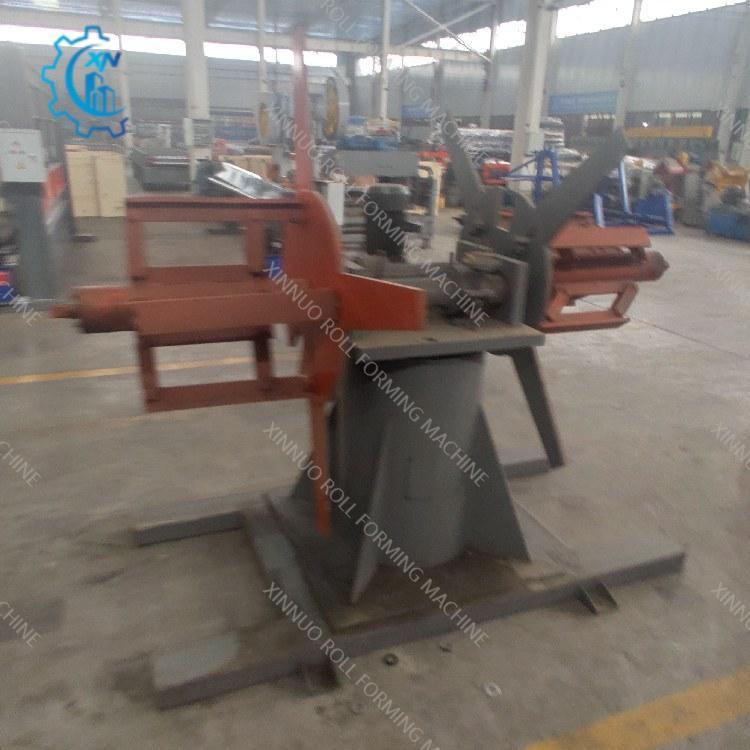

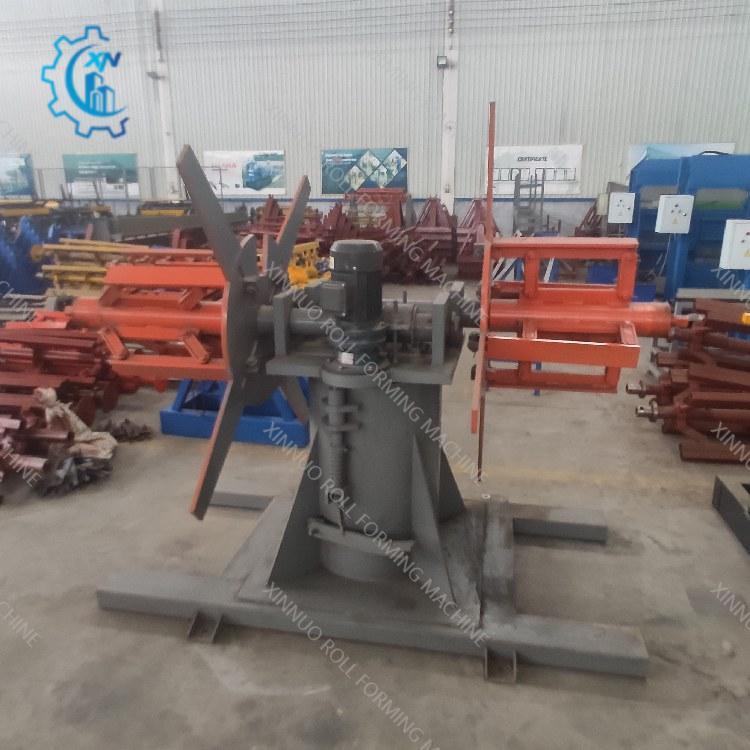

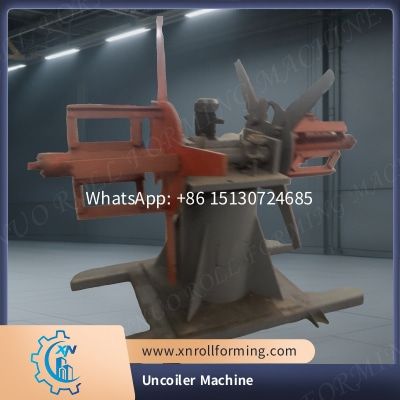

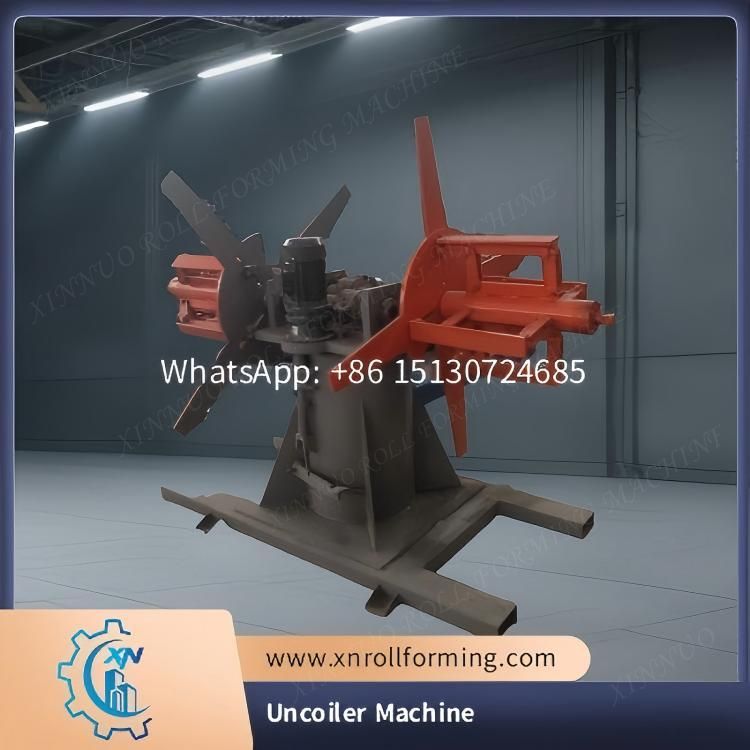

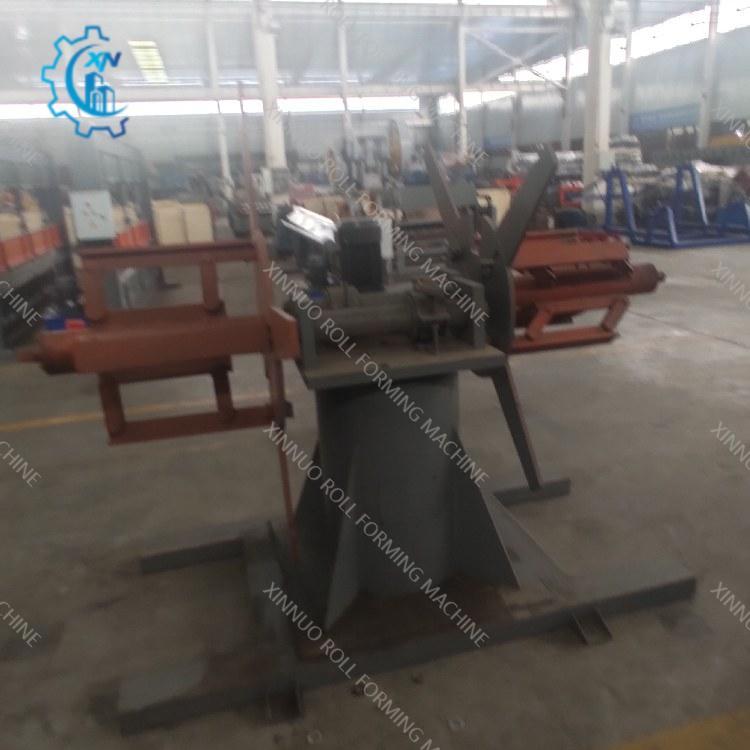

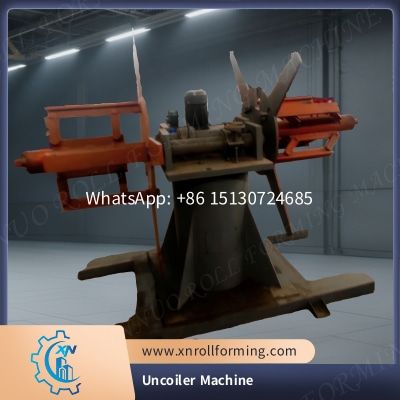

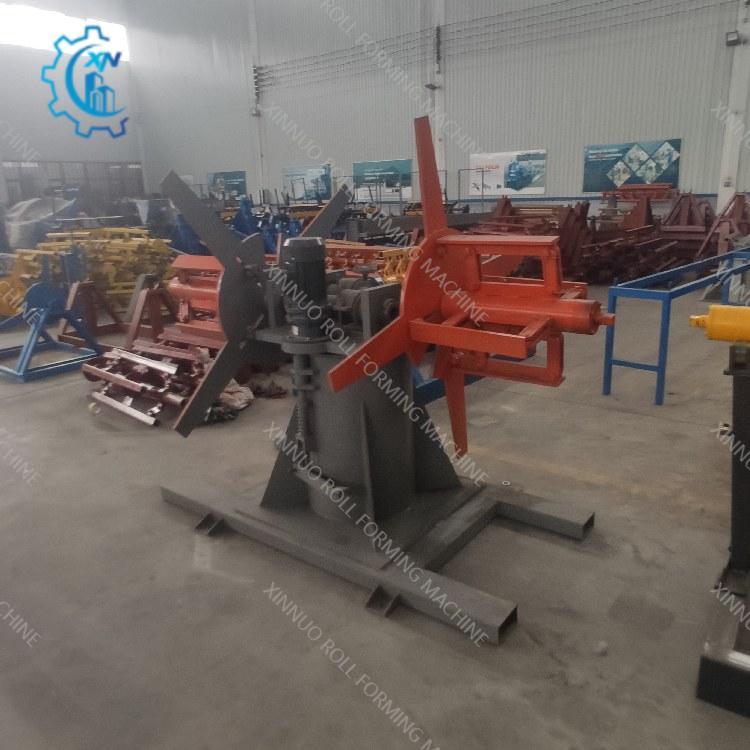

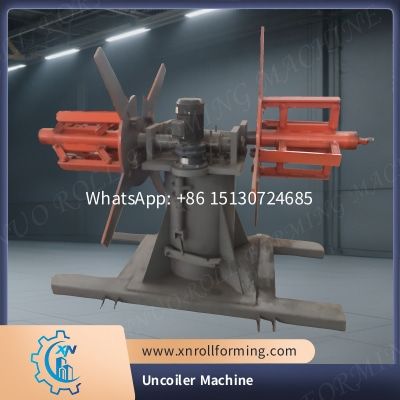

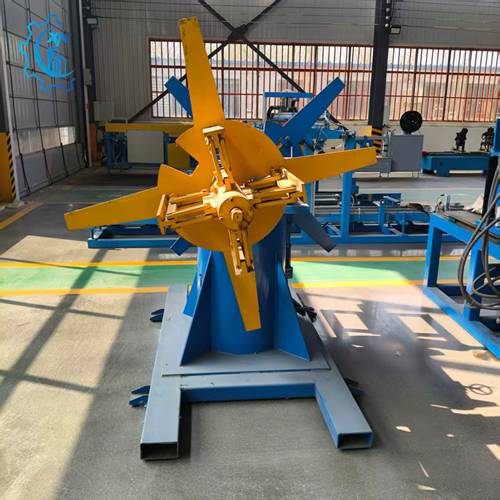

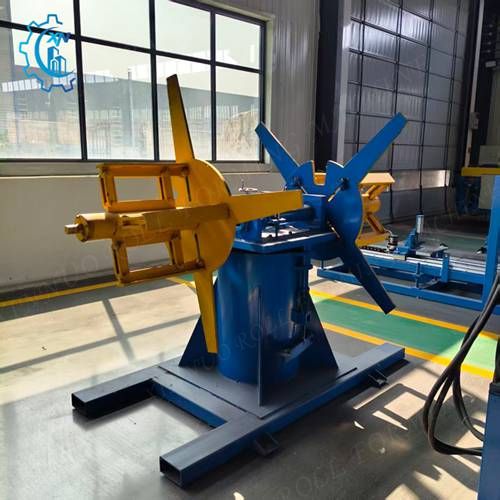

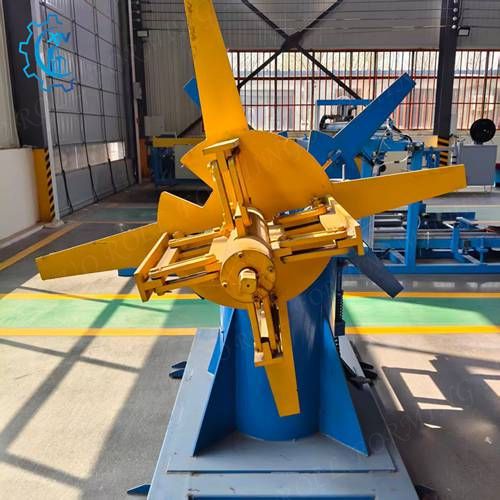

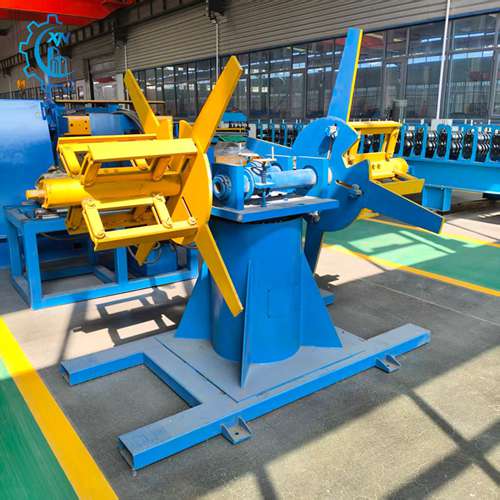

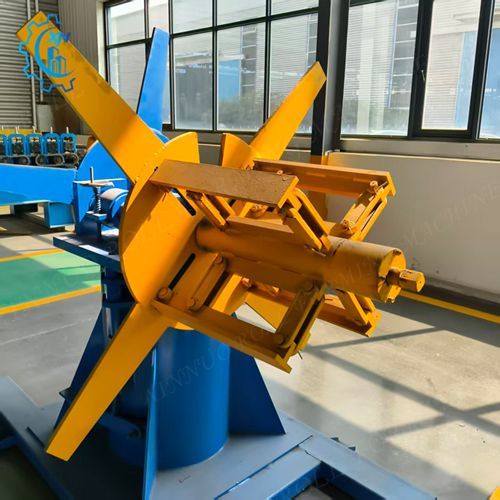

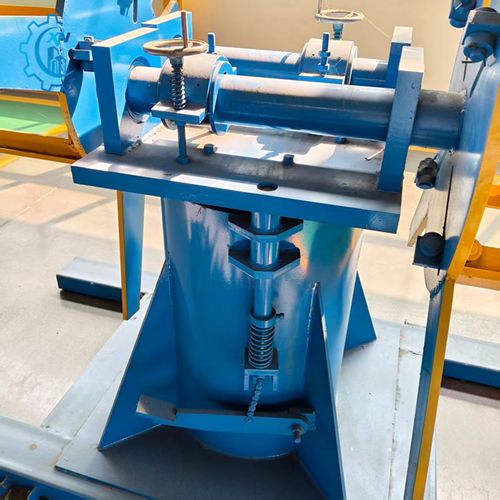

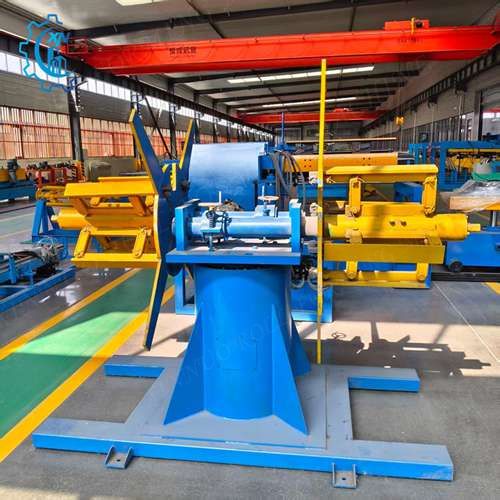

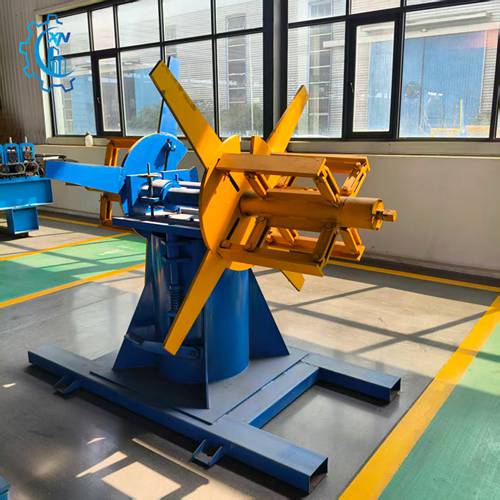

The Uncoiler Machine features a sturdy base with a horizontally mounted spindle that accommodates coiled materials. Its core design revolves around a manual or semi-automatic expansion mechanism: the spindle adjusts to fit the inner diameter of the coil, securing it firmly to prevent lateral movement during unwinding. A braking system, often manual or pneumatic, allows operators to control the unwinding speed, preventing the coil from unraveling too quickly and causing tangles or material damage. This straightforward design ensures easy operation, even for less experienced personnel, and minimizes the risk of downtime due to mechanical complexity.
Performance Specifications
Xinnuo’s Uncoiler Machines are tailored to handle a range of material types, including steel, aluminum, and non-ferrous metals. They support coil thicknesses from 0.3mm to 5mm and widths up to 1500mm, with inner diameters ranging from 250mm to 500mm and outer diameters up to 1200mm. Load capacities vary from 500kg for compact models to 10 tons for heavy-duty versions, making them suitable for small workshops and medium-scale production facilities alike. The unwinding speed is adjustable up to 10m/min, controlled via a simple lever or dial, ensuring compatibility with downstream equipment that operates at moderate speeds.
Model Variations
- Manual Uncoilers: Perfect for low-volume operations, these models require hand-cranked spindle adjustment and manual braking. They are lightweight, portable, and cost-effective, ideal for startups or businesses with limited space.
- Semi-Automatic Uncoilers: Equipped with electric spindle expansion and automated braking, these reduce operator effort. They handle loads up to 5 tons and integrate smoothly with entry-level roll formers or cutters.
- Heavy-Duty Uncoilers: Built with reinforced frames and larger spindles, these manage coils up to 10 tons. They include features like anti-slip surfaces and reinforced bearings to handle thicker, denser materials without compromising stability.
Practical Applications
This machine excels in industries where basic coil handling is sufficient. In metal fabrication shops, it feeds coils to bending machines for making brackets or frames. In the HVAC sector, it unwinds aluminum coils for ductwork production. Small-scale construction suppliers use it to process galvanized sheets for roofing accessories, while hardware manufacturers rely on it for feeding metal strips into punching machines for making nails or screws. Its simplicity also makes it a favorite in educational institutions or vocational training centers teaching metalworking basics.
Service
All units come with a 1-year warranty, and Xinnuo provides on-site setup assistance and operator guides. While designed for durability, our technical team offers responsive support for maintenance or troubleshooting. Compliant with industry safety standards, these uncoilers deliver consistent performance, making them a smart investment for businesses seeking reliable coil handling without unnecessary complexity.
