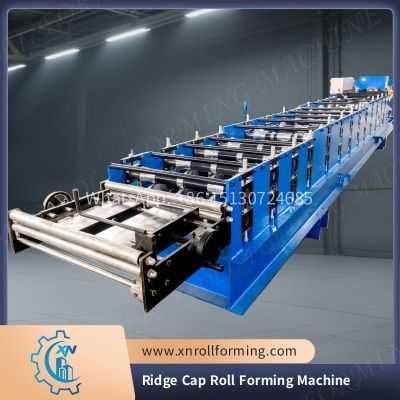

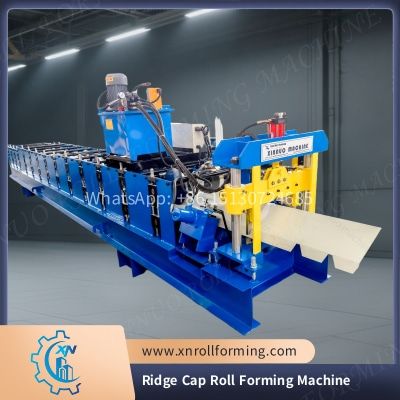

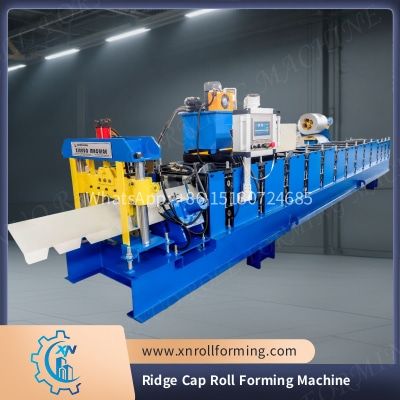

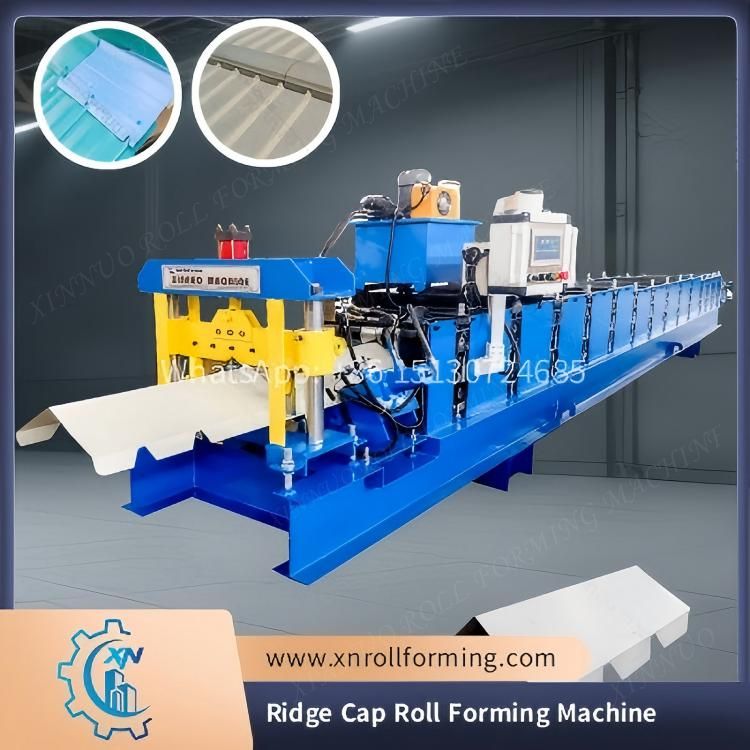

Ridge Cap Roll Forming Machine

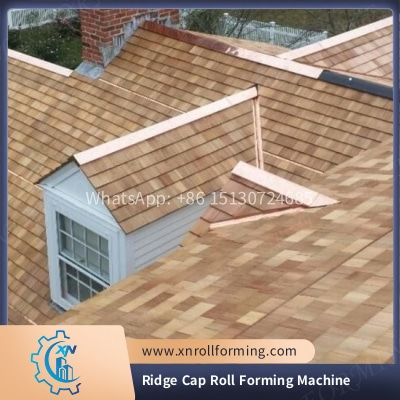

The Xinnuo Ridge Cap Roll Forming Machine is an advanced solution designed for the efficient production of high-quality ridge caps, essential for sealing and finishing the roof edges of steel buildings. Engineered for precision, stability, and long-term performance, this machine is ideal for manufacturers seeking consistent results with minimal downtime.

Built with adaptability in mind, it can process a wide range of feeding material widths and thicknesses—0.3 to 0.6 mm as standard, or customized to meet specific project requirements. This flexibility allows producers to create ridge caps suited to various roofing profiles, from small residential projects to large industrial applications.

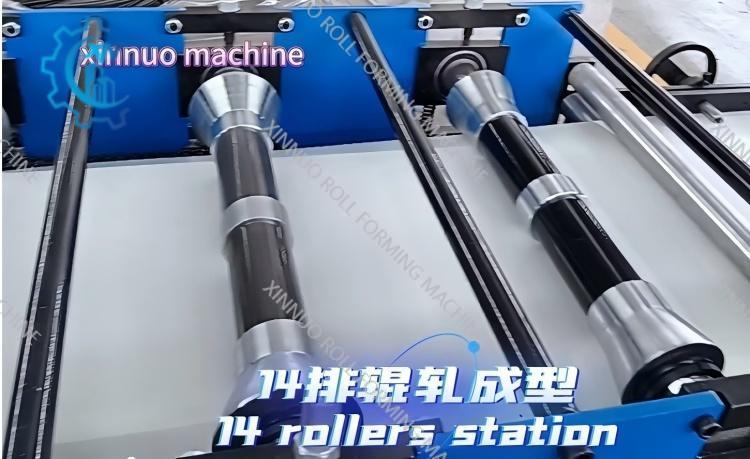

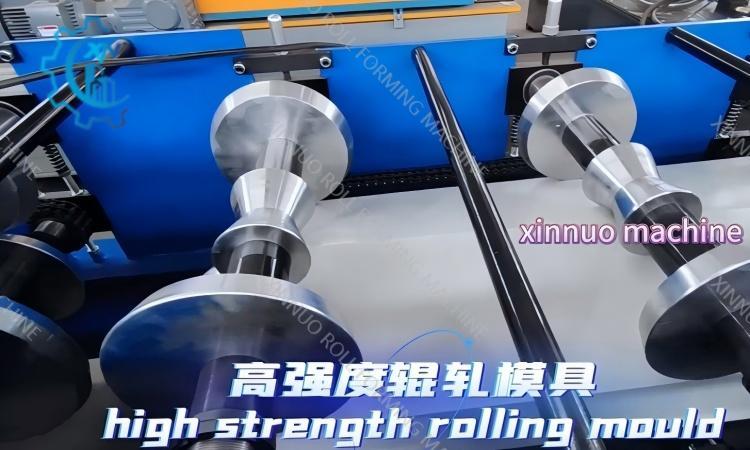

The forming section is equipped with 11–18 roller stations, manufactured from robust 45# steel. These rollers are precision-machined to ensure smooth shaping, uniform bending, and minimal surface scratching, guaranteeing a professional finish on every product. The roller shafts, with diameters between 70 and 80 mm, provide strong support and reliable alignment during high-speed operation.

With a production speed of 15–18 meters per minute, the Xinnuo Ridge Cap Roll Forming Machine balances speed and quality, enabling high-volume manufacturing without sacrificing dimensional accuracy. The main frame is built from 300–400 mm H-steel with a wall thickness of 12–18 mm, offering exceptional structural stability and resistance to vibration—critical for consistent forming.

Powered by a 3 kW motor, the system operates with high energy efficiency while delivering the torque necessary for continuous, smooth production. The standard electrical configuration is 380V, 50Hz, three-phase, but voltage and frequency can be adapted to meet regional standards.

Designed for convenience and durability, the entire machine weighs about 4.2 tons, ensuring a stable base during operation. Its heavy-duty design requires minimal maintenance, and the layout is operator-friendly, reducing setup times and allowing for easy adjustment when changing specifications.

In addition to standard features, Xinnuo offers complete customization, from roller configurations to feeding dimensions and automation levels, enabling clients to tailor the equipment to their exact needs. This ensures compatibility with different material types, coating finishes, and profile designs.

Whether for large-scale roofing projects or specialized orders, the Xinnuo Ridge Cap Roll Forming Machine delivers reliability, efficiency, and consistent product quality—making it a valuable investment for roofing component manufacturers worldwide.
