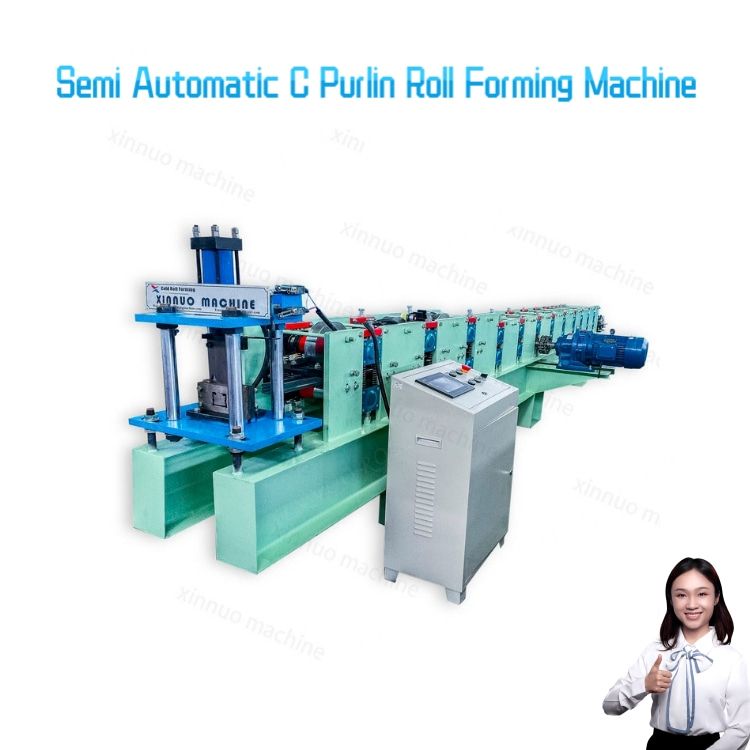

Automatic Model C Purlin Roll Forming Machine
Product Description
One-click Size Change · High Efficiency · Smart Material Saver.
Our fully automatic C Purlin Roll Forming Machine offers quick profile adjustment (80–300mm) without tool change.
High-speed forming up to 30m/min, with precise punching options and smart control system. Easy to operate, low maintenance.

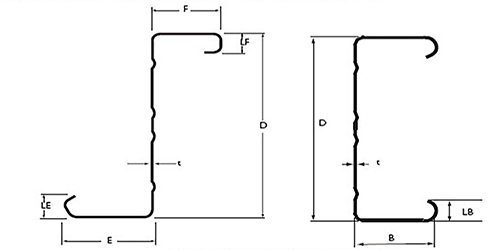

Profile Drawing

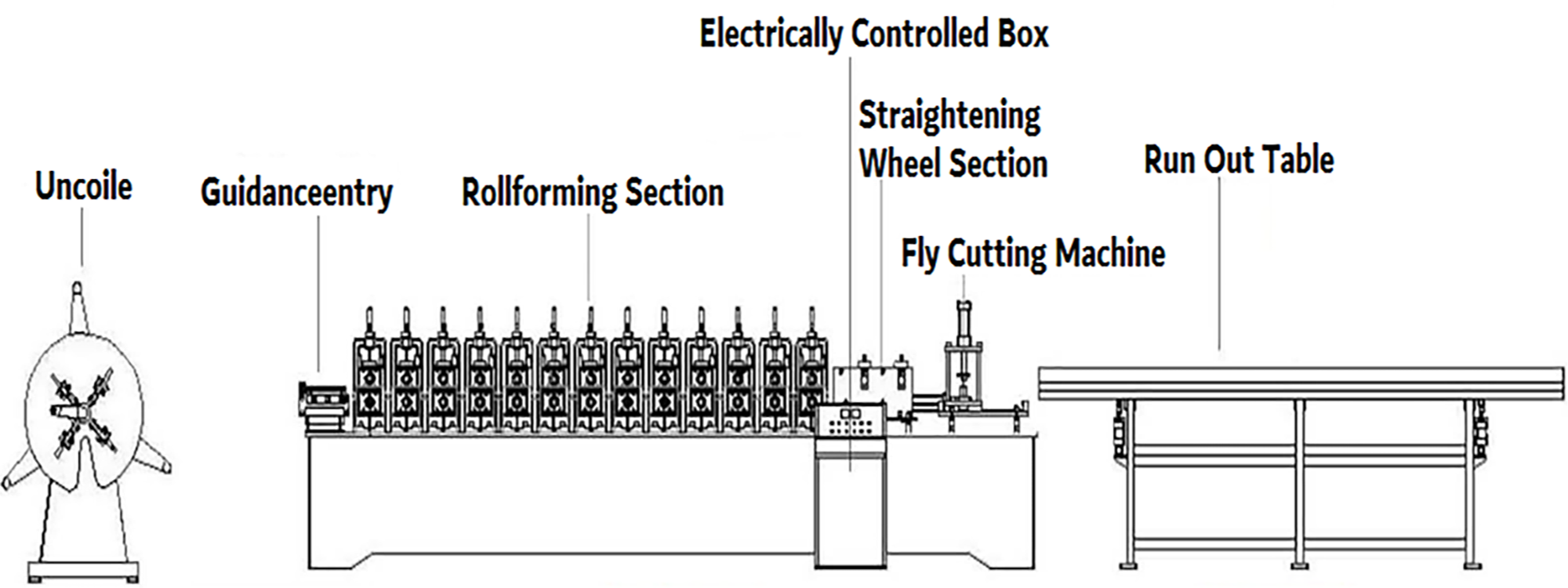

Working Flow
Product Details
Machine Parameters
|
Name
|
Automatic Model C Purlin Roll Forming Machine
|
|
Suitable to process
|
Galvanized steel strips/cold rolled strips
|
|

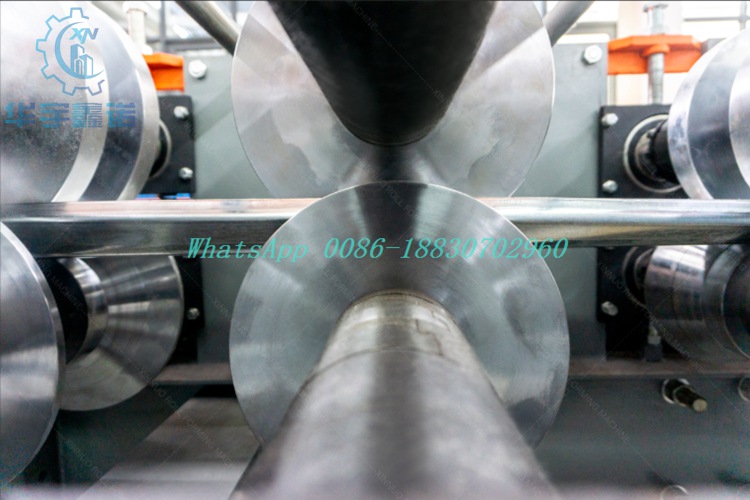

Roller
|
14Rows
|
|
Dimensions
|
8*1.3*1.5m
|
|
Motor Power
|
5Kw
|
|
Pump Station Motor
|
3Kw
|
|
Thickness of the plate
|
0.8mm-2mm
|
|
Productivity
|
10-15m/min
|
|
Material of the cutting blade
|
Cr12MoV,Quenched treatment 58ºC-60ºC
|
|
Diameter of the roller
|
70mm
|
|
Weight
|
About 5500Kgs
|
|
Main structure of the machine
|
300 H Beams and arch structure
|
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
Control system
|
PLC control (Delta) or as customer’s need
|
|
Drive mode
|
Motor driver
|
|
Touch screen
|
Delta or as customer’s need
|
|
Rolling materials
|
GCr15(bearing steel)hard chrome plated after heat treatment
|
|
Length Tolerance
|
±1mm
|
|
Type of cutting
|
Length-set cutting Guiding pipe Hydraulic cutter Each side one Oil cylinder |
Prodcut Application
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
